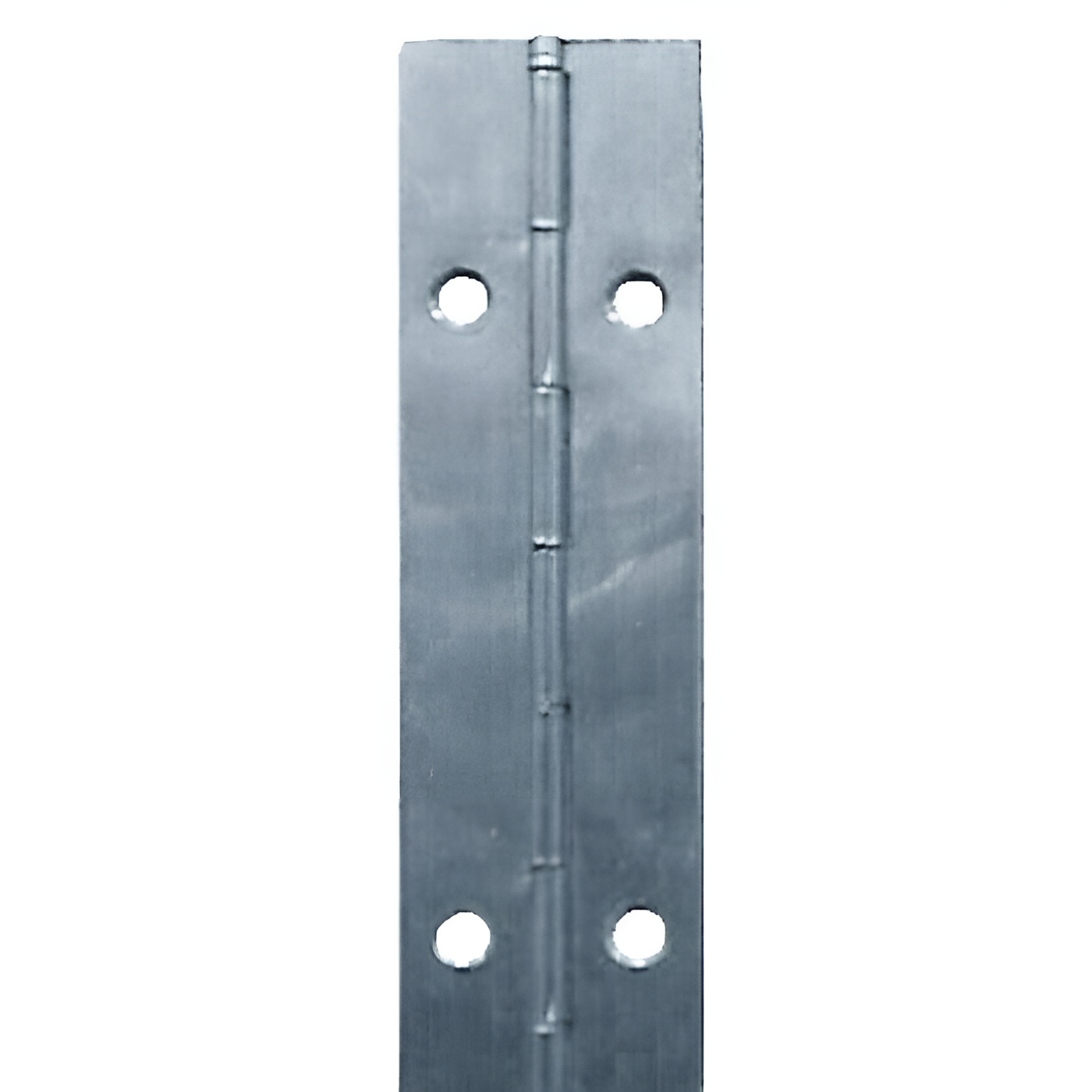

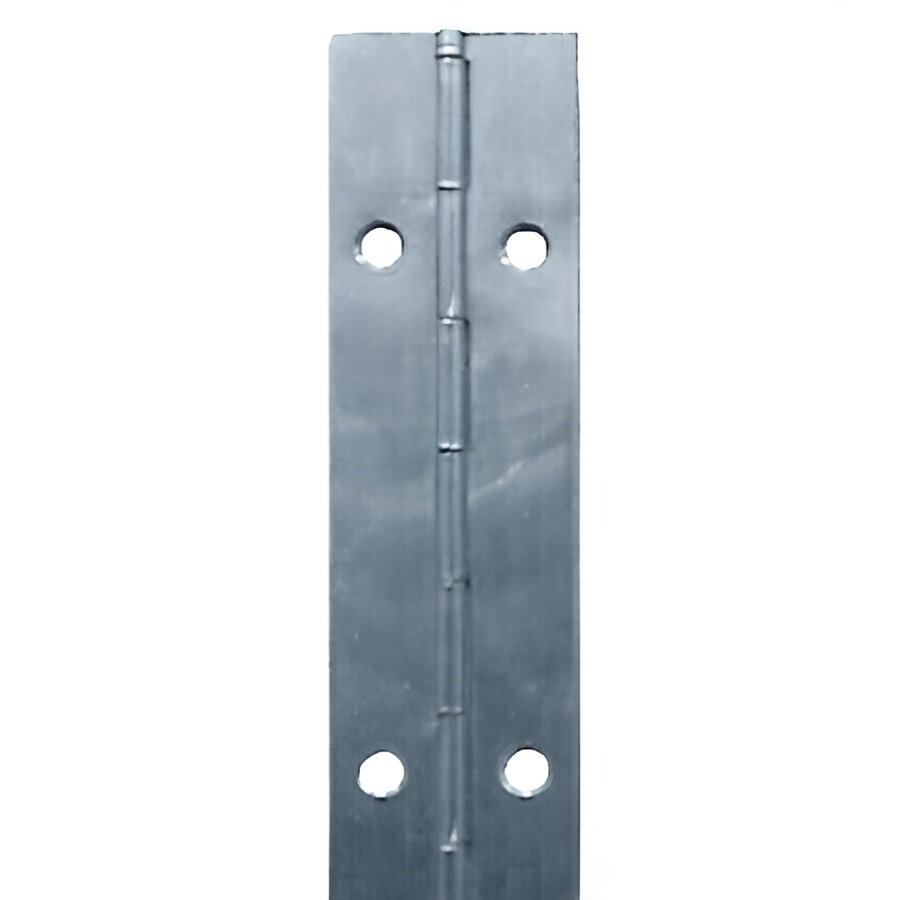

Richelieu 501740180 50mm Piano HingeRichelieu 501740180 Piano Hinge - Width 50 mm offers an exceptional blend of strength and versatility, making it a preferred choice for various applications. Commonly referred to as continuous hinges, they are designed to provide smooth operation for a wide range of wood and metal utilities including cabinets, storage boxes, and outdoor sheds. The hinge's robust construction is crafted from steel, ensuring durability in demanding environments such as agriculture, construction, and marine applications. With a length of 68 1/2 inches and a width of 1 31/32 inches, this piano hinge is engineered for easy installation and reliable performance. The fixed pin with a diameter of 0.00776 inches contributes to its stability, while the 2-inch center-to-center drilling allows for convenient alignment. Finished in a sleek nickel color, this hinge adds a polished touch to any project. Ideal for heavy-duty tasks, the Richelieu piano hinge is suitable for use in aluminum shower doors, security deposit boxes, and even casino machines. Its three-component design simplifies the installation process, making it a cost-effective choice for both professionals and knowledgeable homeowners. Choose the Richelieu 501740180 for a dependable solution that meets your most rigorous requirements.
Piano Hinge - Width 50 mm
Piano hinges, also known as continuous hinges, take their name from their original use in piano lids. They are now used in a number of everyday wood and metal utilities such as chests, folding doors, trunks and safes as well as in heavy-duty utilities including shed and barn doors or fire doors. Piano hinges have only 3 three components, which makes them simple to use and install. The load capacity of piano hinges is unfortunately very difficult to calculate. It is dictated by the material used, the thickness of the hinge itself and the pin diameter. These hinges can however be suitable for the most demanding applications if selected with care, and can be a very strong and cost-effective choice of hardware.
Made in Canada
Application
- Cabinets, storage boxes & outdoor sheds
- Aluminum shower doors
- Display booths
- Security deposit boxes
- Money-counter machines
- Trailers/campers/mobile homes
- Waste containers
- Casino and arcade machines
- Agriculture, construction and airline equipment
- Large ocean vessels/sail boats (salt, rust and water-proof)
- Appliances
- Laboratory and medical equipment
Attributes
Center to Center Drilling: 2 in
Color/ Finish: Nickel
Fastener: #6 Screw
Finish: Nickel

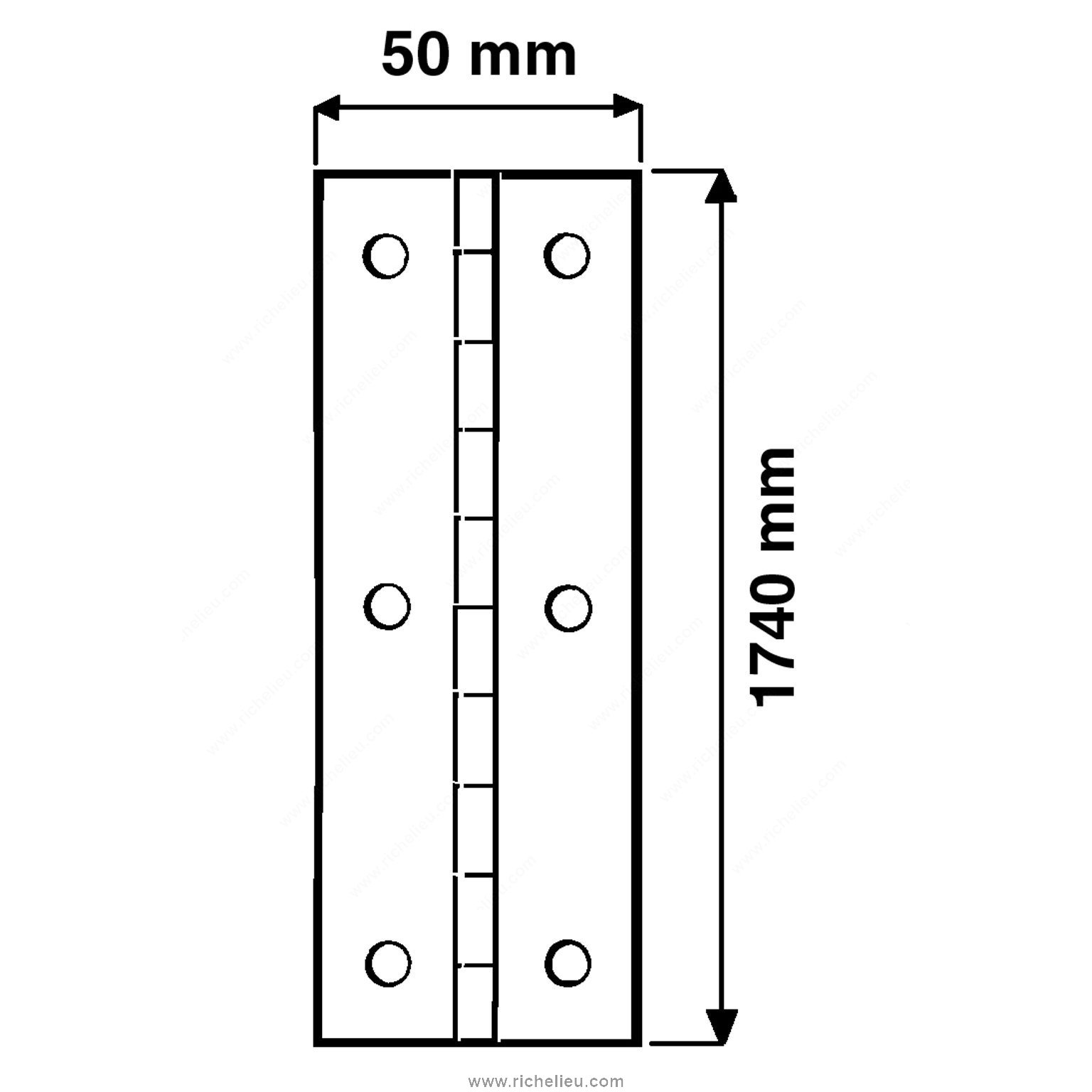

Length: 1 740 mm
Material: Steel
Pin: Fixed Pin
Pin Diameter: 0.00776 in*
Product #: 501740180
Product number: 501740180
Product №: 501740180
Thickness: 1.25 mm
Type: With Holes
Unit 1: case - 50
Width: 50 mm
