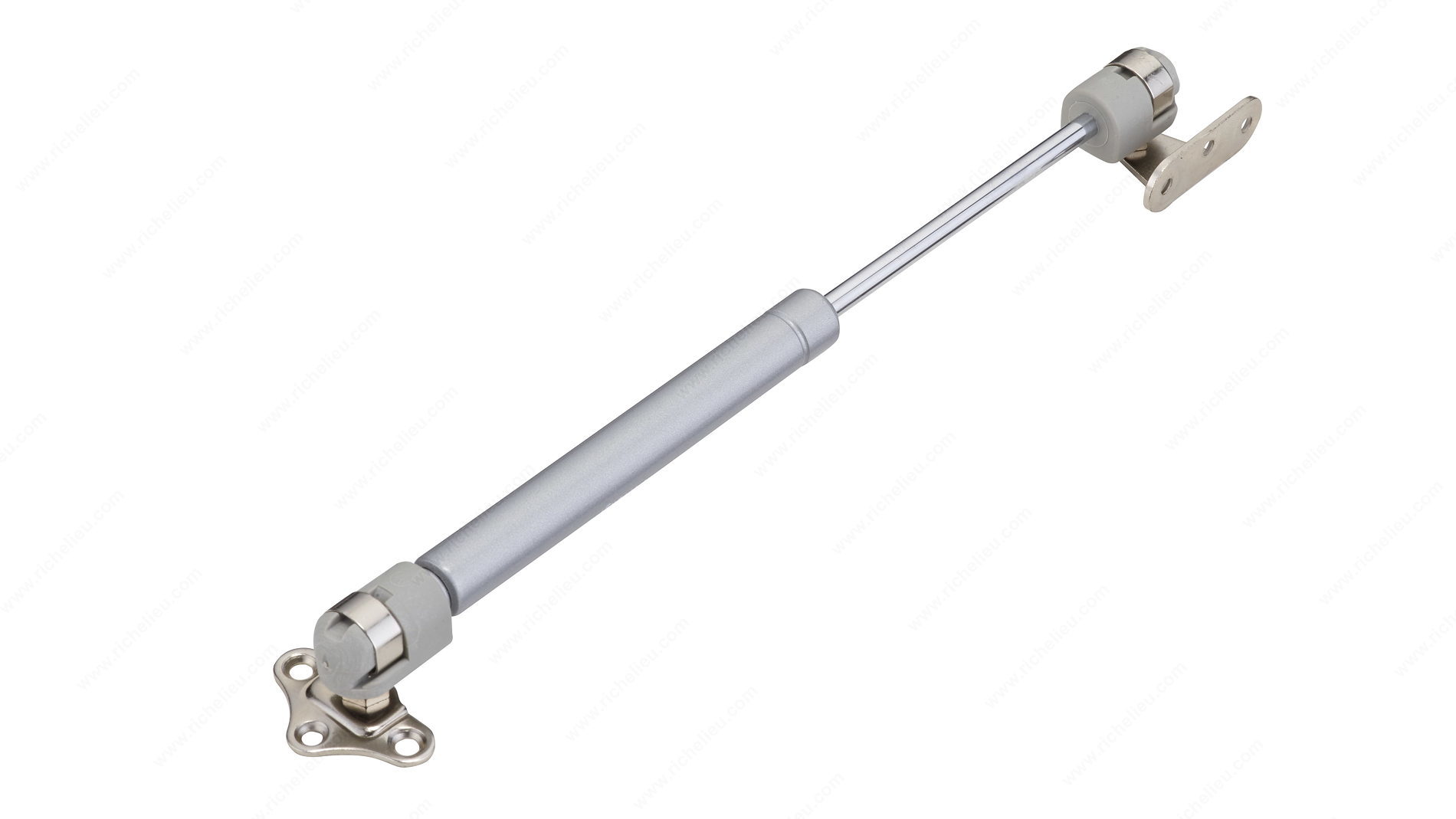

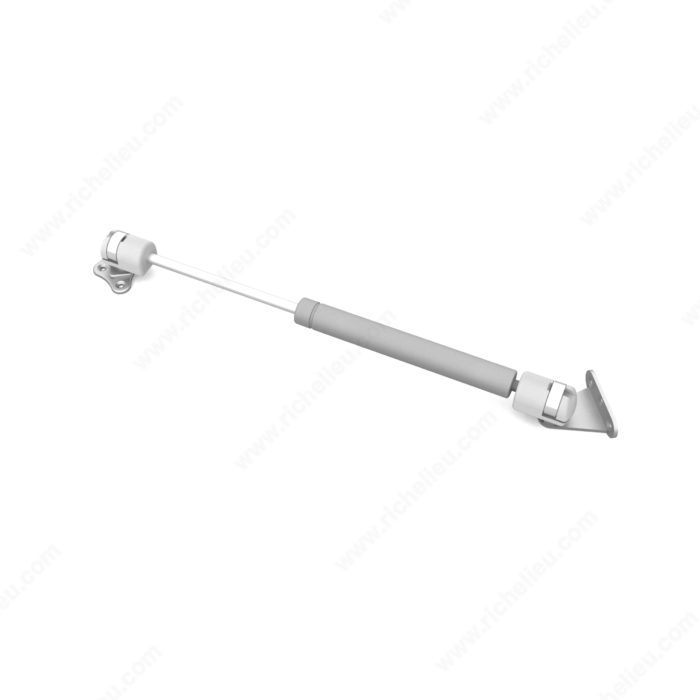

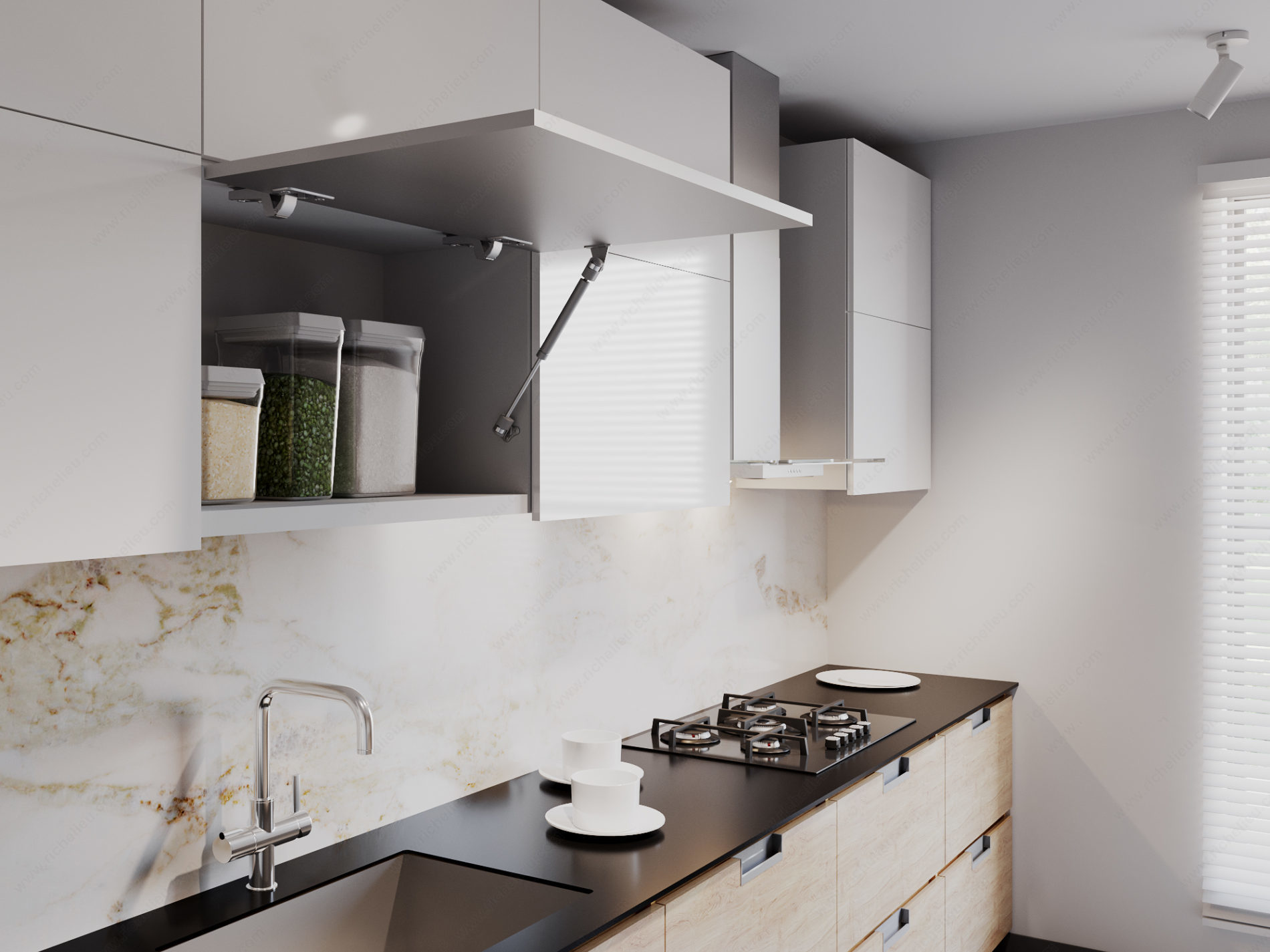

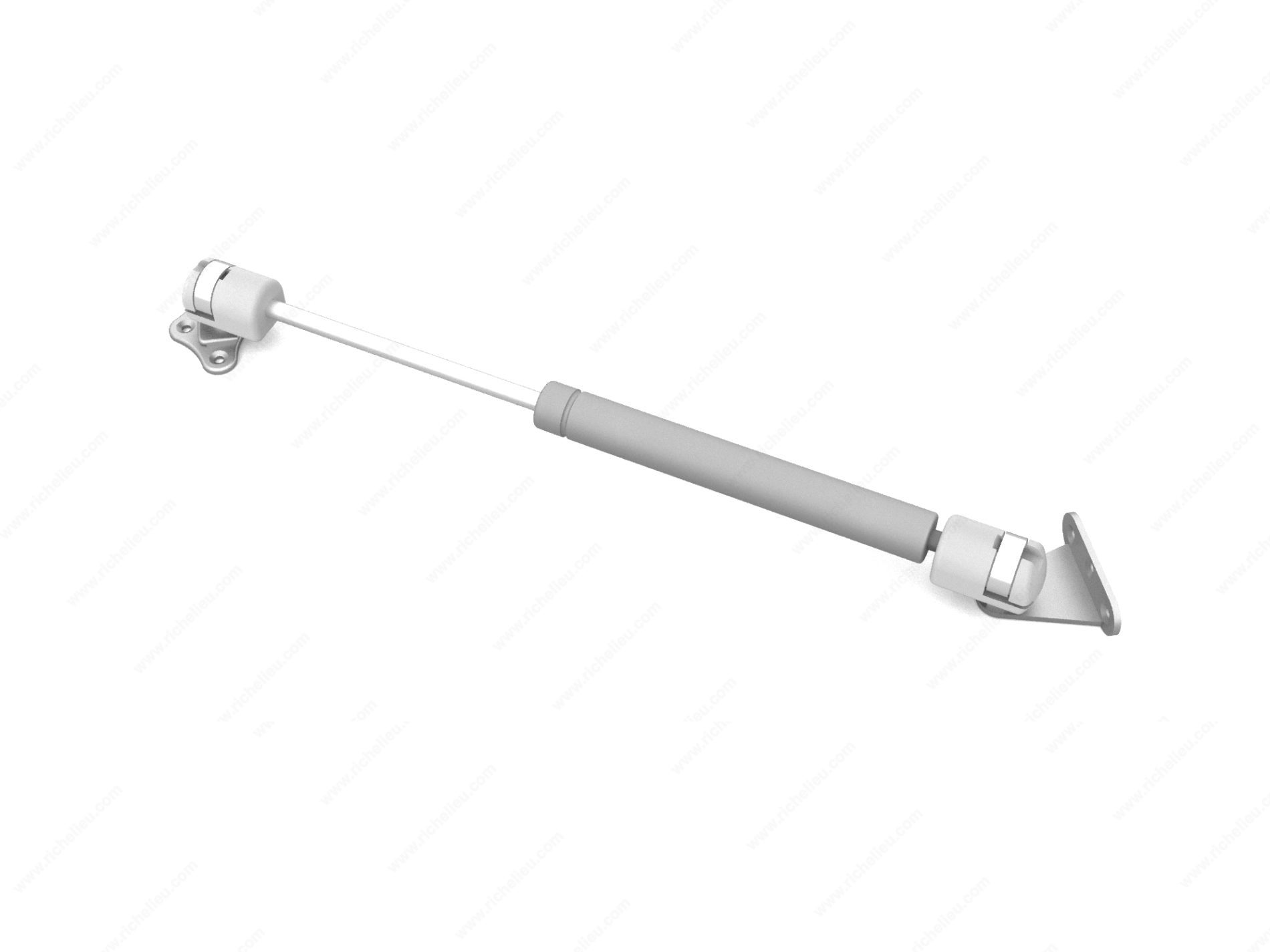

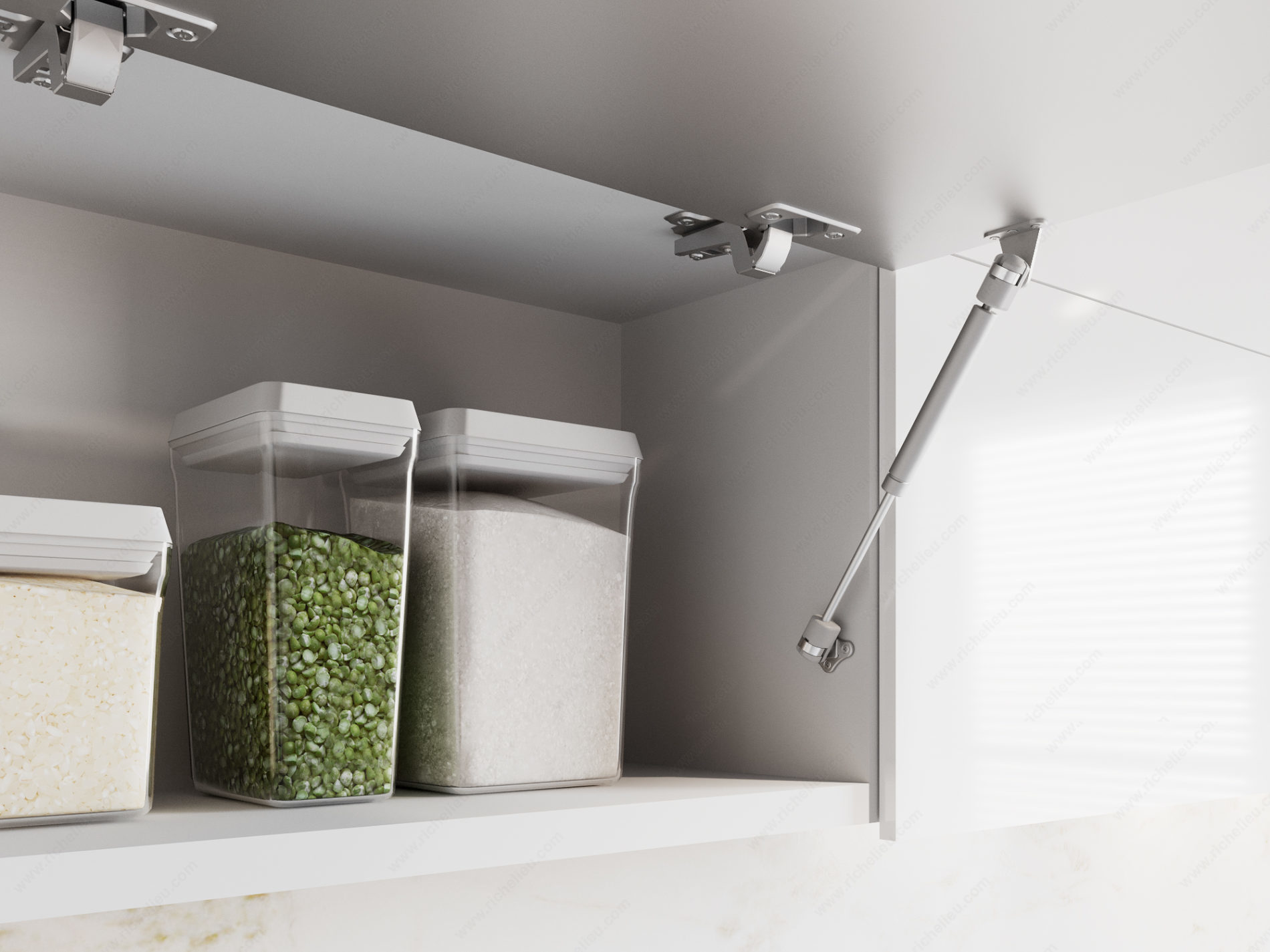

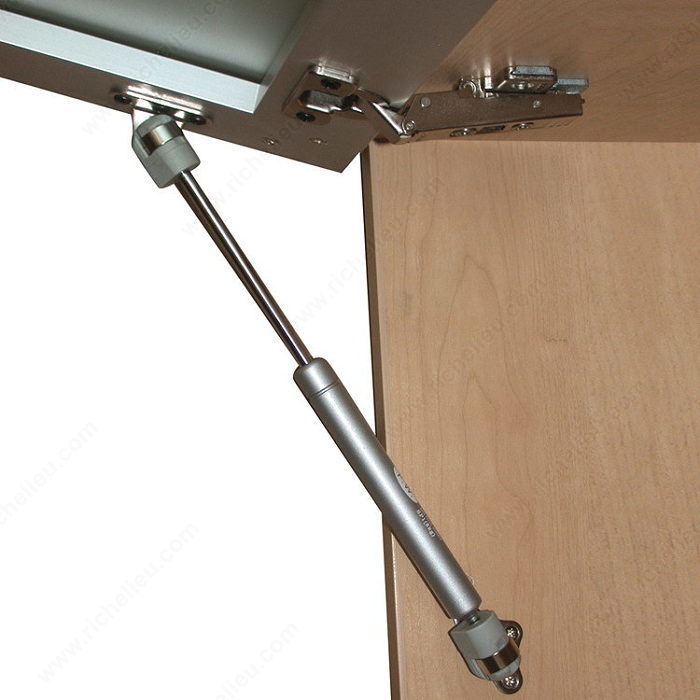

Richelieu 57808105 Pneumatic Lift System offers an innovative solution for those seeking seamless access to their cabinetry. This piston vertical opening system is designed to open doors smoothly between 80° and 100°, providing a wide range for optimal functionality. Simply start to open the door, and the pneumatic piston will take over, completing the action effortlessly, which is ideal for busy kitchens or professional environments. Designed for doors with heights ranging from 15 3/4 to 23 5/8 inches and lengths between 17 3/4 to 27 1/2 inches, this versatile system can accommodate a variety of door sizes. With a robust load capacity of 6.61 to 17.6 pounds, it supports a wide range of materials while ensuring durability. The system features a sleek silver finish and is crafted from high-quality metal, ensuring it blends seamlessly with modern cabinetry. Its reversible side configuration allows for flexible installation options. Packaged per unit, the Richelieu Pneumatic Lift System is ready to ship via UPS, making it a convenient choice for professional builders and knowledgeable homeowners alike. Enhance your cabinetry with this efficient lift-up opening system, providing ease of use and a touch of sophistication.
Pneumatic Lift System
Brand: Richelieu

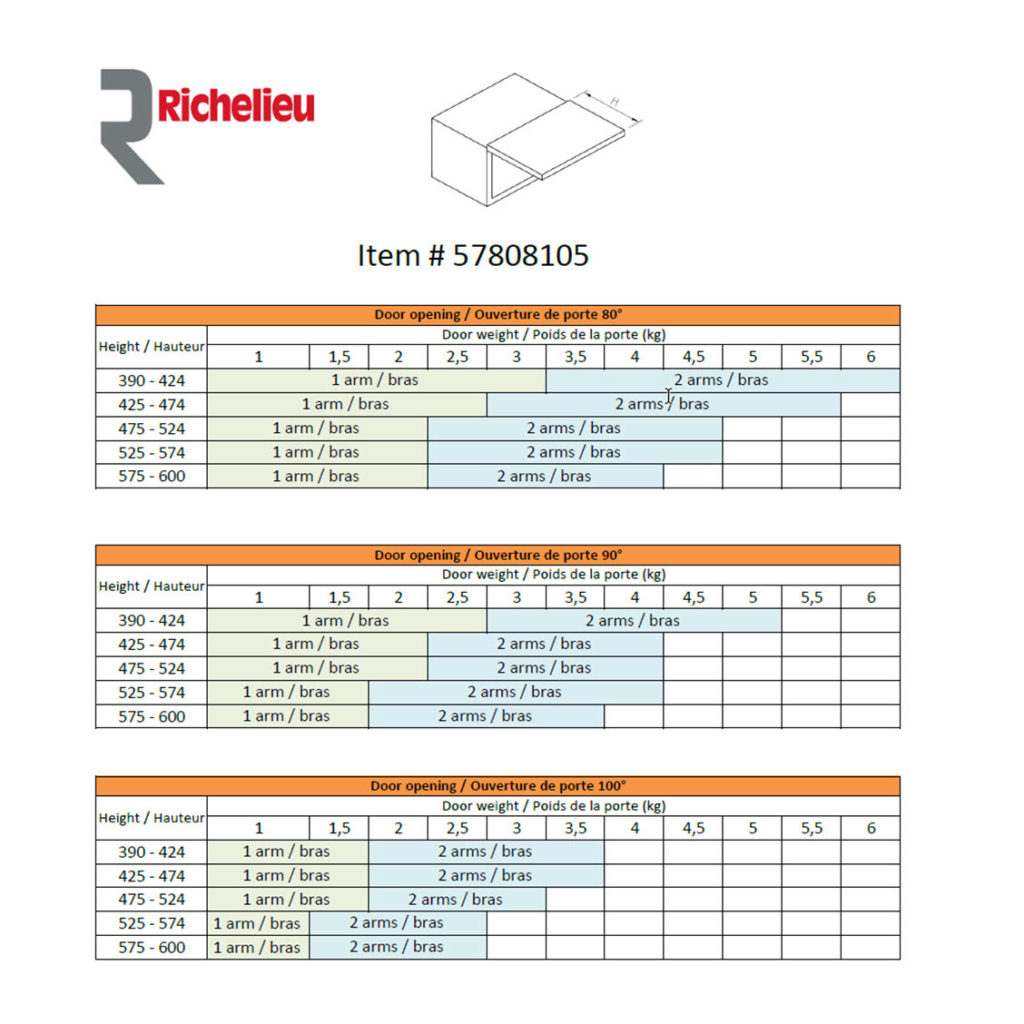

Door Height: 400 to 600 mm
Door Length: 450 to 700 mm
Finish: Silver
Length: 255 mm
Load Capacity: 3 to 8 kg
Material: Metal
Opening Angle Adjustability: 80°-100°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Packaging format: Per unit
Product #: 57808105
Product number: 57808105
Product №: 57808105
Side: Reversible
System Type: Piston
Type of Opening: Lift-Up Opening
Unit 1: case - 100
