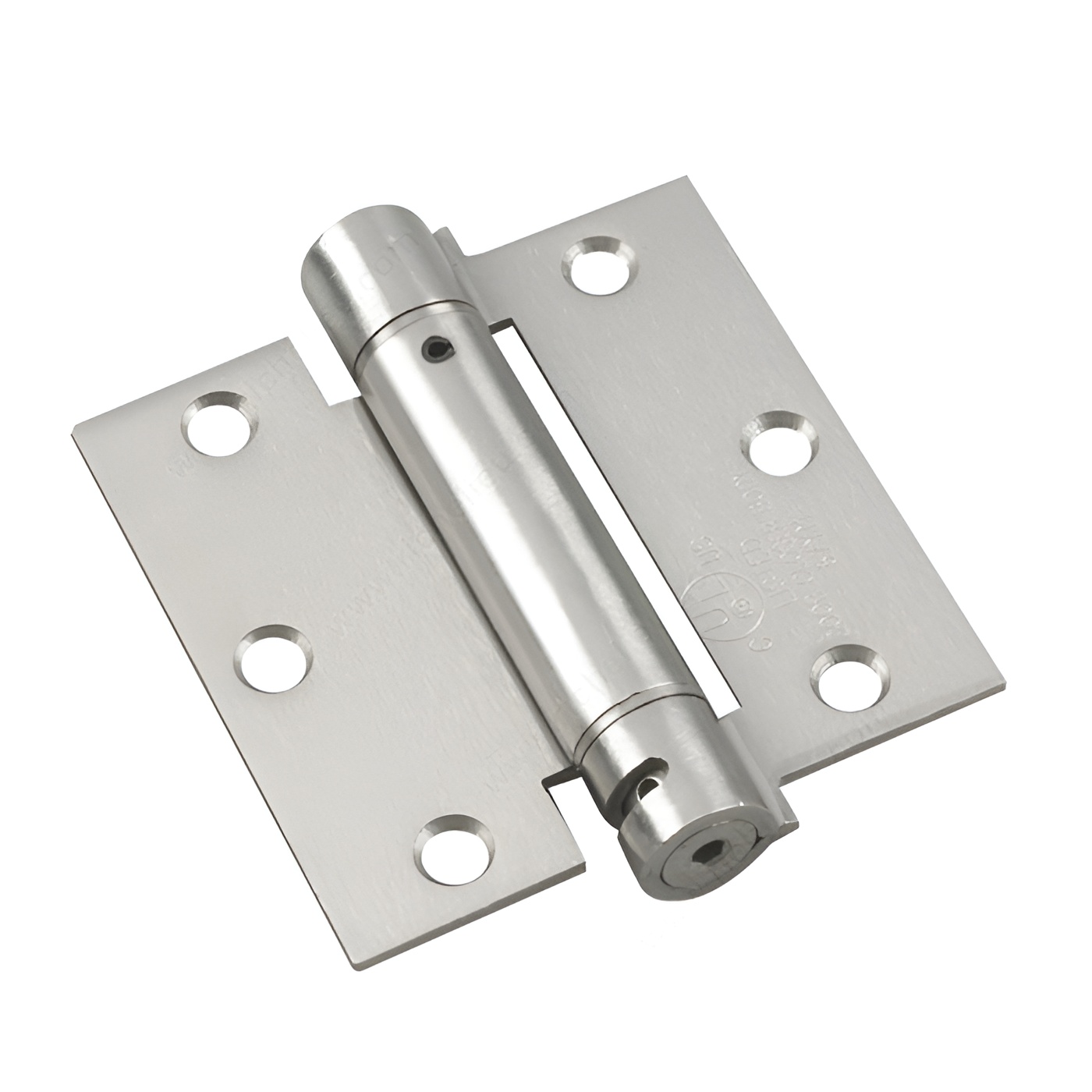

Richelieu 5821BCR 3 1/2" Full Mortise Adjustable Spring Hinge is an essential component for any professional-grade project. Crafted from durable steel and finished in a sleek brushed chrome, this hinge combines strength with contemporary aesthetics. Designed for standard doors, it features a mortise mounting type that provides a seamless integration into your door frame. One of the standout features of the 5821BCR is its adjustable spring tension, allowing you to customize the hinge's performance to your specific needs. With included wood screws (#10 x 1") and machine screws (#10-24 x 1/2"), installation is straightforward and hassle-free. The hinge supports a load capacity of up to 88 lbs when using three hinges, making it an excellent choice for a variety of applications. Measuring 3 1/2 inches in height and width, this hinge is designed for square corners and features a flat tip for a polished look. Additionally, it comes with a non-removable pin for added security and stability. Certified by UL, the Richelieu 5821BCR is a reliable choice for those looking to enhance their projects with quality hardware that stands the test of time.
3 1/2" Full Mortise Adjustable Spring Hinge
Included products
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 2.7 mm
Color/ Finish: Brushed Chrome
Finish: Brushed Chrome
Grade: 1
Height: 3 1/2 in
Load Capacity: 30 lb
Load Capacity (3 Hinges): 30 lb
Material: Steel
Mounting Type: Mortise
Packaging format: Blister
Pin: Non-Removable Pin
Product #: 5821BCR
Product number: 5821BCR
Product №: 5821BCR
Recommended Usage: Adjustable Spring
Screw/ Nail: Included
Standards and Certifications: UL
Type of Corner: Square
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Blister
Unit 1: carton - 5
Unit 2: carton - 5
Unit 3: case - 25
Use Type: Standard Door
Width - Overall Dimensions: 3 1/2 in
