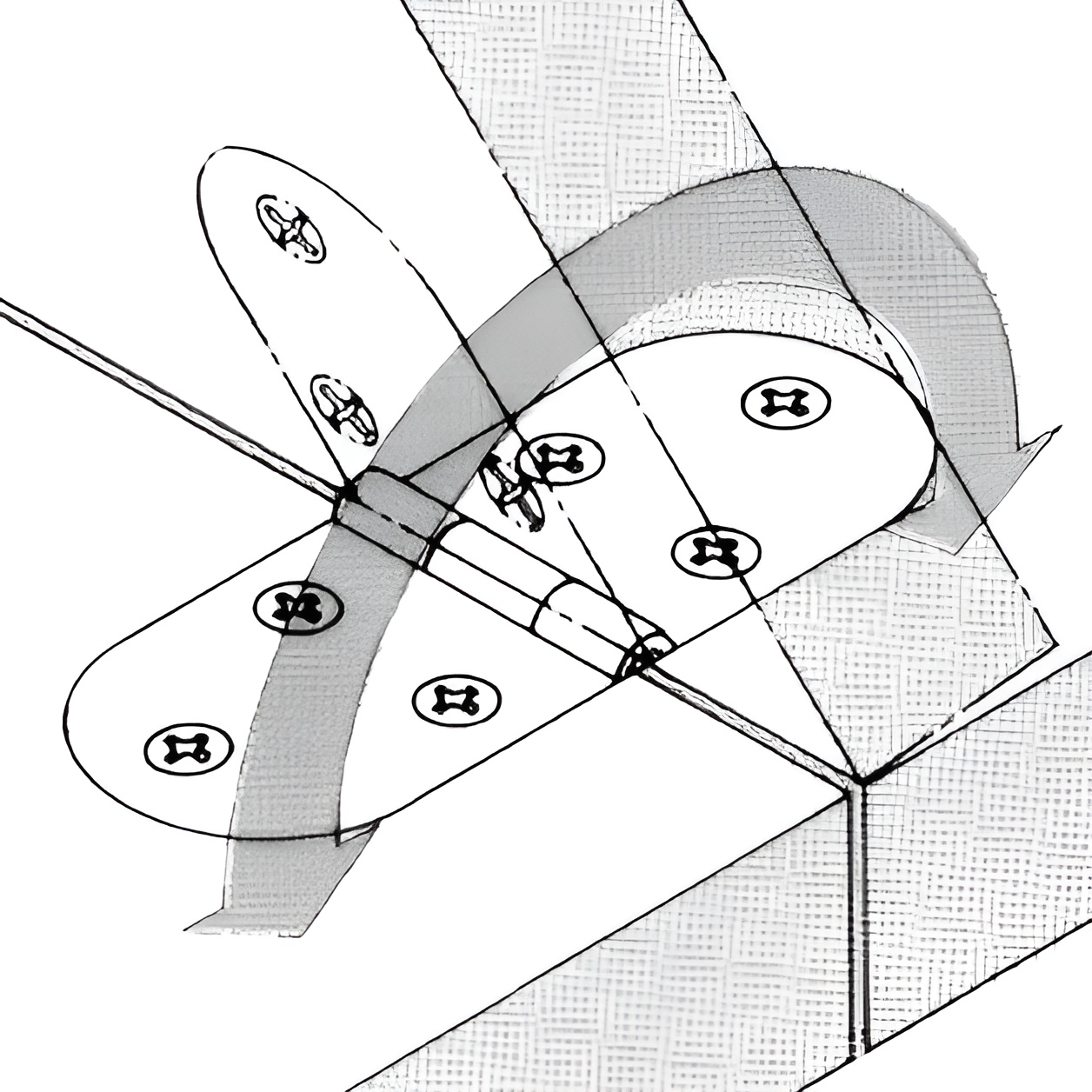

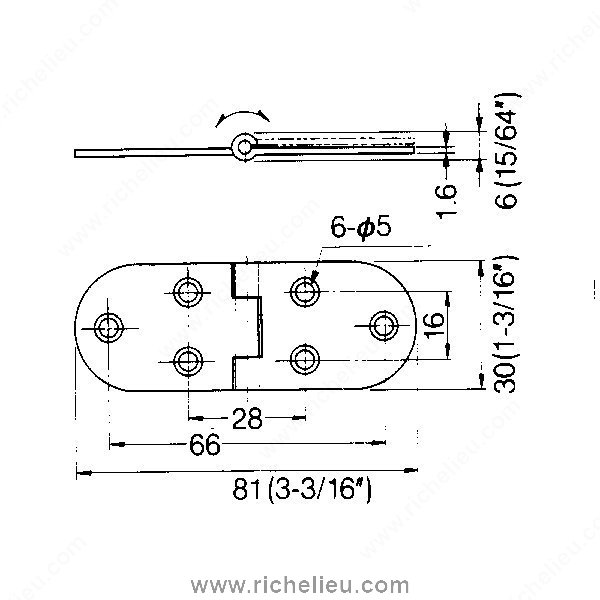

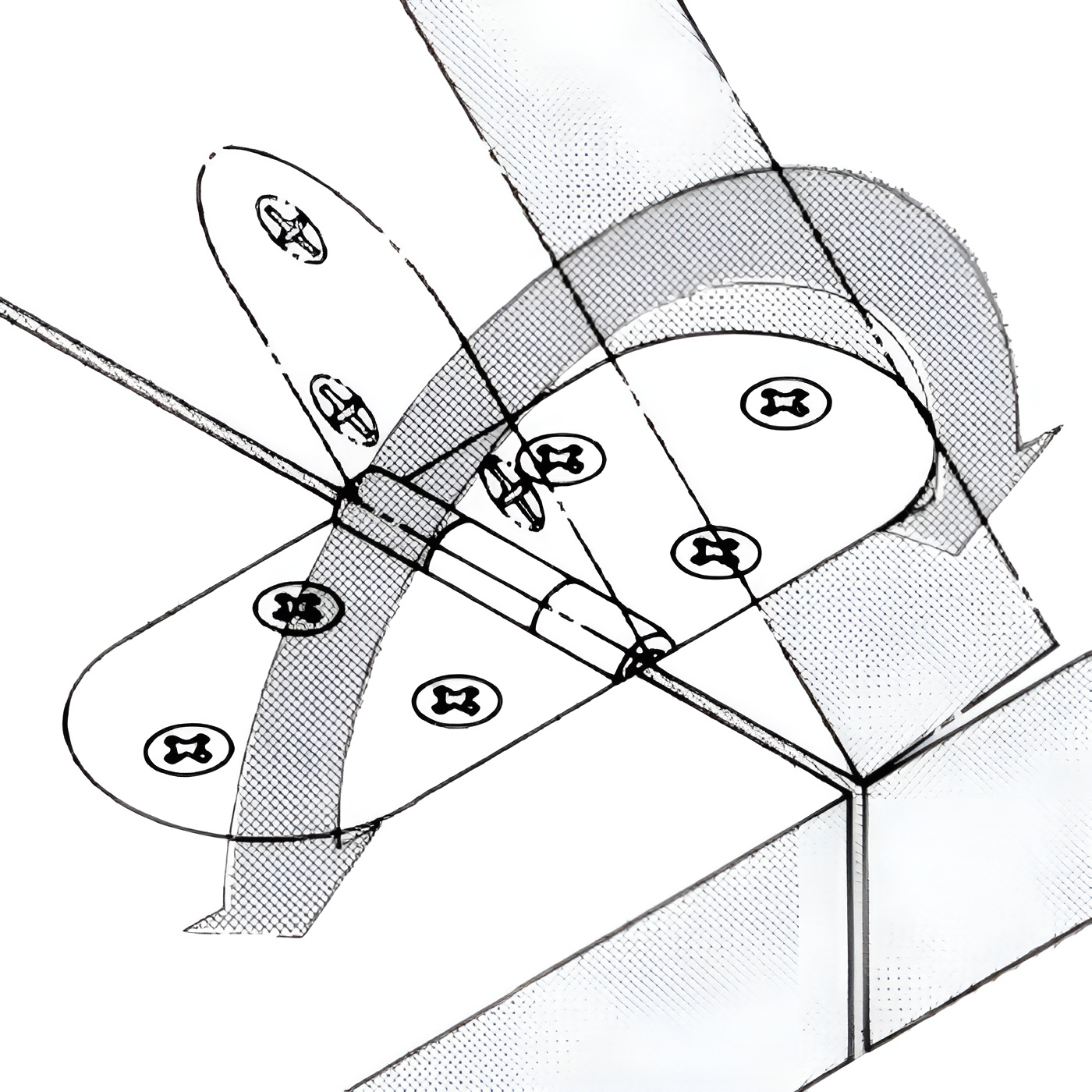

Richelieu 75083170 Hinge for Drop Leaf Table Panels provides a reliable and stylish solution for your furniture needs. Designed to support drop leaf applications, this hinge accommodates panel sizes up to a maximum width of 450 mm (17-3/4 inches), height of 700 mm (27-9/16 inches), and a thickness of 21 mm (53/64 inches). It can sustain a maximum weight of 4 kg per pair (8.8 lbs), ensuring durability and stability for your drop leaf tables. Crafted from high-quality stainless steel, specifically Stainless Steel 304, this hinge offers a sleek satin finish that complements a variety of design aesthetics while providing resistance to corrosion and wear. Its overall dimensions measure 3 3/16 inches in width, 1/4 inch in height, and 1 3/16 inches in depth, making it a compact yet robust choice for both residential and commercial applications. The Richelieu hinge meets rigorous standards and certifications including ROHS/WEEE and NSF, affirming its safety and sustainability credentials. Ideal for professionals and skilled DIYers alike, this hinge ships conveniently via UPS, making it easy to integrate into your next project. Trust Richelieu 75083170 for your drop leaf table needs and enjoy the perfect blend of functionality and design.

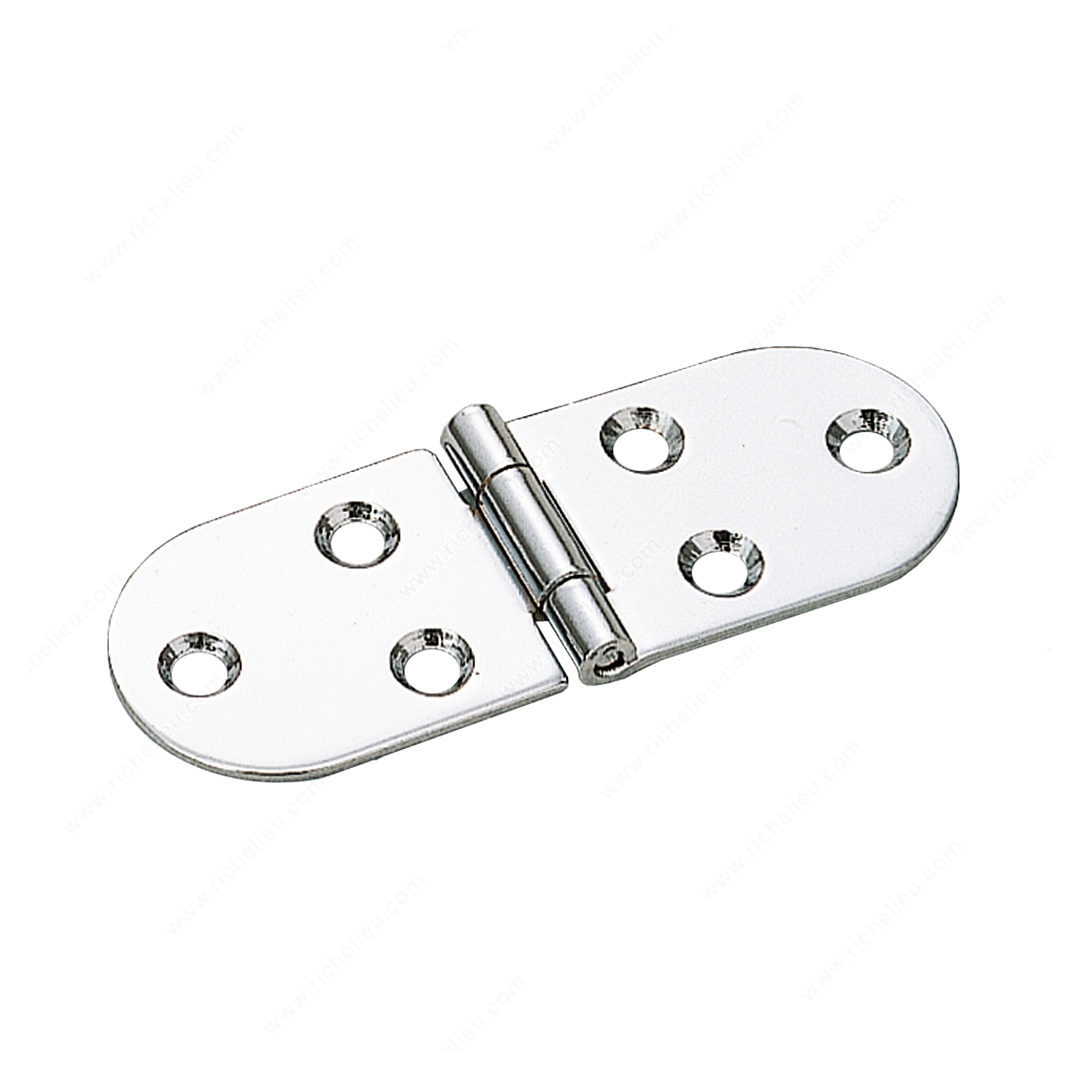

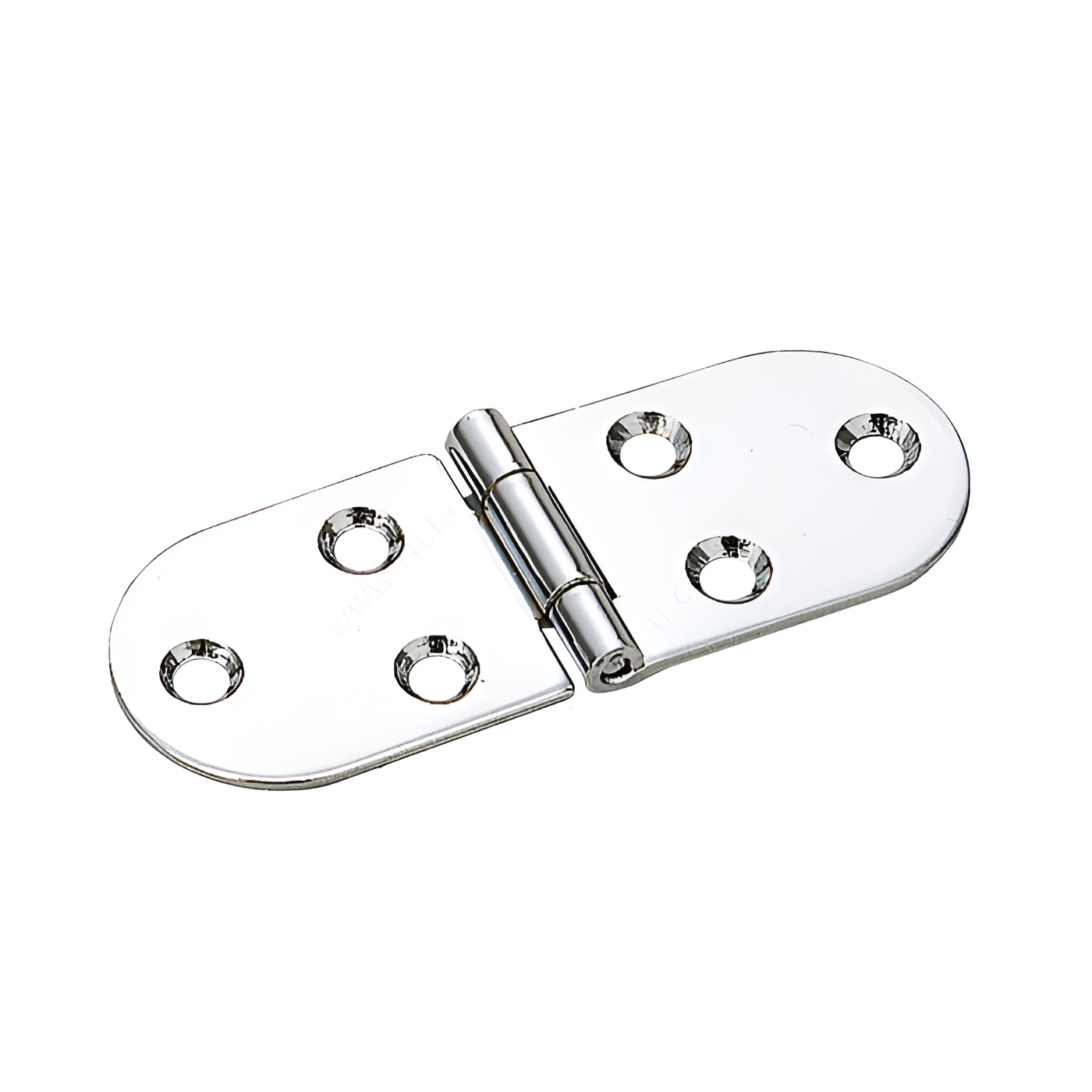

Hinge for Drop Leaf Table Panels
Important information
Brand: Sugatsune/Lamp
Color/ Finish: Satin
Depth: 30 mm
Finish: Satin
Height: 6 mm
Material: Stainless Steel, Stainless Steel 304
Product #: 75083170
Product number: 75083170
Product №: 75083170
Standards and Certifications: ROHS/WEEE, NSF
Unit 1: carton - 100
Unit 2: case - 1000
Width - Overall Dimensions: 81 mm
