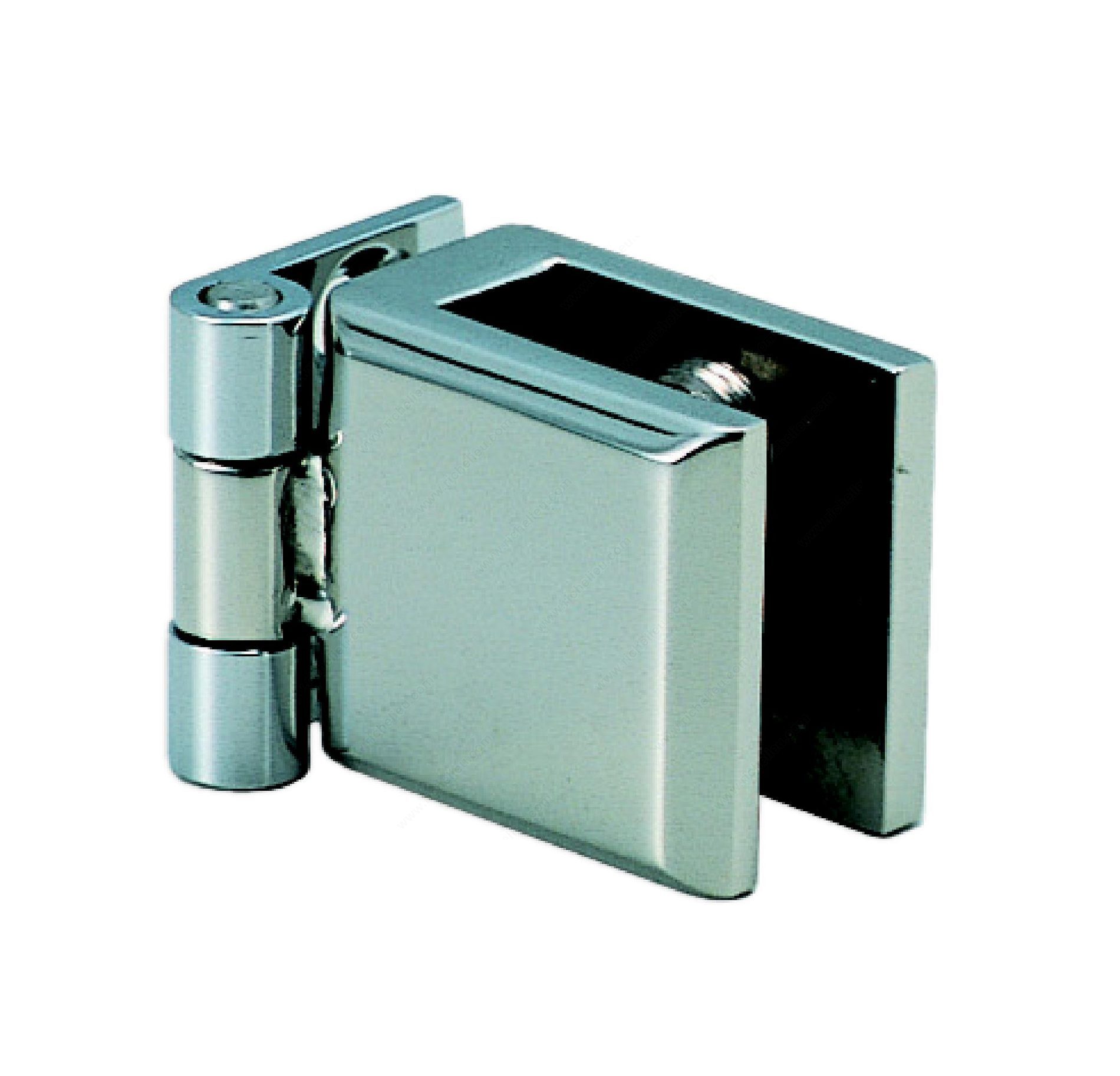

Richelieu 752532171 Stainless Steel Hinge for Glass or Acrylic Door, Recessed Within Furniture/Cabinet offers a sophisticated solution for your cabinetry needs. Crafted from durable Stainless Steel 304, this hinge not only combines strength and elegance but also features a polished finish that enhances the overall aesthetic of your installations. With a height of 31/32 inches and a width of 25/32 inches, this hinge is designed for seamless integration into furniture and cabinets, ensuring that your glass or acrylic doors function smoothly while maintaining a clean appearance. It supports a load capacity of 10.6 pounds, making it suitable for lightweight applications. The hinge accommodates glass thicknesses ranging from 5/32 to 1/4 inches, providing versatility for various projects. To ensure optimal performance, two spacers should be used for doors with a thickness of 4 mm. The recommended height and width of the door to respect are 23 5/8 inches and 15 3/4 inches, respectively. Designed for UPS shipping, the Richelieu 752532171 is an ideal choice for both building professionals and knowledgeable homeowners looking to enhance their spaces with a refined touch.
Stainless Steel Hinge for Glass or Acrylic Door, Recessed Within Furniture/Cabinet
Important information
Brand: Sugatsune/Lamp
Finish: Polished Stainless Steel

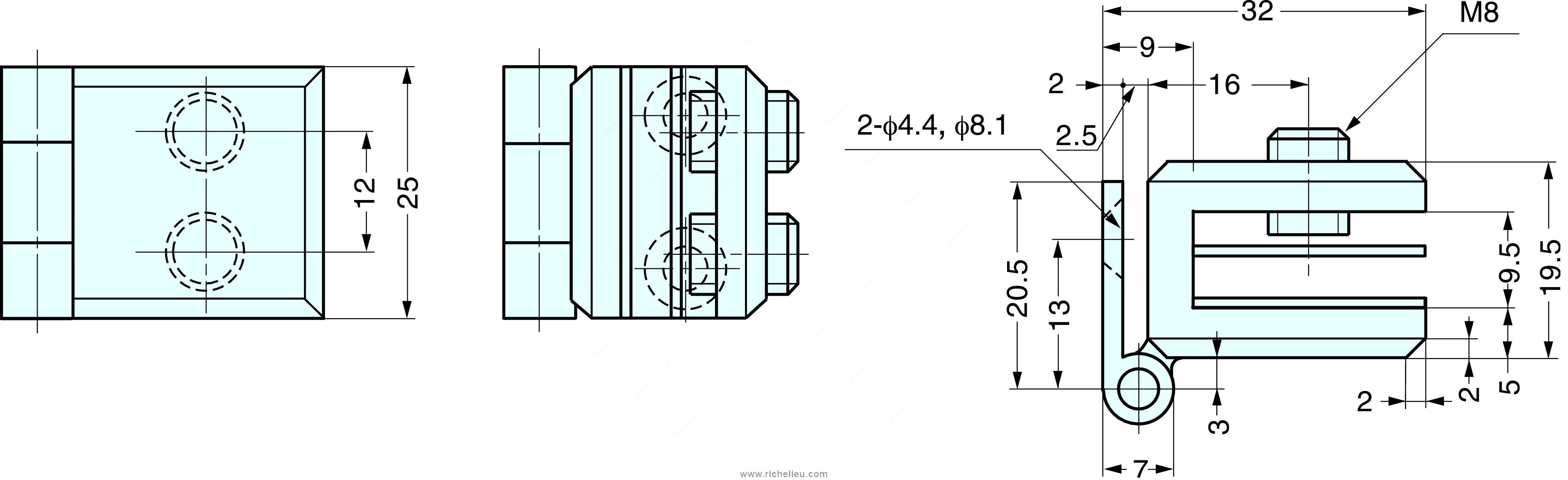

Height: 25 mm
Height of Door to Respect: 600 mm
Load Capacity: 4.8 kg
Material: Stainless Steel 304
Product #: 752532171
Product number: 752532171
Product №: 752532171
Thickness of Glass: 4 to 6 mm
Unit 1: case - 20
Use Type: Glass
Width: 19.5 mm
Width of Door to Respect: 400 mm
