Richelieu 75348140 Surface Mounted Hinge for Half-Overlay Glass Doors for Furniture/Cabinet offers a reliable solution for your glass and acrylic door installations. Designed specifically for half-overlay applications, this hinge combines functionality with a sleek chrome finish, ensuring a polished look for any furniture or cabinetry project. Constructed from durable steel, this hinge supports a maximum load capacity of 8.82 lb, making it suitable for various glass thicknesses ranging from 5/32 to 1/4 inch. With dimensions of 1 11/32 inches in height and width, and a length of 1 17/32 inches, it provides a compact yet robust option for your design needs. It's essential to note the door specifications, as the maximum height is 27 1/2 inches and the maximum width is 17 3/4 inches, ensuring proper fit and function. This hinge is certified to NSF and RoHS standards, reflecting its commitment to safety and environmental compliance. Additionally, it ships conveniently via UPS, making it accessible for timely project needs. Ideal for building professionals and knowledgeable homeowners alike, the Richelieu 75348140 hinge seamlessly combines aesthetics with strength, enhancing both the functionality and style of your glass door applications.

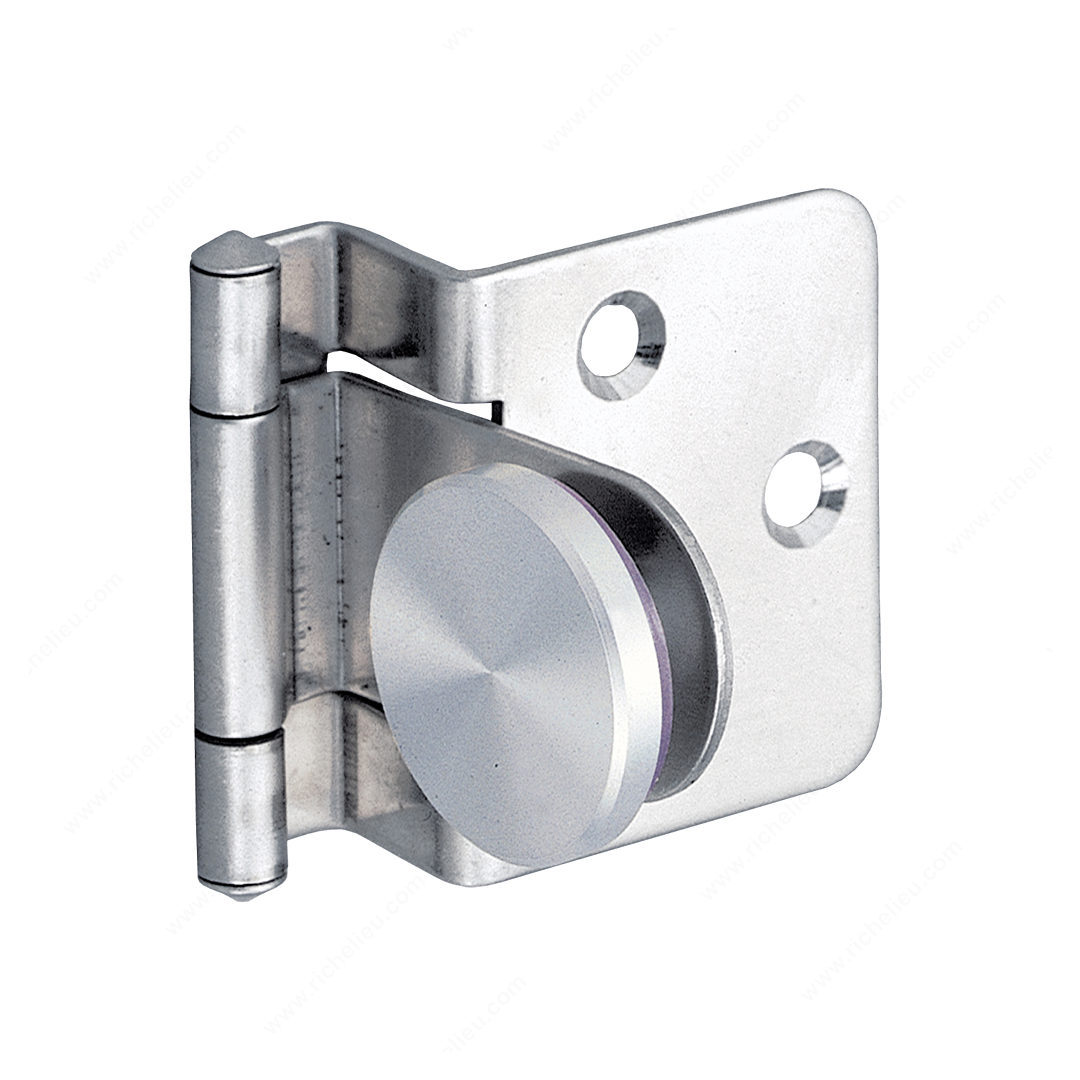

Surface Mounted Hinge for Half-Overlay Glass Doors for Furniture/Cabinet
Brand: Sugatsune/Lamp
Finish: Chrome
Height: 34 mm
Height of Door to Respect: Max. 700 mm
Length: 39 mm
Load Capacity: Max. 4 kg
Material: Steel
Product #: 75348140
Product number: 75348140
Product №: 75348140
Standards and Certifications: NSF, RoHS
Thickness of Glass: 4 to 6 mm
Unit 1: case - 50
Use Type: Glass
Width: 34 mm
Width of Door to Respect: Max. 450 mm
