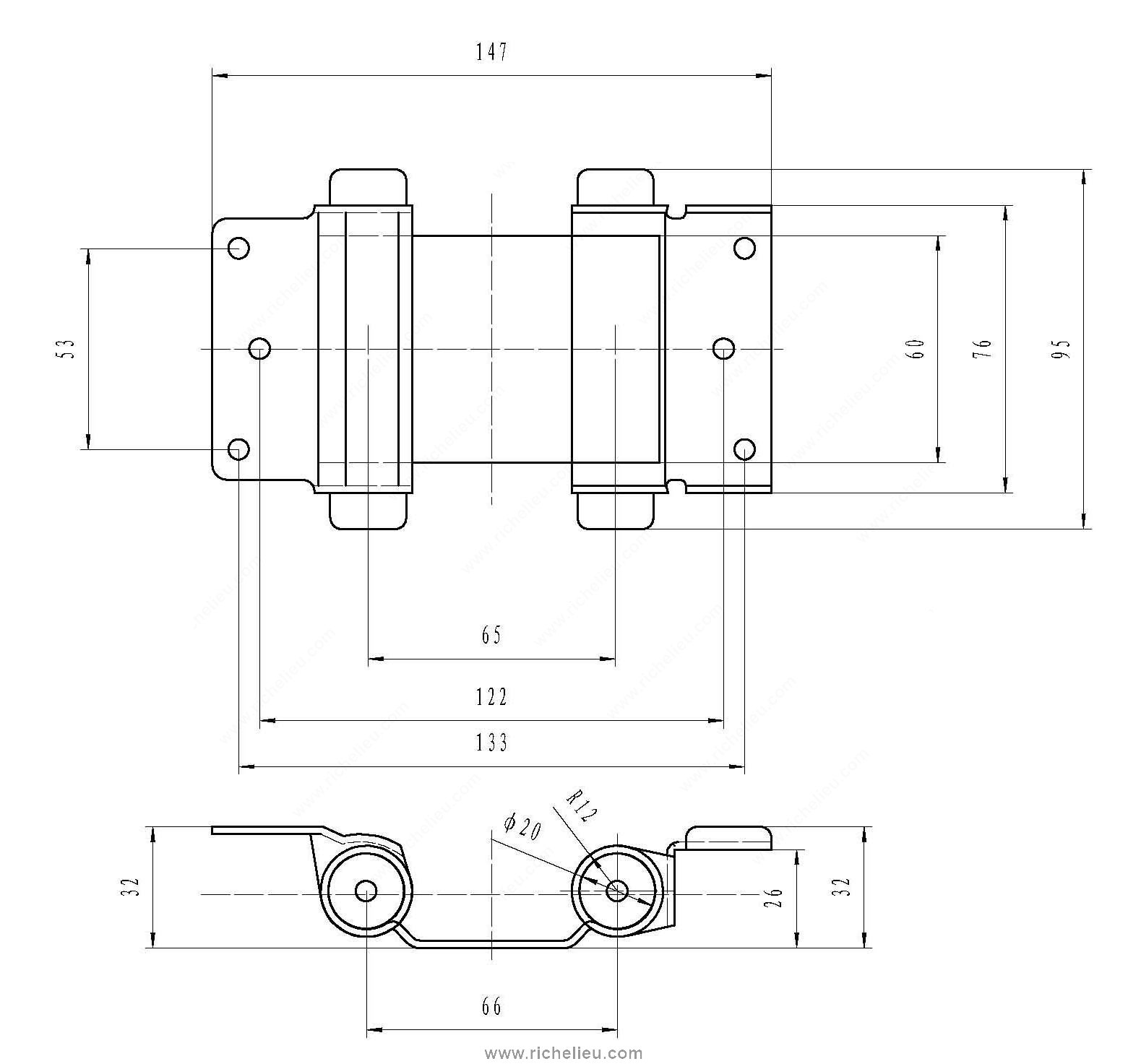

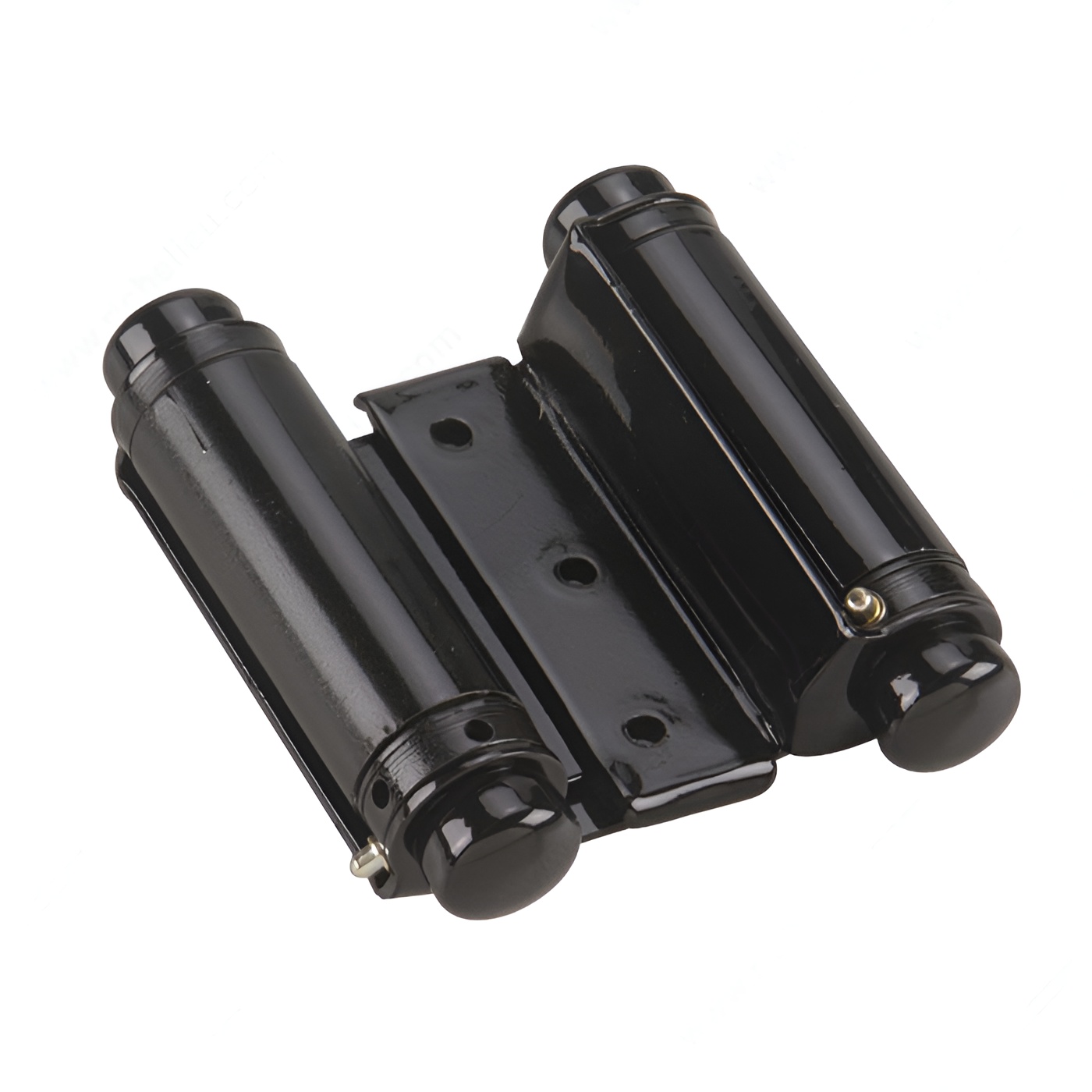

Richelieu 810FBB 3'' Double Action Spring Hinge offers a perfect blend of functionality and style for your doors. This innovative hinge is designed to swing in both directions, providing convenient two-way access, ideal for high-traffic areas. With its self-closing feature, you can ensure that doors remain securely closed when not in use, enhancing both security and energy efficiency. Crafted from durable steel, the 810FBB hinge comes in a sleek black finish that complements various design aesthetics, making it a versatile choice for any project. The hinge has an overall height of 3 3/4 inches and a width of 5 25/32 inches, allowing it to accommodate a load capacity of up to 49.6 lb when using three hinges. The non-removable pin adds an extra layer of security, ensuring the hinge remains firmly in place. Included with the hinge are 12 flat head Phillips wood screws, making installation straightforward and efficient. Assembled and ready to use, the Richelieu 810FBB is recommended for spring and double action applications, enhancing the functionality of your doors while adding a polished touch to your space. This hinge is a reliable solution for building professionals and discerning homeowners alike.
3'' Double Action Spring Hinge
Included products
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 26 mm
Color/ Finish: Black
Finish: Black
Function: Non Hold-Open
Height: 95 mm
Load Capacity: 15 lb
Load Capacity (3 Hinges): 49.6 lb
Material: Steel
Pin: Non-Removable Pin
Product #: 810FBB
Product number: 810FBB
Product №: 810FBB
Recommended Usage: Spring/Double Action
Screw/ Nail: Included
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Box of 2
Unit 1: case - 20
Unit 2: case - 20
Width - Overall Dimensions: 147 mm
