Richelieu 9294195 Double Action Spring Hinge, 9294 Series, delivers exceptional functionality for a variety of door applications. Designed as a double-action mortise hinge, it accommodates doors with a maximum thickness of 32 mm, making it versatile for both residential and commercial use. With a safe working load of 25 pounds per hinge, it ensures reliable performance while providing a smooth, self-closing action. Constructed from durable steel with a sleek nickel finish, this hinge not only offers strength but also adds a polished look to your doors. The non-removable pin enhances security, preventing tampering and ensuring that your installations remain intact. Measuring 4 7/8 inches in height and 3 inches in width, the hinge's dimensions make it suitable for a wide range of door styles. Included with the hinges are 16 plated wood screws (#6 x 7/8" long flat head Quadrex drive), facilitating straightforward installation. This product comes fully assembled, saving you time and effort. Ideal for spring or double action applications, the Richelieu 9294195 hinge is an essential choice for building professionals and discerning homeowners seeking reliability and aesthetic appeal in their door hardware.

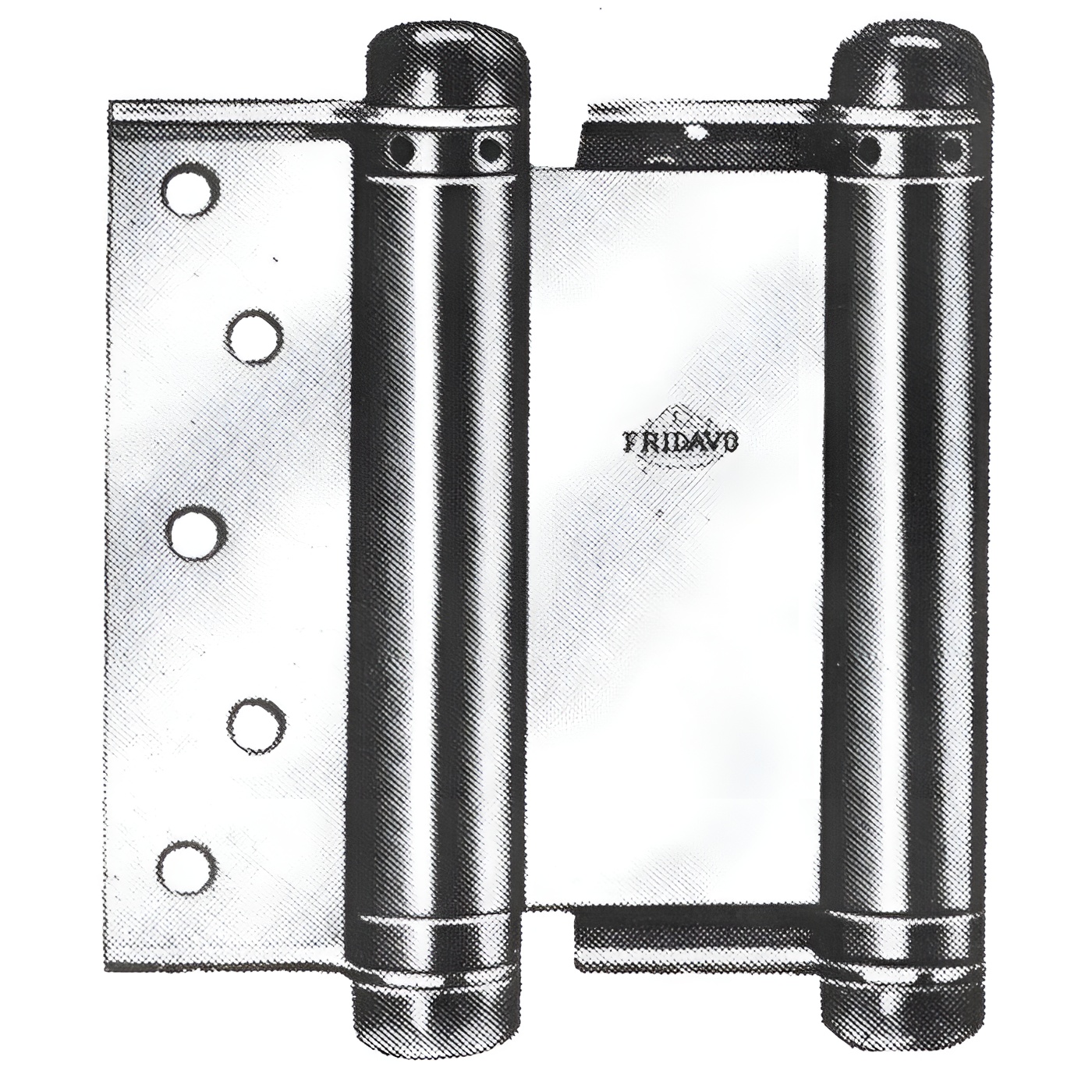

Double Action Spring Hinge, 9294 Series
Included products
Assembly: Assembled
Color/ Finish: Nickel
Finish: Nickel

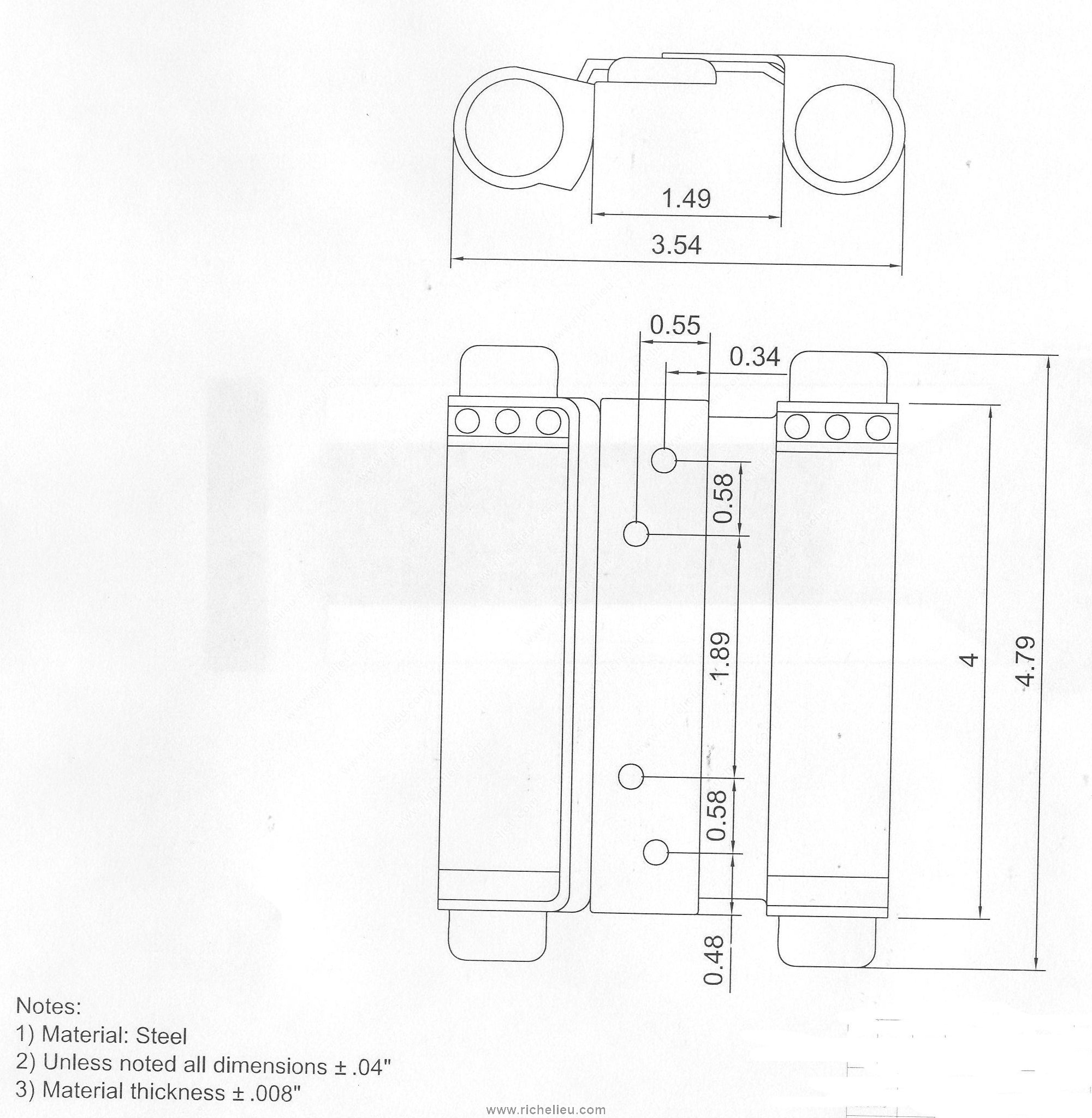

Height: 4 7/8 in
Load Capacity: 25 lb
Material: Steel
Pin: Non-Removable Pin
Product #: 9294195
Product number: 9294195
Product №: 9294195
Recommended Usage: Spring/Double Action
Screw/ Nail: Included
Type of Tip: Flat Tip
Unit: Box of 2
Unit 1: case - 20
Unit 2: case - 20
Width - Overall Dimensions: 3 in
