Richelieu ATRC1102 CNC V-Groove Miter Fold Signmaking Router Bit InsertRichelieu ATRC1102 CNC V-Groove, Miter Fold, Signmaking Lettering Insert Router Bit is engineered for precision and versatility in various applications. Ideal for creating flawless miter folds and intricate signmaking, this industrial-grade router bit utilizes a high-grade carbide insert knife that can be rotated for a fresh cutting edge, doubling its lifespan. The secure locking screw system ensures maximum safety and maintains cutting accuracy throughout your projects. With a 90° angle, the ATRC1102 is capable of cutting through a wide range of materials, including aluminum, brass, bronze, copper, and even carbon fiber for engraving. It seamlessly handles composites, laminate, melamine, MDF/HDF, solid surfaces, and more, making it an essential tool for professionals in woodworking and signage. The bit features a 1 1/2-inch cut diameter and a 1/2-inch shank, with an overall length of 3 inches, making it compatible with CNC machines. For optimal results, especially when working with Xanita LightBoard panels, utilizing MDF knives is recommended. The ATRC1102 is not just a tool; it’s a reliable partner for achieving exceptional craftsmanship in every cut.

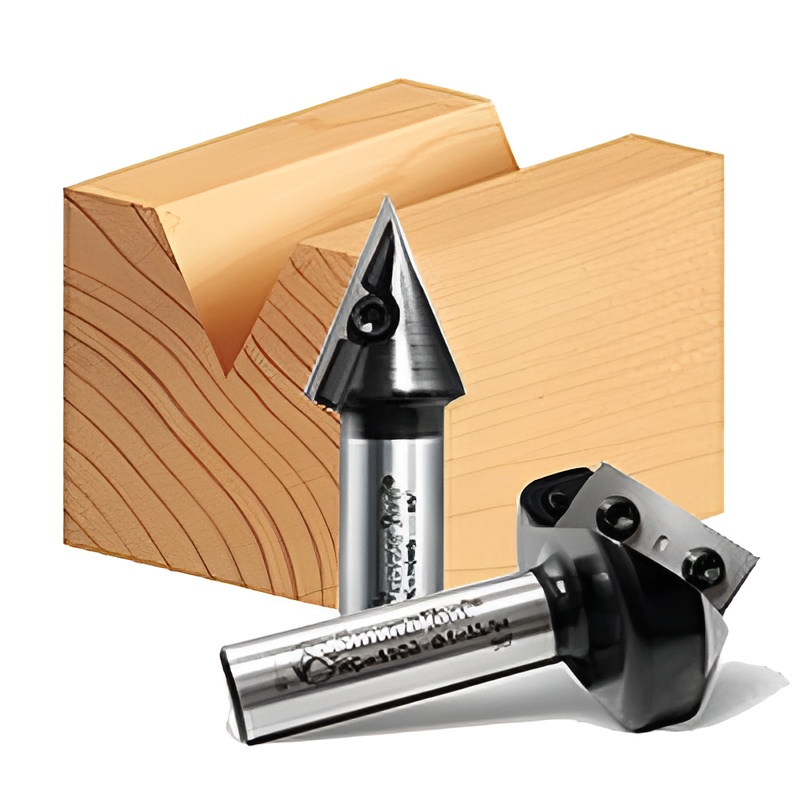

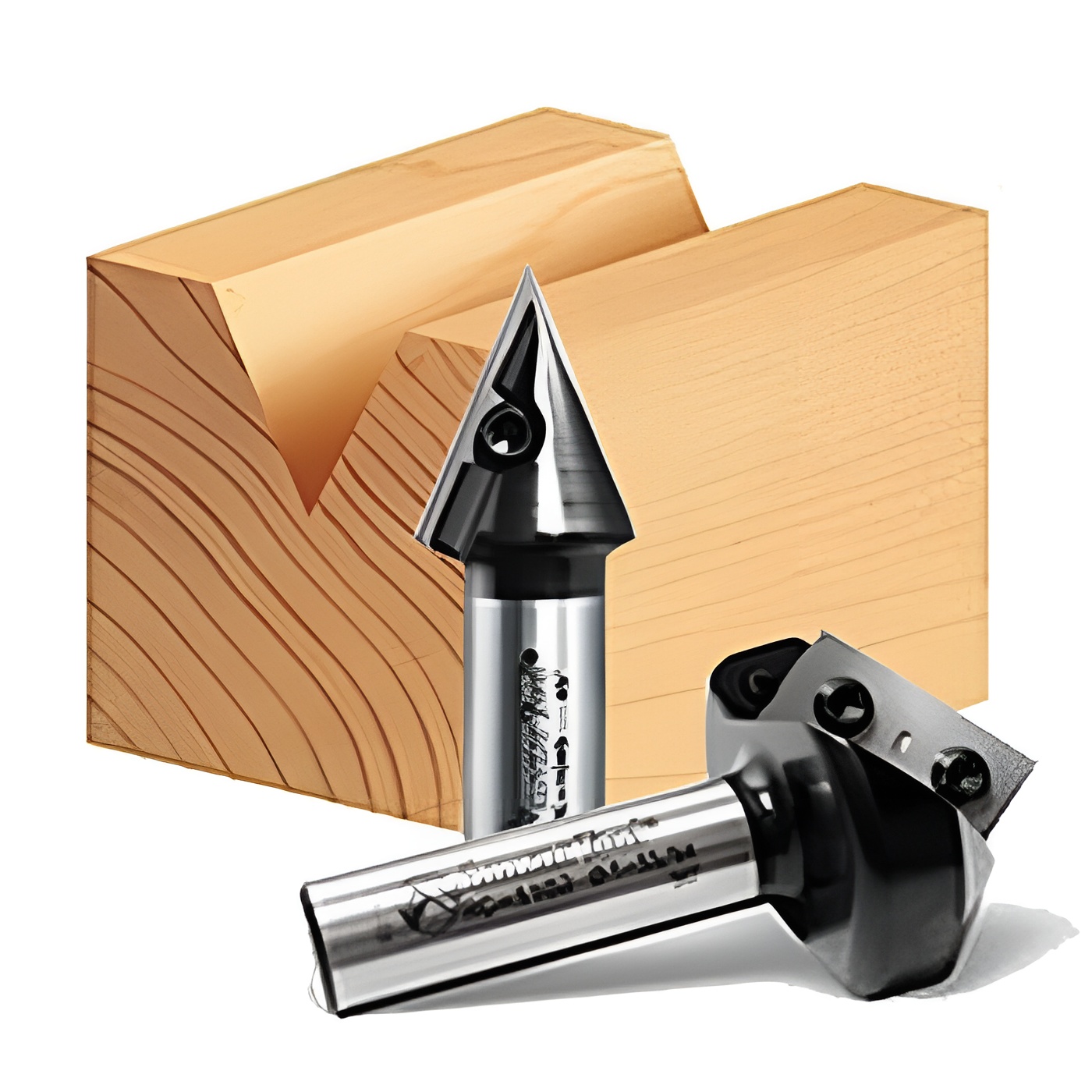

CNC V-Groove, Miter Fold, Signmaking Lettering Insert Router Bit
These industrial V-Groove insert router bits were especially designed for applications including:

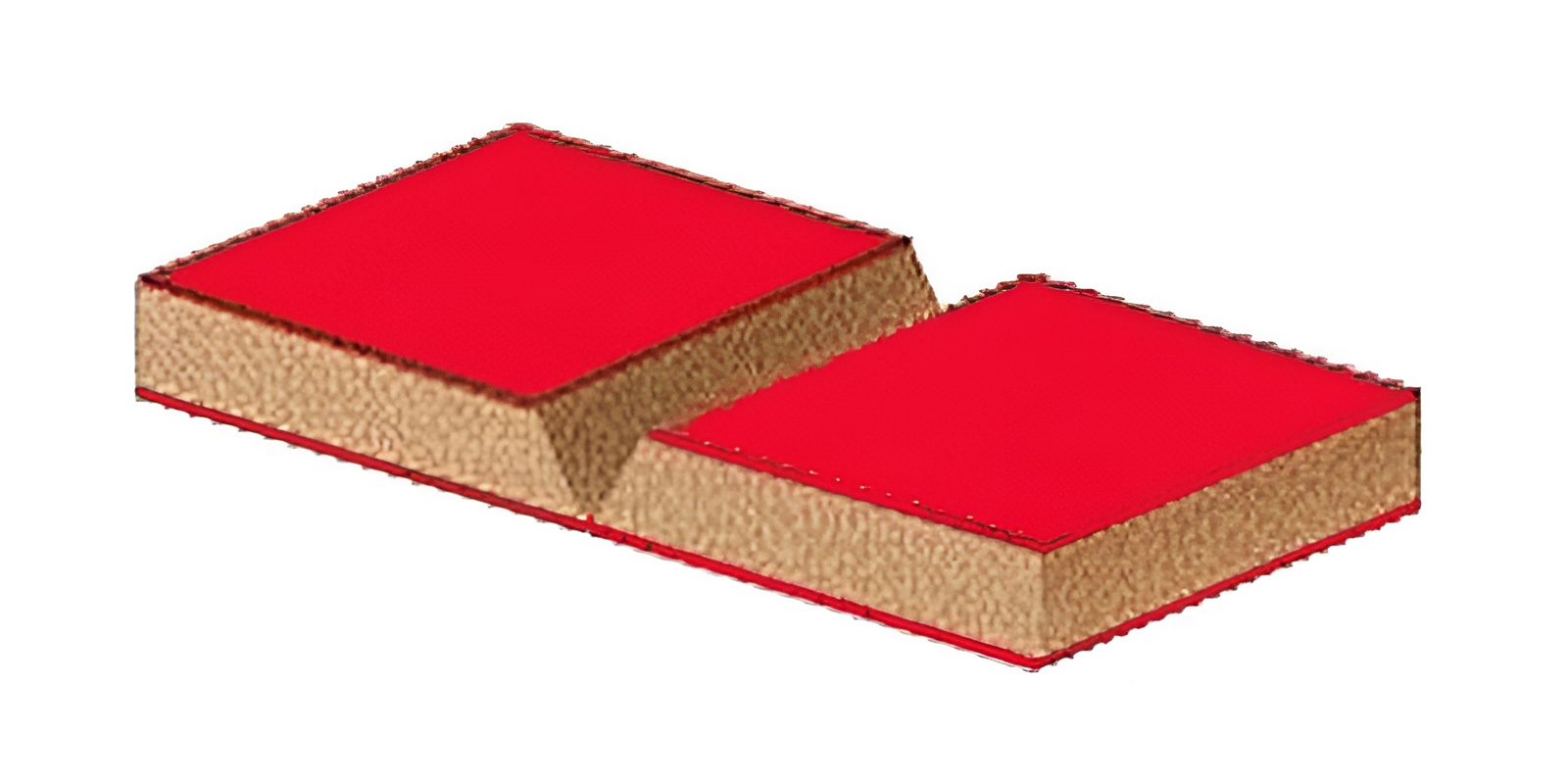

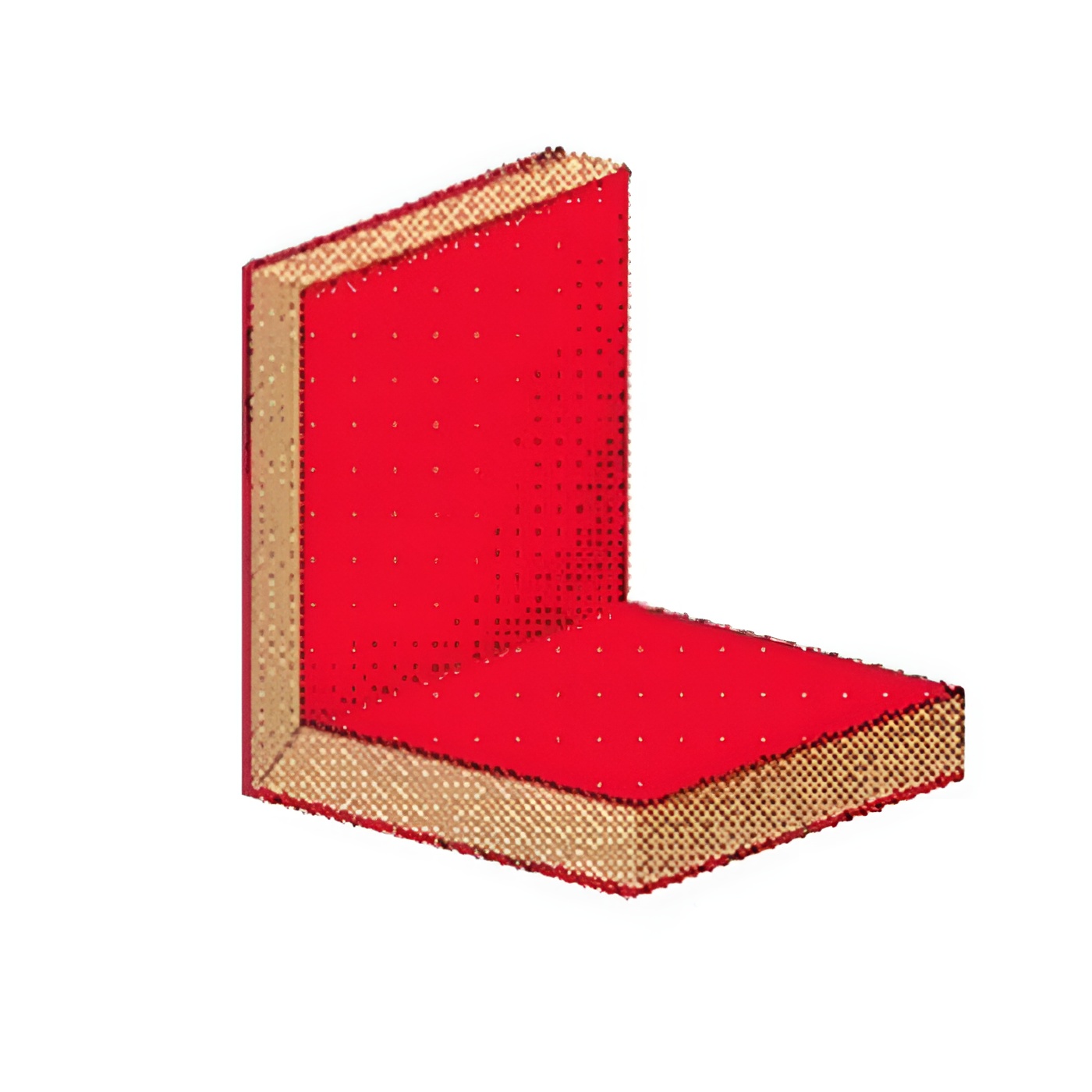

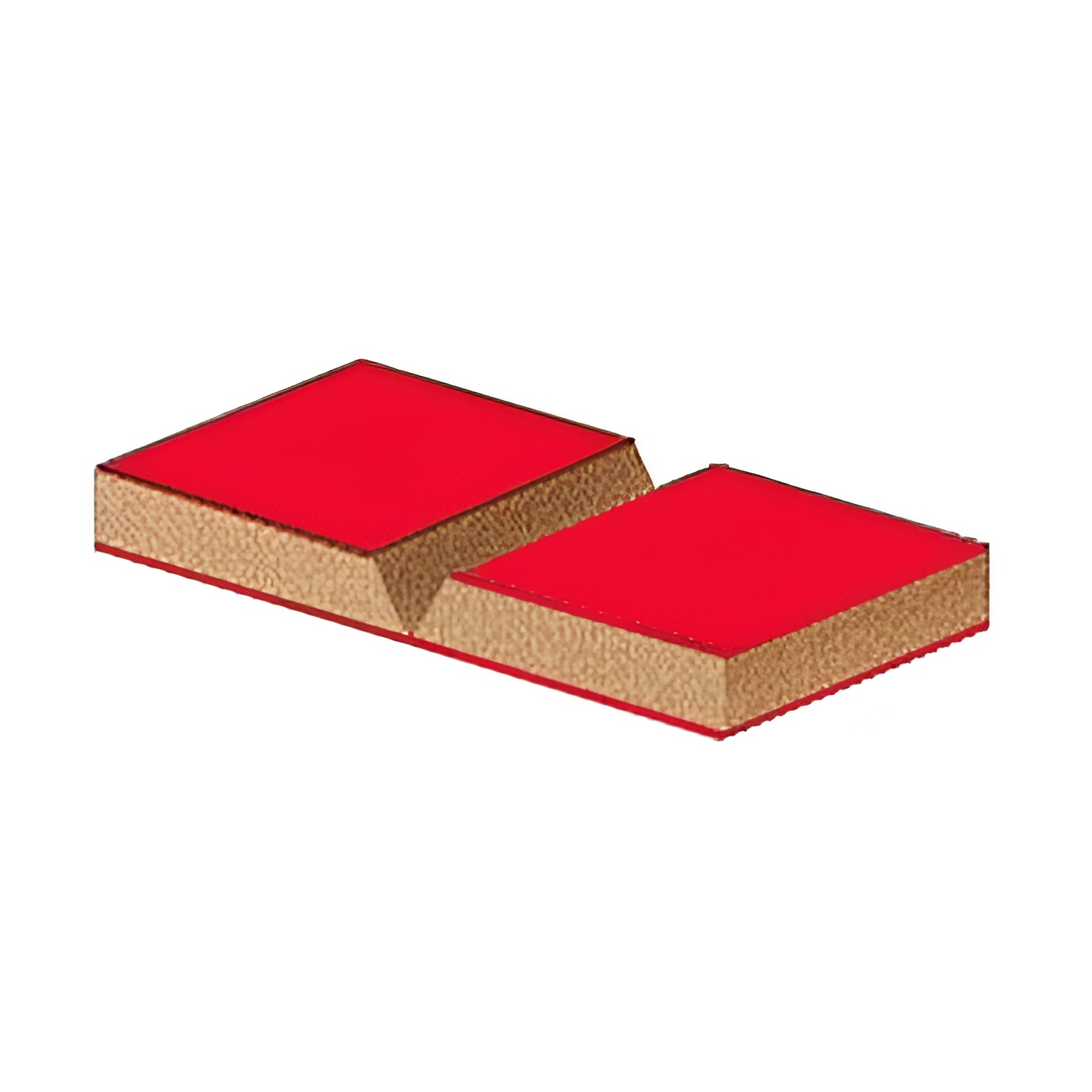

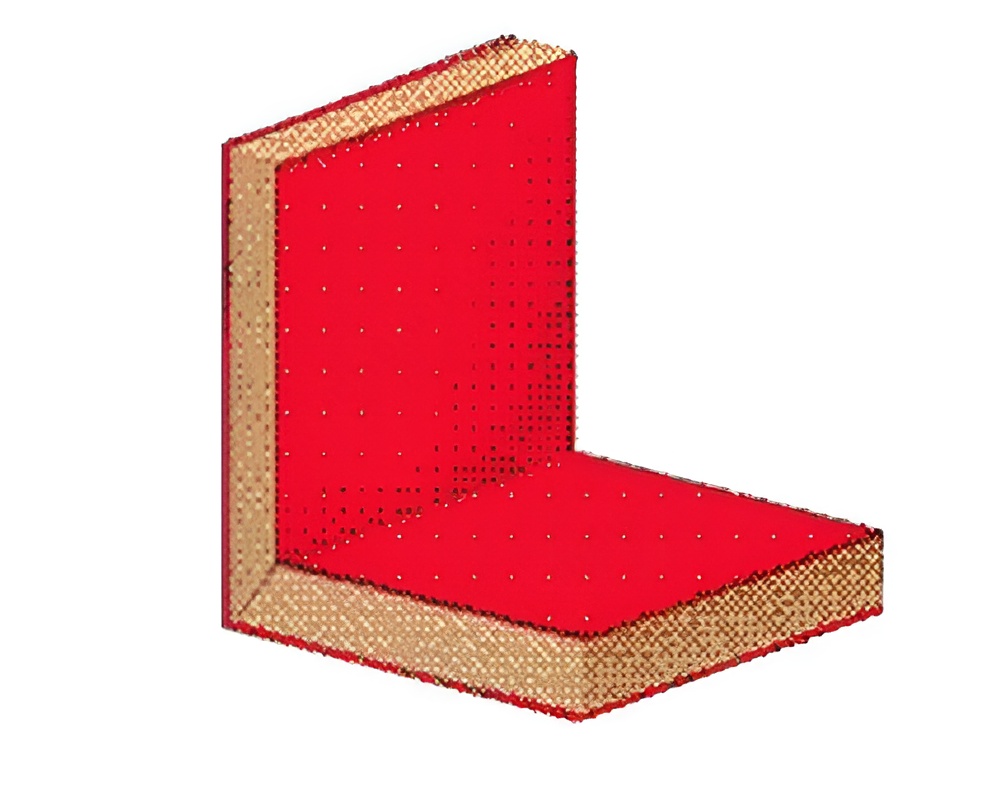

- Miter Folds - "create the perfect joint"

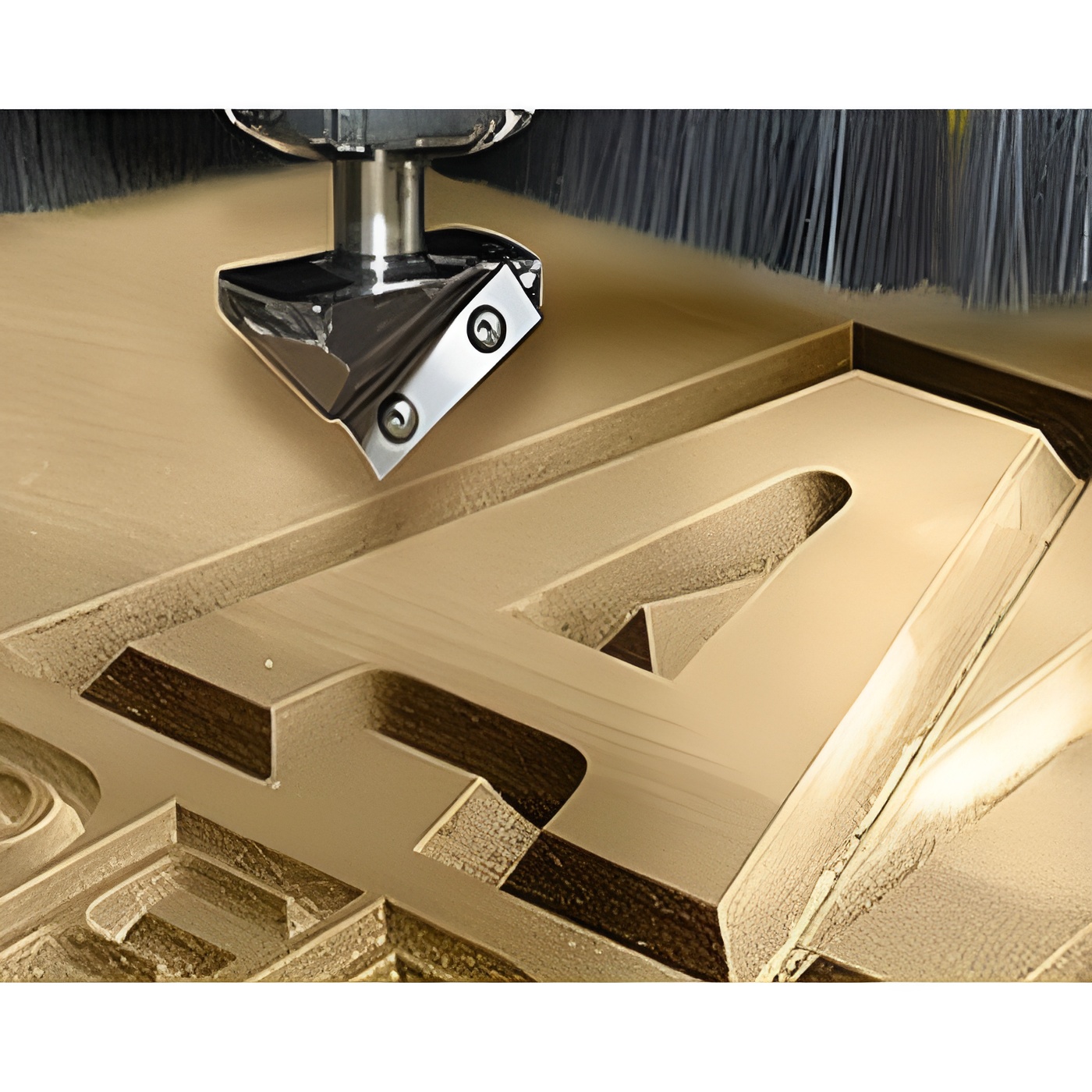

- Signmaking and Lettering

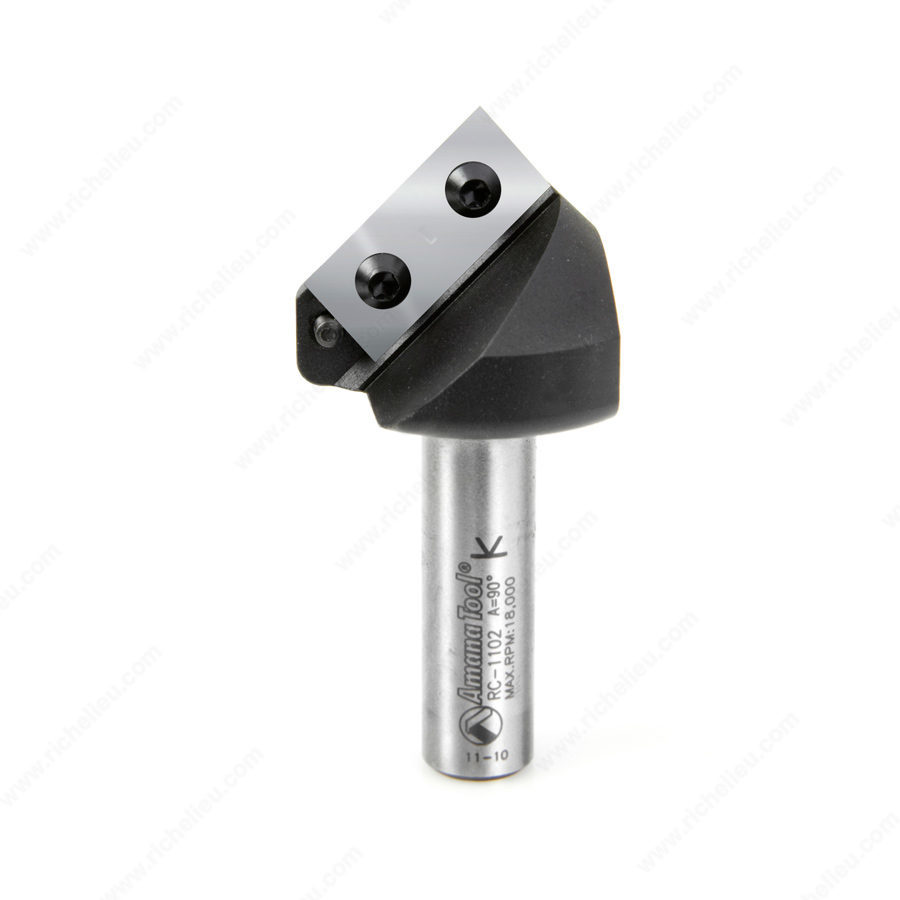

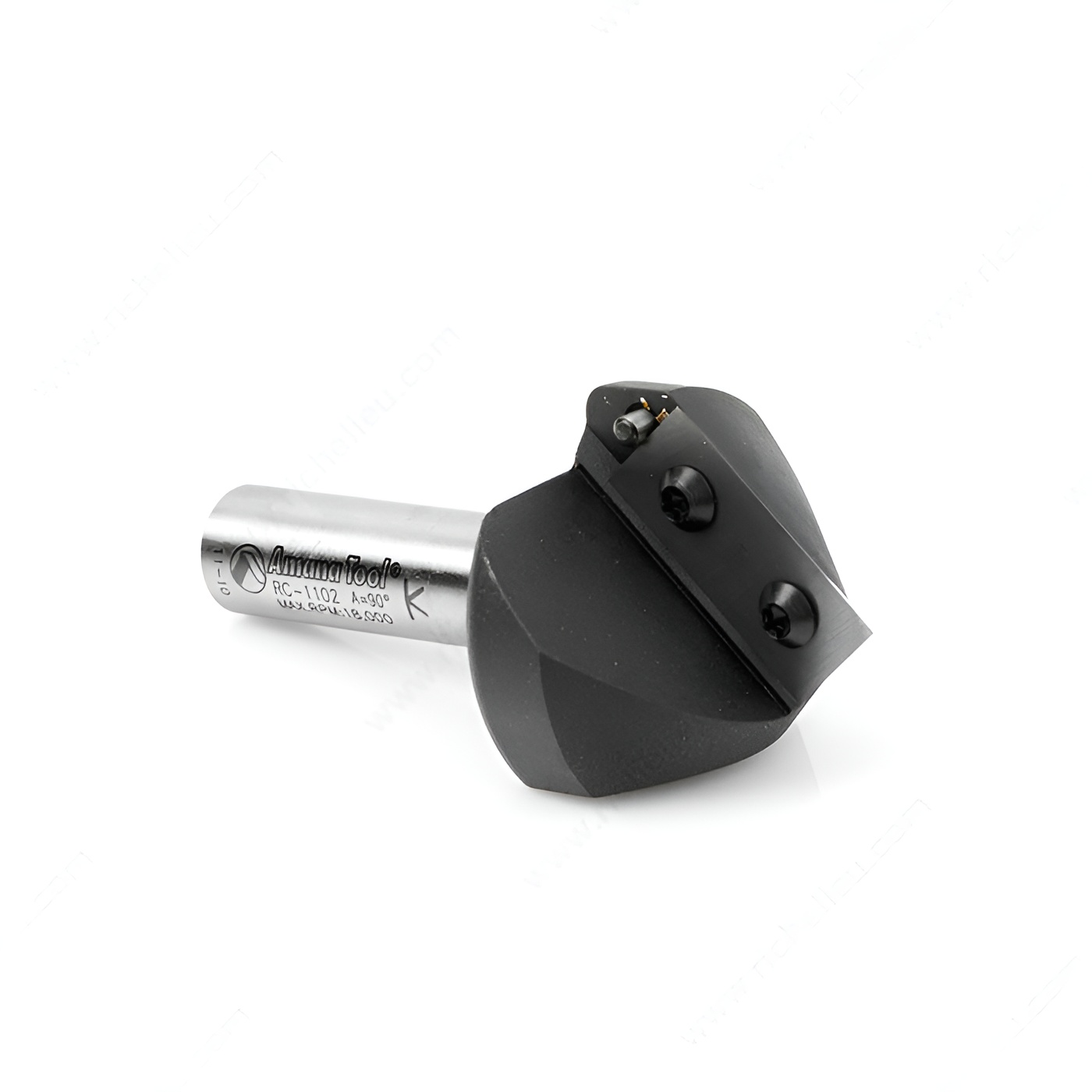

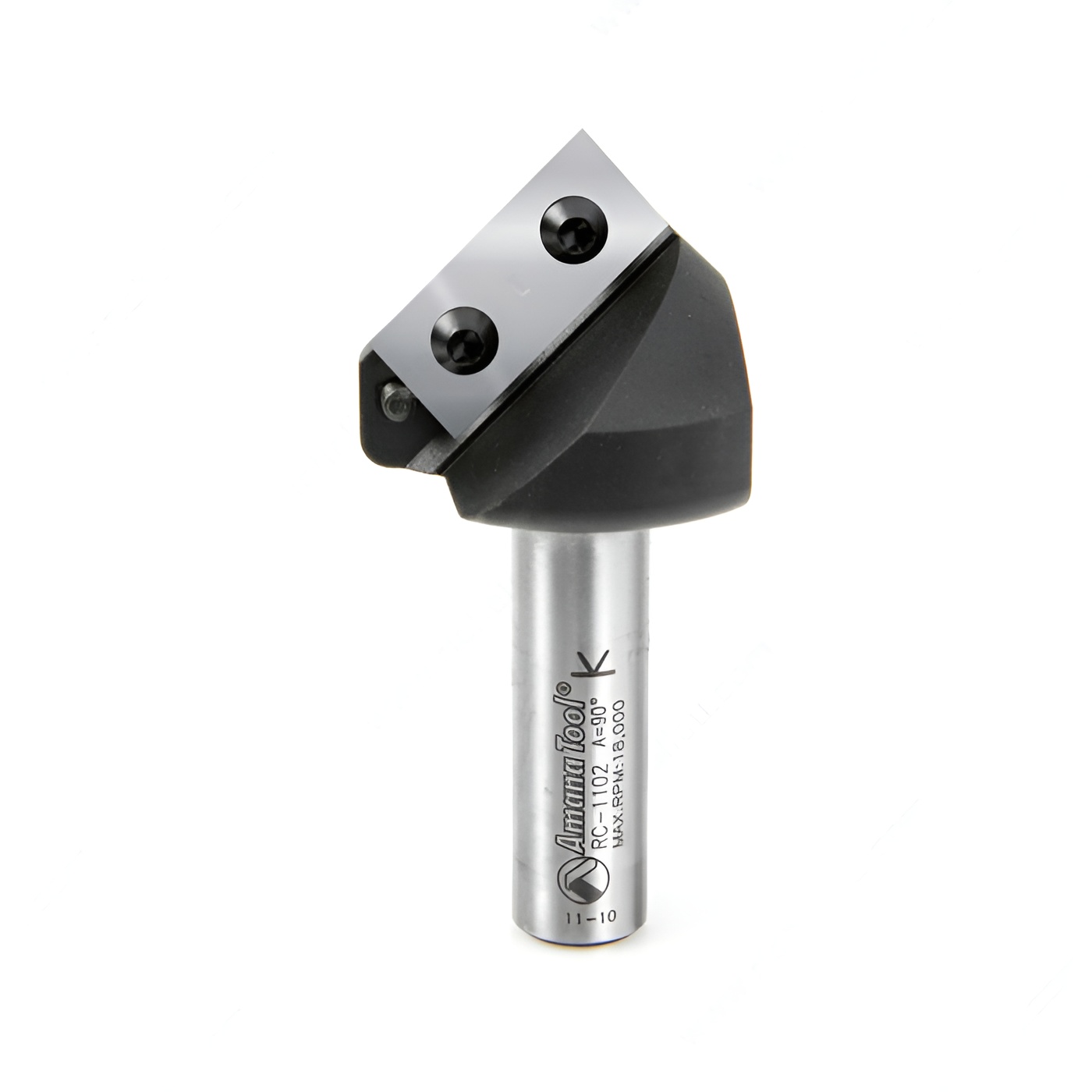

The innovative CNC tool design uses a high grade carbide insert knife which allows you to get two uses out of each insert. Once the insert knife shows signs of wear, you can rotate the insert for a brand new cutting edge. Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.
Application
Excellent for cutting:
Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber
(Engraving Only)
Composites
Composite Decking
Foam
Laminate
Melamine
MDF/HDF
Sign Board
Solid Surface
Veneered Plywood
Wood
Xanita® Board*
20lbs High Density Urethane
*When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.
Attributes
Angle: 90°
Application: Signmaking, Grooving and Carving
Brand: Amana
Cut Diameter: 1 1/2 in
Material: Carbide
Overall Length: 3 in
Product #: ATRC1102
Product number: ATRC1102
Product №: ATRC1102
Shank: 1/2 in
Shank Diameter: 1/2 in
Tool: CNC (Numerical Control)
