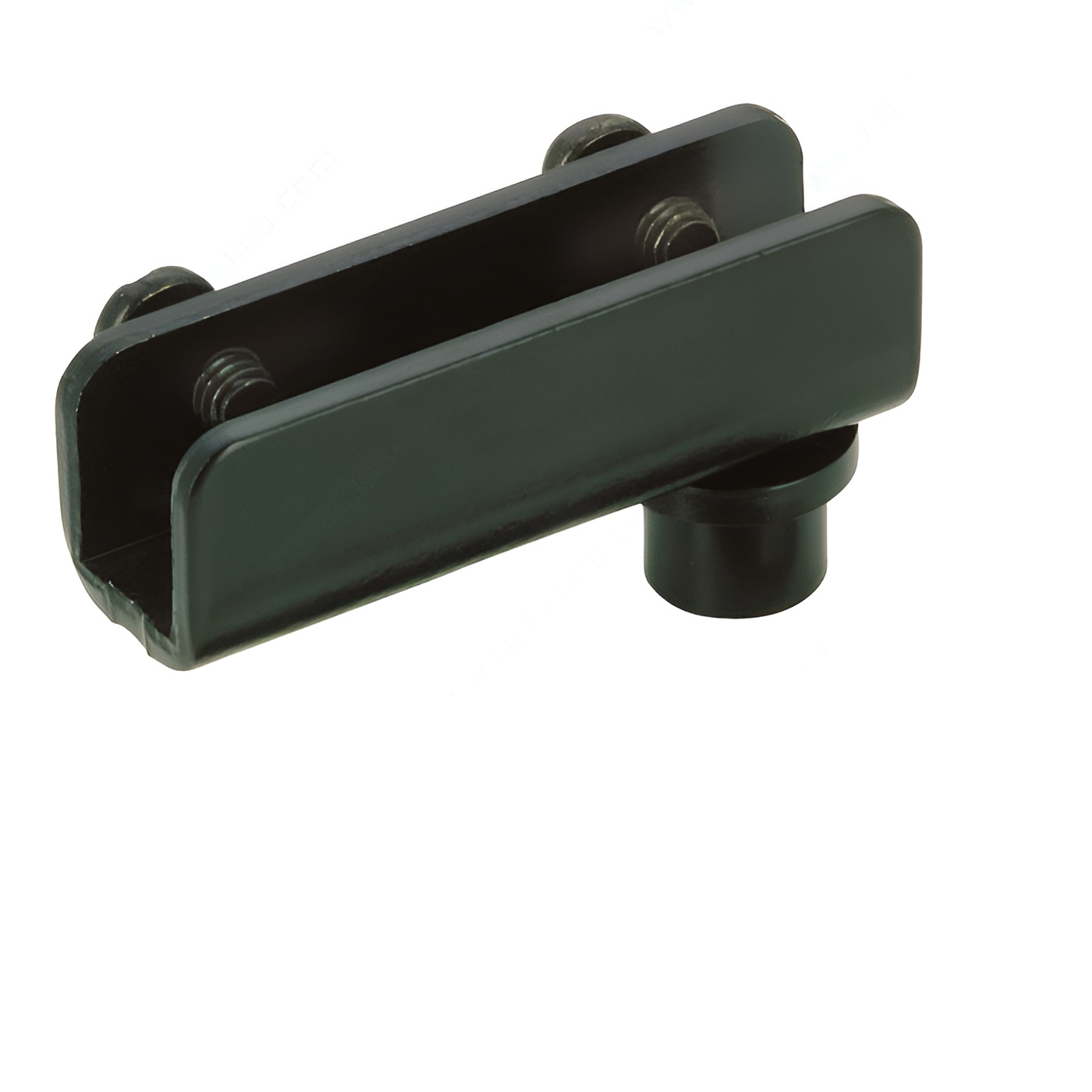

Richelieu BP200190 Pivot Hinge for Glass Door Recessed Within Furniture or Cabinet offers a seamless solution for integrating glass doors into your cabinetry. Crafted from durable steel with a sleek black finish, this pivot hinge enhances both aesthetics and functionality, making it an ideal choice for modern interiors. Designed for glass thicknesses ranging from 5/32 to 3/16 inches, the BP200190 accommodates doors with a maximum height of 31 1/2 inches and a width of up to 19 5/8 inches, ensuring a perfect fit for your project. With a load capacity of 5.51 pounds, it provides reliable support while maintaining a discreet profile, measuring just 19/32 inches in height and 1 5/8 inches in length. The packaging includes a pair of hinges and necessary screws, allowing for quick and easy installation. Additionally, the hinge features plastic thumb screws for convenient adjustments. For precise installations, it's advised to consider the dimensions to subtract from the height (3/8 inch) and width (3/32 inch) of the door. Whether you're a building professional or a knowledgeable homeowner, the Richelieu BP200190 Pivot Hinge is a practical and stylish choice for glass door applications within furniture or cabinets.
Pivot Hinge for Glass Door Recessed Within Furniture or Cabinet
Important information
Brand: Onward
Dimensions to subtract from the height: 3/8 in
Dimensions to subtract from the width: 3/32 in
Finish: Black
Height: 15 mm
Height of Door to Respect: Max. 800 mm
Length: 41 mm
Load Capacity: Max. 2.5 kg
Material: Steel
Packaging format: Pair
Product #: BP200190
Product number: BP200190
Product №: BP200190
Screw/ Nail: Included
Thickness of Glass: 5 to 6 mm
Thumb Screws: Metal
Unit: Pair
Unit 1: package - 10
Unit 2: case - 250
Unit 3: case - 250
Width: 12 mm
Width of Door to Respect: Max. 500 mm
