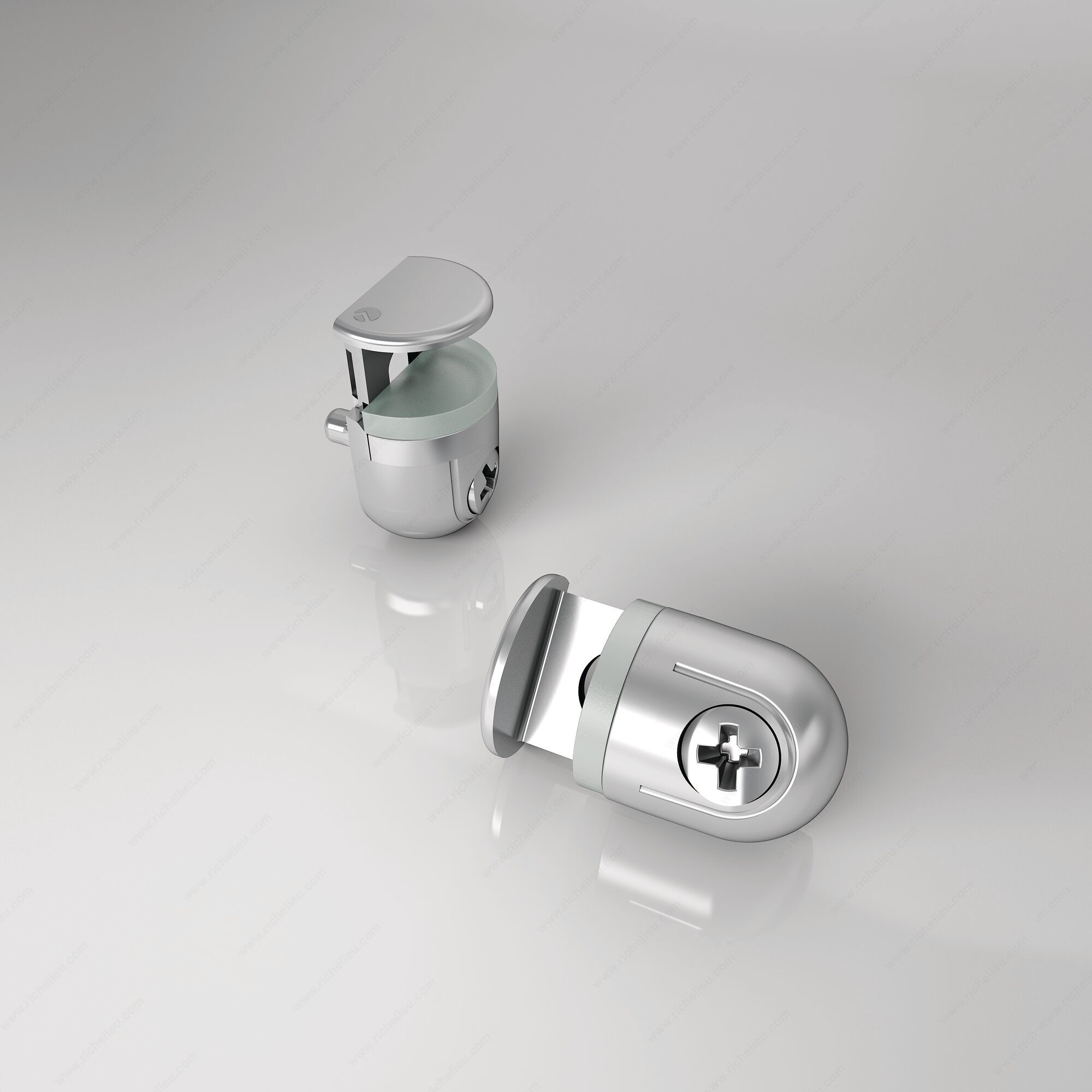

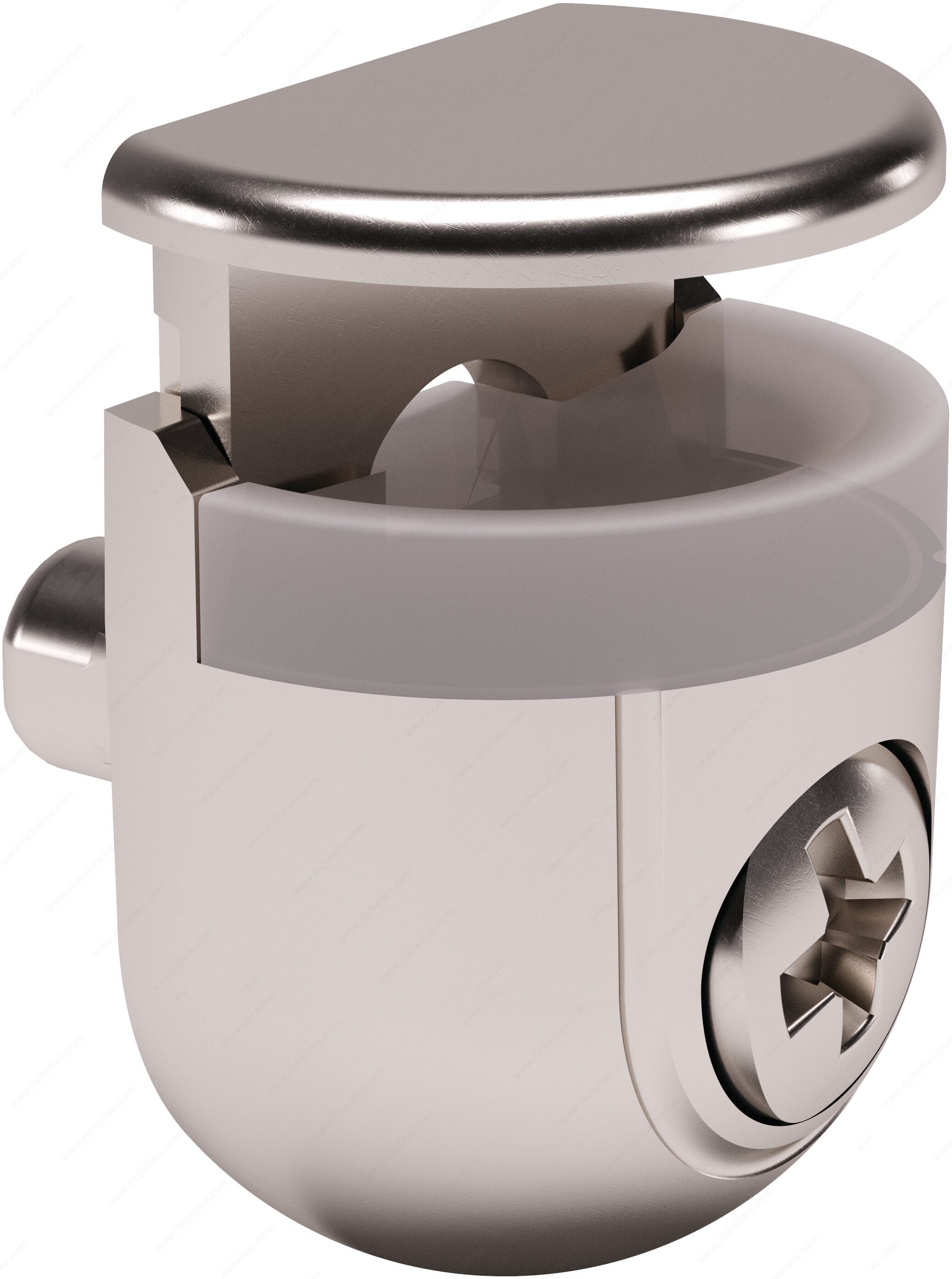

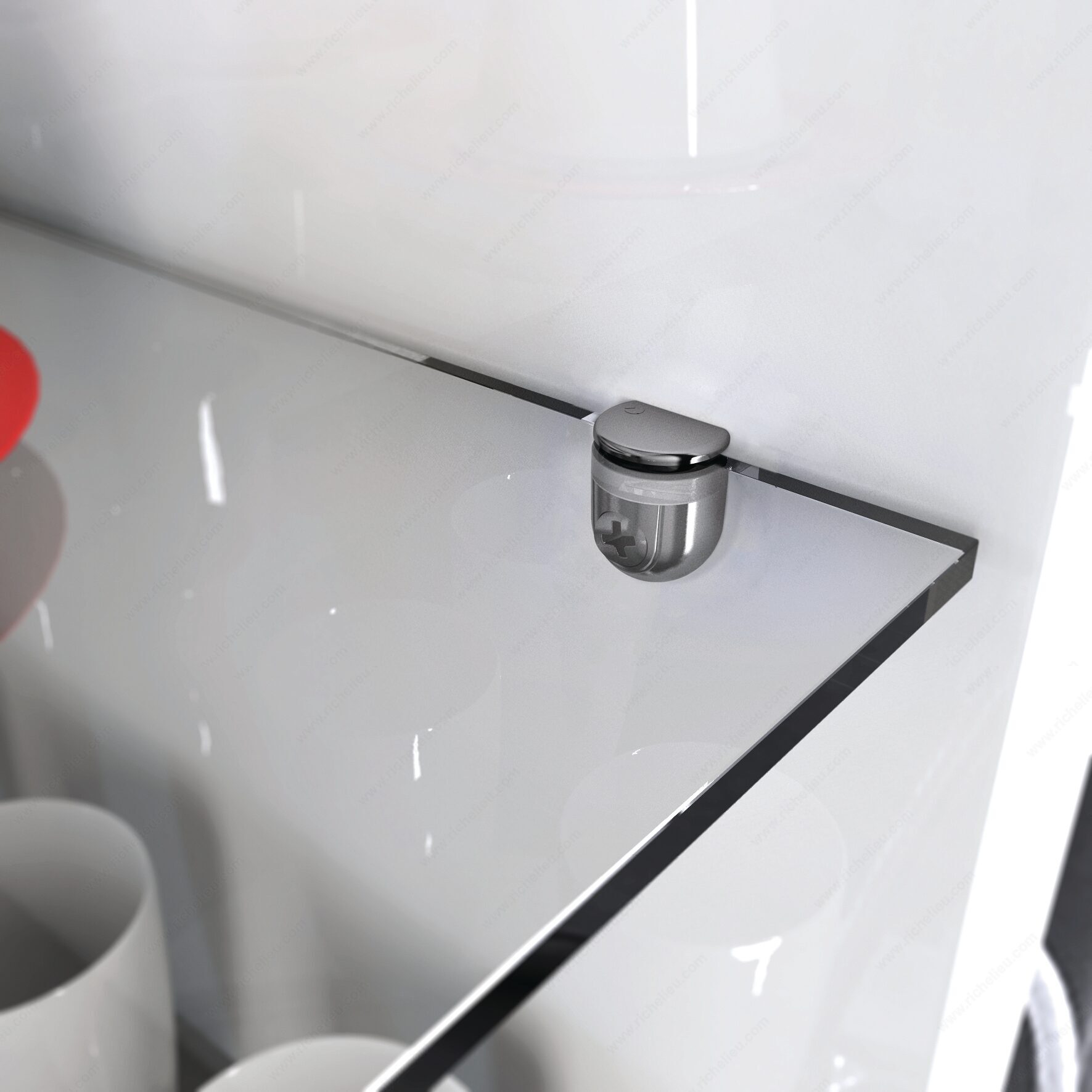

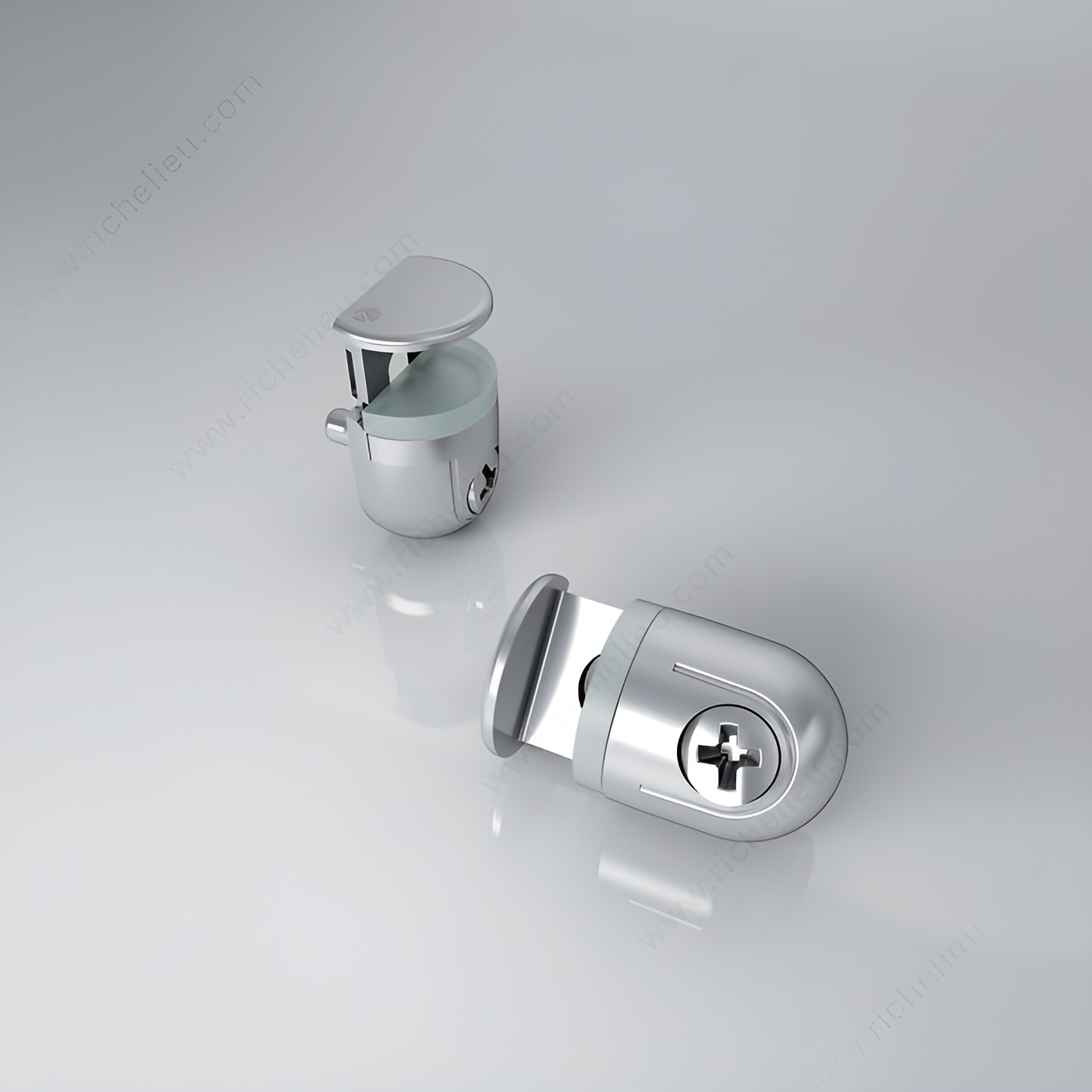

Richelieu BP3020180 Peki Glass Shelf Pin is a cutting-edge solution designed to enhance the functionality and stability of your glass shelving. This innovative shelf pin features a captive design that securely locks glass shelves with a thickness ranging from 4 mm to 10 mm, ensuring a reliable and safe installation. Crafted from durable zinc alloy and rubber, these pins are not only robust but also offer a sleek nickel finish that adds a touch of elegance to any display. The overall dimensions of each pin range from 21/32 to 1 1/8 inches in height and 25/32 inches in length, with a projection of 15/32 inches, making them compact yet effective. Each pin supports a remarkable load capacity of up to 154 lbs per shelf, accommodating a variety of items with ease. Installation is straightforward, requiring a drilling diameter of just 3/16 inches. The BP3020180 shelf pins are packaged in sets of four, making them a convenient choice for both professional contractors and discerning homeowners. Compliant with RoHS standards, these pins ensure safety and environmental responsibility. Elevate your shelving solutions with Richelieu's reliable and stylish Peki Glass Shelf Pins.
Peki Glass Shelf Pin - Adjustable 4 mm to 10 mm
Appearance: Visible
Brand: Italiana Ferramenta
Drilling Diameter: 5 mm
Features: Screw Lock
Finish: Nickel
Height - Overall Dimensions: 17 to 28.5 mm
Length - Overall Dimensions: 19.8 mm
Load Capacity per Shelf: 70 kg
Material: Steel
Packaging format: Bag of 4 units
Product #: BP3020180
Product number: BP3020180
Product №: BP3020180
Projection - Overall Dimensions: 12 mm
Shelf Thickness: 4 to 10 mm
Standards and Certifications: RoHS
Unit: Bag of 4 units
Unit 1: carton - 10
Unit 2: carton - 10
Unit 3: case - 250
Width - Overall Dimensions: 17 mm
