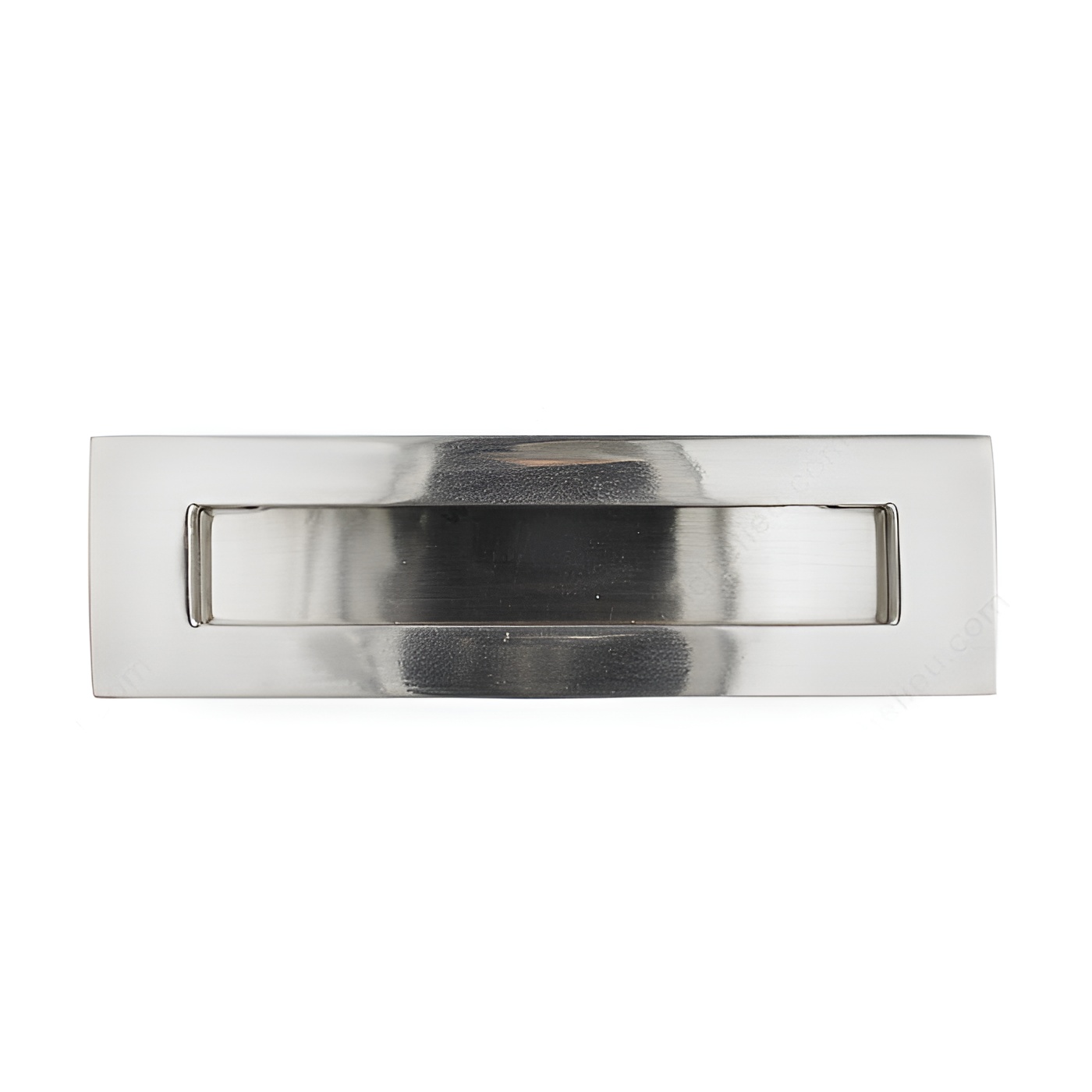

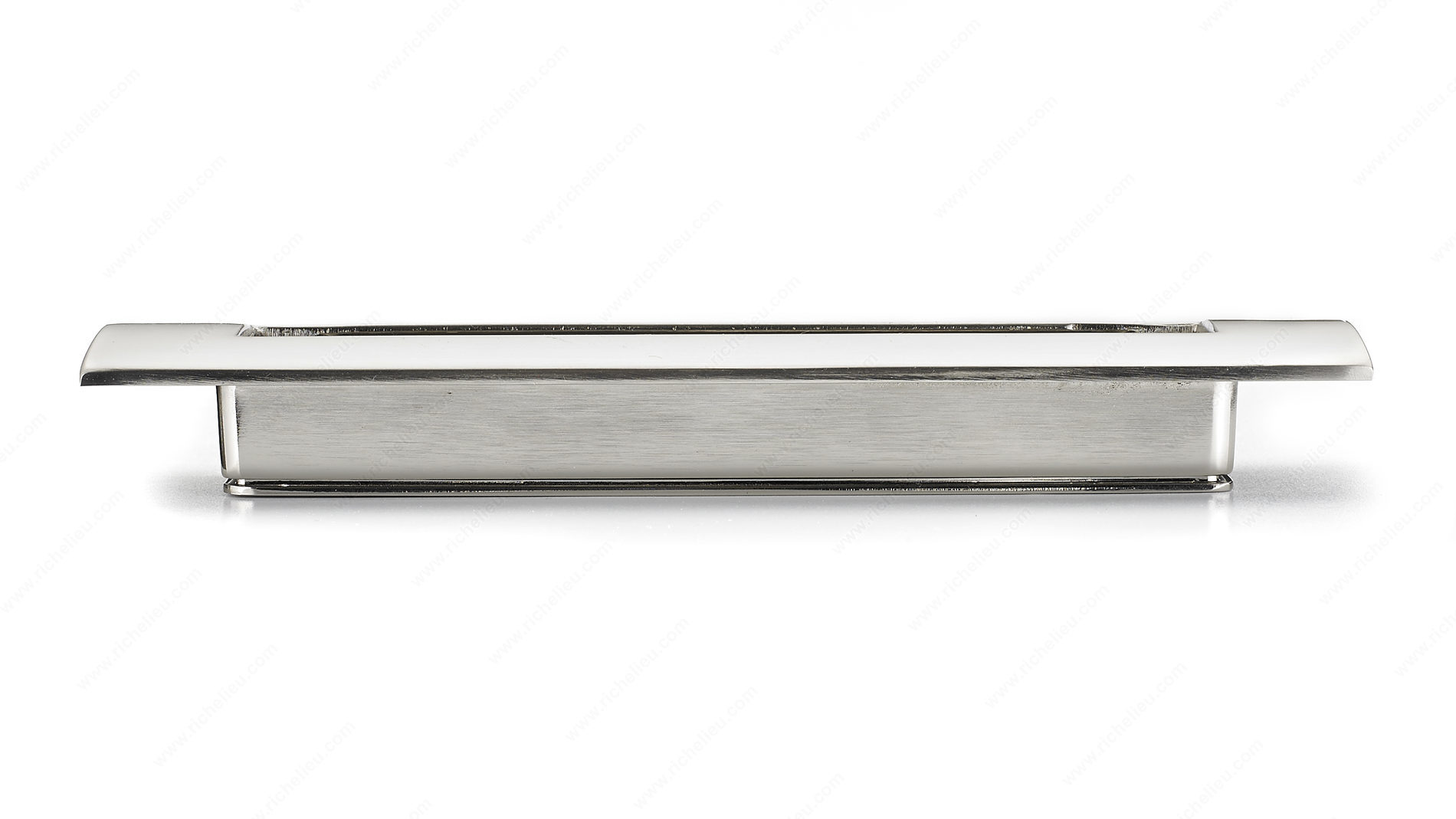

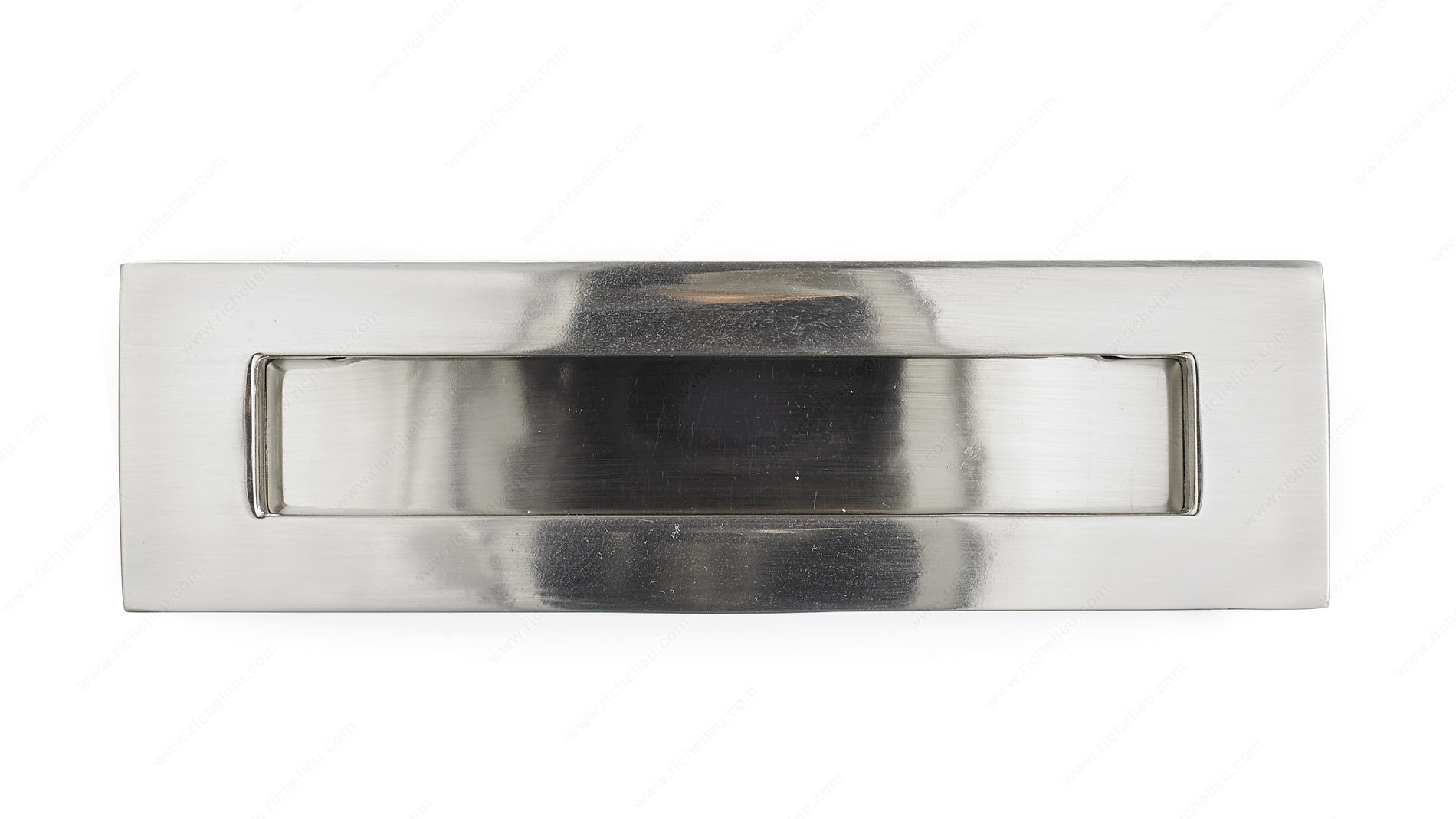

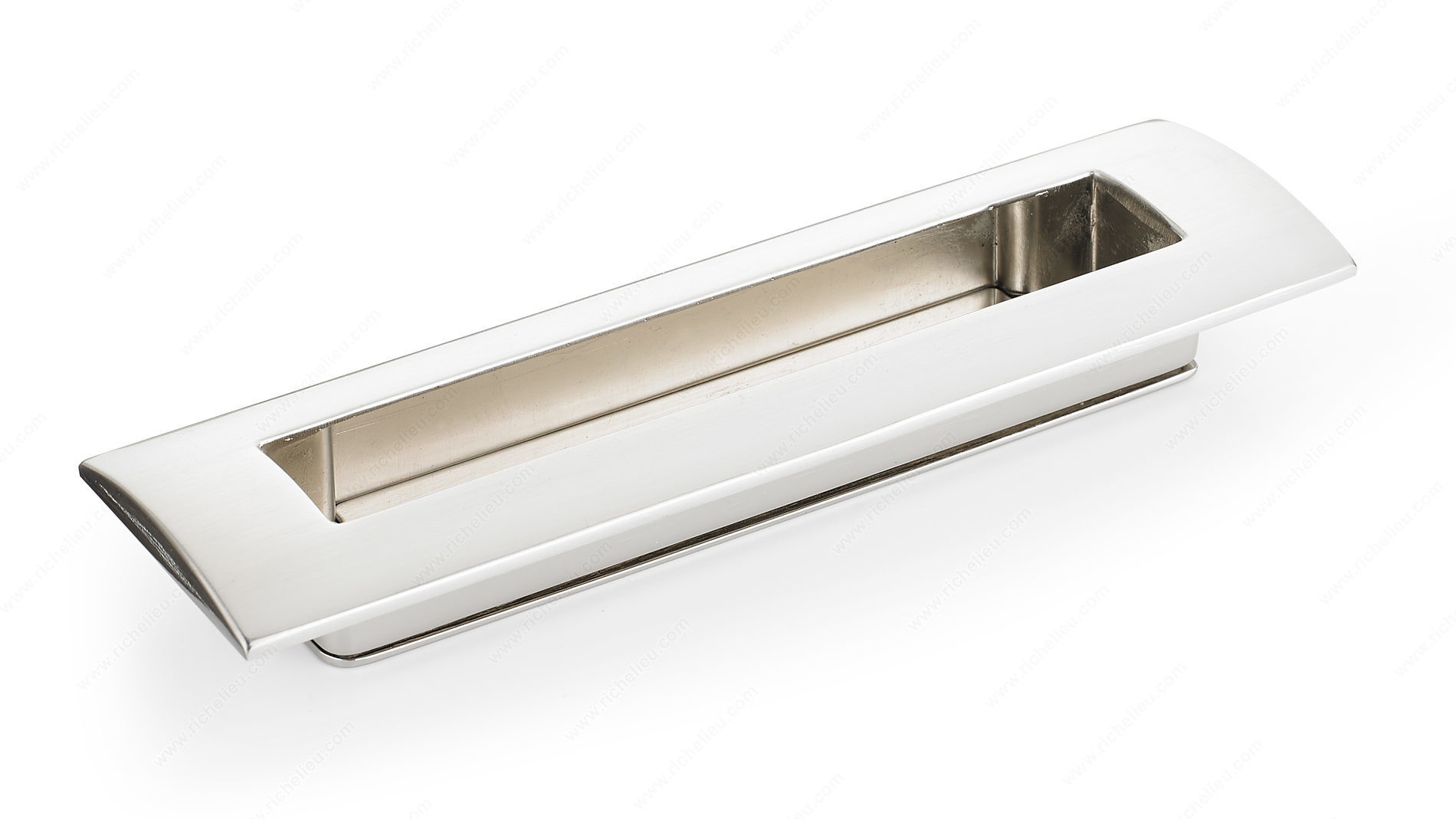

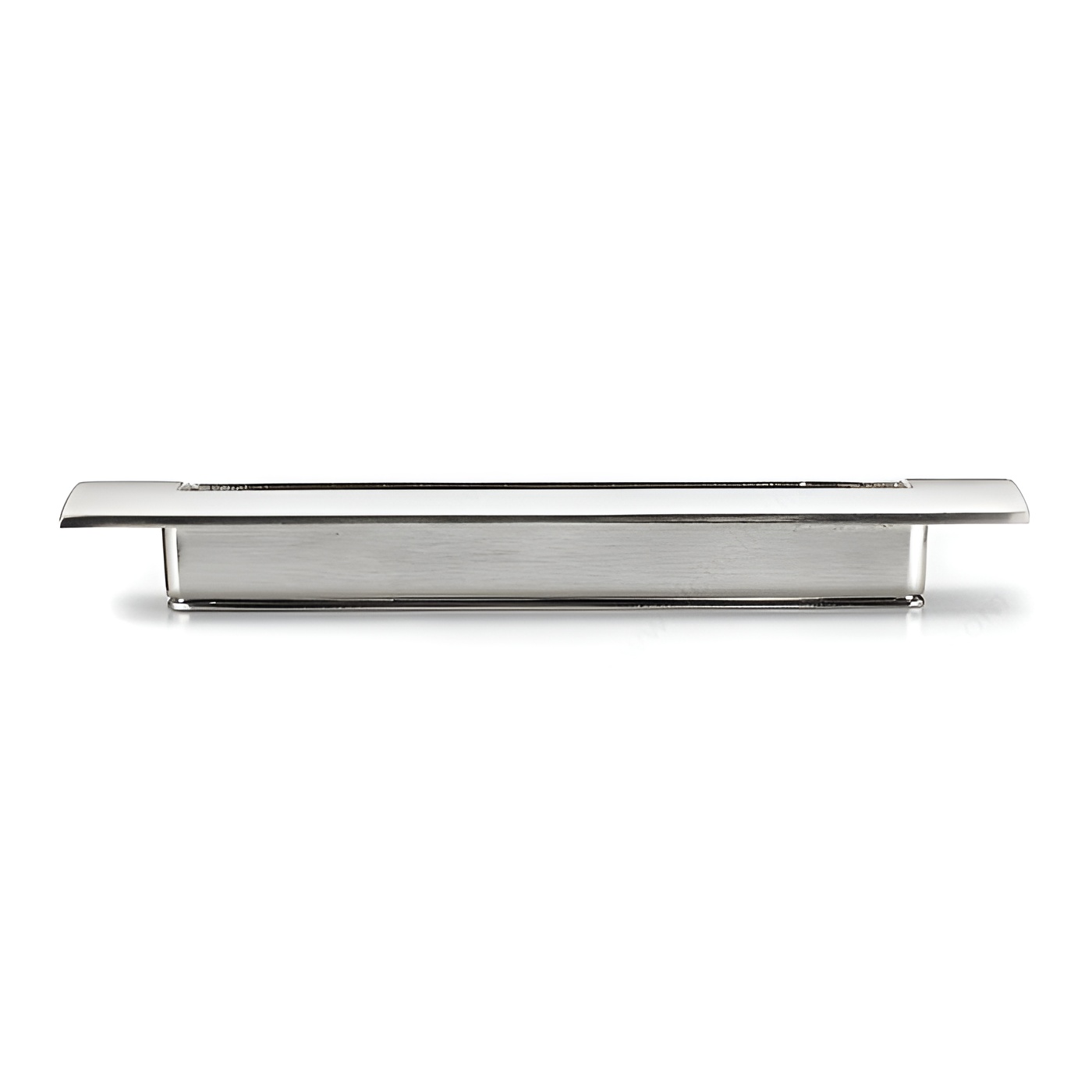

Richelieu BP310075172195 Modern Recessed Metal Pull - 3100 offers a sophisticated solution for enhancing your cabinetry. This recessed handle is expertly designed to seamlessly integrate into your cabinet door, making it an ideal choice for sliding door applications. Crafted from durable metal, the modern aesthetic features a brushed nickel finish that adds a contemporary touch to any space. With an overall length of 6 25/32 inches and a height of 13/16 inches, this pull is not only stylish but also functional. The center-to-center measurement is 5 1/32 inches, ensuring compatibility with a variety of cabinet designs. The milling specifications include a depth of 19/32 inches and a width of 1 11/32 inches, making installation straightforward. Available in a sleek gray and chrome color scheme, the Richelieu BP310075172195 pull is designed for effortless use, with a projection of 9/32 inches that allows for a comfortable grip. It comes with recessed screws (8/32 inch included), ensuring you have everything needed for installation. Elevate your cabinetry with this modern recessed pull, combining practicality with a refined look that complements any interior design.
Modern Recessed Metal Pull - 3100

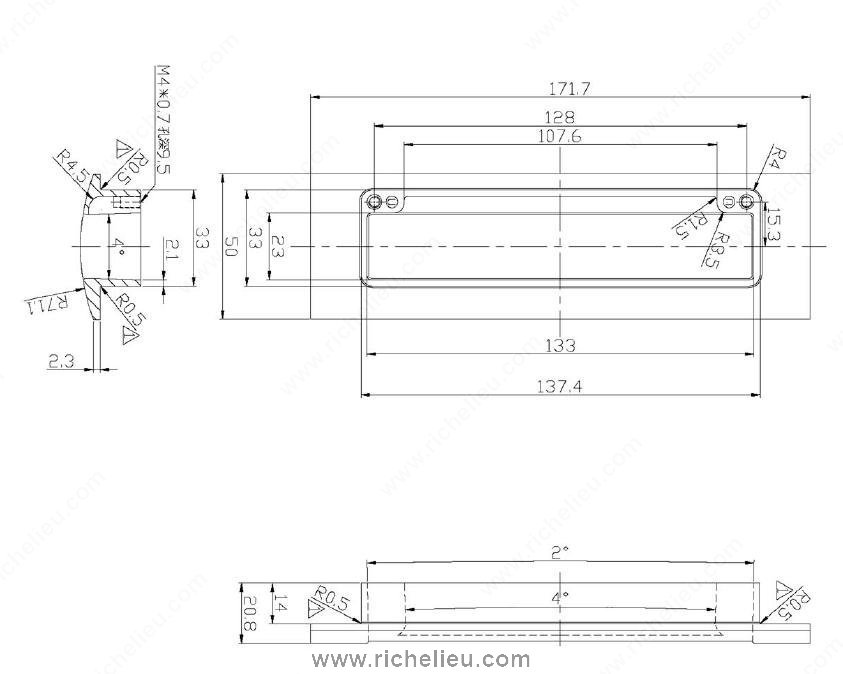

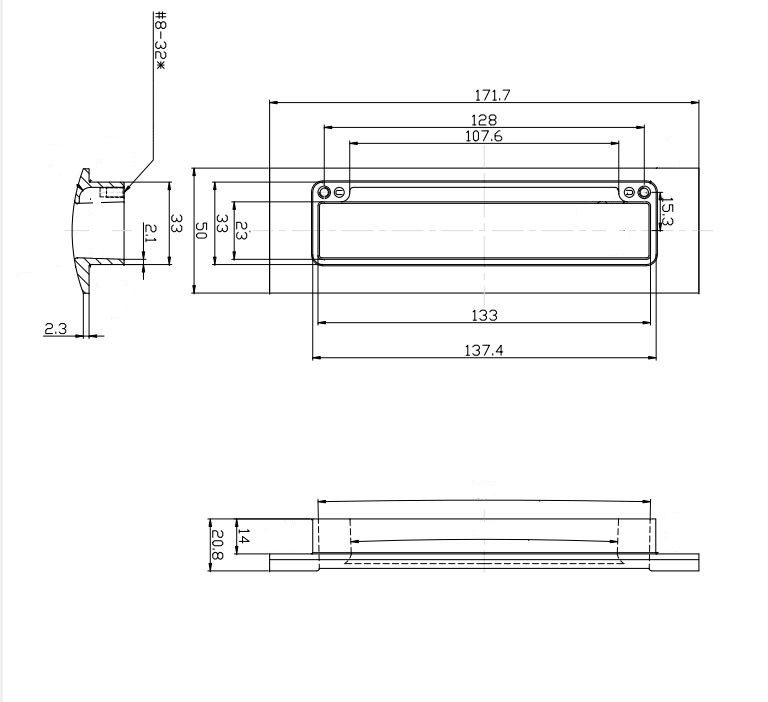

Center to Center: 128 mm
Color: Gray and Chrome
Finish: Brushed Nickel
Finish Number: 195
Height - Overall Dimensions: 21 mm
Length - Overall Dimensions: 172 mm
Material: Metal
Milling Depth - Overall Dimensions: 14 mm
Milling Diameter - Overall Dimensions: 3/16 in*
Milling Length - Overall Dimensions: 5 7/16 in*
Milling Width - Overall Dimensions: 1 11/32 in*
Product #: BP310075172195
Product number: BP310075172195
Product №: BP310075172195
Projection - Overall Dimensions: 7 mm
Pulls and Knobs Style: Contemporary
Screw/ Nail: Recessed, 8/32 (Included)
Type: Recessed pulls
Unit: Bag
Unit 1: carton - 10
Unit 2: carton - 10
Unit 3: case - 50
Width - Overall Dimensions: 50 mm
