Richelieu BP5829180 Metal Shelf Pin - 7 mm offers a reliable solution for securing shelves in various furniture applications, including closets, entertainment centers, kitchens, and bathroom cabinets. Designed for ease of installation, these shelf pins are simply pushed into pre-drilled holes on the sides of shelving units, enabling quick setup and adjustments. Crafted from durable metal with a sleek nickel finish, these pins are not only functional but also visually appealing, making them suitable for visible shelving. Each pin measures 15/16 inch in length with an overall projection of 19/32 inch and a width of 15/32 inch. They accommodate shelves with a minimum thickness of 5/8 inch and boast an impressive load capacity of 220 pounds per shelf, ensuring robust support for your items. Packaged in a convenient bag of 8 units, the Richelieu Metal Shelf Pins are designed to meet RoHS standards, reflecting a commitment to safety and environmental responsibility. Their 9/32 inch drilling diameter allows for compatibility with a wide range of shelving systems. Ideal for both professional builders and discerning homeowners, these shelf pins provide a sturdy and elegant solution for all your shelving needs.

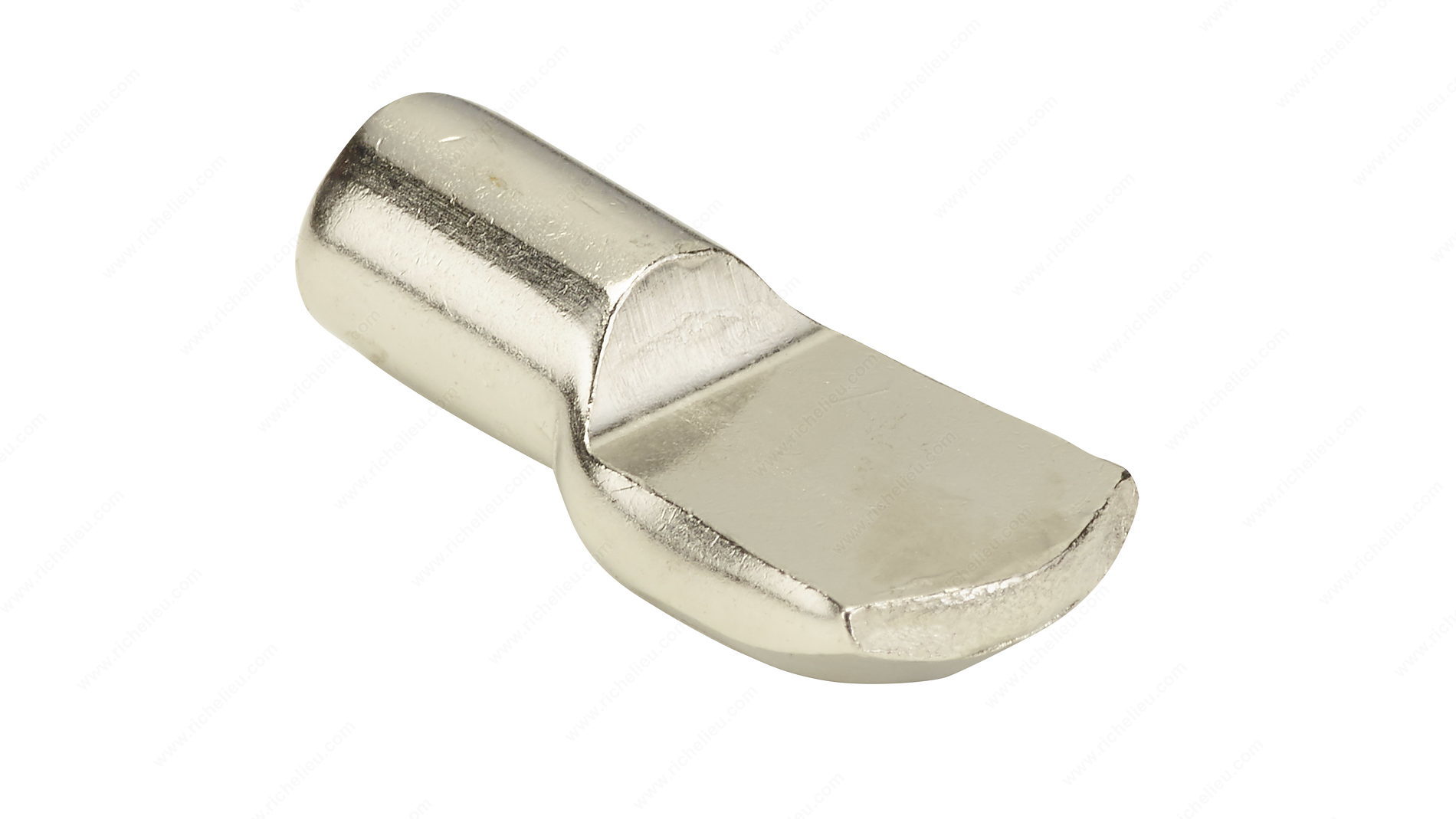

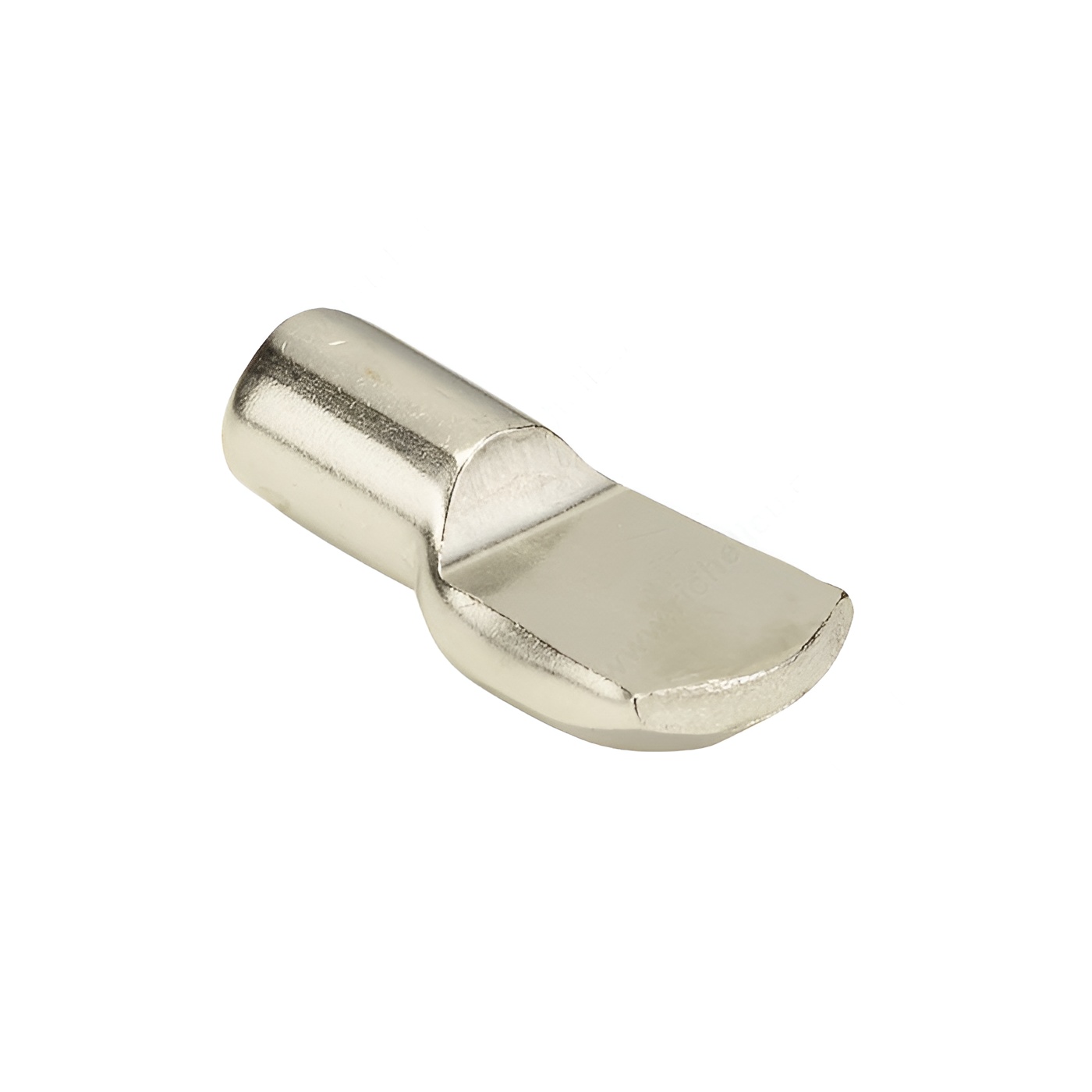

Metal Shelf Pin - 7 mm
Appearance: Visible
Drilling Diameter: 7 mm
Finish: Nickel
Length - Overall Dimensions: 24 mm
Load Capacity per Shelf: 100 kg
Material: Metal
Packaging format: Bag of 8 units
Product #: BP5829180
Product number: BP5829180
Product №: BP5829180
Projection - Overall Dimensions: 14.8 mm
Shelf Thickness: Min. 16 mm
Standards and Certifications: RoHS
Unit: Bag of 8 units
Unit 1: package - 10
Unit 2: package - 10
Unit 3: case - 300
Width - Overall Dimensions: 11.6 mm
