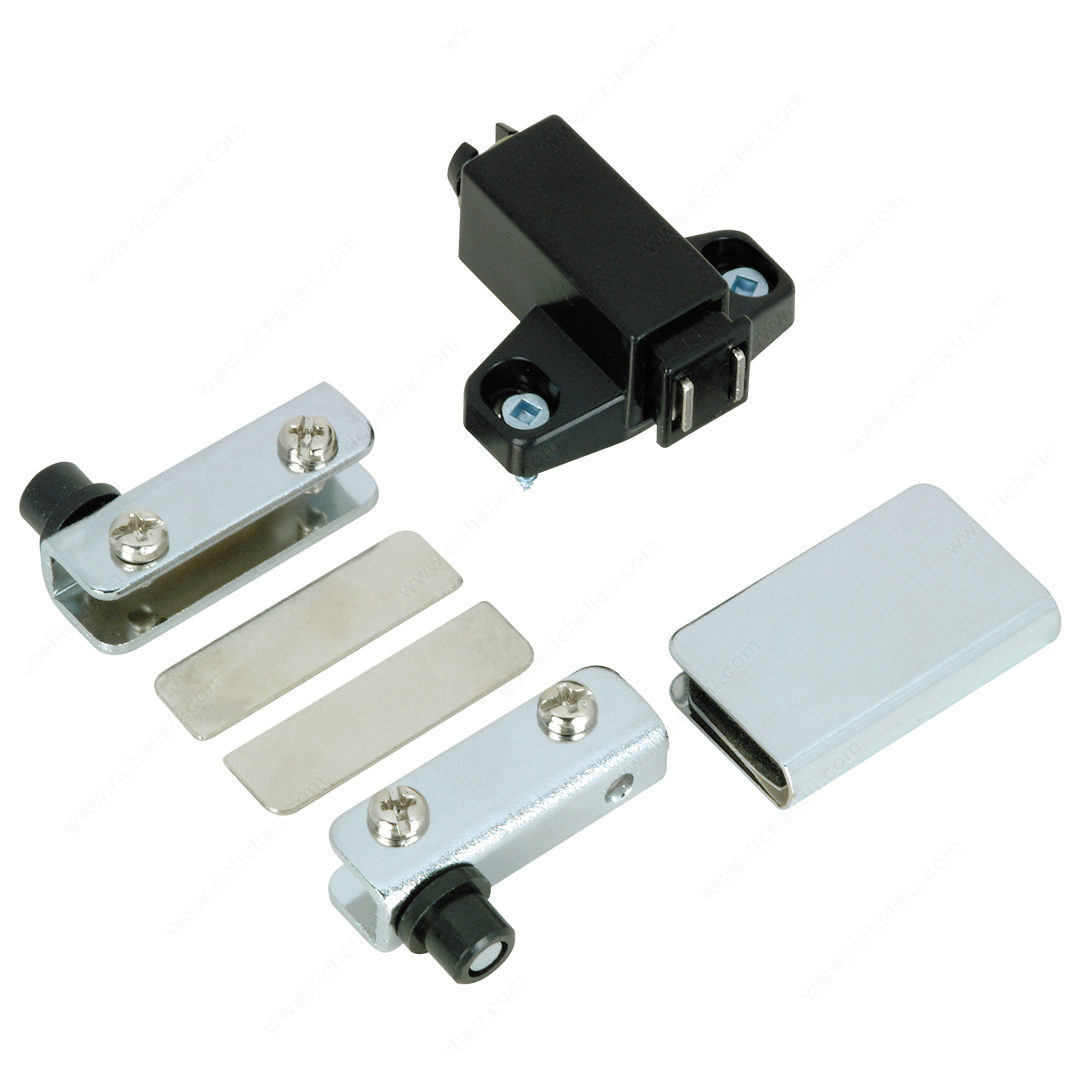

Richelieu BP86140 Pivot Hinge Set for Glass Doors Recessed Within Furniture/Cabinet offers a versatile and stylish solution for integrating glass doors into cabinetry. This comprehensive hinge kit includes two durable 2001-series pivot hinges, a 5002-series latch plate, and a sleek 5096-90 magnetic push latch in a contemporary black finish, ensuring a seamless, modern look. Designed for glass thicknesses ranging from 3/16 to 1/4 inches, the BP86140 can support a maximum load capacity of 5.51 pounds, making it suitable for various applications. The kit is engineered to accommodate doors with a maximum height of 31 1/2 inches and a width of 19 5/8 inches, allowing for flexibility in design while maintaining structural integrity. Crafted from high-quality steel with a chrome finish, the pivot hinges not only ensure durability but also enhance the aesthetic appeal of your cabinetry. Installation is straightforward with included screws and metal thumb screws, facilitating an efficient setup. For professional builders and discerning homeowners, the Richelieu BP86140 Pivot Hinge Set represents an ideal choice for elegant glass door solutions that blend functionality with style. Available in convenient bundles of 10 units, it supports both large-scale projects and individual installations.
Pivot Hinge Set for Glass Doors Recessed Within Furniture/Cabinet
Included products
Dimensions to subtract from the height: 3/8 in
Dimensions to subtract from the width: 3/32 in
Finish: Chrome
Height: 15 mm
Height of Door to Respect: Max. 800 mm
Length: 40 mm
Load Capacity: Max. 2.5 kg
Material: Steel
Product #: BP86140
Product number: BP86140
Product №: BP86140
Screw/ Nail: Included
Thickness of Glass: 5 to 6 mm
Thumb Screws: Metal
Unit: Bag
Unit 1: package - 10
Unit 2: package - 10
Unit 3: case - 200
Width: 9 mm
Width of Door to Respect: Max. 500 mm
