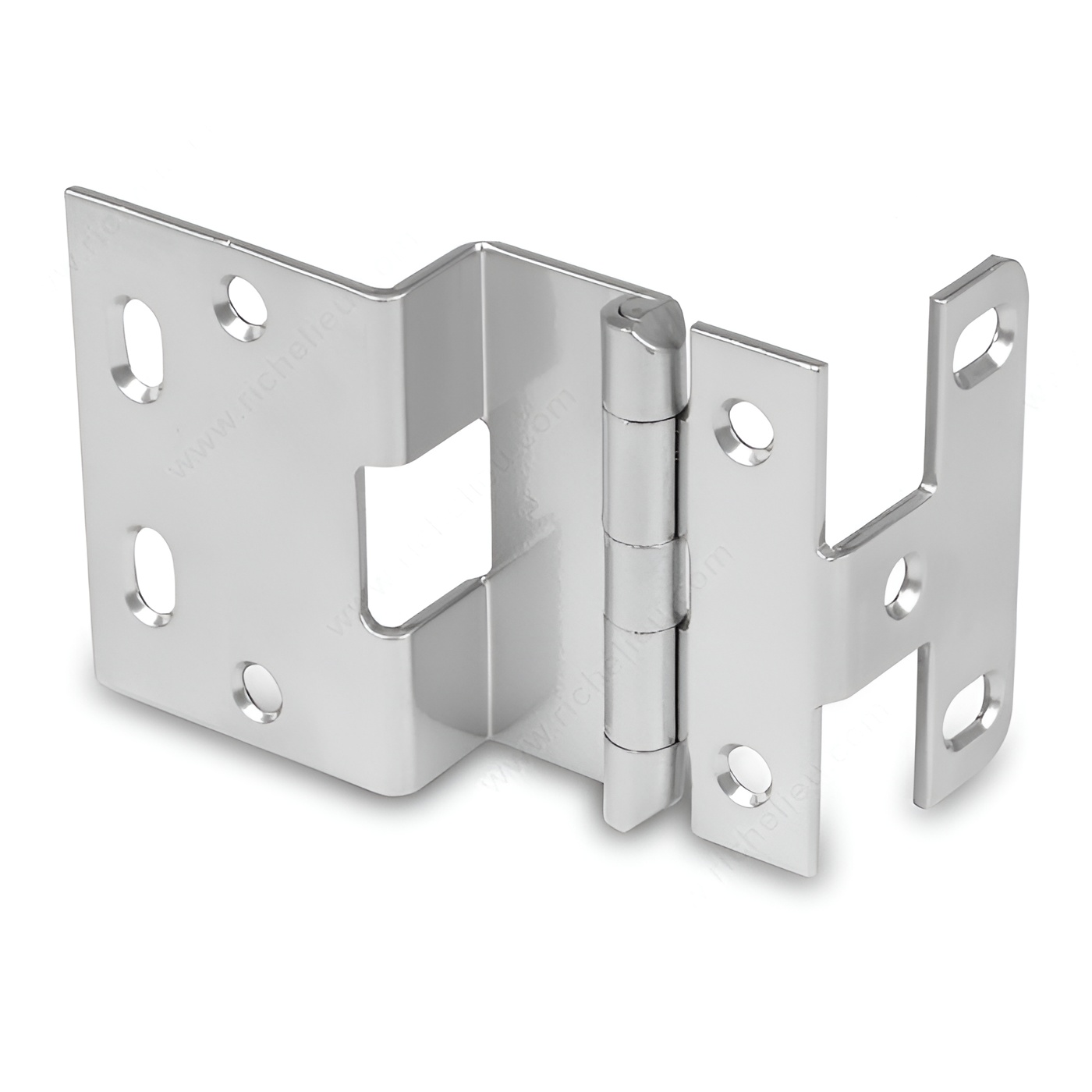

Richelieu BP91374145 3/4" Overlay Institutional Hinge - Series 370 is engineered to provide exceptional performance for heavy-duty applications. Designed for 32 mm centers with a 37 mm setback, this hinge ensures a secure and reliable fit for your doors. With a door overlay of 15/32 inches and a robust door thickness of 3/4 inches, it is well-suited for various institutional settings. Constructed from durable steel and finished in sleek chrome, the hinge not only adds a polished look but also guarantees longevity and resilience. Its impressive hinge opening angle of +270° allows for maximum accessibility, making it an ideal choice for high-traffic environments. The hinge accommodates a side panel thickness of 3/4 inches and includes #8 screws for easy installation. The Richelieu BP91374145 meets ANSI/BHMA 156.9 Grade 1 standards, ensuring reliability and strength. With a gauge of 3/32 inches and an offset of 3/4 inches, it is designed for optimal functionality. Packaged in pairs, this institutional hinge is a practical solution for those seeking quality and dependability in door hardware. Whether for new construction or renovations, this hinge is an excellent choice for building professionals and discerning homeowners alike.
Five Knuckles Institutional Hinge 374 Series - 3/4" x 3/4"
Important information
Brand: RPC
Color/ Finish: Satin Chrome
Door Overlay: 15/32 in
Door Thickness: 3/4 in
Door overlay: 15/32 in
Door thickness: 3/4 in
Finish: Chrome
Fixing Type: Screw-On
Gauge: 2.4 mm
Height: 2 3/4 in
Hinge Opening Angle: +270°
Load Capacity: 60 lb
Material: Steel
Offset: 3/4 in
Overlay: 23/32 in
Packaging format: Pair
Product #: BP91374145
Product number: BP91374145
Product №: BP91374145
Screw/ Nail: Included
Side panel thickness: 3/4 in
Standards and Certifications: ANSI/BHMA 156.9 Grade 1
Type: Institutional Hinge
Unit: Pair
Unit 1: case - 25
Unit 2: case - 25
