Richelieu BP91376145 3/4" Overlay Institutional Hinge - Series 370 is engineered for durability and precision, making it an ideal choice for institutional applications. Designed to accommodate 32 mm centers with a 37 mm setback, this hinge ensures a secure and reliable fit for your doors. The 15/32 inch door overlay combined with a thickness of 13/16 inch allows for seamless integration into various cabinetry designs. Constructed from high-quality steel and finished in sleek chrome, the hinge not only enhances the aesthetics of your installations but also guarantees long-lasting performance. With an impressive hinge opening angle of +270°, it provides excellent accessibility, while the offset of 3/4 inch ensures a smooth operation. This product comes packaged in pairs and includes #8 screws for convenient installation. Meeting ANSI/BHMA 156.9 Grade 1 standards, you can trust the reliability and strength of this institutional hinge. It is suitable for side panel thicknesses of 3/4 inch, making it versatile for multiple applications. The gauge of 3/32 inch adds to its robust design, making the Richelieu BP91376145 a top choice for professionals seeking quality and functionality in their projects.

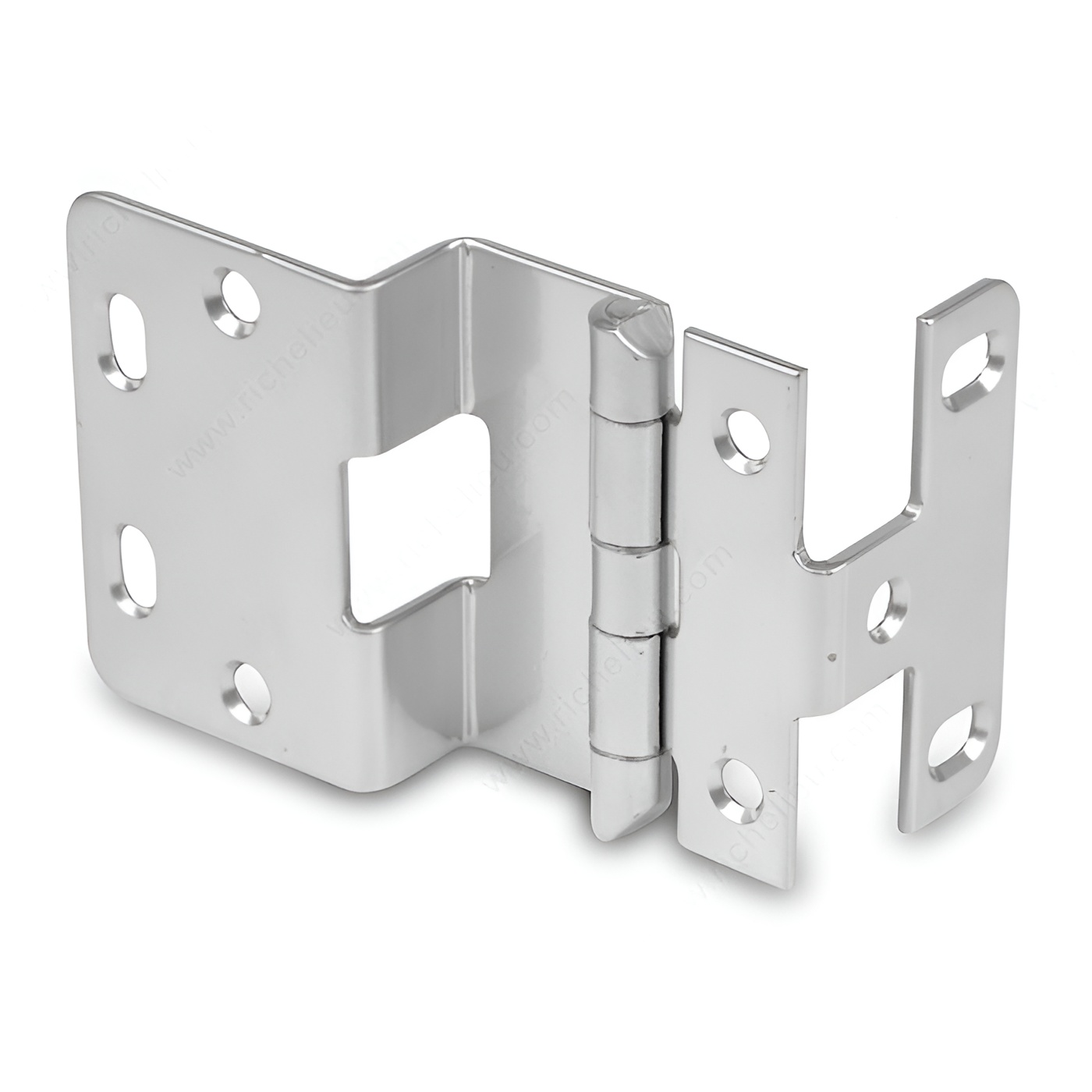

Five Knuckles Institutional Hinge 376 Series - 13/16" x 3/4"
Brand: RPC
Color/ Finish: Satin Chrome
Door Overlay: 15/32 in
Door Thickness: 13/16 in
Door overlay: 15/32 in
Door thickness: 13/16 in
Finish: Chrome
Fixing Type: Screw-On
Gauge: 2.4 mm
Height: 2 3/4 in
Hinge Opening Angle: +270°
Load Capacity: 60 lb
Material: Steel
Offset: 3/4 in
Overlay: 23/32 in
Packaging format: Pair
Product #: BP91376145
Product number: BP91376145
Product №: BP91376145
Screw/ Nail: Included
Side panel thickness: 3/4 in
Standards and Certifications: ANSI/BHMA 156.9 Grade 1
Type: Institutional Hinge
Unit: Pair
Unit 1: case - 50
Unit 2: case - 50
