Richelieu BP91454145 3/4" Overlay Institutional Hinge - Series 450 offers a perfect blend of strength and functionality for your cabinetry needs. Designed for side panels with 32 mm centers and a 37 mm setback, this hinge ensures smooth operation and secure alignment. Featuring a door overlay of 15/32 inches and a robust door thickness of 3/4 inches, it is crafted from durable steel, providing long-lasting performance. The hinge is finished in sleek chrome, adding a modern touch to any space while being resistant to wear. With a hinge opening angle of +270°, it allows for exceptional accessibility, making it ideal for institutional applications where ease of use is paramount. The offset of 3/4 inches and gauge of 3/32 inches contribute to its optimal functionality, accommodating a variety of installations. Installation is straightforward with screw-on fixing (screws included), ensuring a secure fit. The product meets ANSI/BHMA 156.9 Grade 1 standards, assuring you of its quality and reliability. With a height of 2 3/4 inches and designed for side panel thickness of 3/4 inches, the Richelieu BP91454145 is an excellent choice for both professionals and discerning homeowners seeking dependable hardware solutions.

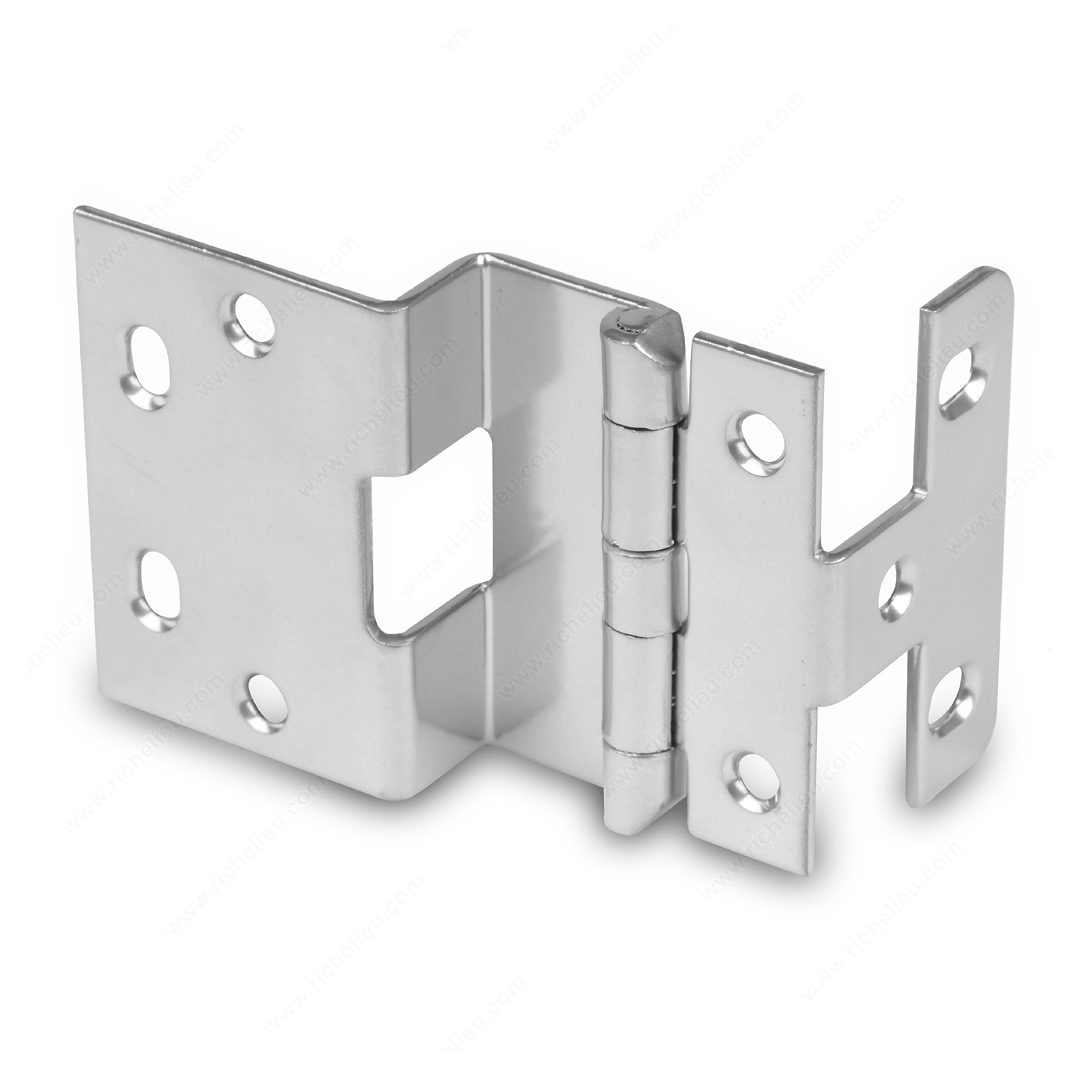

Five Knuckles Institutional Hinge 454 Series - 3/4" x 3/4" - Door wing holes 45mm on center
Color/ Finish: Satin Chrome
Door Overlay: 15/32 in
Door Thickness: 3/4 in
Door overlay: 15/32 in
Door thickness: 3/4 in
Finish: Chrome
Fixing Type: Screw-On
Gauge: 2.4 mm
Height: 2 3/4 in
Hinge Opening Angle: +270°
Material: Steel
Offset: 3/4 in
Overlay: 23/32 in
Product #: BP91454145
Product number: BP91454145
Product №: BP91454145
Screw/ Nail: #8, Flat Head (not included)
Side panel thickness: 3/4 in
Standards and Certifications: ANSI/BHMA 156.9 Grade 1
Type: Institutional Hinge
Unit: Pair
Unit 1: case - 50
Unit 2: case - 50
