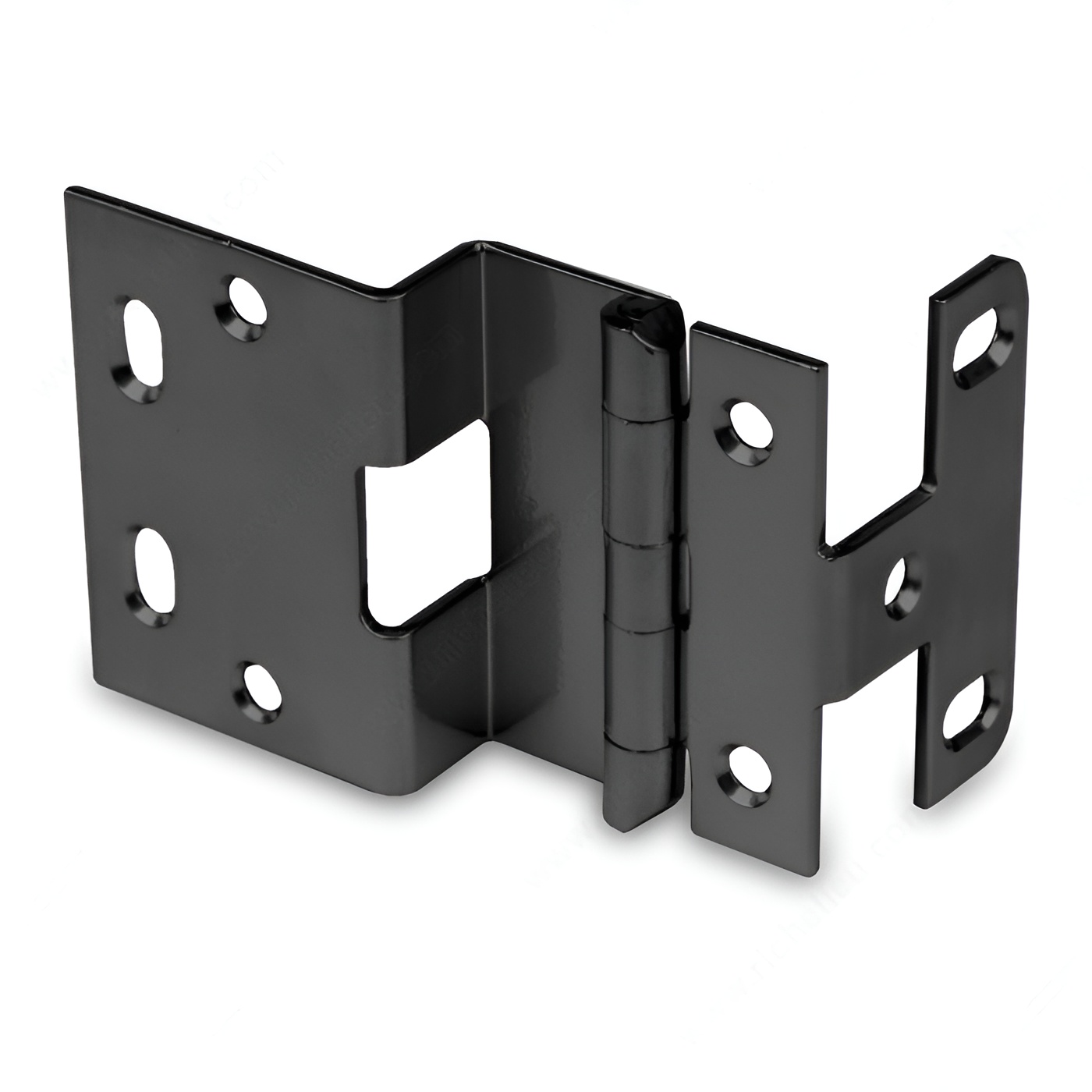

Richelieu BP9145690 3/4" Overlay Institutional Hinge - Series 450 is engineered for durability and functionality, making it an ideal choice for institutional applications. Crafted from robust steel, this hinge features a sleek black finish that seamlessly complements any environment while ensuring long-lasting performance. With a height of 2 3/4 inches and a 3/4 inch offset, it is perfectly designed for doors with a thickness of 13/16 inches and side panels measuring 3/4 inches. The hinge offers a generous opening angle of +270°, allowing for complete access and ease of use. Its design includes 32 mm centers with a 37 mm setback, and door wing holes positioned at 45 mm on center, ensuring precise installation. The 15/32 inch door overlay and 23/32 inch overlay dimensions make it versatile for various cabinetry needs. Equipped with #8 screws (included) for a secure screw-on fixing type, the BP9145690 meets ANSI/BHMA 156.9 Grade 1 standards and certifications, ensuring high-quality performance in demanding environments. Whether for new construction or renovations, this institutional hinge offers the reliability and strength required for professional-grade projects. Shipping is convenient as it can be sent via UPS, making it an efficient choice for your hardware needs.
Five Knuckles Institutional Hinge 456 Series - 13/16" x 3/4" - Door Wing Holes 45 mm on Center
Important information
Brand: RPC
Color/ Finish: Black
Door Overlay: 15/32 in
Door Thickness: 13/16 in
Door overlay: 15/32 in
Door thickness: 13/16 in
Finish: Black
Fixing Type: Screw-On
Gauge: 2.4 mm
Height: 2 3/4 in
Hinge Opening Angle: +270°
Material: Steel
Offset: 3/4 in
Overlay: 23/32 in
Product #: BP9145690
Product number: BP9145690
Product №: BP9145690
Screw/ Nail: #8, Flat Head (not included)
Side panel thickness: 3/4 in
Standards and Certifications: ANSI/BHMA 156.9 Grade 1
Type: Institutional Hinge
Unit: Pair
Unit 1: case - 50
Unit 2: case - 50
