Richelieu BP9184990 3/8'' Overlay Institutional Hinge offers a robust solution for your architectural needs, featuring staggered side panel mounting holes that allow for versatile installation options, including back-to-back applications on shared 3/4" side panels. Crafted from durable steel, this hinge is designed to withstand the rigors of institutional use, ensuring long-lasting performance. With a sleek black finish, the BP9184990 not only complements a variety of designs but also integrates seamlessly into any project. It accommodates a door thickness of 13/16 in and provides an overlay of 11/32 in, making it ideal for modern cabinetry and institutional doors alike. The hinge opens up to +270°, allowing for maximum accessibility and functionality. Measuring 2 3/4 in in height and featuring a 3/8 in offset, this hinge is designed for ease of installation with screw-on fixing type, including #8 screws. It meets ANSI/BHMA 156.9 Grade 1 standards for quality assurance, ensuring you receive a product that adheres to industry benchmarks. Elevate your project with the reliability and strength of the Richelieu BP9184990 3/8'' Overlay Institutional Hinge, a perfect choice for professionals seeking quality and performance in their hardware solutions.

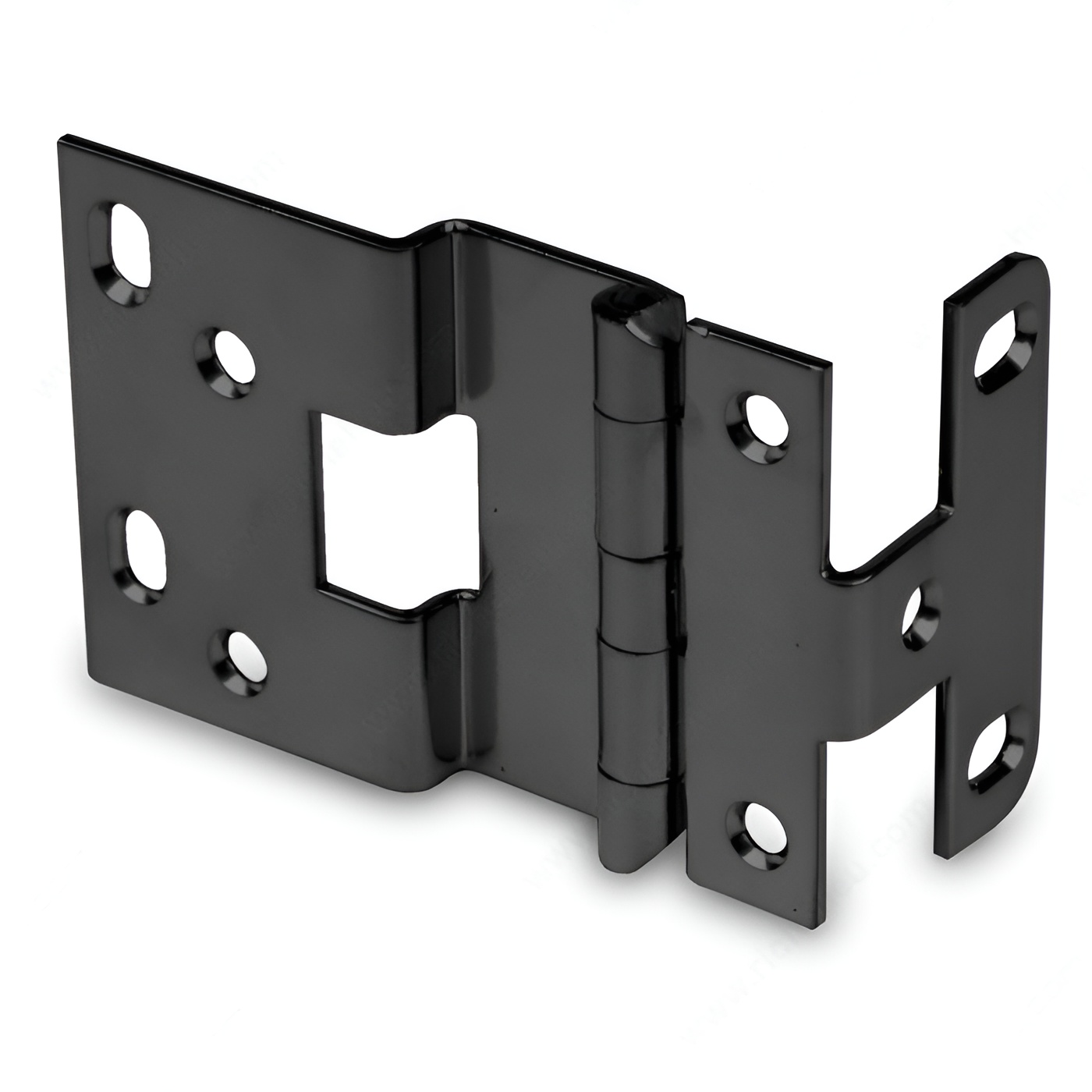

Five Knuckles Institutional Hinge 849 Series - 13/16" x 3/8"
Important information
Brand: RPC
Color/ Finish: Black

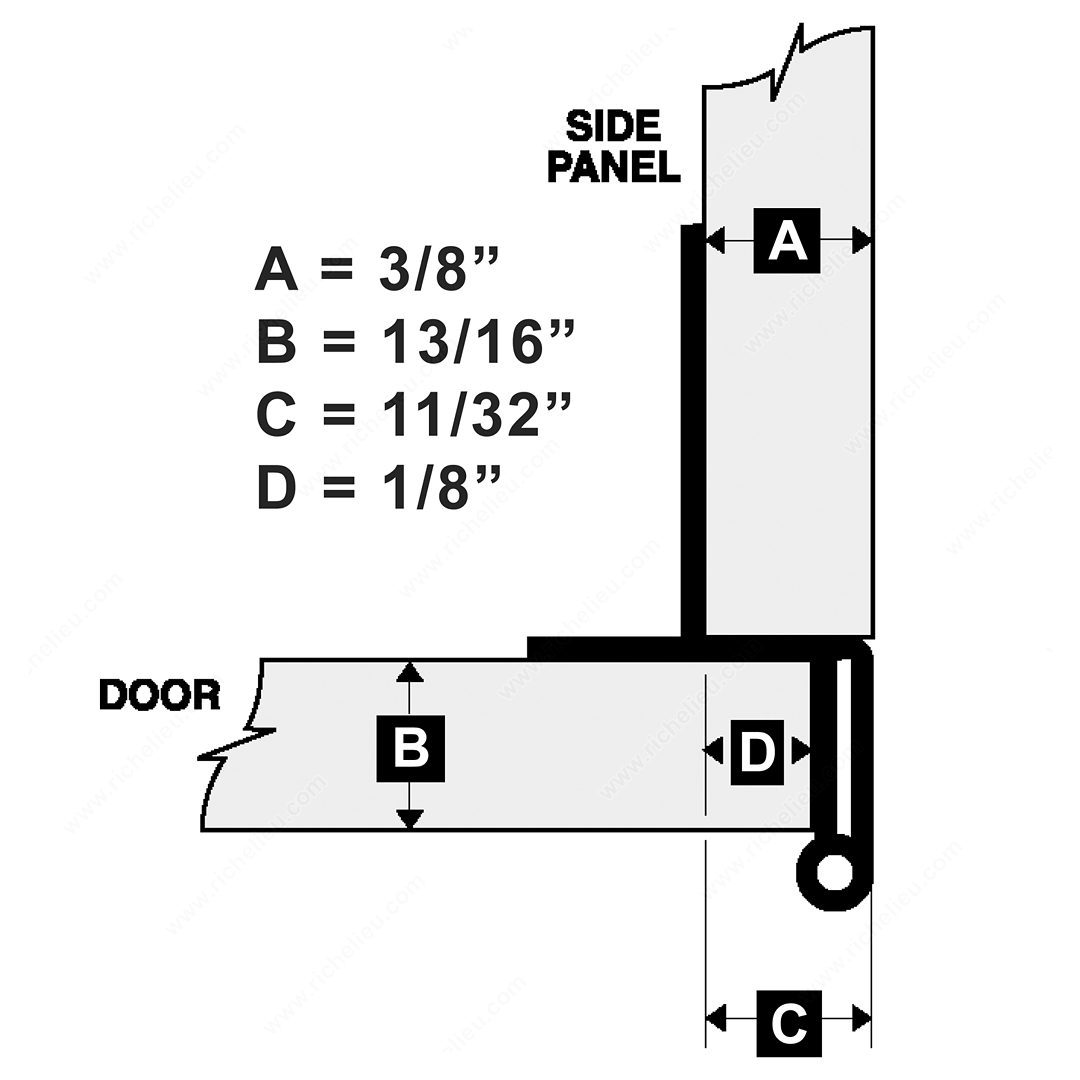

Door Overlay: 1/8 in
Door Thickness: 3/4 in
Door overlay: 1/8 in
Door thickness: 13/16 in
Finish: Black
Fixing Type: Screw-On
Gauge: 2.1 mm
Height: 2 3/4 in
Hinge Opening Angle: +270°
Material: Steel
Offset: 3/8 in
Overlay: 11/32 in
Product #: BP9184990
Product number: BP9184990
Product №: BP9184990
Screw/ Nail: #8, Flat Head (not included)
Side panel thickness: 3/8 in
Standards and Certifications: ANSI/BHMA 156.9 Grade 1
Type: Institutional Hinge
Unit: Pair
Unit 1: case - 50
Unit 2: case - 50
