Richelieu BP91853145 5/8" Overlay Institutional Hinge offers durability and functionality for a variety of applications. This hinge is designed with staggered side panel mounting holes, ensuring a secure fit for your doors. With a door overlay of 11/32 inches and a robust door thickness of 13/16 inches, it provides the ideal support for heavy-duty use. Crafted from high-quality steel with a sleek chrome finish, the BP91853145 is not only built to last but also enhances the aesthetic of any installation. Its offset of 5/8 inch and a generous hinge opening angle of +270° allow for full access, making it perfect for institutional settings where functionality is paramount. The hinge is packaged as a pair and comes with #8 screws for easy installation. Measuring 2 3/4 inches in height, this hinge conforms to ANSI/BHMA 156.9 Grade 1 standards, ensuring reliability and performance. The hinge's gauge measures 3/32 inches, providing an additional layer of strength. Designed to accommodate a side panel thickness of 5/8 inch, the Richelieu BP91853145 is an essential component for any professional-grade project. Ideal for builders and knowledgeable homeowners alike, this institutional hinge combines quality and practicality in one product.

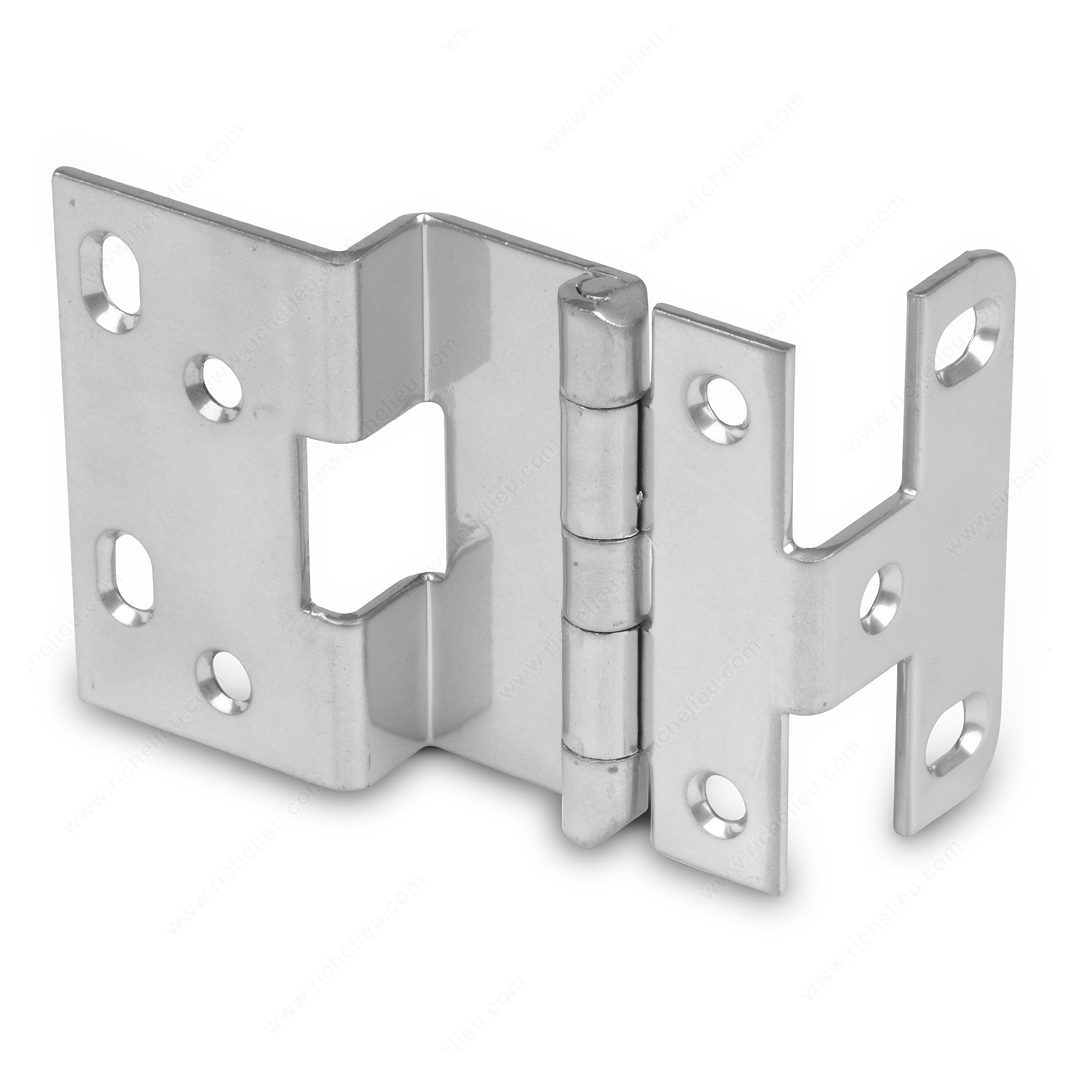

Five Knuckles Institutional Hinge 853 Series - 13/16" x 5/8"
Important information
Brand: RPC
Color/ Finish: Satin Chrome

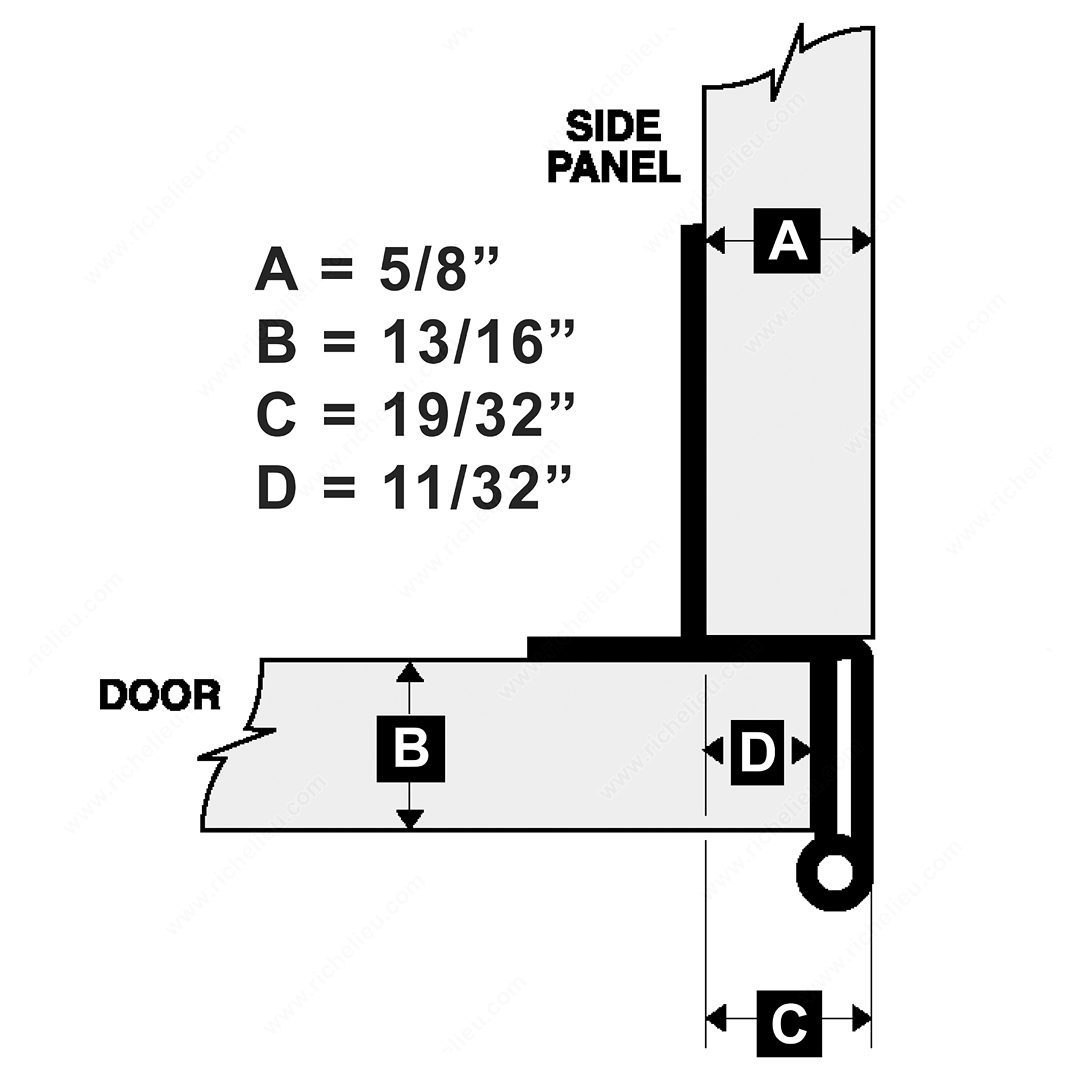

Door Overlay: 11/32 in
Door Thickness: 13/16 in
Door overlay: 11/32 in
Door thickness: 13/16 in
Finish: Chrome
Fixing Type: Screw-On
Gauge: 2.4 mm
Height: 2 3/4 in
Hinge Opening Angle: +270°
Material: Steel
Offset: 5/8 in
Overlay: 19/32 in
Packaging format: Pair
Product #: BP91853145
Product number: BP91853145
Product №: BP91853145
Screw/ Nail: #8, Flat Head (not included)
Side panel thickness: 5/8 in
Standards and Certifications: ANSI/BHMA 156.9 Grade 1
Type: Institutional Hinge
Unit: Pair
Unit 1: case - 25
Unit 2: case - 25
