Richelieu CP2289130 Standard Metal Shelf Pin is expertly designed to enhance the functionality and durability of your shelving systems. Crafted from high-quality metal with an elegant brass finish, this shelf pin not only provides a reliable support solution but also adds a touch of sophistication to any project. With a load capacity of up to 176 lbs per shelf, it ensures that your shelves can hold a substantial amount of weight, making it perfect for both residential and commercial applications. Measuring 1/2 inch in projection and 13/32 inch in width, the pins are compatible with a minimum shelf thickness of 5/8 inch, allowing for a secure and stable installation. The 1/4-inch drilling diameter makes installation straightforward, while the visible appearance of the pins ensures a polished and professional look. Packaged conveniently in multiples of one hundred, these shelf pins are ideal for large projects or ongoing renovations. Additionally, the product adheres to RoHS standards, ensuring it meets environmental regulations. Whether you are a building professional or a knowledgeable homeowner, the Richelieu CP2289130 Standard Metal Shelf Pin is a reliable choice for your shelving needs.

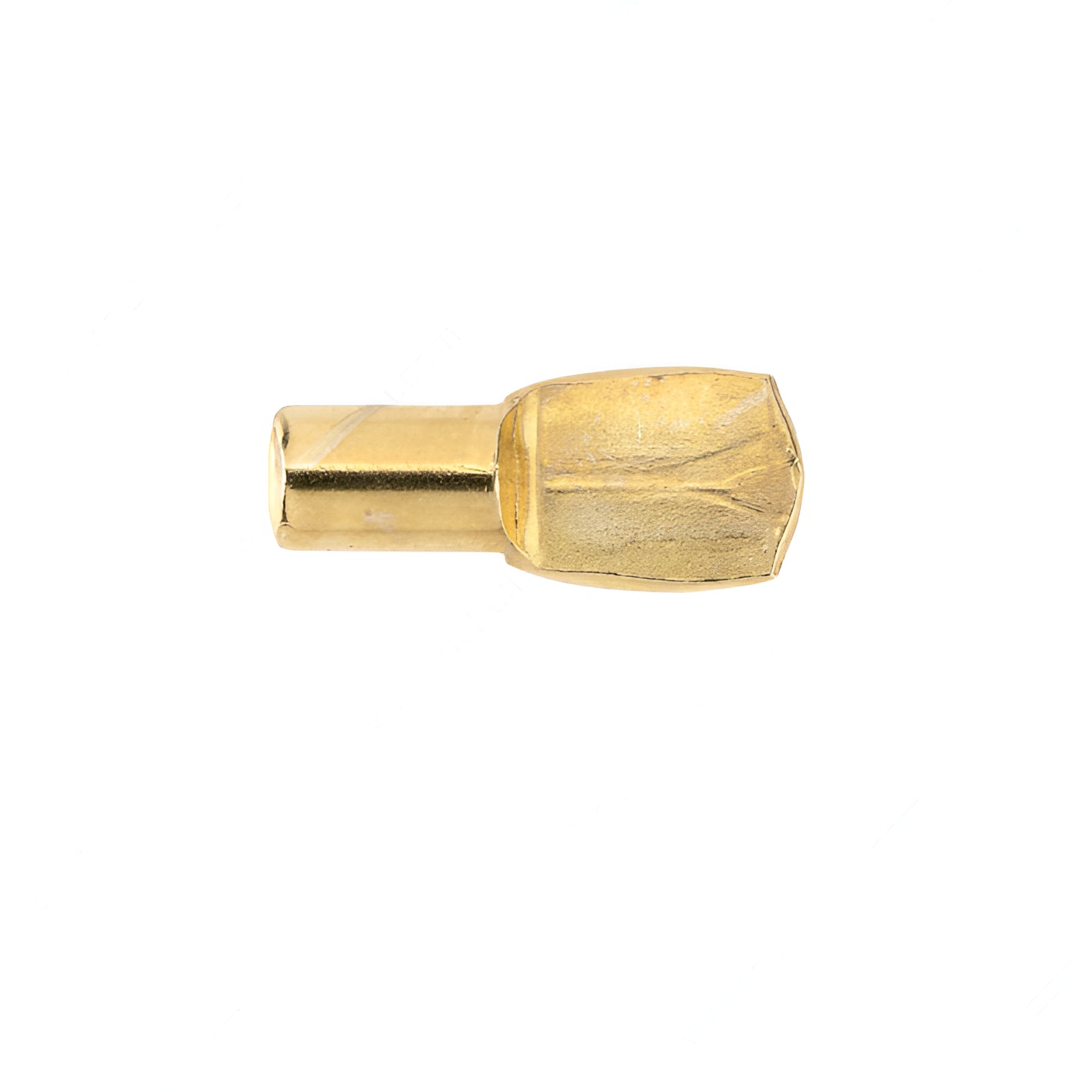

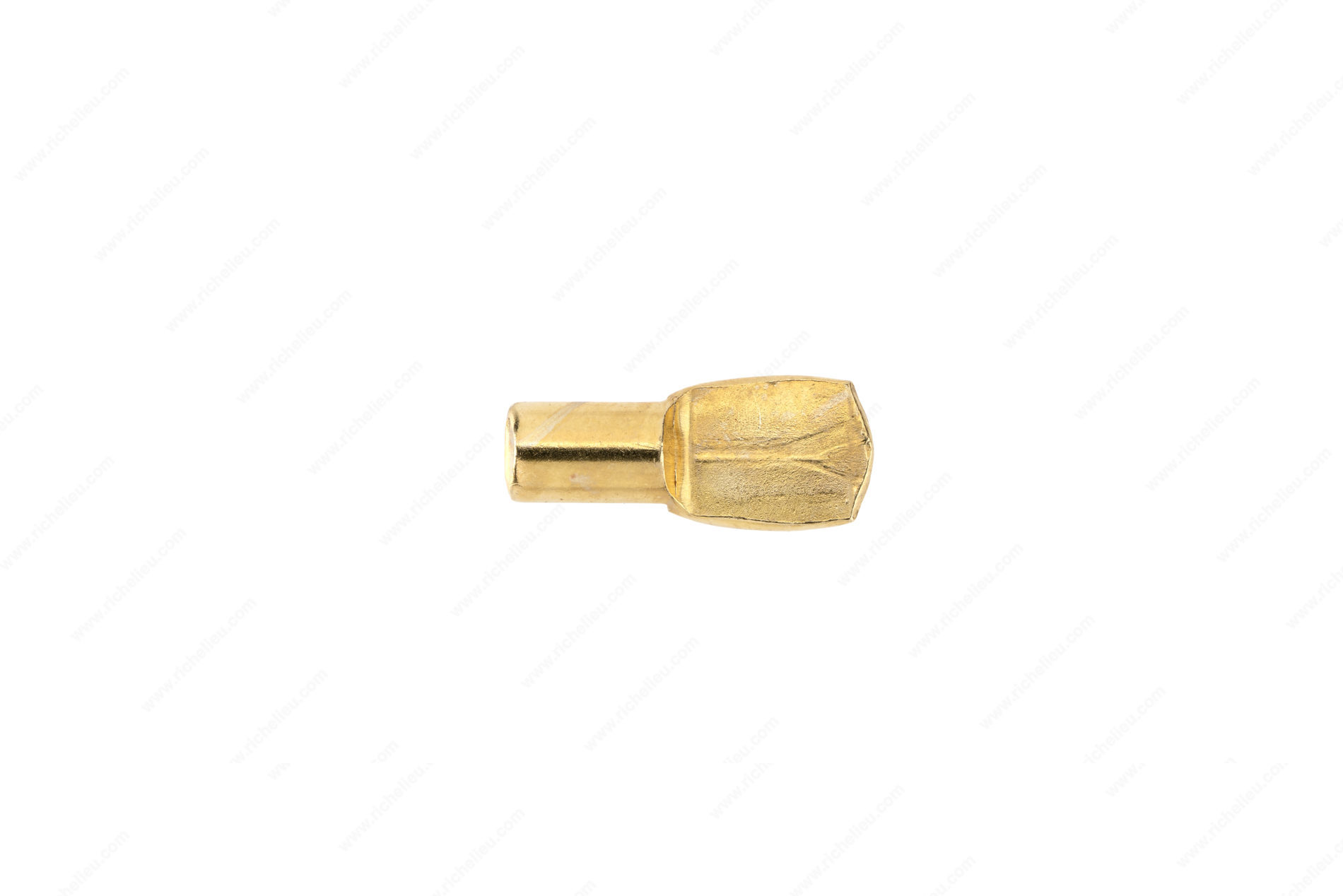

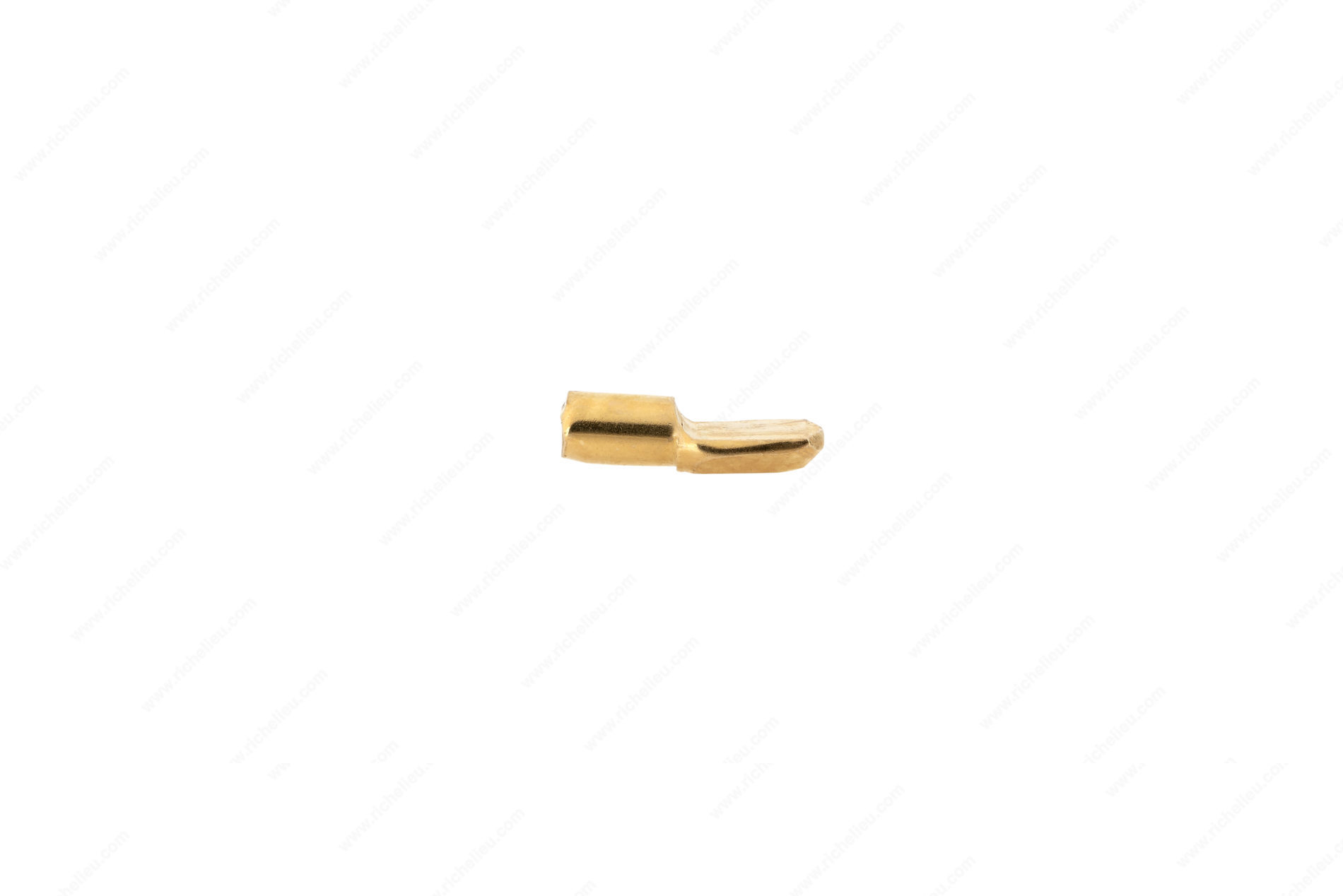

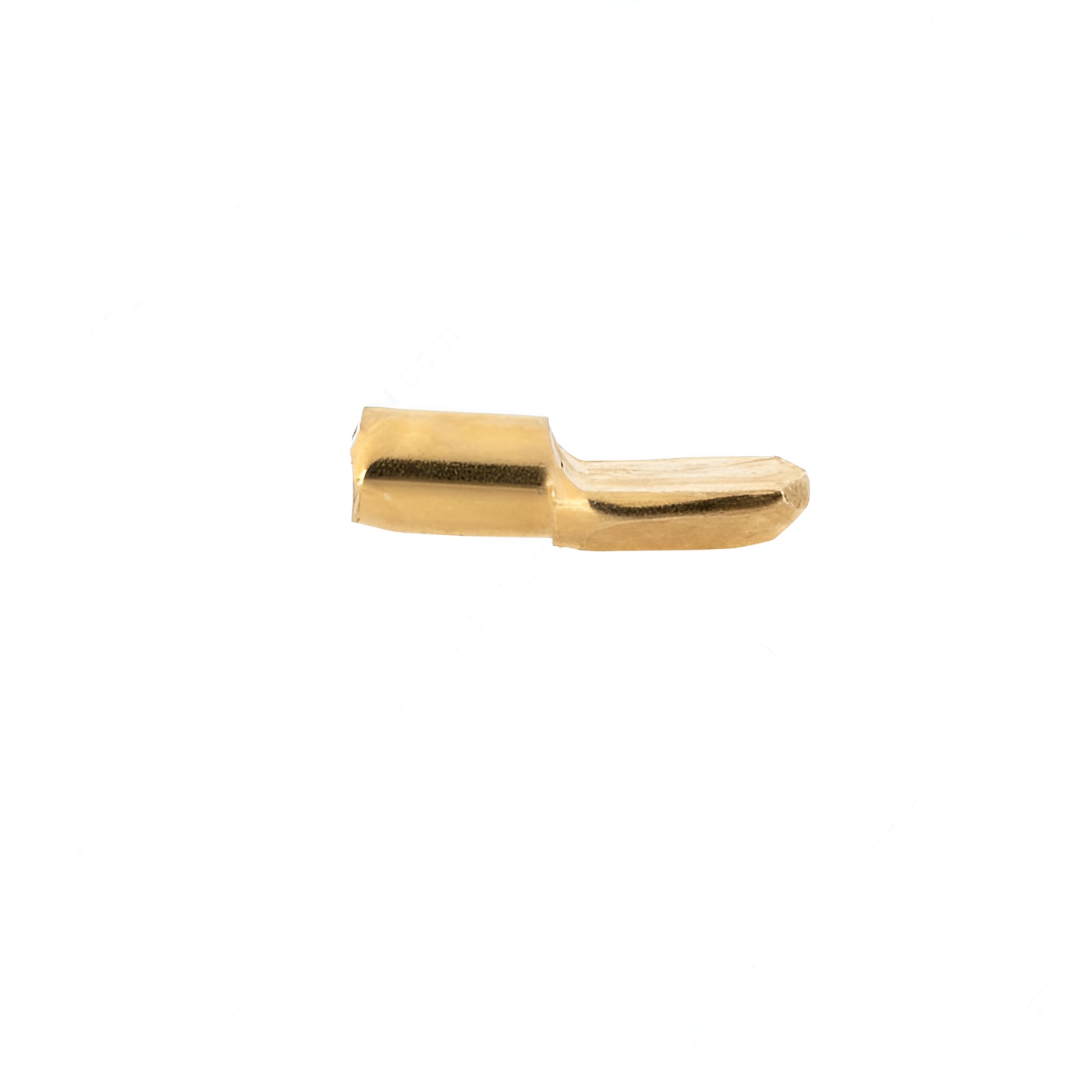

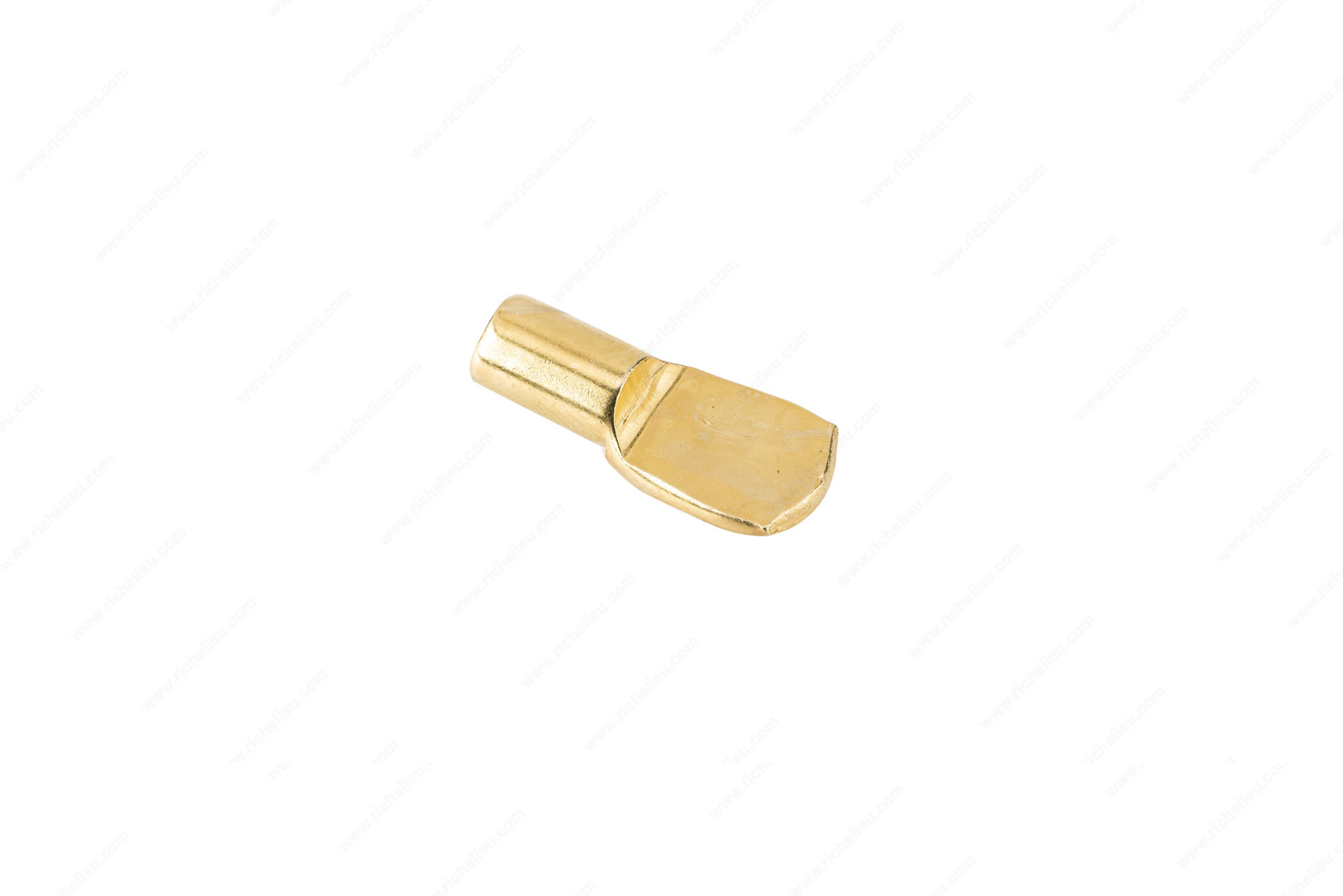

Standard Metal Shelf Pin
Appearance: Visible
Drilling Diameter: 1/4 in
Finish: Brass
Load Capacity per Shelf: 80 kg
Material: Metal
Packaging format: Hundred
Product #: CP2289130
Product number: CP2289130
Product №: CP2289130

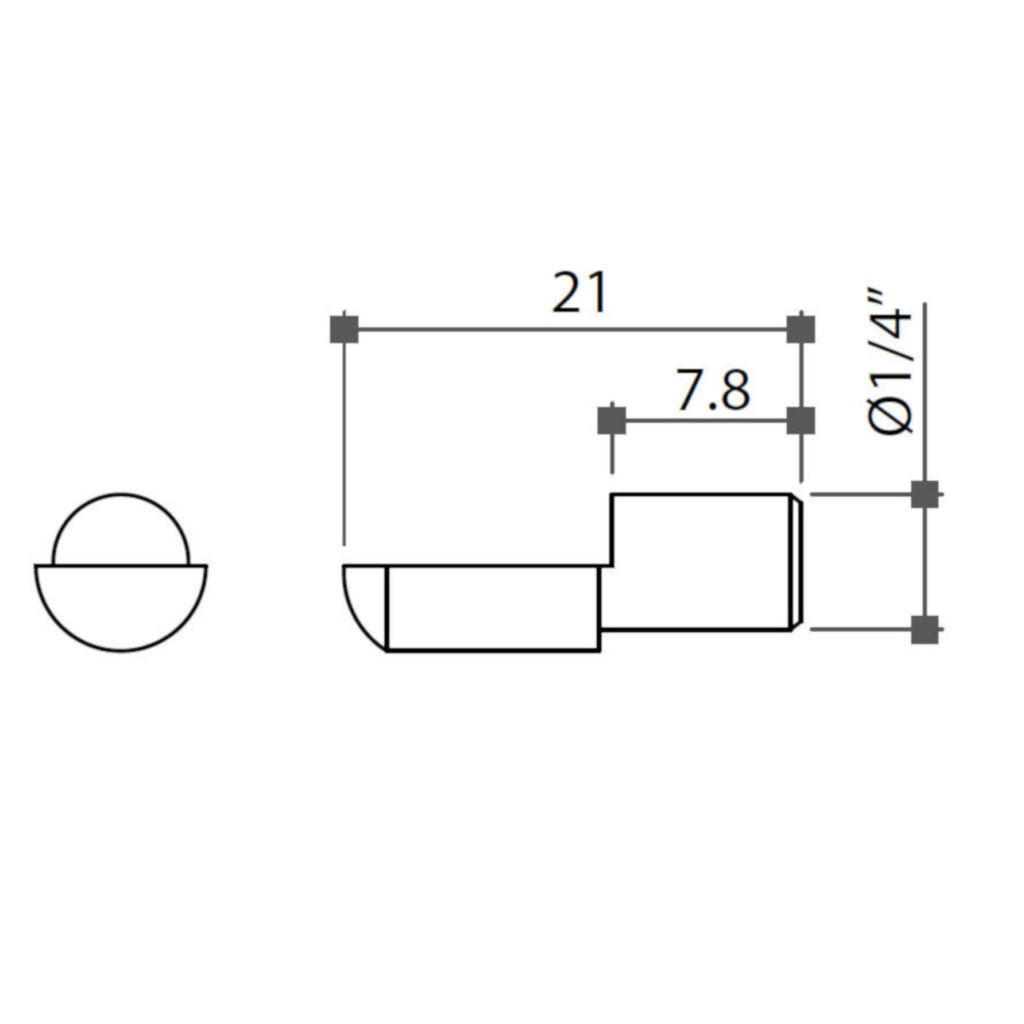

Projection - Overall Dimensions: 13 mm
Shelf Thickness: Min. 16 mm
Standards and Certifications: RoHS
Unit: Hundred
Unit 1: case - 25
Unit 2: case - 25
Width - Overall Dimensions: 10.16 mm
