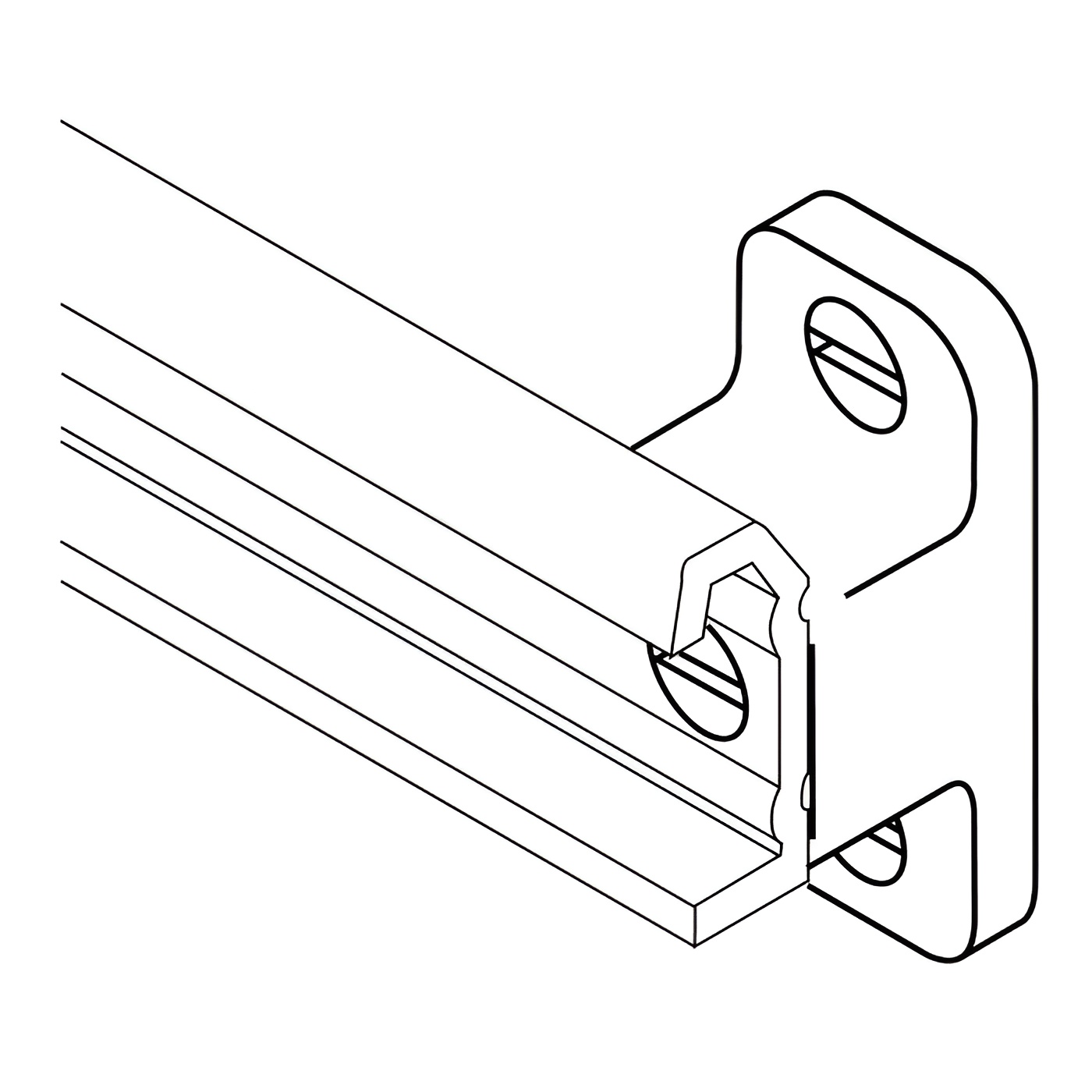

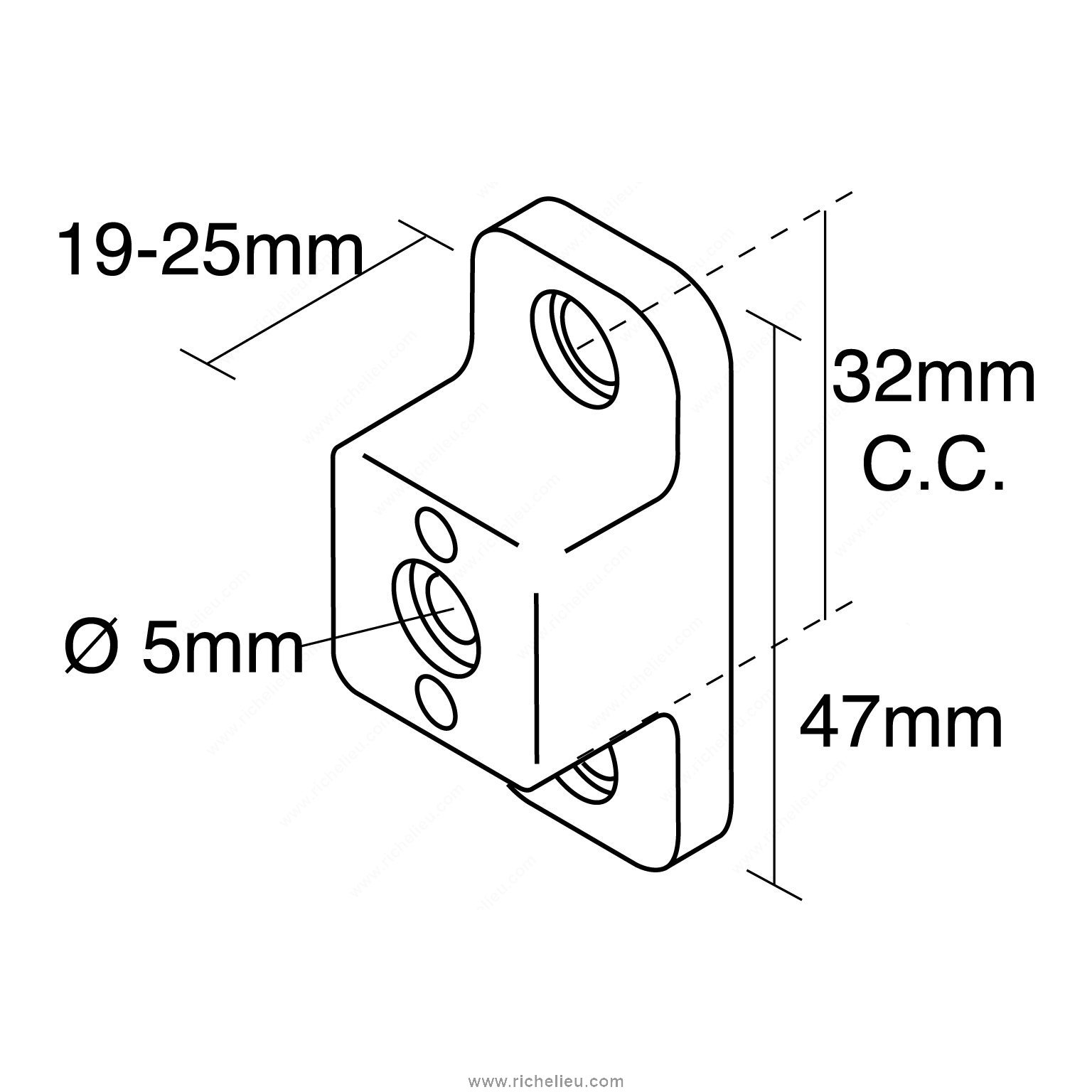

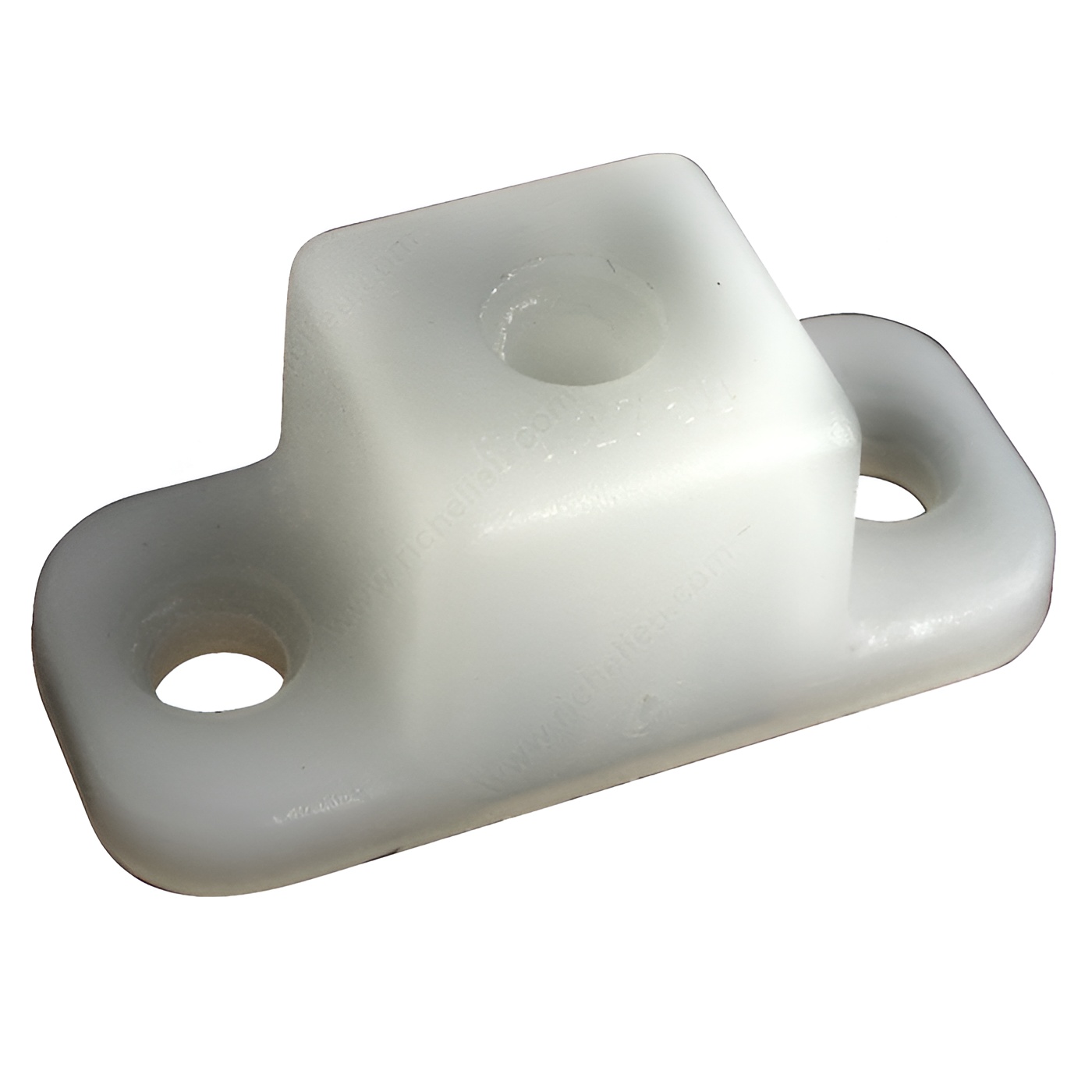

Richelieu CP60275012 Side Spacer - 19 mm is designed to provide reliable support and alignment by being fixed to the body sides and the guide rail. Crafted from durable polyamide (PA6), this spacer ensures long-lasting performance in various applications. With its screw-on installation type, the CP60275012 allows for quick and straightforward setup, making it an ideal choice for both professionals and knowledgeable homeowners. Measuring 1 27/32 in length, 25/32 in width, and a depth of 3/4 in, this side spacer is specifically engineered to accommodate a Euro countersunk head screw with a diameter of 6.3 mm. The length of the screw can be adjusted based on wall thickness, slide spacer depth, and slide requirements, providing flexibility for different projects. Offered in a clean white finish, the CP60275012 blends seamlessly with a variety of décor styles. Each package contains 100 units, making it a cost-effective solution for larger installations or renovations. Whether you are working on cabinetry, furniture, or other custom projects, Richelieu's side spacer will enhance the structural integrity and functionality of your designs.
Side Spacer - 19 mm
Important information
Brand: Richelieu
Depth: 19 mm
Finish: White
Installation Type: Screw-on
Length: 47 mm
Material: Polyamide (PA6)
Packaging format: Bag of 100 units
Product #: CP60275012
Product number: CP60275012
Product №: CP60275012
Slide Mounted: Side Mounted
Unit: Bag of 100 units
Width: 20 mm
