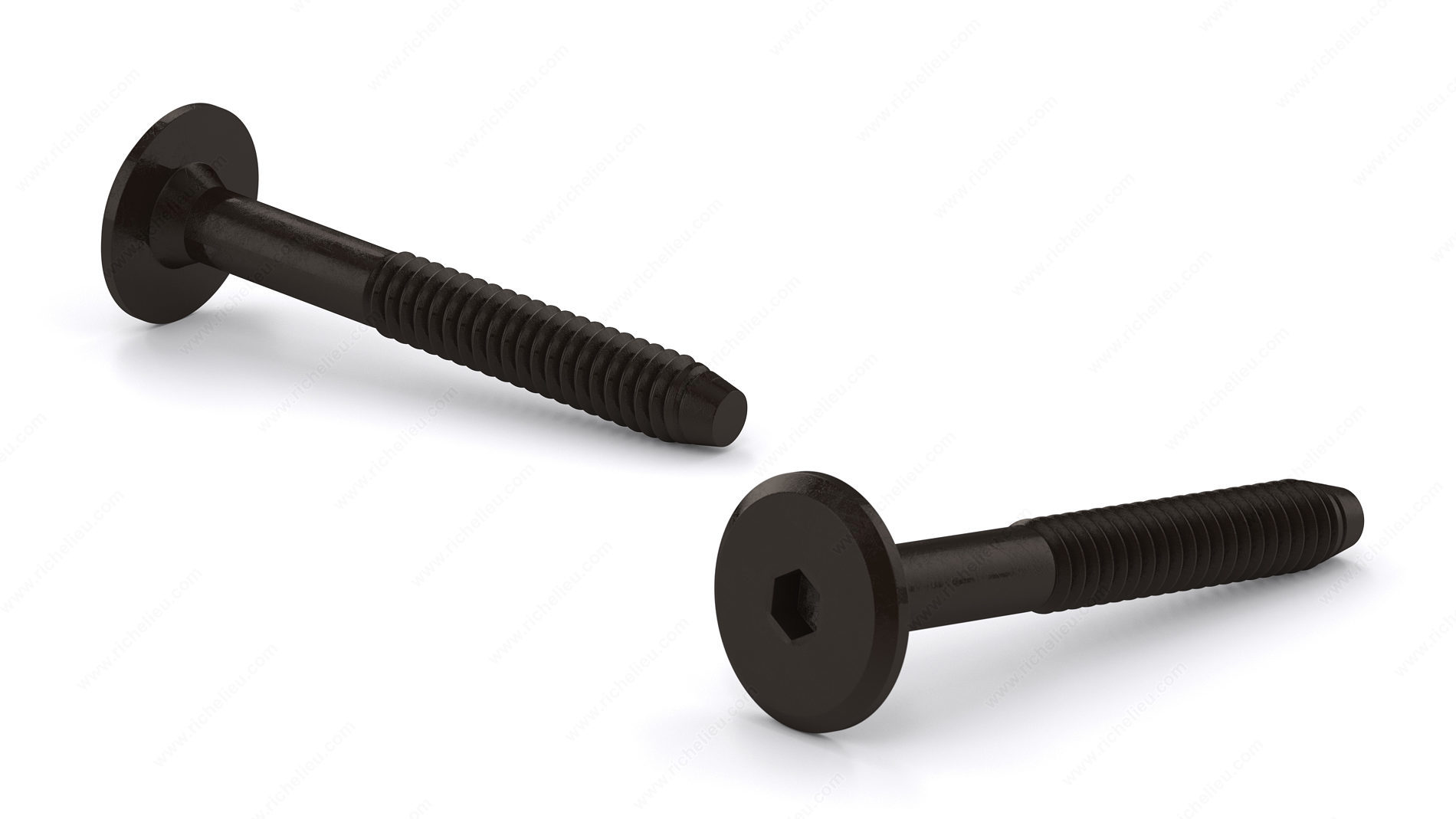

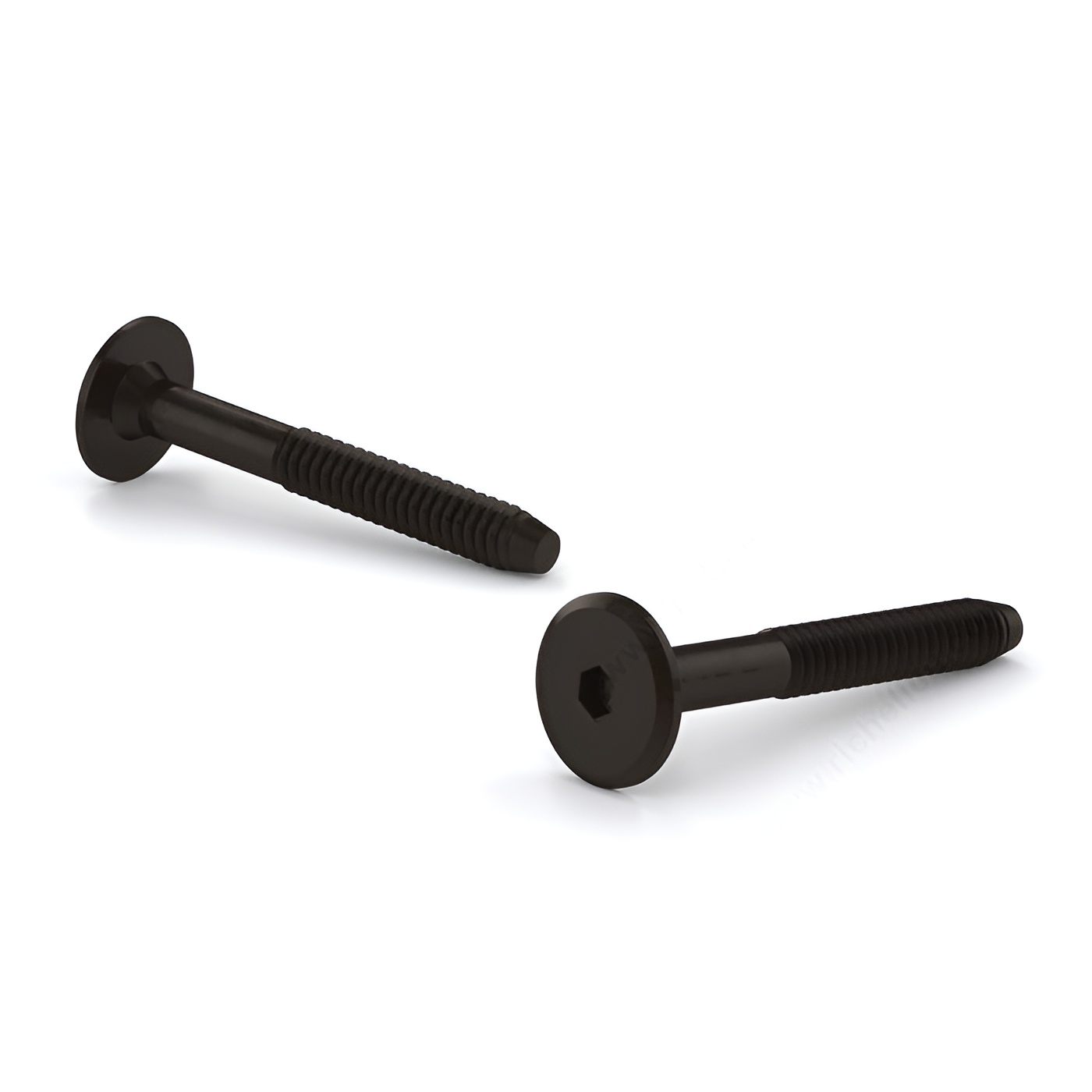

Richelieu JCBB0101C1 Assembly Bolt JCB-B offers a robust solution for your furniture assembly needs. Designed specifically for furniture construction, this bolt features a 1/4 inch diameter and a length of 1 3/16 inches, ensuring a secure fit for various applications. Crafted from durable steel and finished in an elegant oil-rubbed bronze, it seamlessly combines strength with aesthetic appeal, making it a perfect choice for both modern and traditional designs. The JCB-B assembly bolt utilizes a power head (MC) that allows for easy installation and removal with a #4 hex key, streamlining your workflow. Its coarse thread type, with a pitch of 20, provides excellent grip, ensuring stability and longevity in assembled furniture pieces. The blunt point type further enhances its usability, making it suitable for a variety of assembly tasks. Packaged per unit, the JCBB0101C1 is convenient for both small DIY projects and larger furniture manufacturing endeavors. Although not certified, it meets the demands of building professionals and knowledgeable homeowners alike, ensuring reliable performance without compromise. With the capability to ship via UPS, this assembly bolt is ready to support your next project with efficiency and style.
Assembly bolt JCB-B

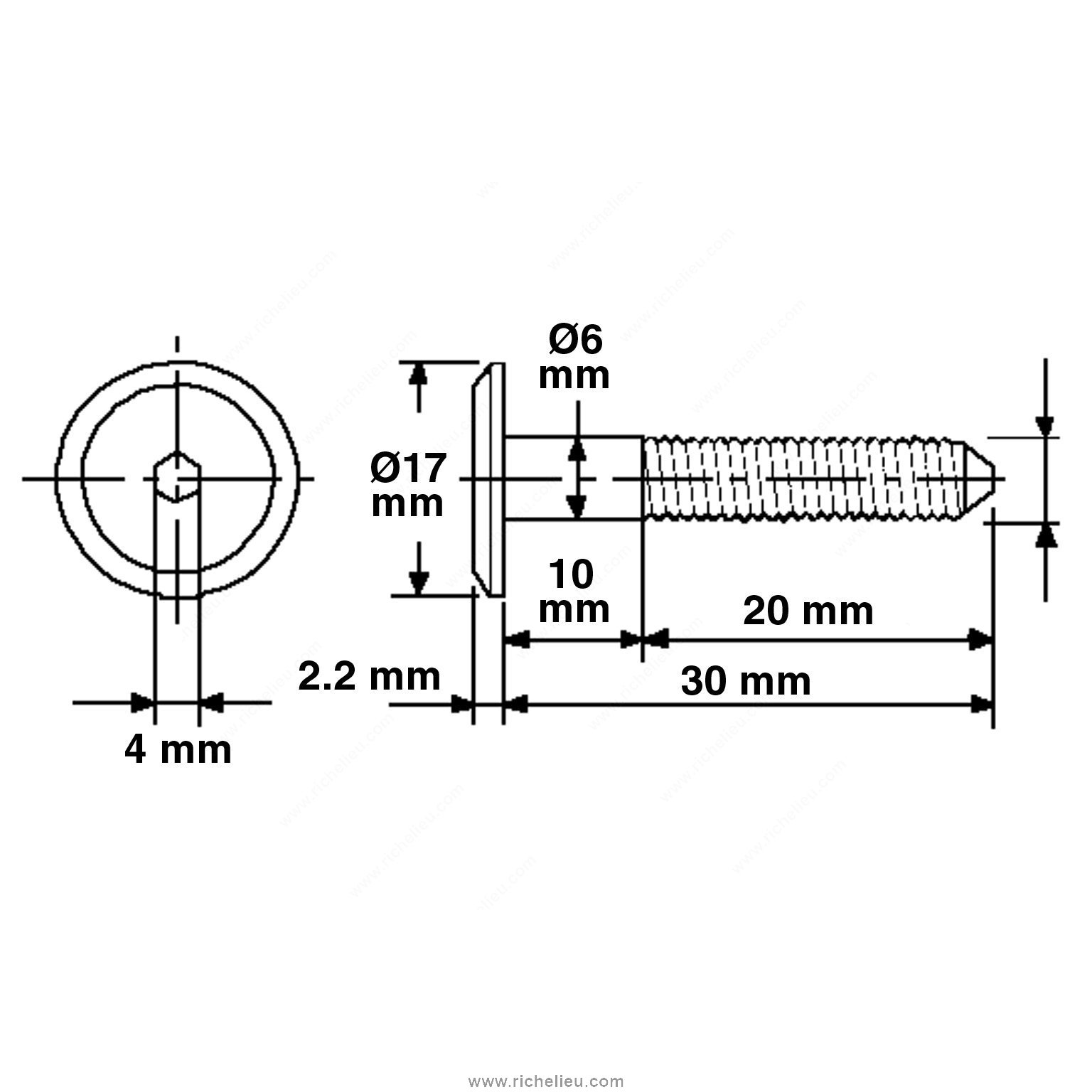

Bolt Diameter/ Size: 1/4 in
Brand: Richelieu
Finish: Oil-Rubbed Bronze
Head: PowerHead (MC)
Included Products: None
Length: 30 mm
Material: Steel
Packaging format: Per unit
Product #: JCBB0101C1
Product number: JCBB0101C1
Product №: JCBB0101C1
Specific Application: Furniture Assembly
Standards and Certifications: Not Certified
Thread Count ( PITCH/TPI): 20
Thread Count ( PITCH/TPI) - Bolts: 20
Thread Count ( Pitch/TPI): 20
Thread Type: Coarse
Type of Bolts: For furniture assembly
Type of Point: Blunt
Unit 1: case - 2000
