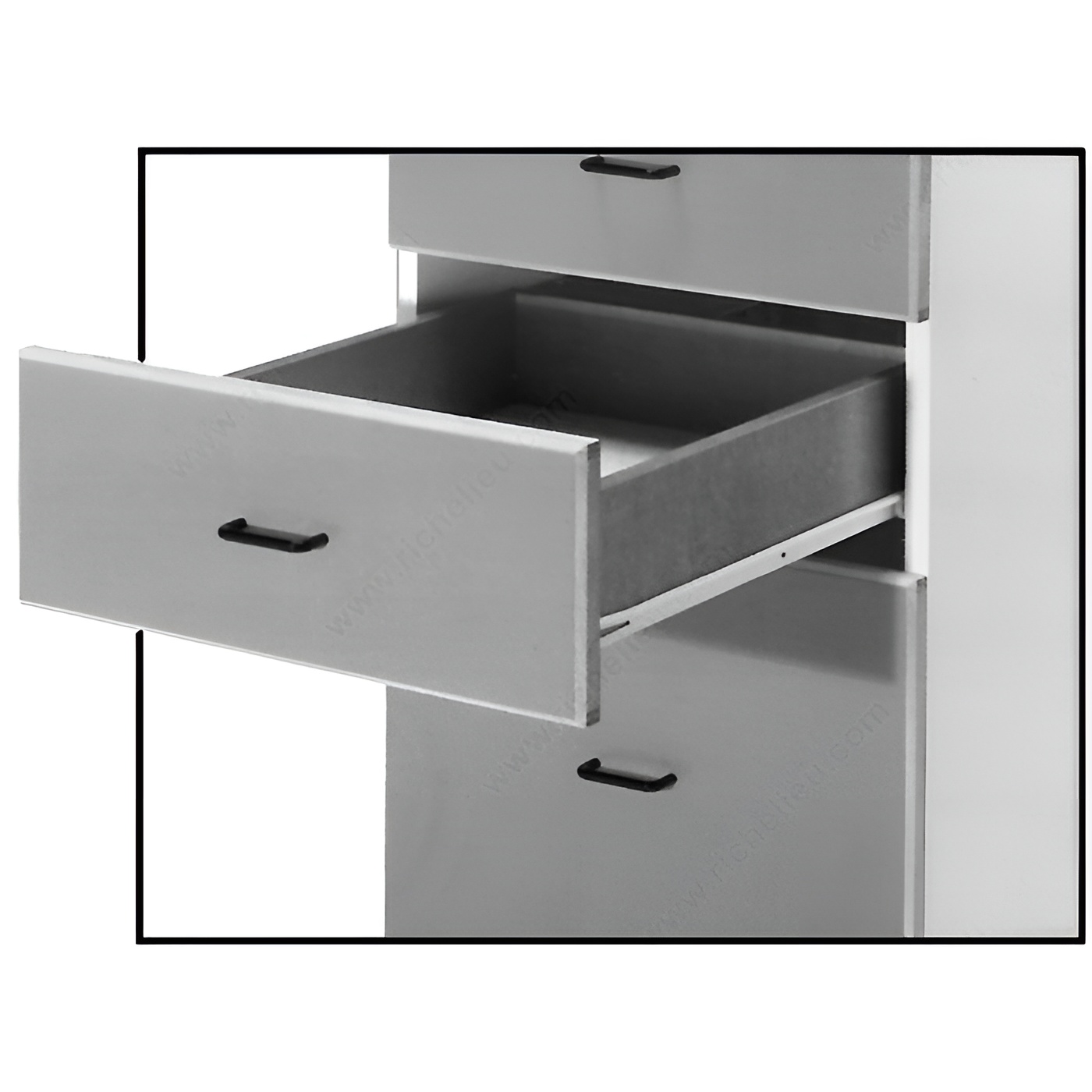

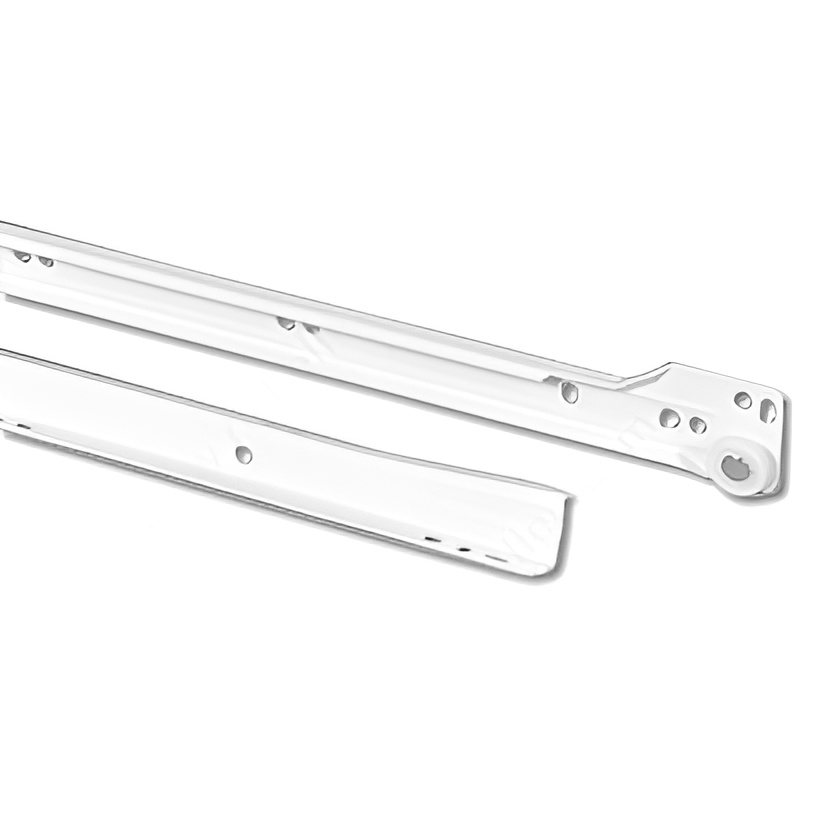

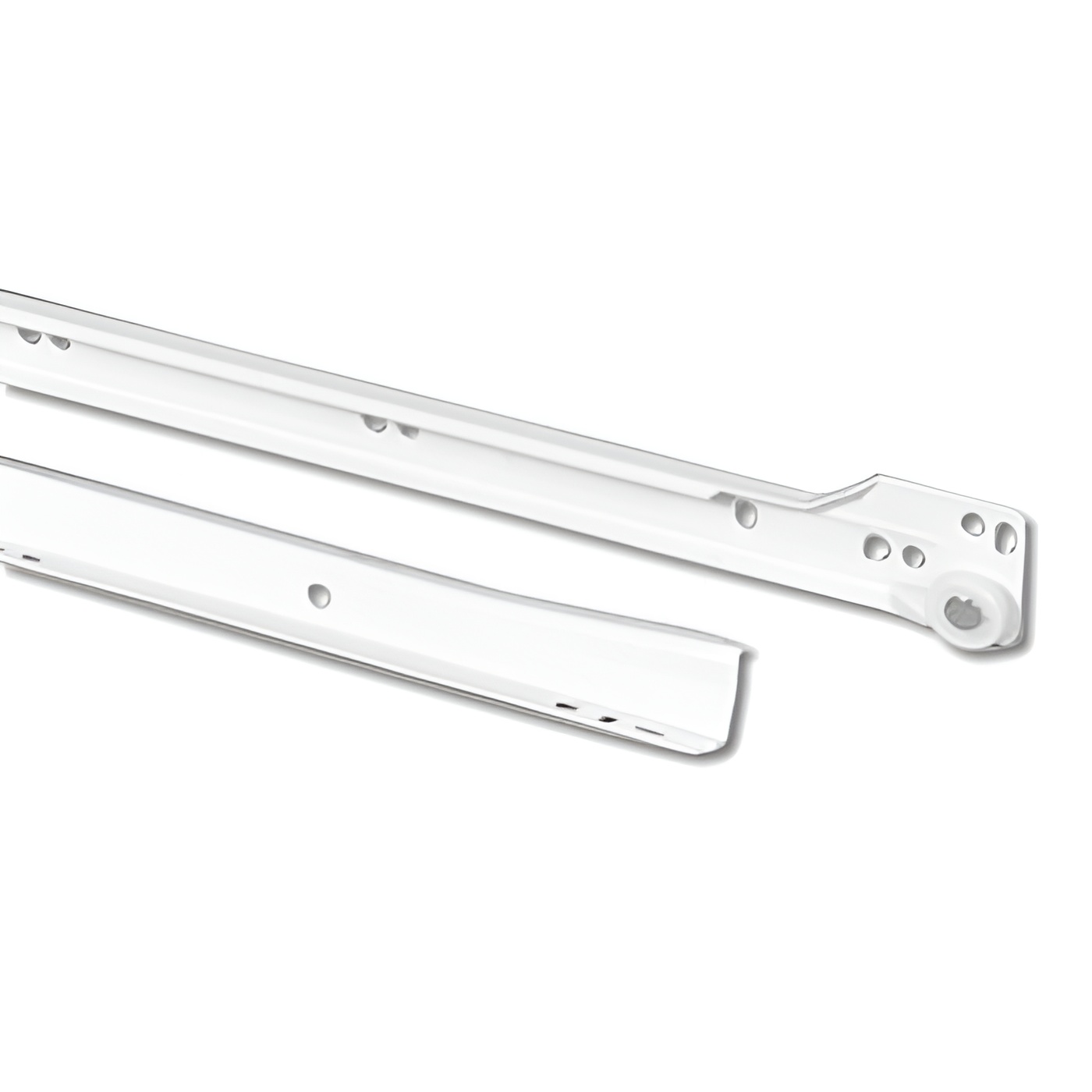

Richelieu TP10235030 Series 102 Euro Slide 3/4 Extension offers a robust solution for furniture drawers, boasting a remarkable load capacity of 75 lbs. Designed with a simple yet reliable mechanism, these slides are ideal for kitchen drawers, dressers, nightstands, and various furniture applications. The epoxy finish not only enhances durability but also maximizes resistance against wear and tear, ensuring long-lasting performance. Equipped with a gravity mechanism, the Euro slide utilizes the weight of the drawer contents to facilitate a smooth closing motion, making it an excellent choice for everyday use. With a partial extension of 3/4, users can easily access drawer contents while maintaining structural integrity. The slides are side-mounted and compatible with both frameless cabinet models and face frame applications, provided that a rear socket (BP99612) is used. Measuring 1.18 inches in height and 1.46 inches in width, the TP10235030 is designed to fit a variety of drawer sizes. The nylon slides ensure a quiet and efficient operation, enhancing user experience. Each package includes screws for easy installation, making these slides a practical addition to any furniture project. Choose Richelieu for a blend of functionality and quality in your cabinetry solutions.
Series 102 Euro Slide 3/4 Extension - 35 kg Capacity
Application: Furniture Drawer
Bearing Type: Nylon Slides
Brand: Richelieu
Cabinet Model: Frameless
Finish: White
Height: 1.18 in
Length: 350 mm
Load Capacity: 34.019428 kg
Material: Steel
Packaging Specifications: UPC Code / Plastic Bag
Partial Extension: 3/4
Product #: TP10235030
Product Line: Euro
Product number: TP10235030
Product №: TP10235030
Screw/ Nail: Phillips #4 x 16 mm (5/8") Included
Side: Both
Slide Extension: Partial Extension
Slide Mounted: Side Mounted
Unit: Pair
Unit 1: case - 20
Unit 2: case - 20
Width: 1.46 in
