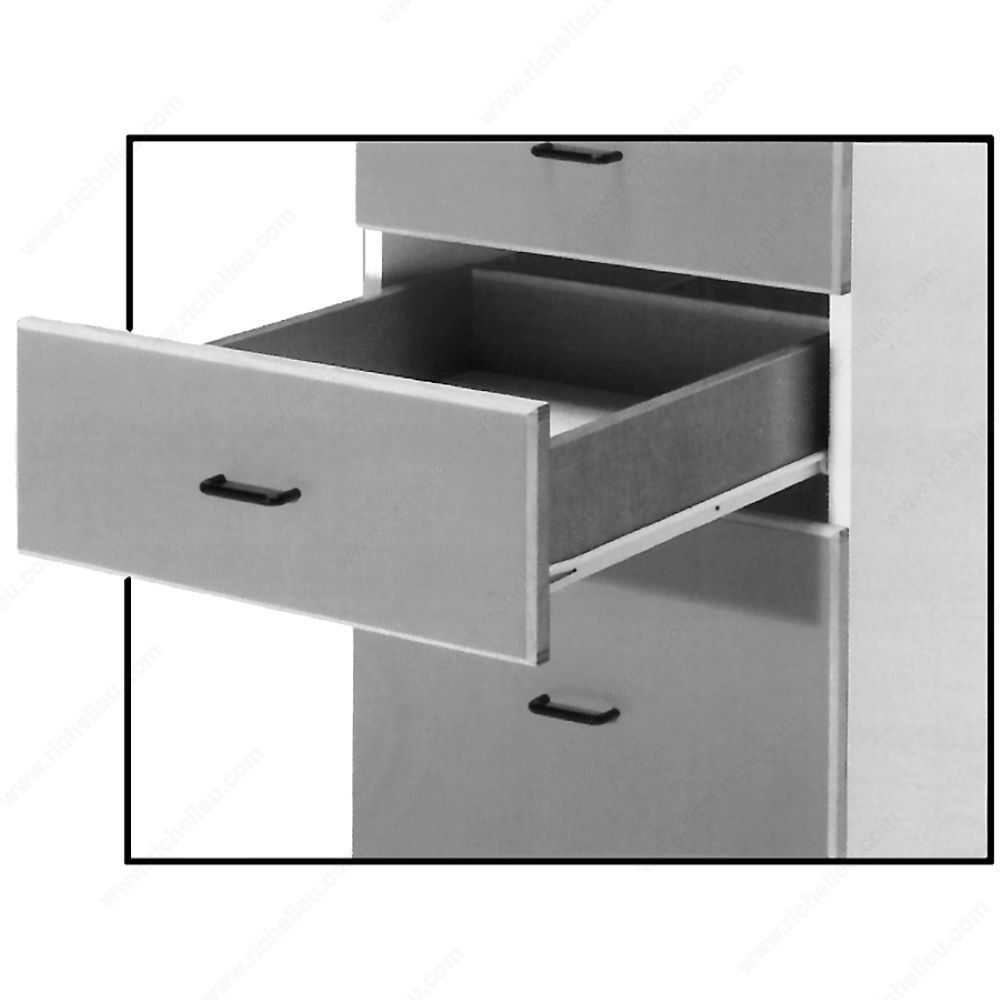

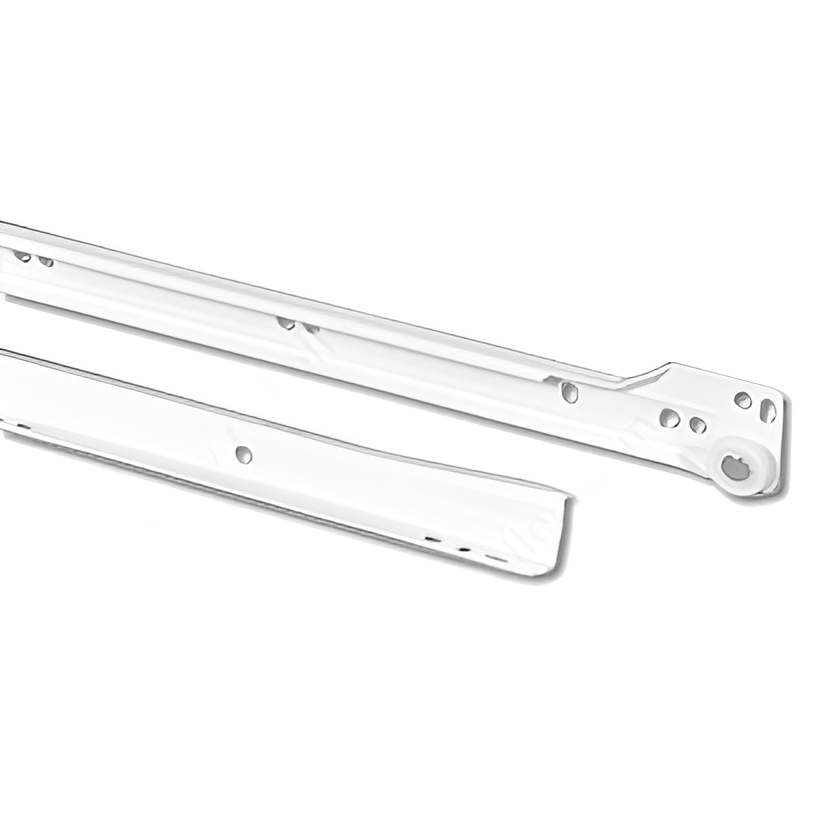

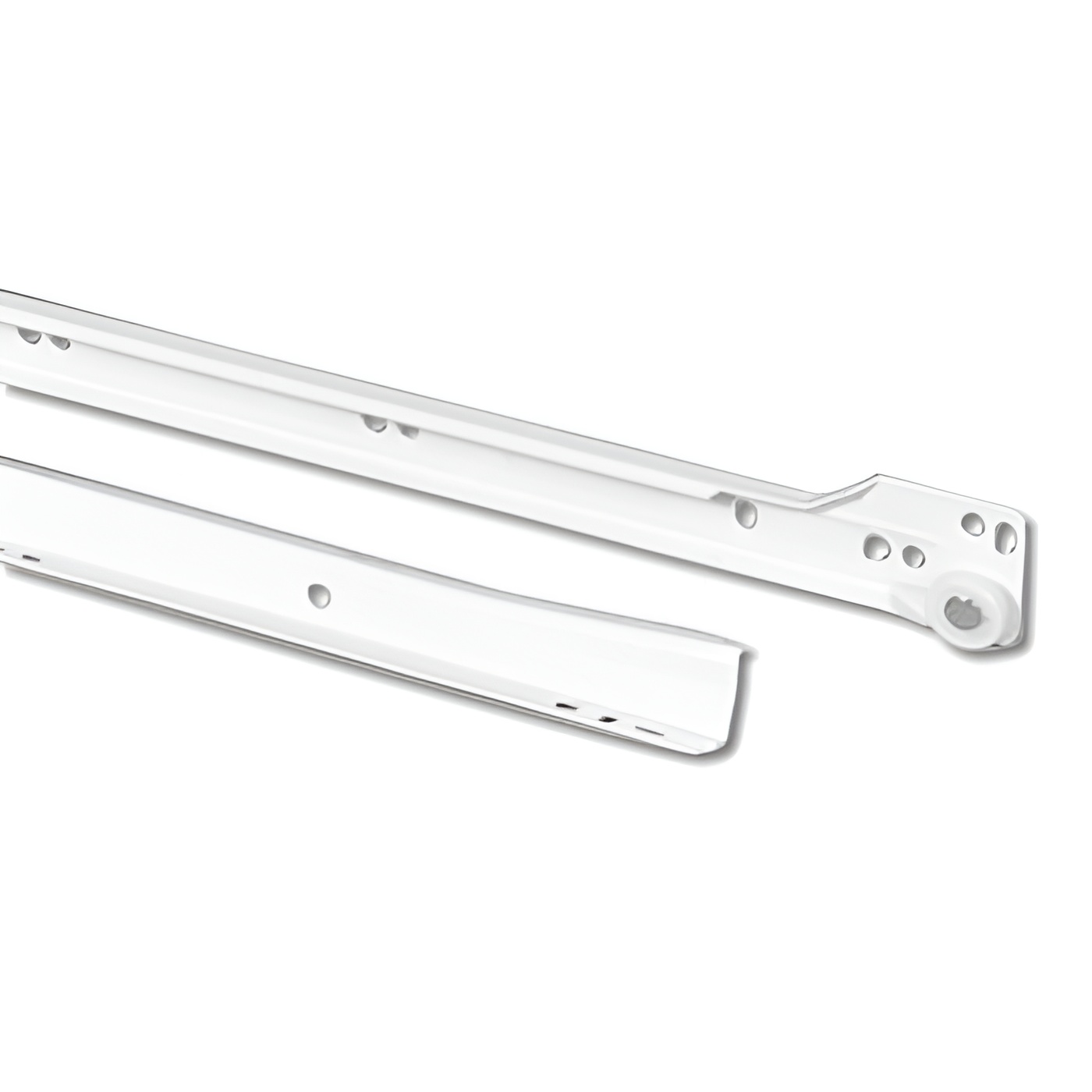

Richelieu TP10240030 Series 102 Euro Slide 3/4 Extension offers an ideal solution for enhancing the functionality of kitchen drawers, dressers, and nightstands. Designed with a robust epoxy finish, these slides provide maximum resistance to wear and tear, ensuring longevity in various furniture applications. The gravity mechanism seamlessly utilizes the weight of drawer contents for smooth closing, making it a reliable choice for everyday use. With a load capacity of 75 lbs, this side-mounted slide is perfect for frameless cabinet models. Measuring 15 3/4 inches in length and 1.46 inches in width, it boasts a compact profile while maintaining strength and durability with its steel construction. The partial extension feature allows for easy access to drawer contents without fully extending the slide, making it both practical and efficient. Designed for versatility, the TP10240030 can be used on both sides and is compatible with rear sockets for face frame applications (BP99612). Whether you're upgrading existing furniture or designing new pieces, this Euro slide combines essential functionality with a sleek white finish, making it an excellent choice for any project. Enjoy the ease of installation and the benefits of high-quality craftsmanship with Richelieu's trusted products.
Series 102 Euro Slide 3/4 Extension - 35 kg Capacity
Application: Furniture Drawer
Bearing Type: Nylon Slides
Brand: Richelieu
Cabinet Model: Frameless
Finish: White
Height: 1.18 in
Length: 400 mm
Load Capacity: 34.019428 kg
Material: Steel
Partial Extension: 3/4
Product #: TP10240030
Product Line: Euro
Product number: TP10240030
Product №: TP10240030
Screw/ Nail: Not Included
Side: Both
Slide Extension: Partial Extension
Slide Mounted: Side Mounted
Unit: Pair
Unit 1: case - 20
Unit 2: case - 20
Width: 1.46 in
