Richelieu WEBKIT1002490 Magic Corner II Set for 494mm Minimum OpeningRichelieu WEBKIT1002490 Magic Corner II Set for a Minimum Opening of 494 mm (19-7/16") maximizes the utility of corner cabinets equipped with hinged doors. This innovative system employs advanced sliding technology, ensuring that all components move silently and effortlessly, even when fully loaded. Designed for manual operation, the front baskets pull out and swivel, providing easy visibility and access to all stored items, while the rear baskets slide out for additional convenience. This system allows users to take advantage of over 80% of the available storage space, making it an ideal choice for kitchens focused on maximizing efficiency. The ergonomic handle is adjustable in height, catering to various user preferences. To prevent damage to cabinet doors, laterally mounted deflection clips are included. Additionally, the anti-slip covering on the baskets keeps stored items securely in place during operation. Constructed from durable steel with a sleek maple and chrome finish, this set has a weight capacity of 10 kg (22 lb) for the front baskets and 8 kg (18 lb) for the rear baskets. The required interior dimensions include a depth of at least 19 5/8 inches, a height of 21 1/2 inches, and a width ranging from 37 1/4 to 38 1/4 inches. Enhance your kitchen's functionality with this exceptional corner cabinet solution.

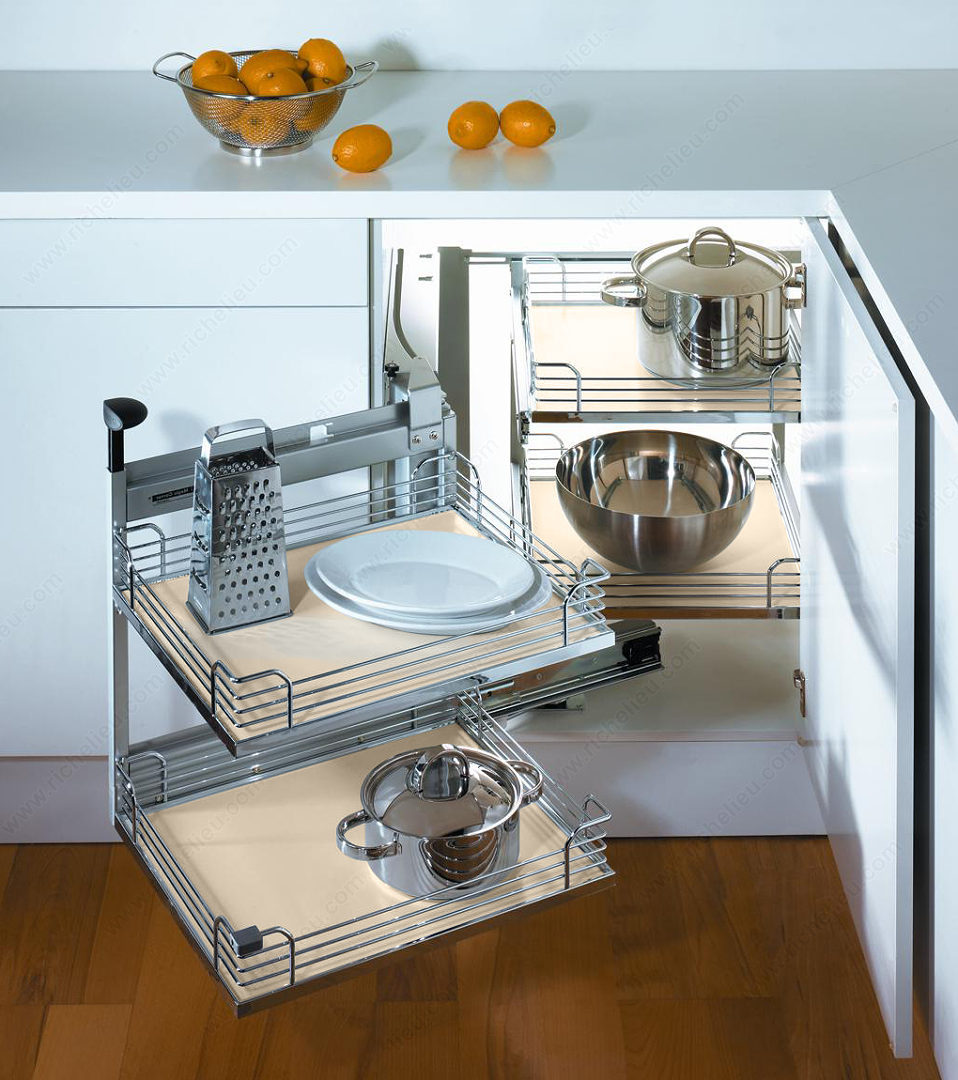

Magic Corner II Set for a Minimum Opening of 494 mm (19-7/16")
- Mechanism designed to maximize available space in corner cabinets with hinged doors.
- Brand new sliding technology ensures that all components slide silently and effortlessly, even when the baskets are full.
- Opens manually.
- Front baskets pull out and swivel for easy viewing and access to the entire storage space.
- Rear baskets slide out for easy access to all stored items.
- Depending on the configuration you use, this system lets you make full use of over 80% of the storage space available.

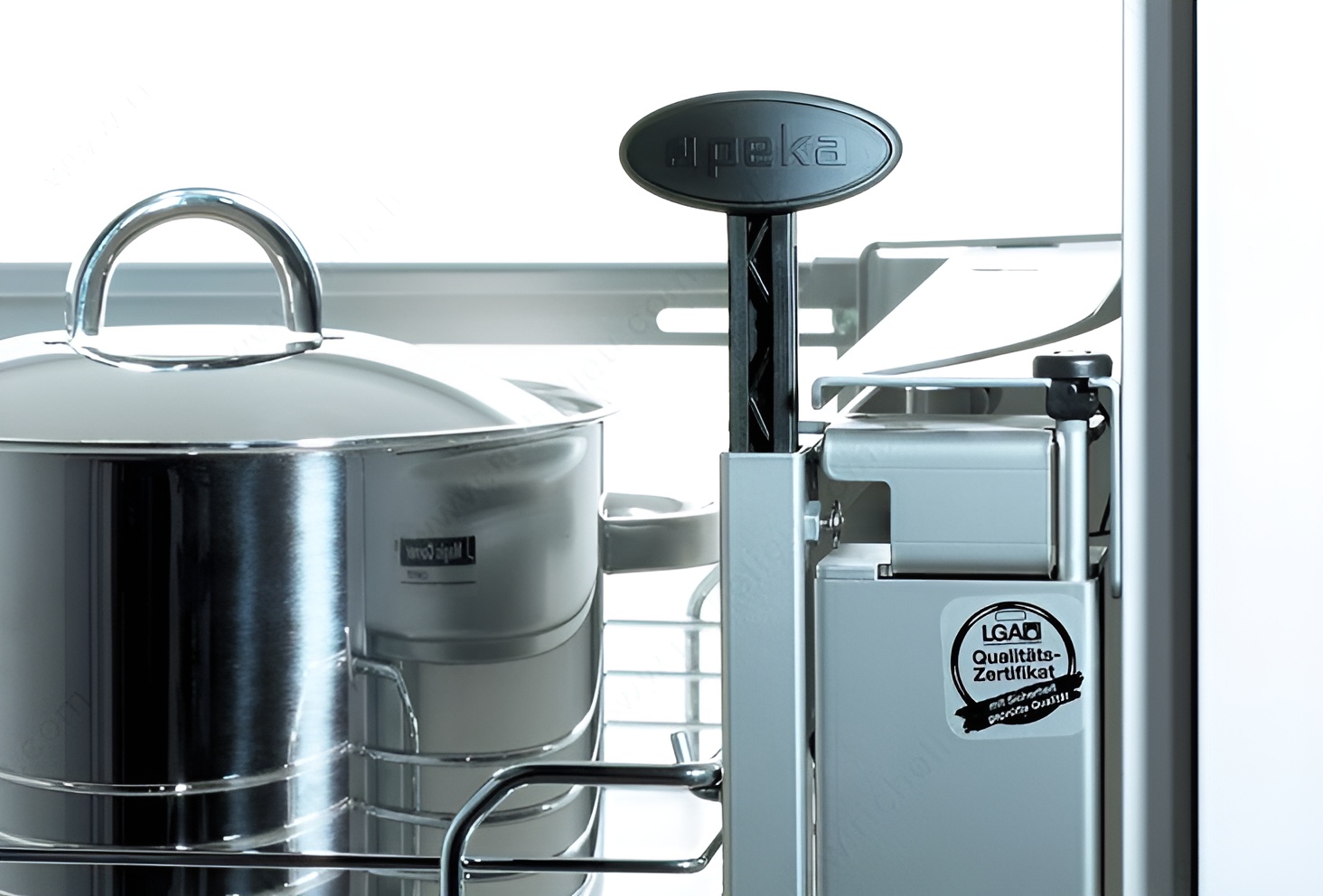

- Features an ergonomic handle that can be adjusted in height.
- Laterally mounted deflection clips prevent the door from being damaged.
- An anti-slip covering on baskets prevents stored items from moving or falling when the system is operated.
Attributes
Area of Activity: Food Storage, Storage, Preparation
Capacity: Front 10 kg (22 lb), Rear 8 kg (18 lb)
Finish: Maple/Chrome
Interior Dimensions Required - Depth: Min. 500 mm
Interior Dimensions Required - Height: Min. 545 mm
Interior Dimensions Required - Width: 945 to 971 mm
Material: Steel
Opening: Left
Opening Width: Min. 494 mm
Product #: WEBKIT1002490
Product number: WEBKIT1002490
Product №: WEBKIT1002490
Solutions: Corner Cabinets
Resources
