ABH 0117-LH 3/4" Offset Pivot Set, Standard Duty, Left Hand, Bright Stainless Steel, Up to 300 lbs.The ABH 0117-LH 3/4" Offset Pivot Set is engineered for standard-duty applications, making it an ideal choice for commercial environments where reliability and performance are essential. This pivot set supports doors weighing up to 300 lbs and measuring up to 42" in width, making it suitable for moderate traffic scenarios. Crafted from durable stainless steel, the bright finish (US32) not only enhances aesthetic appeal but also ensures long-lasting corrosion resistance.

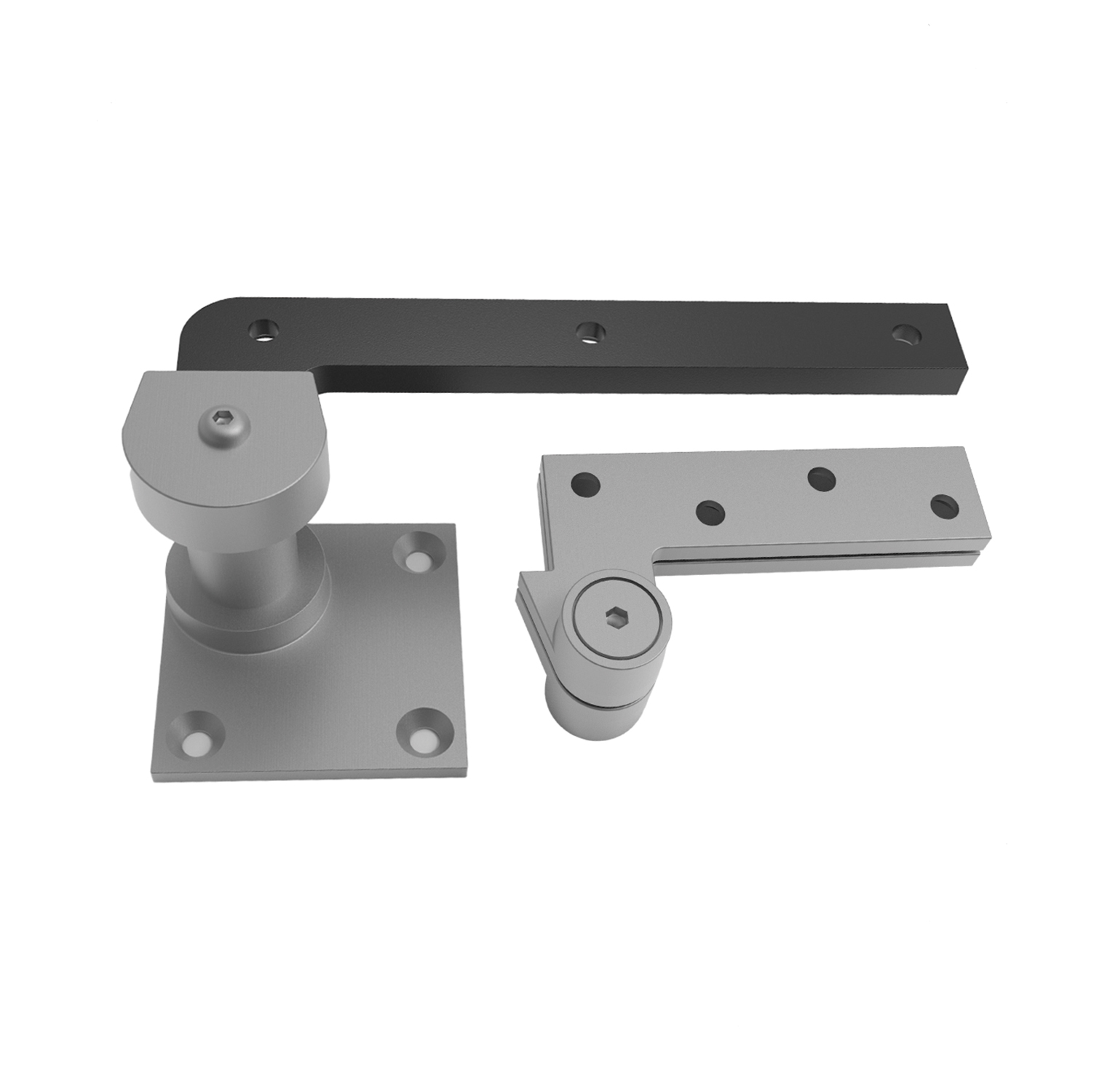

This complete pivot set includes the robust 0180 top pivot and the 0117B bottom pivot, both designed with heavy-duty bearings to facilitate smooth operation. The left-hand handing configuration further caters to specific installation needs. With a fire rating of UL Listed for use on 3-hour fire door assemblies, this pivot set meets stringent safety standards, making it a trusted choice for architects and contractors alike.
For optimal performance, it is recommended to specify the handing (left or right) and consider the addition of an intermediate pivot for taller doors (60" to 90"). Overall, the ABH 0117-LH 3/4" Offset Pivot Set combines strength, compliance, and versatility, making it a premium selection for any commercial project.
Standard duty pivot set with 3/4" offset supporting doors up to 300 pounds and 42" width, providing reliable performance for moderate traffic commercial applications.
0117-LH: Pivot Set (Includes 0180 Top & 0117B Bottom), 3/4" Offset, Up to 300 lbs., Left Hand
Key Features
- Complete Pivot Set
- Heavy Duty Bearings
Specifications
| Model | 0117-LH |
|---|
| Finish | Bright Stainless Steel |
|---|
| Finish Code | US32 |
|---|
| Handing | Left Hand |
|---|
| Family | 0117-LH |
|---|
| Material | Stainless steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available |
|---|
| Load Capacity | 300 lbs. maximum door load |
|---|
| Door Width | 42" maximum |
|---|
| Fire Rating | UL Listed for Use on 3-Hour Fire Door Assemblies |
|---|
| Weight | 4 lbs. average per set |
|---|
| Door Height | 60" to 90" (one intermediate pivot), additional pivot per 30" height |
|---|
| Components Included | 0180 Top Pivot, 0117B Bottom Pivot |
|---|
Handed - specify LH or RH. 019 intermediate pivot recommended (order separately).
Features
- Heavy Duty Bearings
- Complete Pivot Set
Attributes
BRAND_ NAME: ABH
Components Included: 0180 Top Pivot, 0117B Bottom Pivot
Door Height: 60" to 90" (one intermediate pivot), additional pivot per 30" height
Door Width: 42" maximum
Family: 0117-LH
Finish: Bright Stainless Steel
Finish Code: US32
Finishes: US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available
Fire Rating: UL Listed for Use on 3-Hour Fire Door Assemblies
Handing: Left Hand
Load Capacity: 300 lbs. maximum door load
Material: Stainless steel
Model: 0117-LH
Weight: 4 lbs. average per set
