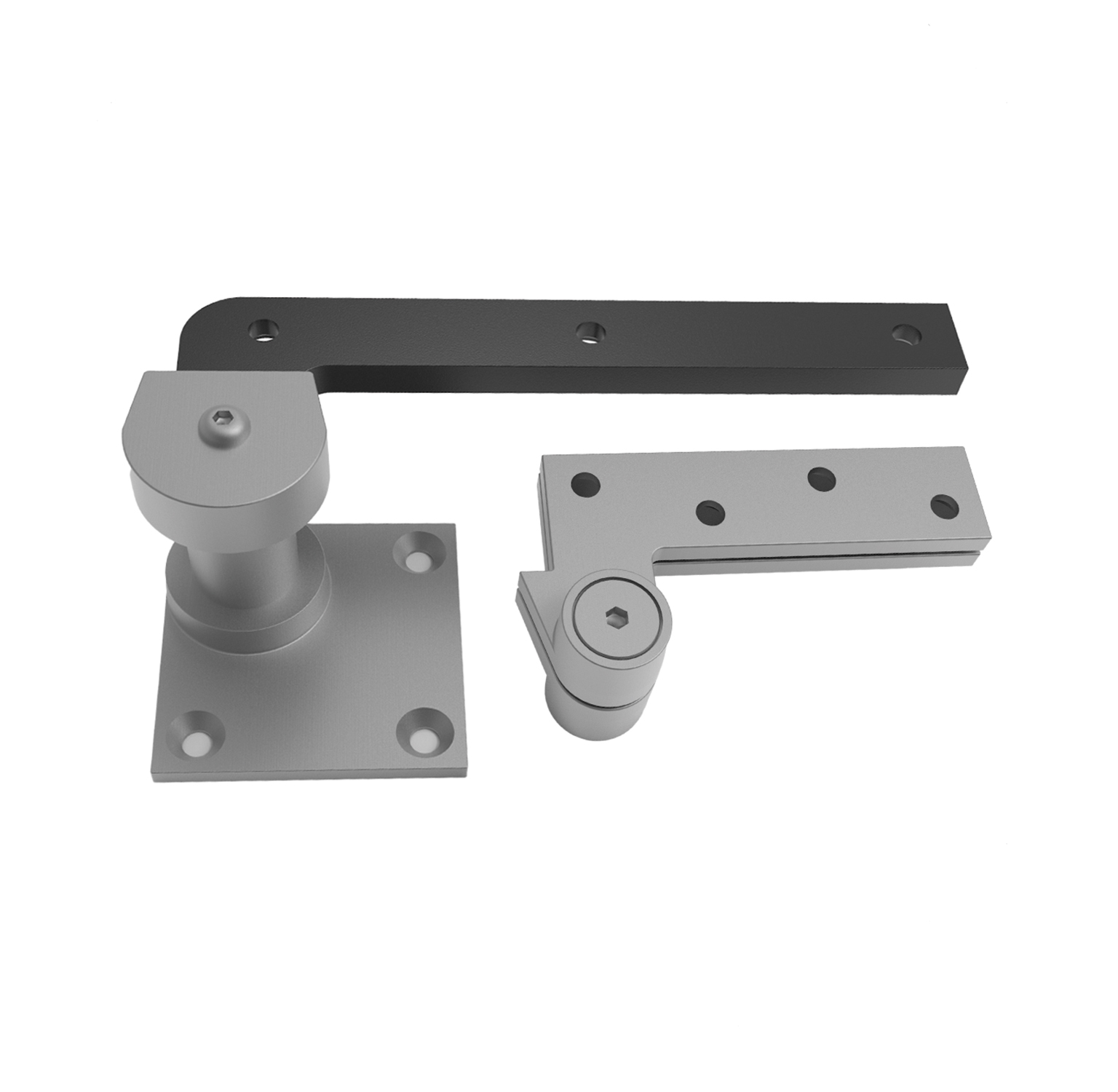

ABH 0117-RH 3/4" Offset Pivot Set, Standard Duty, Right Hand, Bright Stainless Steel, Up to 300 lbs.The ABH 0117-RH 3/4" Offset Pivot Set is engineered for standard-duty applications, providing exceptional support for commercial doors weighing up to 300 lbs. This pivot set, which includes the robust 0180 top pivot and the 0117B bottom pivot, is designed for right-handed installations, accommodating doors with a maximum width of 42 inches.
Constructed from high-quality stainless steel with a bright finish (US32), the pivot set not only offers durability but also an aesthetically pleasing appearance that complements various architectural styles. The heavy-duty bearings ensure smooth operation, making it ideal for moderate traffic environments such as office buildings, retail spaces, and institutional facilities.
This pivot set is UL listed for use on 3-hour fire door assemblies, meeting stringent safety standards for fire-rated doors. With a weight of only 4 lbs. per set, it is lightweight yet reliable, and it can be installed on doors ranging from 60" to 90" in height, with additional pivots recommended for increased stability.
For architects and contractors seeking a dependable, code-compliant solution for door hardware, the ABH 0117-RH 3/4" Offset Pivot Set stands out as a top choice in commercial door applications.
Standard duty pivot set with 3/4" offset supporting doors up to 300 pounds and 42" width, providing reliable performance for moderate traffic commercial applications.
0117-RH: Pivot Set (Includes 0180 Top & 0117B Bottom), 3/4" Offset, Up to 300 lbs., Right Hand
Key Features
- Complete Pivot Set
- Heavy Duty Bearings
Specifications
| Model | 0117-RH |
|---|
| Finish | Bright Stainless Steel |
|---|
| Finish Code | US32 |
|---|
| Handing | Right Hand |
|---|
| Family | 0117-RH |
|---|
| Material | Stainless steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available |
|---|
| Load Capacity | 300 lbs. maximum door load |
|---|
| Door Width | 42" maximum |
|---|
| Fire Rating | UL Listed for Use on 3-Hour Fire Door Assemblies |
|---|
| Weight | 4 lbs. average per set |
|---|
| Door Height | 60" to 90" (one intermediate pivot), additional pivot per 30" height |
|---|
| Components Included | 0180 Top Pivot, 0117B Bottom Pivot |
|---|
Handed - specify LH or RH. 019 intermediate pivot recommended (order separately).
Features
- Heavy Duty Bearings
- Complete Pivot Set
Attributes
BRAND_ NAME: ABH
Components Included: 0180 Top Pivot, 0117B Bottom Pivot
Door Height: 60" to 90" (one intermediate pivot), additional pivot per 30" height
Door Width: 42" maximum
Family: 0117-RH
Finish: Bright Stainless Steel
Finish Code: US32
Finishes: US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available
Fire Rating: UL Listed for Use on 3-Hour Fire Door Assemblies
Handing: Right Hand
Load Capacity: 300 lbs. maximum door load
Material: Stainless steel
Model: 0117-RH
Weight: 4 lbs. average per set
