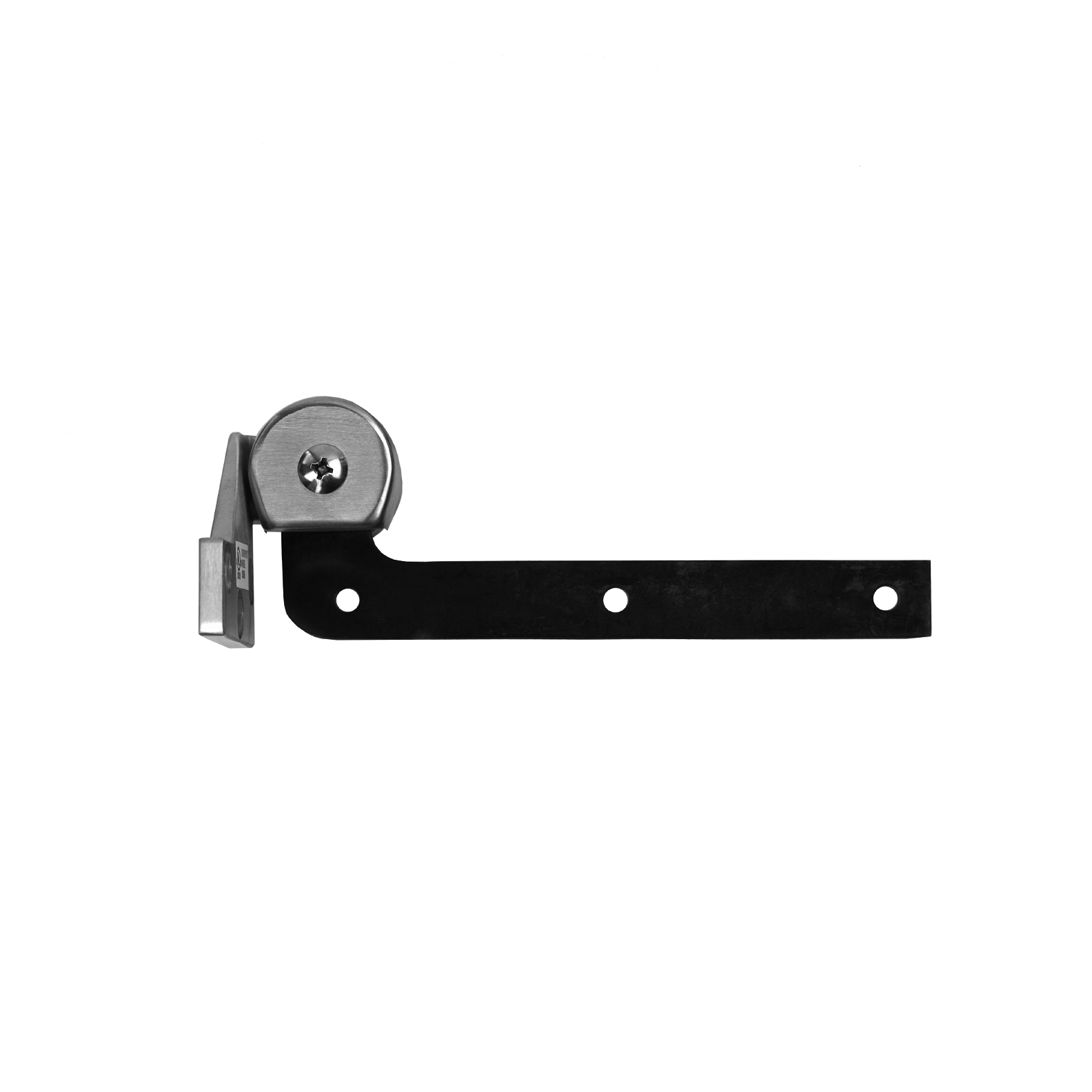

ABH 0117.25B-LH 3/4" Offset Jamb Mount Bottom Pivot, Standard Duty, Left Hand, S2 (BSPC)The ABH 0117.25B-LH 3/4" Offset Jamb Mount Bottom Pivot is expertly crafted for standard-duty applications, supporting doors weighing up to 250 pounds. This bottom pivot is designed specifically for left-hand installations, ensuring seamless integration with your door systems. Constructed from high-quality stainless steel, it offers durability and a sleek appearance in a S2 (BSPC) finish, suitable for various architectural styles.
This pivot features a jamb mount design that facilitates a robust installation by mortising into both the jamb and the bottom of the door. With heavy-duty bearings, the pivot ensures smooth operation and longevity, making it ideal for high-traffic environments. The 3/4" offset configuration allows for optimal door alignment and functionality, accommodating doors with a maximum width of 42 inches.
Compliance with industry standards and availability in multiple finishes-including US3, US4, US9, and more-ensures that this pivot meets the aesthetic and functional needs of any project. For added versatility, custom finishes are also available. Choose the ABH 0117.25B-LH for a reliable and stylish solution in commercial door hardware applications.
Standard duty jamb mount bottom pivot with 3/4" offset for doors up to 250 pounds, providing jamb-mounted installation option. Included in pivot set 0117.25.
0117.25B-LH: Bottom Pivot Only, 3/4" Offset, Left Hand
Key Features
- Jamb Mount Design
- Heavy Duty Bearings
Specifications
| Model | 0117.25B-LH |
|---|
| Finish | S2 (BSPC) |
|---|
| Finish Code | S2 |
|---|
| Handing | Left Hand |
|---|
| Family | 0117.25B-RH / 0117.25B-LH |
|---|
| Material | Stainless steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available |
|---|
| Load Capacity | 250 lbs. maximum door load |
|---|
| Door Width | 42" maximum |
|---|
| Weight | 2.5 lbs. average per unit |
|---|
| Mounting Type | Mortises into jamb and bottom of door |
|---|
| Bearing Type | Heavy duty bearings |
|---|
Handed - specify LH or RH. For use with 3/4" offset top pivot and intermediate pivots.
Features
- Heavy Duty Bearings
- Jamb Mount Design
Attributes
BRAND_ NAME: ABH
Bearing Type: Heavy duty bearings
Door Width: 42" maximum
Family: 0117.25B-RH / 0117.25B-LH
Finish: S2 (BSPC)
Finish Code: S2
Finishes: US3, US4, US9, US10, US10B, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, S8/WSPC, Custom Finishes Available
Handing: Left Hand
Load Capacity: 250 lbs. maximum door load
Material: Stainless steel
Model: 0117.25B-LH
Mounting Type: Mortises into jamb and bottom of door
Weight: 2.5 lbs. average per unit
