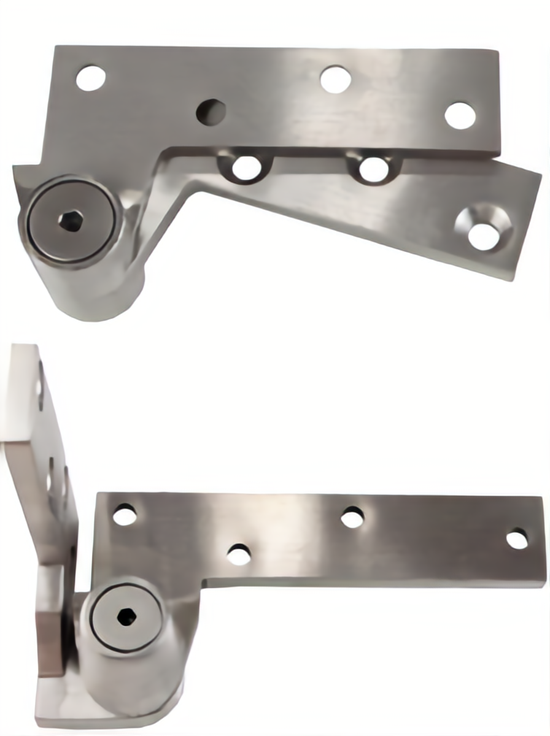

ABH 0195RH-32D RH Pivot Set, 3/4in Offset, 630/US32D Satin Stainless Steel

ABH Manufacturing Inc 0195RH-32D RH Pivot Set is engineered for durability and reliability, making it an excellent choice for both interior and exterior doors measuring up to 4'0" x 8'0". Designed to support a substantial weight of up to 450 lbs, this pivot set ensures smooth operation even under heavy use. The satin stainless steel finish not only enhances the aesthetic appeal but also contributes to corrosion resistance, ensuring longevity. This pivot set includes a crucial 0180 top pivot, while the 019 intermediate pivot is required for optimal functionality. The bottom pivot is mortised into the side jamb, providing a clean and secure installation. Additionally, the 3/16" vertical arm adjustment allows for precise alignment after installation, accommodating any necessary adjustments to maintain perfect door operation. With BHMA/ANSI C07131/3530A (modified) certification, this pivot set meets high standards for performance and reliability. Handing is right-hand, so please specify this when ordering. Ideal for professionals and knowledgeable homeowners alike, the ABH 0195RH-32D offers a robust solution for your door pivoting needs, ensuring a seamless blend of form and function.

RH Pivot Set, 3/4in Offset, 630/US32D Satin Stainless Steel

Features:

• For interior or exterior doors up to 4'0" x 8'0"
• Handed-Specify when ordering
• Weight to 450 lbs.
• 0180 top pivot included
• 019 intermediate pivot required
• Bottom pivot mortised into side jamb
• 3/16" vertical arm adjustment after installation
• BHMA/ANSI C07131/3530A (modified)
