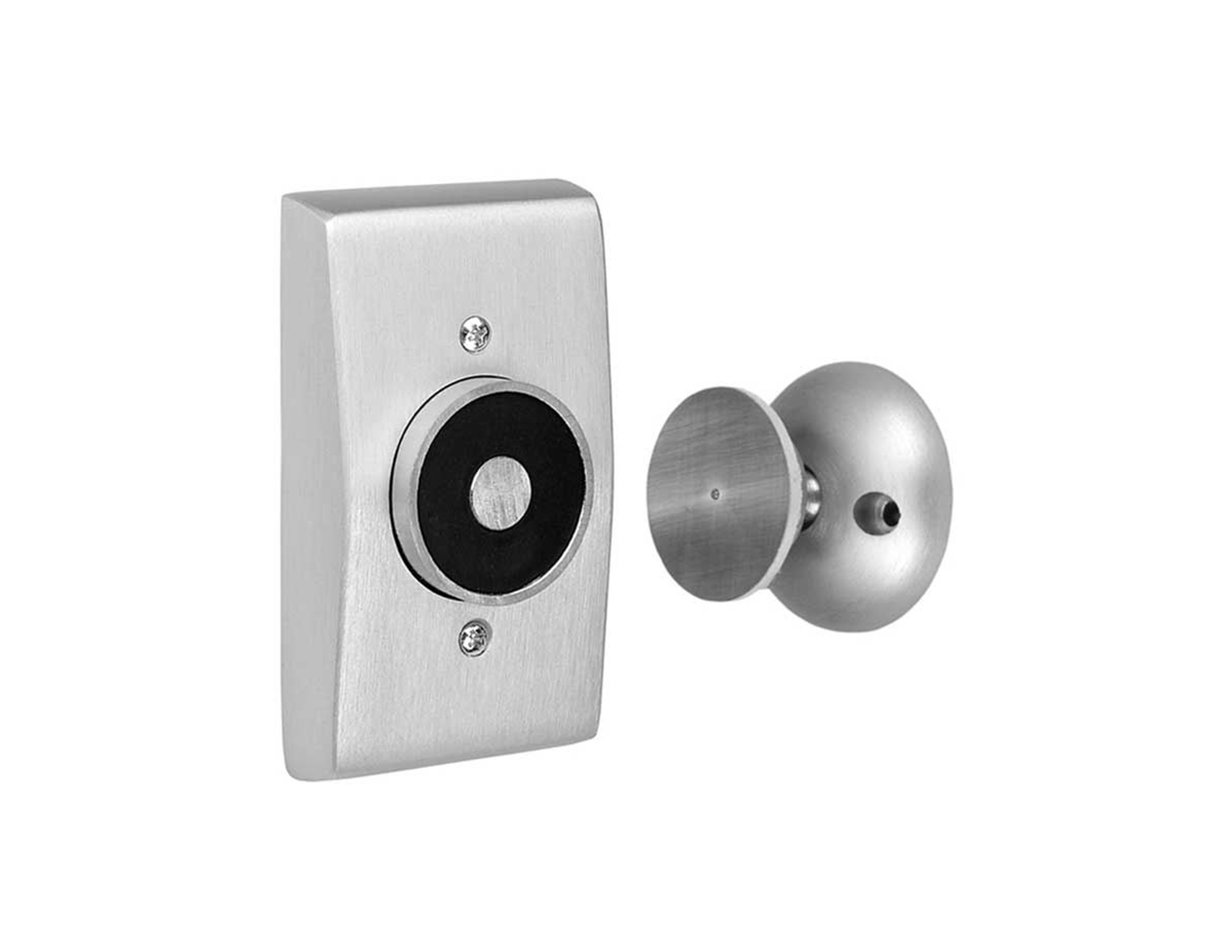

ABH 2100 Recessed Wall Mount, Standard Armature, S1 (ALPC)The ABH 2100 Recessed Wall Mount with Standard Armature is an essential component for smoke control and fire door applications. This tri-voltage electromagnetic door holder is engineered to provide a robust 35 lb. holding force, ensuring doors remain securely held in place when required. Its recessed wall mount design not only enhances aesthetics but also allows for seamless integration into any environment.
Constructed from durable stainless steel, the 2100 model ensures long-lasting performance and reliability. The standard armature configuration features two pivot points with 360° mobility, allowing for easy adjustments and a positive release button for quick disengagement. This model is compliant with ANSI/BHMA Standard 156.15, guaranteeing its suitability for commercial applications.
The 2100 is available in a variety of finishes, including S1 (ALPC), with custom finishes upon request, making it adaptable to any design scheme. It is UL/ULC listed for fire-rated openings and is California State Fire Marshall listed, making it a dependable choice for safety compliance.
Installation is straightforward, requiring an outlet box (not provided) and includes a complimentary 1" extension for enhanced functionality. The ABH 2100 is the ideal solution for architects, contractors, and facility managers seeking reliable door hardware for critical safety applications.
Tri-voltage electromagnetic door holder with recessed wall mount providing 35 lb. holding force for smoke control and fire door applications with standard armature configuration.
2100: Recessed Wall Mount, Standard Armature
Key Features
- 2100T has a Built-In Timer Release That Allows for Disconnect & Reset
- 2100RS has a Built-In ON/OFF Rocker Switch
- All Metal Construction
- Recessed Wall Mount
- Meets and/or Exceeds ANSI/BHMA Standard 156.15
Specifications
| Model | 2100 |
|---|
| Finish | S1 (ALPC) |
|---|
| Finish Code | S1 |
|---|
| Family | 2100, 2100T, 2100RS |
|---|
| Material | Stainless Steel |
|---|
| Finishes | US28, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, Custom Finishes Available |
|---|
| Holding Force | 35 lbs. |
|---|
| Voltage Options | Tri-voltage: 12V DC, 24V AC/DC, or 120V AC |
|---|
| Projection | 2-5/8" total projection from wall to face of door (3-5/8" with complimentary 1" extension) |
|---|
| Weight | 2.5 lbs. average per unit |
|---|
| Installation Requirements | Outlet box required (not provided), complimentary 1" extension (included) |
|---|
| Armature Features | Two pivot points with 360° mobility, positive release button |
|---|
| Fire Rating | UL/ULC Listed for fire-rated openings; smoke application ready, California State Fire Marshall listed |
|---|
Optional extension rods available to fill gap between magnet and door armature without special adapters.
Features
- Recessed Wall Mount
- 2100RS has a Built-In ON/OFF Rocker Switch
- 2100T has a Built-In Timer Release That Allows for Disconnect & Reset
- Meets and/or Exceeds ANSI/BHMA Standard 156.15
- All Metal Construction
Attributes
Armature Features: Two pivot points with 360° mobility, positive release button
BRAND_ NAME: ABH
Family: 2100, 2100T, 2100RS
Finish: S1 (ALPC)
Finish Code: S1
Finishes: US28, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, Custom Finishes Available
Fire Rating: UL/ULC Listed for fire-rated openings; smoke application ready, California State Fire Marshall listed
Holding Force: 35 lbs.
Installation Requirements: Outlet box required (not provided), complimentary 1" extension (included)
Material: Stainless Steel
Model: 2100
Projection: 2-5/8" total projection from wall to face of door (3-5/8" with complimentary 1" extension)
Voltage Options: Tri-voltage: 12V DC, 24V AC/DC, or 120V AC
Weight: 2.5 lbs. average per unit
