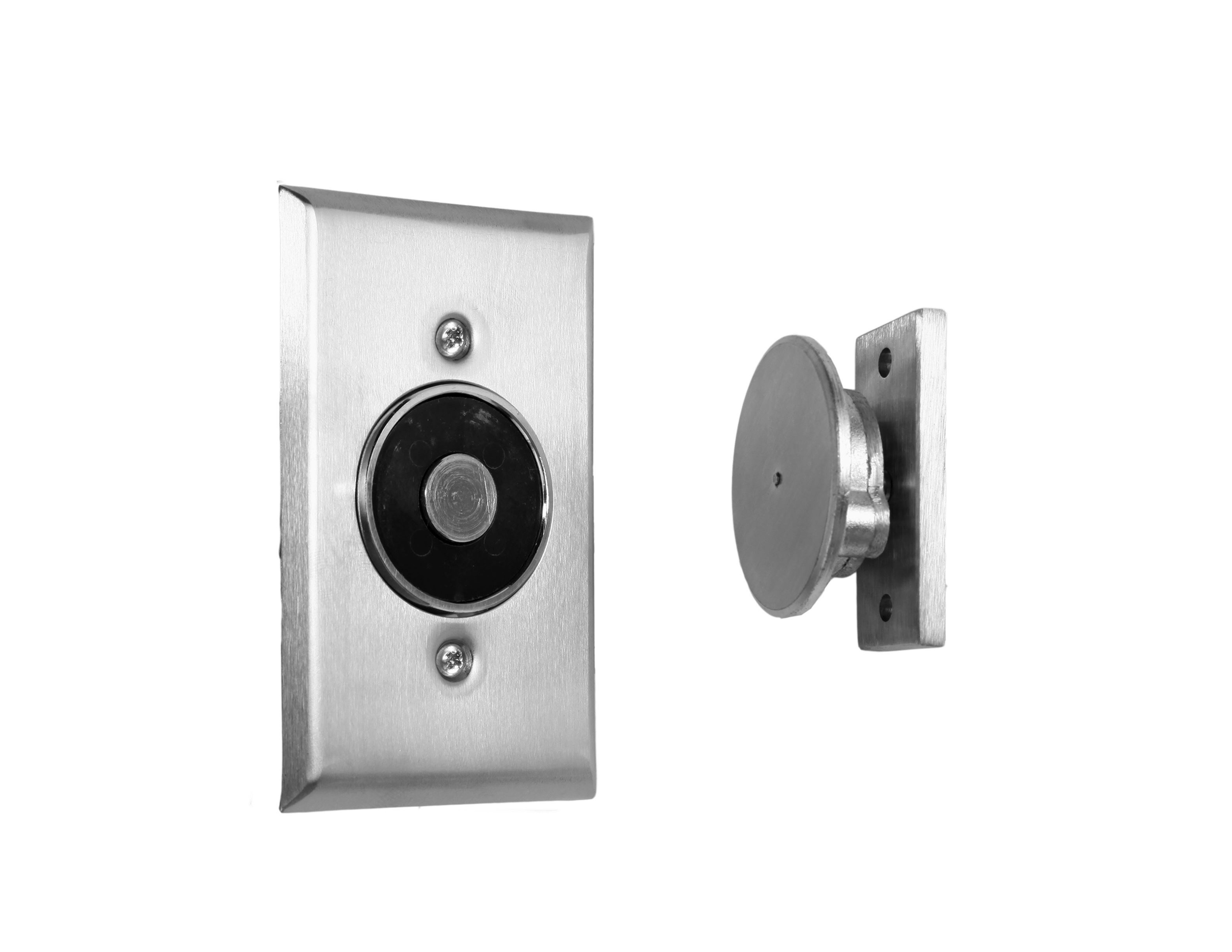

ABH 2400L Flush Wall Mount, Low Profile Armature, Bright Stainless SteelThe ABH 2400L Flush Wall Mount with Low Profile Armature offers a reliable and efficient solution for electromagnetic door holding in space-constrained applications. Designed with a sleek and minimalistic profile, this unit features all-metal construction and a bright stainless steel finish, ensuring durability and aesthetic appeal. The low profile armature contributes to a total projection of just 1-1/8 inches from the wall to the face of the door, making it an ideal choice for environments where space is at a premium.
Engineered to provide a robust holding force of 35 lbs., the tri-voltage design accommodates 12V DC, 24V AC/DC, or 120V AC, making it versatile for various installation scenarios. Additionally, the unit meets and exceeds ANSI/BHMA Standard 156.151, ensuring compliance with industry standards for safety and performance.
With UL/ULC listing for fire-rated openings and compatibility with smoke applications, the ABH 2400L is a trusted choice for facility managers, architects, and contractors focused on safety and reliability. An outlet box is required for installation (not provided), and optional extension rods are available to bridge gaps between the magnet and door armature without the need for special adapters. Elevate your door hardware solutions with the ABH 2400L Flush Wall Mount today.
Tri-voltage electromagnetic door holder with flush wall mount and low profile armature providing 35 lb. holding force with reduced projection for space-constrained applications.
2400L: Flush Wall Mount, Low Profile Armature
Key Features
- All Metal Construction
- Flush Wall Mount
- Low Profile Armature
- Outlet Box Required (Not Provided)
- Meets and/or Exceeds ANSI/BHMA Standard 156.151-1/8" Projection
Specifications
| Model | 2400L |
|---|
| Finish | Bright Stainless Steel |
|---|
| Finish Code | US32 |
|---|
| Family | 2400L |
|---|
| Material | Stainless Steel |
|---|
| Finishes | US28, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, Custom Finishes Available |
|---|
| Holding Force | 35 lbs. |
|---|
| Voltage Options | Tri-voltage: 12V DC, 24V AC/DC, or 120V AC |
|---|
| Weight | 2.0 lbs. average per unit |
|---|
| Projection | 1-1/8" total projection from wall to face of door |
|---|
| Armature Features | Single pivot point with 360° mobility, positive release button |
|---|
| Fire Rating | UL/ULC Listed for fire-rated openings; smoke application ready, California State Fire Marshall listed |
|---|
Optional extension rods available to fill gap between magnet and door armature without special adapters.
Features
- Flush Wall Mount
- Outlet Box Required (Not Provided)
- All Metal Construction
- Low Profile Armature
- Meets and/or Exceeds ANSI/BHMA Standard 156.151-1/8" Projection
Attributes
Armature Features: Single pivot point with 360° mobility, positive release button
BRAND_ NAME: ABH
Family: 2400L
Finish: Bright Stainless Steel
Finish Code: US32
Finishes: US28, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, Custom Finishes Available
Fire Rating: UL/ULC Listed for fire-rated openings; smoke application ready, California State Fire Marshall listed
Holding Force: 35 lbs.
Material: Stainless Steel
Model: 2400L
Projection: 1-1/8" total projection from wall to face of door
Voltage Options: Tri-voltage: 12V DC, 24V AC/DC, or 120V AC
Weight: 2.0 lbs. average per unit
