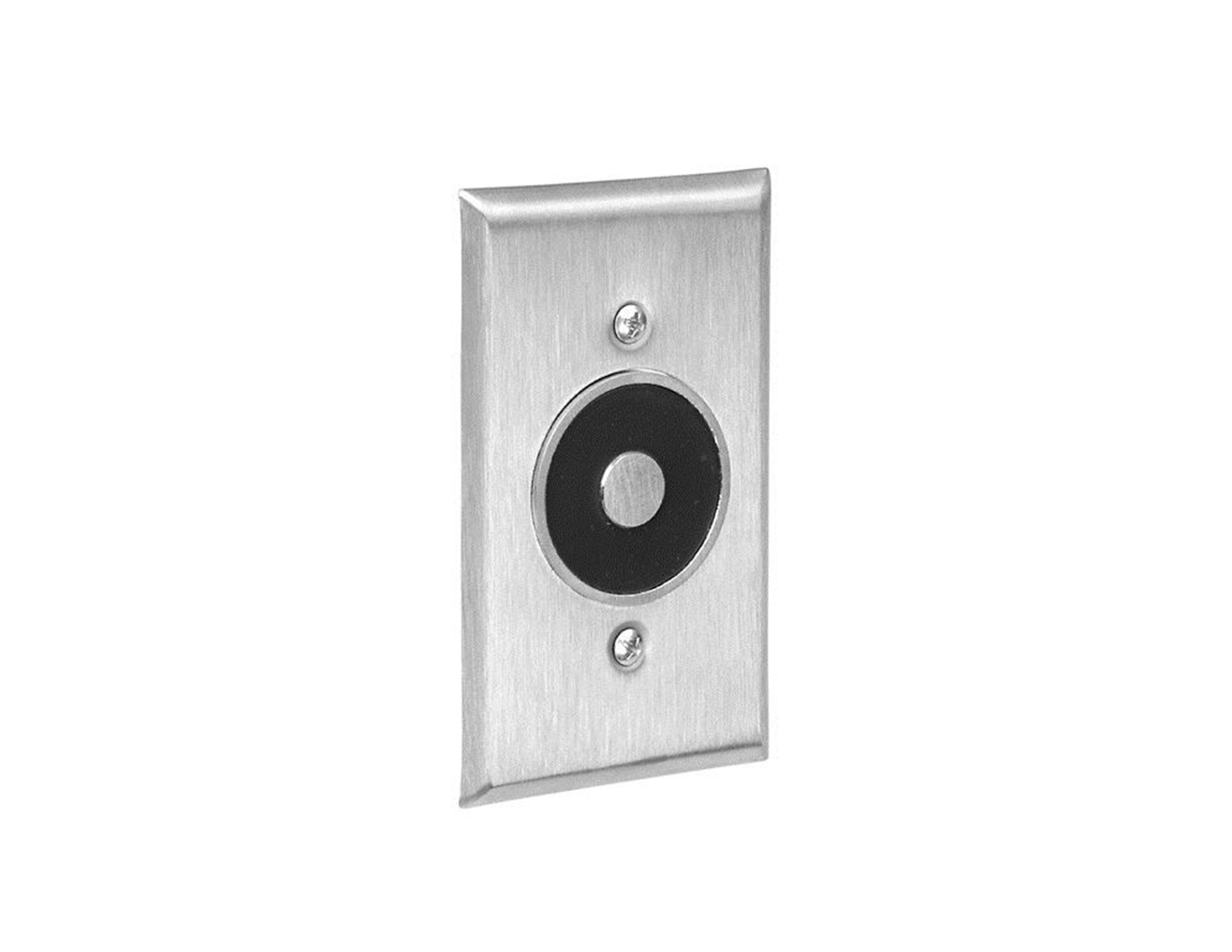

ABH 2400LS Flush Wall Mount, Extreme Low Profile Armature, S3 (BZPC)The ABH 2400LS Flush Wall Mount with Extreme Low Profile Armature combines innovative design with robust functionality, making it an ideal choice for architects, contractors, and facility managers. This tri-voltage electromagnetic door holder is engineered to provide a remarkable 35 lb. holding force while maintaining a minimal 5/8" projection, ensuring a sleek aesthetic without compromising performance.
Constructed from durable stainless steel, the all-metal construction guarantees longevity and resilience in various commercial applications. The flush wall mount design facilitates seamless integration into walls, making it particularly suitable for areas where space is at a premium. The extreme low profile armature features two pivot points with 360° mobility and a positive release button, enhancing ease of use while ensuring reliable operation.
Compliance is a key consideration, as the 2400LS meets and exceeds ANSI/BHMA Standard 156.15 and is UL/ULC listed for fire-rated openings, also being smoke application ready and California State Fire Marshall listed. Available in S3 (BZPC) finish, along with other options such as US28 and US32, this product offers versatility in design without sacrificing safety or performance. The outlet box is required for installation (not provided), making it a practical choice for modern facilities.
Tri-voltage electromagnetic door holder with flush wall mount and extreme low profile armature providing 35 lb. holding force with minimal 5/8" projection.
2400LS: Flush Wall Mount, Extreme Low Profile Armature
Key Features
- All Metal Construction
- Flush Wall Mount
- Extreme Low Profile
- Outlet Box Required (Not Provided)
- Meets and/or Exceeds ANSI/BHMA Standard 156.15
Specifications
| Model | 2400LS |
|---|
| Finish | S3 (BZPC) |
|---|
| Finish Code | S3 |
|---|
| Family | 2400LS |
|---|
| Material | Stainless Steel |
|---|
| Finishes | US28, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, Custom Finishes Available |
|---|
| Holding Force | 35 lbs. |
|---|
| Voltage Options | Tri-voltage: 12V DC, 24V AC/DC, or 120V AC |
|---|
| Projection | 5/8" total projection from wall to face of door |
|---|
| Weight | 2.0 lbs. average per unit |
|---|
| Armature Features | Two pivot points with 360° mobility, positive release button |
|---|
| Fire Rating | UL/ULC Listed for fire-rated openings; smoke application ready, California State Fire Marshall listed |
|---|
Extreme low profile design ideal for applications requiring minimal projection while maintaining full holding force.
Features
- Flush Wall Mount
- Extreme Low Profile
- Meets and/or Exceeds ANSI/BHMA Standard 156.15
- Outlet Box Required (Not Provided)
- All Metal Construction
Attributes
Armature Features: Two pivot points with 360° mobility, positive release button
BRAND_ NAME: ABH
Family: 2400LS
Finish: S3 (BZPC)
Finish Code: S3
Finishes: US28, US32, US32D, S1/ALPC, S2/BSPC, S3/BZPC, S4/BSPC, S5/DBPC, Custom Finishes Available
Fire Rating: UL/ULC Listed for fire-rated openings; smoke application ready, California State Fire Marshall listed
Holding Force: 35 lbs.
Material: Stainless Steel
Model: 2400LS
Projection: 5/8" total projection from wall to face of door
Voltage Options: Tri-voltage: 12V DC, 24V AC/DC, or 120V AC
Weight: 2.0 lbs. average per unit
