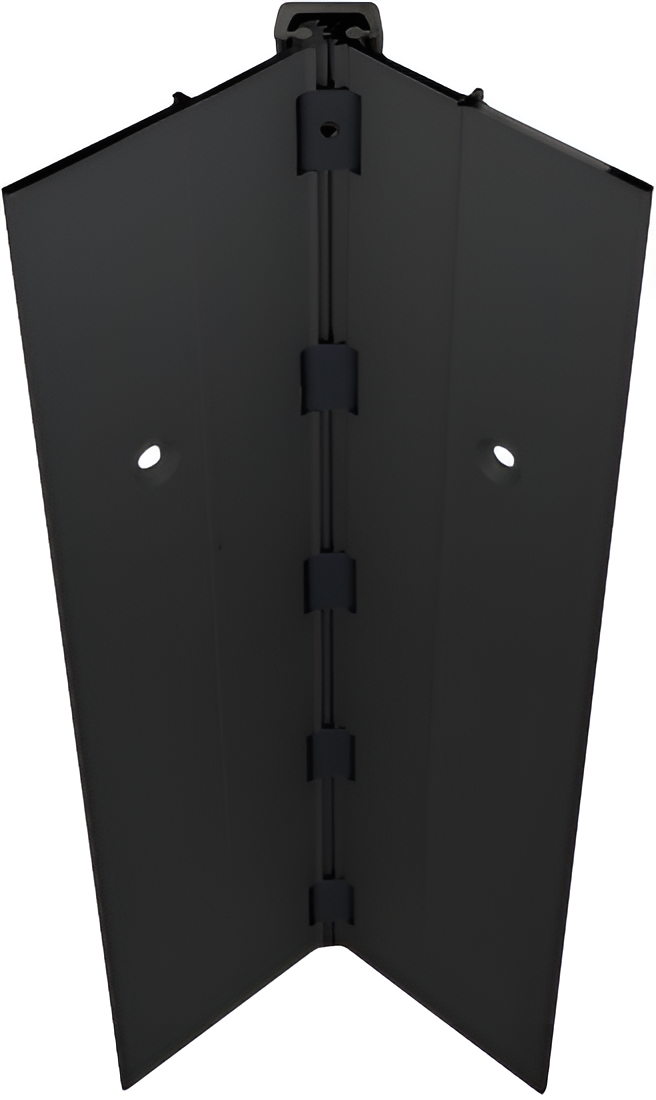

ABH A111HDB083 Heavy Duty Full Mortise Concealed Continuous Hinge, 83in, Black Anodized

ABH Manufacturing Inc A111HDB083 Full Mortise Concealed Geared Continuous Hinge is designed for those seeking exceptional strength and durability in their door hardware. This heavy-duty hinge, measuring 83 inches in length, supports doors with a maximum weight of up to 450 lbs, making it ideal for high-traffic areas or heavy doors. Engineered with a full concealed design, the A111HDB083 offers a clean aesthetic while ensuring stability and smooth operation. It accommodates a door width of up to 48 inches and features a 1/8-inch door inset, allowing for seamless installation. For even heavier applications, ABH offers the "LL" model, which supports doors weighing up to 1,000 lbs with a staggered hole pattern for added strength. Installation is straightforward with the included 12-24 X 7/8" undercut self-drilling, thread-forming tek machine screws, ensuring a secure fit. Available finishes include clear, dark bronze, and black anodized, allowing you to match the hinge to your design preferences. Optional fire rating is also available, enhancing safety in critical environments. With standard lengths ranging from 79 to 120 inches, the A111HDB083 is a versatile solution for commercial and residential applications alike. Choose ABH Manufacturing for reliable performance and long-lasting quality in your door hardware.

Full Mortise Concealed Geared Continuous Hinge, Heavy Duty, 83in, 711/B Black Anodized

Features:

• Full Concealed, heavy duty
• 1/8" door inset
• 48" door width maximum
• 450 lbs. door weight maximum
• Average weight per unit = 11 lbs
• "LL" model for doors up to 1,000 lbs (lead-lined staggered hole pattern)
• Fasteners: 12-24 X 7/8" undercut self drilling, thread forming tek machine screws
• Standard Lengths: 79", 83", 85", 95" and 120"
• Finishes: Clear, dark bronze and black anodized
• Fire Rating: Optional
