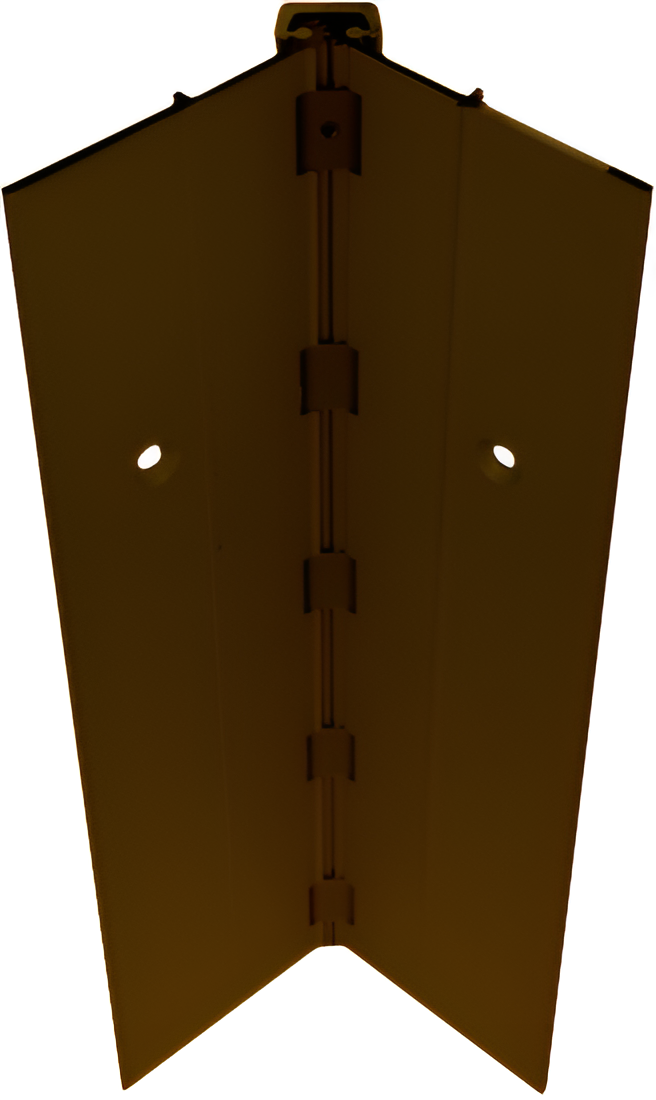

ABH A111HDD083 Heavy Duty Concealed Geared Continuous Hinge, 83in, Dark Bronze

ABH Manufacturing Inc A111HDD083 Full Mortise Concealed Geared Continuous Hinge is designed for heavy-duty applications, making it an exceptional choice for both renovations and new constructions. With a generous size of 83 inches, this hinge accommodates doors up to 48 inches wide and supports a substantial weight capacity of 450 lbs. The innovative concealed application ensures a sleek, streamlined appearance, eliminating the need for visible hinge cutouts. This hinge features a 1/8-inch door inset, allowing it to cover existing butt hinge cutouts in older frames seamlessly. Its non-handed design simplifies installation, and no mortising of doors or frames is required, making it an efficient option for builders and contractors alike. Crafted with a dark bronze anodized finish, it not only adds durability but also enhances the aesthetic appeal of any entryway. Moreover, the A111HDD083 is fire-rated for up to 90 minutes on metal swinging type fire doors and 60 minutes on wood fire doors, providing peace of mind in safety compliance. Standard fasteners include 12-24 x 7/8" self-drilling TEK machine screws, ensuring a reliable installation. For your next project, choose this hinge to elevate both functionality and design.

Full Mortise Concealed Geared Continuous Hinge, Heavy Duty, 83in, 690/D Dark Bronze

Features:

• Full Mortise Application/ Concealed Application
• For renovation with new doors and/or frames, as well as new construction
• 1/8" door inset
• Will cover butt hinge cutouts in old frames
• No mortising of doors or frames required
• For doors up to 48" door width and 450 lbs
• Standard fasteners are 12-24 x 7/8" self-drilling TEK Machine Screws
• Fire Rated up to 90 min for metal swinging type fire doors, and 60 minute rated wood fire doors. Please request a quote for if fire rated door opening ratings are greater

Resources

• Cut Sheet
