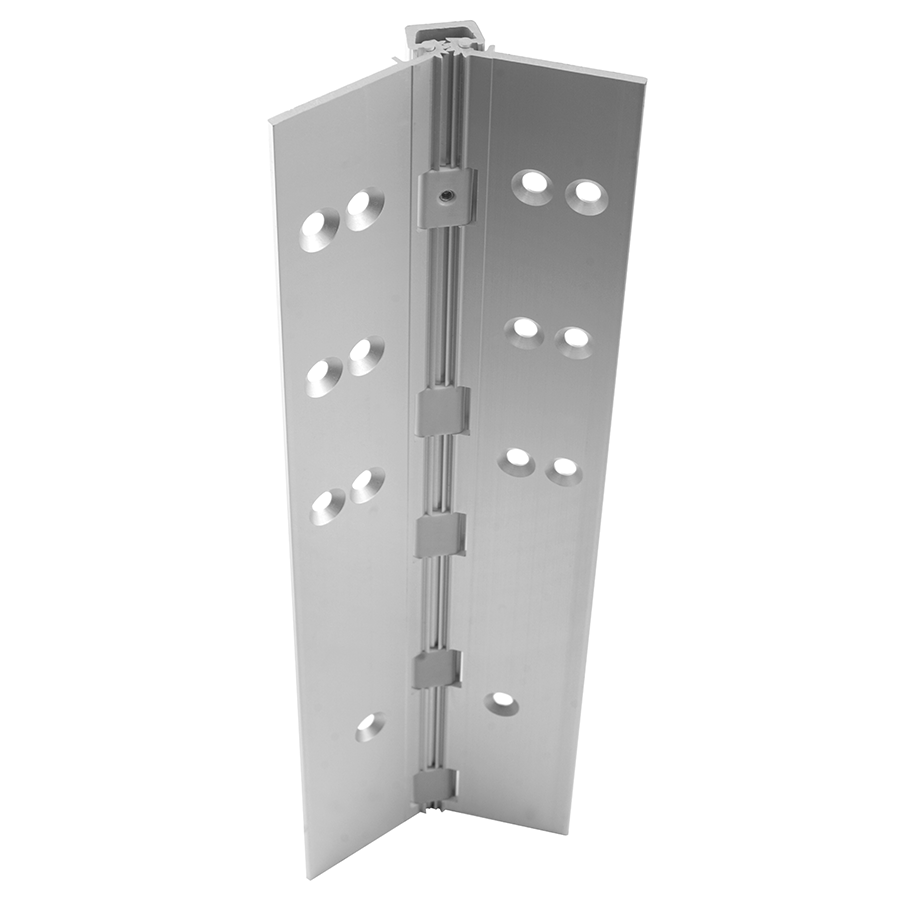

ABH A170HDC083 Heavy Duty Concealed Geared Continuous Hinge, 83in, Clear Anodized

ABH Manufacturing Inc A170HDC083 Full Mortise Concealed Geared Continuous Hinge is engineered for heavy-duty applications, offering a robust solution for doors with a maximum width of 48 inches and a weight capacity of up to 450 pounds. Designed with a 1/8-inch door inset, this hinge provides a seamless and discreet installation that enhances the aesthetics of any entryway. Constructed for durability, the A170HDC083 is available in several standard lengths, including 79, 83, 85, 95, and 120 inches, allowing for versatile application across different door sizes. The hinge's clear anodized finish not only ensures an attractive appearance but also provides excellent corrosion resistance, making it suitable for various environments. Additional finishes, such as dark bronze and black anodized, are also available to match your design preferences. This hinge is approved for use on metal swinging type fire doors rated up to 90 minutes and on wood swinging type fire doors rated up to 60 minutes, providing essential safety features. Reinforcement is not required for doors weighing up to 200 pounds, while a minimum 12-gauge plate or 16-gauge channel is recommended for heavier installations. With its reliable performance and versatile applications, the ABH A170HDC083 hinge is an excellent choice for any professional or knowledgeable homeowner looking for quality and security.

Full Mortise Concealed Geared Continuous Hinge, Heavy Duty, Door Inset 1/8in, 1-9/16in Leafs, 83in, 628/C Clear Anodized

Features:

• Full Concealed, Heavy Duty
• 1/8" door inset
• 48" door width maximum
• 450 lbs. door weight maximum
• Average weight per unit = 11 lbs
• "LL" model for doors up to 1,000 lbs (lead-lined staggered hole pattern)
• Fasteners: 12-24 X 3/4" undercut self drilling, thread forming tek machine screws
• Standard Lengths: 79", 83", 85", 95" and 120"
• Fire Rating:
• Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specify "FR" option for 3 hour rating)
• Approved for use on wood swinging type fire doors rated up to and including 60 minutes (Specify "FR" option for 90 minute rating)
• Reinforcement:
• Door Side: Not required for door weight up to 200 lbs. ABH recommends a minimum 12 gauge plate/channel for heavier doors.
• Frame Side: Not required for door weight up to 200 lbs. For doors more than 200 lbs., a 16 gauge channel is recommended.

Finishes:

• Clear Anodized
• Dark Bronze Anodized
• Black Anodized
