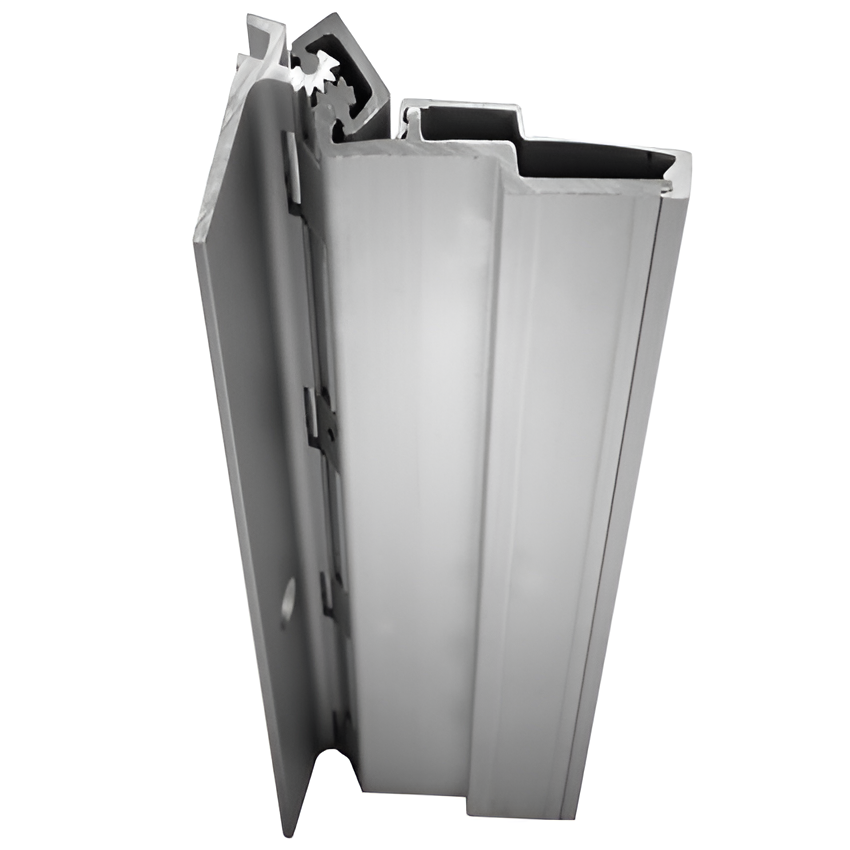

ABH A210HDC083 Heavy Duty Full Surface Geared Continuous Hinge, 83in, Clear Anodized

ABH Manufacturing Inc A210HDC083 Full Surface Geared Continuous Hinge is engineered for heavy-duty applications, ensuring both durability and functionality. With a BHMA Grade 1 rating, this full concealed hinge is designed for flush mount installation, making it an ideal choice for modern building standards. The hinge supports a maximum door weight of 450 lbs and accommodates door widths up to 48 inches, providing robust support for various door types. The A210HDC083 features a swing clear application, enhancing accessibility and ease of use. Crafted with precision, it includes fasteners like 2-24 X 3/4" undercut self-drilling screws for the frame and 1/4-20 sex bolts for the door, ensuring a secure installation. This hinge is also approved for use with metal and wood swinging fire doors, rated up to 90 minutes and 60 minutes respectively, with optional fire rating enhancements available. Customization options such as adjustable safety wedges, tamper-resistant features, and various finishes-including clear, dark bronze, and black anodized-allow for tailored solutions to meet specific needs. The A210HDC083 is not just a functional component; it’s a reliable choice for professional builders and discerning homeowners seeking superior hardware solutions.

Full Surface Geared Continuous Hinge Heavy Duty, Swing Clear, 83in, 628/C Clear Anodized

Features:

• BHMA Grade 1
• Full concealed, heavy duty
• No door inset, flush mount
• Swing Clear application
• 48" door width maximum
• 450 lbs. door weight maximum
• Average weight per unit = 14 lbs
• Fasteners: 2-24 X 3/4" undercut self drilling, thread-forming tek machine screws for frame and 1/4-20 sex bolts and shoulder bolts for door
• Standard Lengths: 79", 83", 85", 95" and 120"
• Fire Rating:
• Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specify "FR" option for 3 hour rating)
• Approved for use on wood swinging type fire doors rated up to and including 60 minutes (Specify "FR" option for 90 minute rating)
• Reinforcement:
• Door Side: Not required for door weight up to 200 lbs. ABH recommends a minimum 12 gauge plate/channel for heavier doors.
• Frame Side: Not required for door weight up to 200 lbs. For doors more than 200 lbs., a 16 gauge channel is recommended.

Options:

• FR: Fire studs
• WEDGE-FS: Adjustable safety wedge for full surface models
• AHT-FS: Advanced hospital tip for full surface ligature-resistant applications (specify handing)
• LR-BEAR: Ligature-resistant bearings
• DD: Dutch door prep
• SEC: Fasteners
• CUT: Cut to custom length
• TR: Tamper-resistant (hospital tip, every other bearing has a set screw) & security fasteners (specify door & frame material)
• TR-AHT-FS: Tamper-resistant (advanced hospital tip, every other bearing has a set screw) & security fasteners (specify door & frame material) for half/full surface
• SC: School cap
• SPLICE: Spliced hinge
• LL: Lead-lined cover (half surface & full surface - door leaf only)
• SL: Sheared leaf
• THICK: Special door thickness

Finishes:

• Clear anodized
• Dark bronze anodized
• Black anodized
