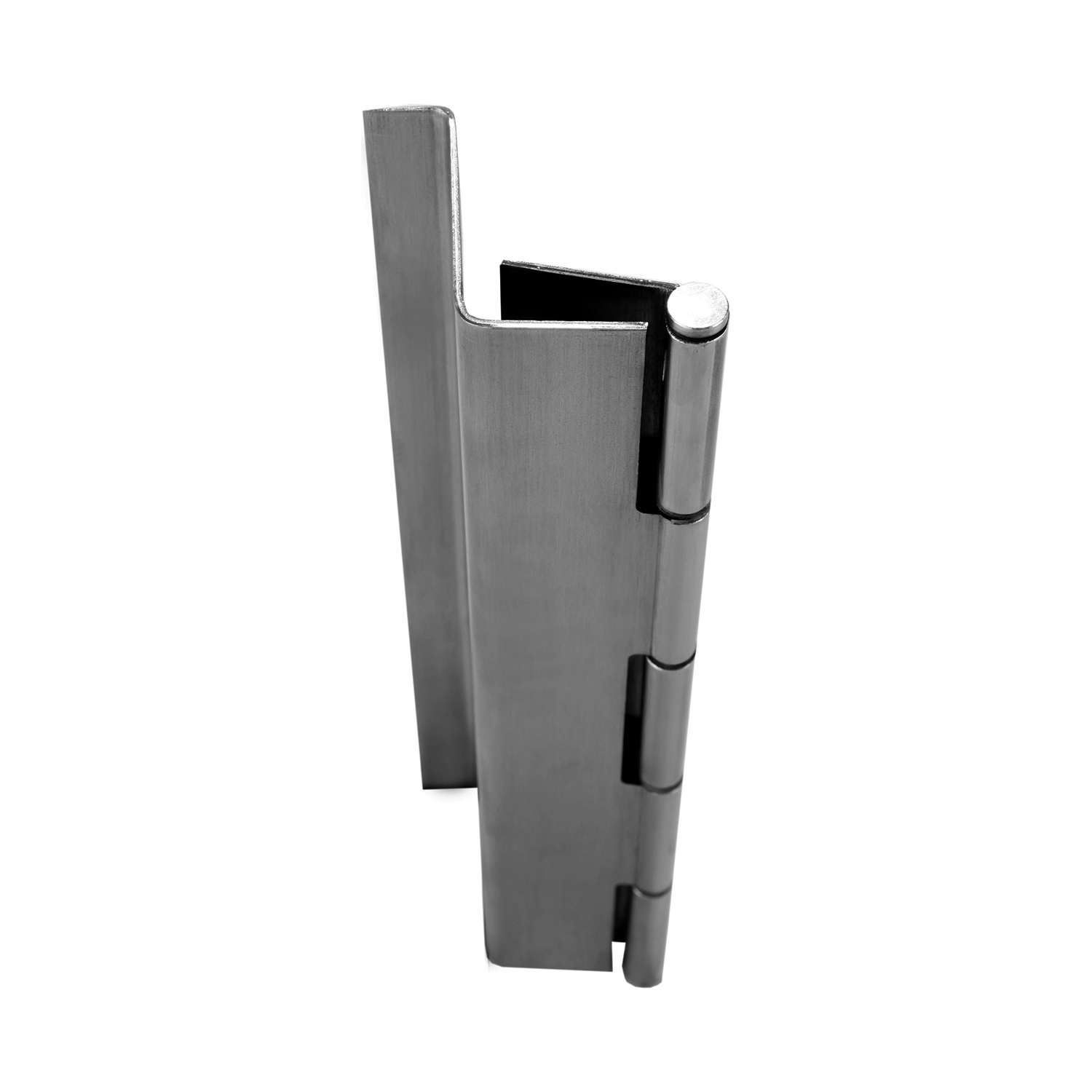

ABH A511118 Full Mortise Stainless Steel Pin Barrel Continuous Hinge, 14 Gauge, Bright Stainless SteelThe ABH A511118 Full Mortise Stainless Steel Pin Barrel Continuous Hinge is engineered for superior performance in high-demand environments. Designed with a swing clear application and a robust edge guard on the stop side, this 14-gauge hinge offers an innovative solution to enhance accessibility while ensuring door durability and safety.
Crafted from high-quality stainless steel, this hinge features a full concealed design that integrates seamlessly into flush-mounted doors, providing a sleek aesthetic without compromising strength. With a maximum load capacity of 600 lbs. and compatibility with doors up to 48 inches wide, the A511118 is suitable for various applications, including commercial and institutional settings.
Compliance is assured with a UL listing for fire door assemblies, offering fire ratings of 20 minutes for wood doors, 90 minutes for composite/hollow metal doors, and 3 hours for hollow metal units. The bright stainless steel finish (US32) not only enhances the hinge's visual appeal but also contributes to its resistance against corrosion and wear.
For easy installation, the hinge comes with stainless steel fasteners tailored for both undercut self-drilling and wood applications. Trust the ABH A511118 for your next project, where quality, reliability, and performance are paramount.
Full concealed heavy duty stainless steel pin and barrel continuous hinge with swing clear application and door edge guard on stop side only.
A511118: 14 Gauge, Swing Clear, No Inset, Flush Mount, Door Edge Guard
Key Features
- Full Concealed Design
- 14 Gauge
- Swing Clear Application
- Edge Guard Stop Side
Specifications
| Model | A511118 |
|---|
| Finish | Bright Stainless Steel |
|---|
| Finish Code | US32 |
|---|
| Length (in) | 118.75 |
|---|
| Family | A511 |
|---|
| Material | Stainless steel pin and barrel |
|---|
| Finishes | US32, US32D, Custom Finishes Available |
|---|
| Standard Lengths | 78¾", 83⅛", 85", 95", 118¾" |
|---|
| Edge Protection | Door edge guard on stop side only |
|---|
| Door Inset | No inset, flush mount |
|---|
| Load Capacity | 600 lbs. door weight maximum |
|---|
| Door Width | 48" maximum |
|---|
| Weight | 14 lbs. average per unit |
|---|
| Fasteners | #10-24 x3/4" undercut self-drilling stainless steel screws, #10 x 1-1/4" undercut wood screws stainless steel |
|---|
| Fire Rating | UL Listed for Fire Door Assemblies - 20 min (wood), 90 min (composite/hollow metal), 3 hr (hollow metal) |
|---|
Swing clear with targeted edge protection on stop side.
Features
- 14 Gauge
- Edge Guard Stop Side
- Swing Clear Application
- Full Concealed Design
Attributes
Ship via: No UPS - Common Carrier Only
BRAND_ NAME: ABH
Door Inset: No inset, flush mount
Door Width: 48" maximum
Edge Protection: Door edge guard on stop side only
Family: A511
Fasteners: #10-24 x3/4" undercut self-drilling stainless steel screws, #10 x 1-1/4" undercut wood screws stainless steel
Finish: Bright Stainless Steel
Finish Code: US32
Finishes: US32, US32D, Custom Finishes Available
Fire Rating: UL Listed for Fire Door Assemblies - 20 min (wood), 90 min (composite/hollow metal), 3 hr (hollow metal)
Length (in): 118.75
Load Capacity: 600 lbs. door weight maximum
Material: Stainless steel pin and barrel
Model: A511118
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard Lengths: 78¾", 83⅛", 85", 95", 118¾"
Weight: 14 lbs. average per unit
