ABH A515RB118 Full Mortise Stainless Steel Pin Barrel Continuous Hinge, 14 Gauge, Satin StainlessThe ABH A515RB118 Full Mortise Stainless Steel Pin Barrel Continuous Hinge is expertly engineered for applications requiring maximum door support and durability. Constructed from 14-gauge stainless steel, this heavy-duty hinge features a full concealed design with no inset, ensuring a flush mount that enhances aesthetic appeal while maintaining functionality. The raised barrel design accommodates deep reveals, making it suitable for a variety of door types.
Designed specifically for high-traffic environments, this hinge provides full-length support and features an edge guard on the stop side to protect against pinch points and wear. It has a remarkable load capacity of up to 600 lbs., making it ideal for heavy doors up to 48 inches wide. The satin stainless steel finish (US32D) not only offers a sleek look but also ensures resistance against corrosion and wear.
Compliance is paramount; the A515RB118 is UL Listed for fire door assemblies with ratings of 20 minutes for wood doors, 90 minutes for composite or hollow metal doors, and 3 hours for hollow metal doors. Choose the ABH A515RB118 for a reliable, durable, and aesthetically pleasing solution for your commercial door hardware needs.
A515RB Full Mortise Continuous Hinge – A stainless steel pin-and-barrel continuous hinge with an edge guard on the stop side, designed to provide full-length door support, enhanced durability, and protection against pinch points. Ideal for high-traffic openings requiring smooth operation and long-term performance.

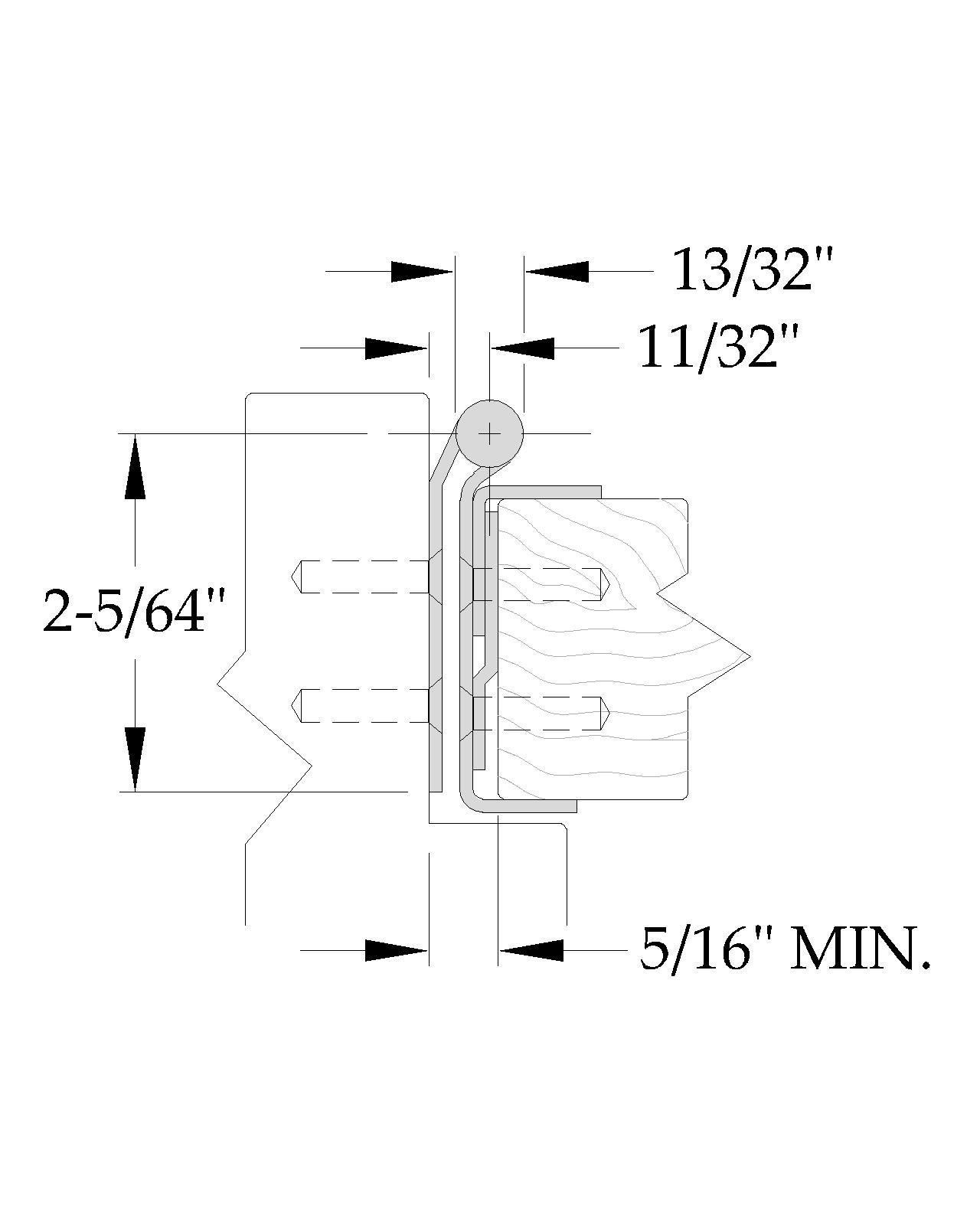

A515RB118: 14 Gauge, Full Concealed, No Inset, Flush Mount, Door Edge Guard, (Stop Side Only), Raised Barrel
Key Features
- Full Concealed
- 14 Gauge
- Heavy Duty
- Raised Barrel (Swaged) for Door Set Back in Deep Reveals
Specifications
| Model | A515RB118 |
|---|
| Finish | Satin Stainless Steel |
|---|
| Finish Code | US32D |
|---|
| Length (in) | 118.75 |
|---|
| Family | A515RB |
|---|
| Material | Stainless steel pin and barrel |
|---|
| Finishes | US32, US32D, Custom Finishes Available |
|---|
| Standard Lengths | 78¾", 83⅛", 85", 95", 118¾" |
|---|
| Door Inset | No inset, flush mount |
|---|
| Edge Protection | Door edge guard on stop side only |
|---|
| Load Capacity | 600 lbs. door weight maximum |
|---|
| Door Width | 48" maximum |
|---|
| Weight | 13 lbs. average per unit |
|---|
| Fasteners | 10-24 x 7/8" undercut, self-drilling, thread-forming tek machines screws, stainless steel and #10 x 1-1/4" undercut, wood screws, stainless steel |
|---|
| Fire Rating | UL Listed for Fire Door Assemblies - 20 min (wood), 90 min (composite/hollow metal), 3 hr (hollow metal) |
|---|
Features
- 14 Gauge
- Full Concealed
- Heavy Duty
- Raised Barrel (Swaged) for Door Set Back in Deep Reveals
Attributes
Ship via: No UPS - Common Carrier Only
BRAND_ NAME: ABH
Door Inset: No inset, flush mount
Door Width: 48" maximum
Edge Protection: Door edge guard on stop side only
Family: A515RB
Fasteners: 10-24 x 7/8" undercut, self-drilling, thread-forming tek machines screws, stainless steel and #10 x 1-1/4" undercut, wood screws, stainless steel
Finish: Satin Stainless Steel
Finish Code: US32D
Finishes: US32, US32D, Custom Finishes Available
Fire Rating: UL Listed for Fire Door Assemblies - 20 min (wood), 90 min (composite/hollow metal), 3 hr (hollow metal)
Length (in): 118.75
Load Capacity: 600 lbs. door weight maximum
Material: Stainless steel pin and barrel
Model: A515RB118
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard Lengths: 78¾", 83⅛", 85", 95", 118¾"
Weight: 13 lbs. average per unit
