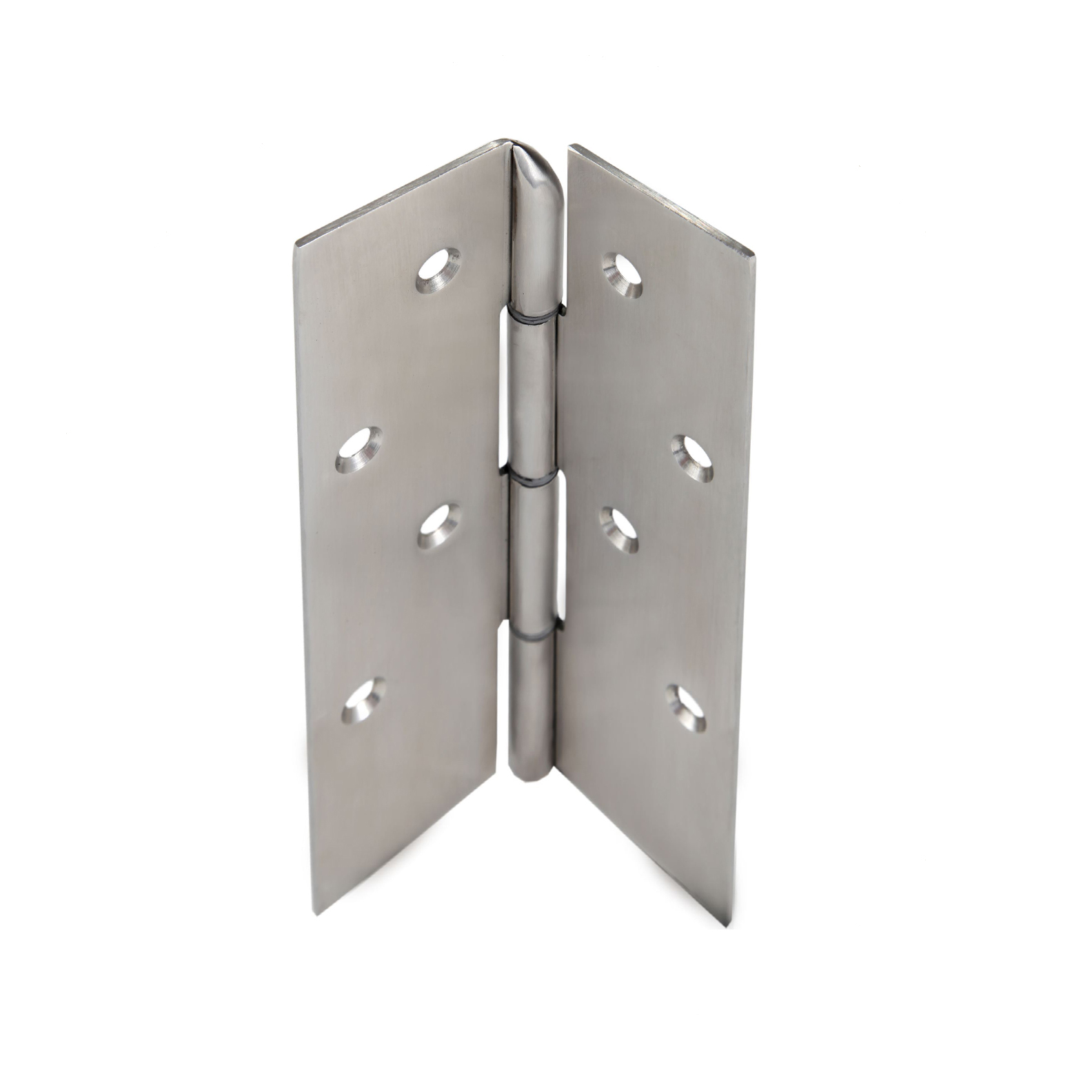

ABH A5500078 Full Mortise Stainless Steel Continuous Hinge - 12 Gauge, 1/8" Inset, Satin SSThe ABH A5500078 Full Mortise Stainless Steel Continuous Hinge is engineered for exceptional performance in high-demand environments. Constructed from 12 gauge 304 stainless steel, this hinge delivers an impressive load capacity of 900 lbs, making it an ideal choice for heavy-duty applications such as commercial doors and high-traffic areas.
Designed for a full concealed installation with a 1/8" inset, this hinge maintains a sleek aesthetic while ensuring maximum operational durability. Its satin stainless steel finish (US32D) not only enhances its visual appeal but also provides excellent corrosion resistance, ensuring longevity in various environments.
Each hinge is UL Listed for fire door assemblies, offering a fire rating of up to 3 hours for hollow metal doors, making it compliant with stringent safety standards. With compatibility for doors up to 2-1/4" thick and a maximum width of 48", the A5500078 is versatile enough to meet diverse architectural needs.
Ideal for architects, contractors, and facility managers seeking reliable and robust hardware solutions, the ABH A5500078 hinge represents a commitment to quality and performance, ensuring your projects are equipped with durable and compliant hardware.
Full concealed 12 gauge 304 stainless steel continuous hinge with 900 lb load capacity providing extra heavy duty performance for demanding applications.
A5500078: 12 Gauge, 1/8" Inset
Key Features
- 12 Gauge 304 Stainless Steel
- Extra Heavy Duty
- Full Concealed
Specifications
| Model | A5500078 |
|---|
| Finish | Satin Stainless Steel |
|---|
| Finish Code | US32D |
|---|
| Length (in) | 78.75 |
|---|
| Family | A5500 |
|---|
| Material | 12 gauge 304 stainless steel |
|---|
| Finishes | US32, US32D, Custom Finishes Available |
|---|
| Standard Lengths | 78¾", 83⅛", 85", 95", 118¾" |
|---|
| Load Capacity | 900 lbs. door weight maximum |
|---|
| Door Inset | 1/8" inset |
|---|
| Door Width | 48" maximum |
|---|
| Door Thickness | Up to 2-1/4" thick |
|---|
| Weight | 14.5 lbs. average per unit |
|---|
| Fasteners | 12-24 x 1/2" undercut machine screws, stainless steel |
|---|
| Fire Rating | UL Listed for Fire Door Assemblies - 20 min (wood), 90 min (composite/hollow metal), 3 hr (hollow metal) |
|---|
Extra heavy duty 12 gauge construction with 900 lb load capacity.
Features
- Extra Heavy Duty
- Full Concealed
- 12 Gauge 304 Stainless Steel
Attributes
BRAND_ NAME: ABH
Door Inset: 1/8" inset
Door Thickness: Up to 2-1/4" thick
Door Width: 48" maximum
Family: A5500
Fasteners: 12-24 x 1/2" undercut machine screws, stainless steel
Finish: Satin Stainless Steel
Finish Code: US32D
Finishes: US32, US32D, Custom Finishes Available
Fire Rating: UL Listed for Fire Door Assemblies - 20 min (wood), 90 min (composite/hollow metal), 3 hr (hollow metal)
Length (in): 78.75
Load Capacity: 900 lbs. door weight maximum
Material: 12 gauge 304 stainless steel
Model: A5500078
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard Lengths: 78¾", 83⅛", 85", 95", 118¾"
Weight: 14.5 lbs. average per unit
