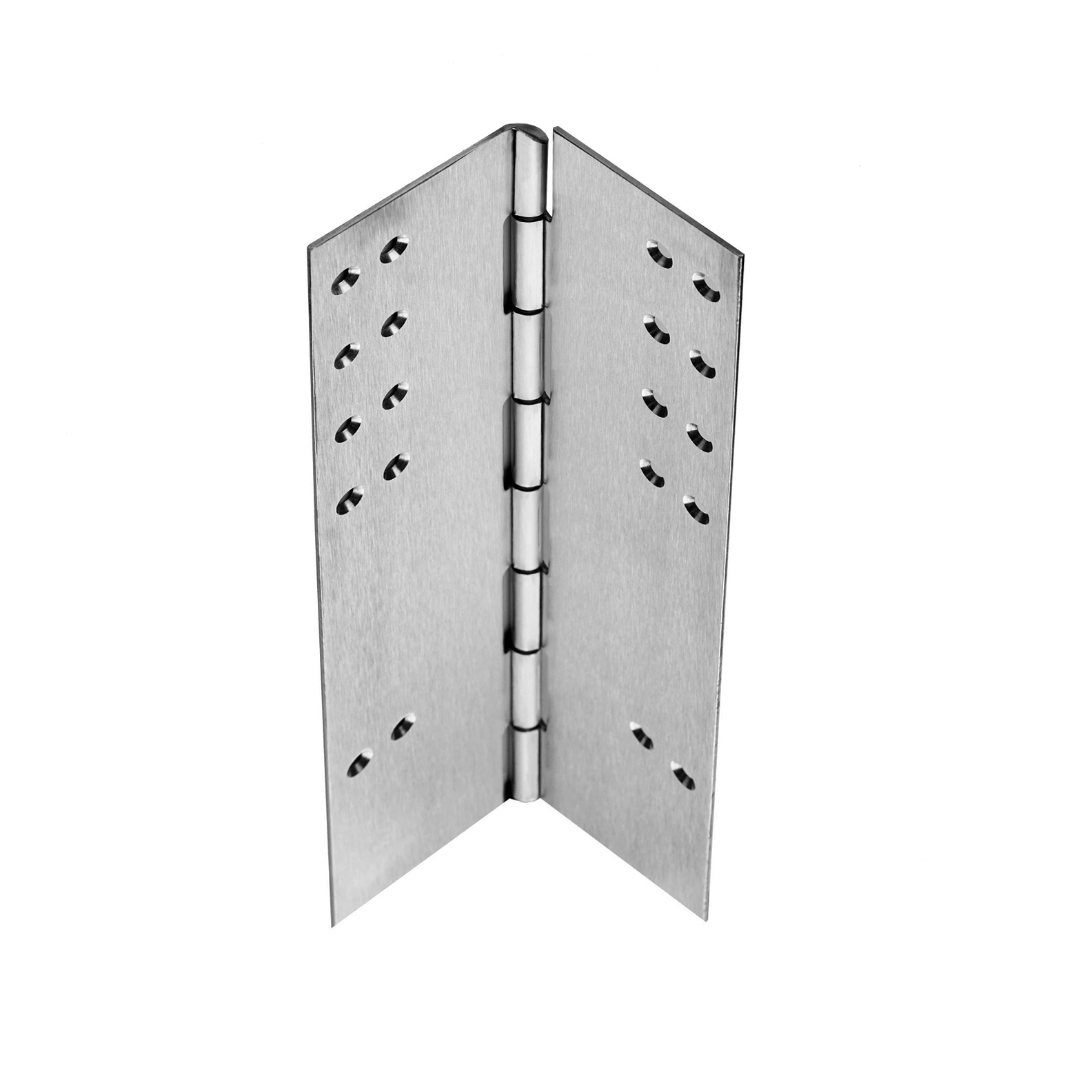

ABH A5500WT078 Heavy Duty Full Mortise Stainless Steel Continuous Hinge - 12 Gauge, Satin Finish

The ABH A5500WT078 Full Mortise Stainless Steel Continuous Hinge is engineered for heavy-duty performance, making it an ideal choice for high-traffic commercial environments. Constructed from robust 12-gauge stainless steel, this hinge provides exceptional durability and strength, supporting doors up to 600 lbs. with a maximum width of 48 inches.

Designed with a full concealed feature, the A5500WT078 offers a clean and aesthetically pleasing appearance while ensuring seamless operation. The wide throw design accommodates applications requiring extra clearance, providing up to 5 inches from the center of the barrel to the edge of the hinge leaf. This is particularly beneficial for installations where door swing and frame clearance are critical.

The hinge is finished in a satin stainless steel (US32D), ensuring both corrosion resistance and a modern look that complements a variety of architectural designs. Additionally, it is UL Listed for fire door assemblies, providing reliable performance for 20 minutes in wood, 90 minutes in composite/hollow metal, and up to 3 hours in hollow metal applications.

Available in multiple lengths, including standard options of 78¾", 83⅛", 85", 95", and 118¾", the ABH A5500WT078 is customizable to meet specific project requirements. Enhance your door hardware solutions with this top-tier continuous hinge.

Full concealed heavy duty 12 gauge stainless steel continuous hinge with 1/8" inset. It is wide throw for applicatons that need extra clearance for the door or the frame (5" maximum from center of barrel to edge of hinge leaf).

A5500WT078: 12 Gauge, Wide Throw, Custom, 1/8" Inset

Key Features

• Full Concealed Design
• 12 Gauge Construction
• Heavy Duty Performance

Specifications

The use of a caster on the lock side of tall or heavier doors is recomended to help carry to offset load

Features

• Heavy Duty Performance
• Full Concealed Design
• 12 Gauge Construction
