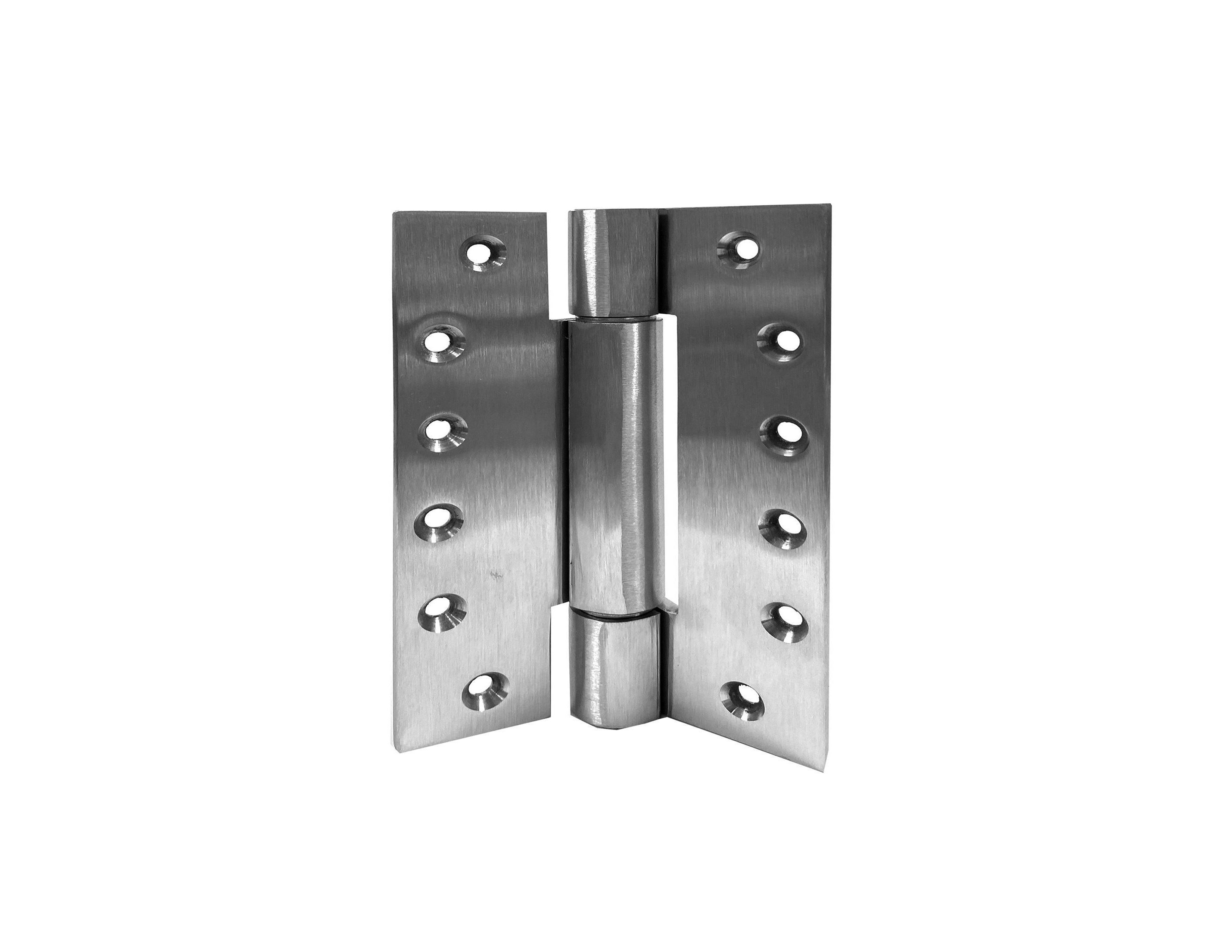

ABH A561LS Self-Closing Gate Hinge - 6" x 4", Full Mortise, Spring, 600 lbs, Bright Stainless SteelThe ABH A561LS Self-Closing Gate Hinge is expertly designed for demanding applications, featuring a robust construction that ensures durability and performance. Measuring 6" x 4", this full mortise, spring-loaded hinge accommodates a maximum load capacity of 600 lbs, making it ideal for heavy doors in commercial settings. Engineered from 304 stainless steel with a thickness of 0.1875" (3/16"), it not only provides strength but also offers resistance to corrosion, ensuring longevity.
This hinge is tested to an impressive 2,500,000 cycles, demonstrating its reliability for high-traffic environments. The adjustable closing speed allows for tailored performance, accommodating varying user needs while maintaining ADA compliance with a maximum opening force of just 5 lbs. With dual mounting options, it can be installed as either a full mortise or surface mount, offering versatility for different applications.
Finished in bright stainless steel (US32), the A561LS enhances the aesthetic appeal of any entryway while providing security and functionality. Please note that this non-handed design is not listed for fire-rated doors, and it is advisable to consult the factory for hinge quantity requirements. Experience peace of mind with the ABH A561LS, your reliable solution for self-closing gate applications.
Stainless steel heavy duty self-closing hinge with dual mounting options providing automatic door return functionality with adjustable closing speed for demanding applications.
A561LS: 6" x 4", Full Mortise, Spring Hinges-Self Closing, 600 lbs. Load Capacity, (May Vary by Application -, Contact Factory)
Key Features
- Self-Closing Spring Hinge
- 2,500,000 Cycle Tested
- ADA Compliant (5 lbs)
- Adjustable Closing Speed
- Dual Mount Options - Full mortise or surface mount
- A561LS is the Less Spring, Self Open Option
Specifications
| Model | A561LS |
|---|
| Finish | Bright Stainless Steel |
|---|
| Finish Code | US32 |
|---|
| Family | A561 / A561LS |
|---|
| Material | 304 stainless steel, 0.1875" (3/16") thickness |
|---|
| Finish Options | US32, US32D, Custom Finishes Available |
|---|
| Hinge Size | 6" x 4" |
|---|
| Thickness | 0.1875" (3/16") |
|---|
| Load Capacity | 600 lbs. maximum door weight |
|---|
| Door Width | 48" maximum |
|---|
| Spring Adjustability | Between 3 lbs. and 14 lbs. |
|---|
| Cycle Testing | Tested to 2,500,000 cycles |
|---|
| Fasteners | 8) 12-24 x 3/4" Philips Flat Head Machine Screw / 8) #12 x 1-1/2" Philips Flat Head Sheet Metal Screw |
|---|
Non-handed design. Not listed for fire-rated doors. Check with factory for hinge quantity requirements.
Features
- Self-Closing Spring Hinge
- ADA Compliant (5 lbs)
- Dual Mount Options - Full mortise or surface mount
- Adjustable Closing Speed
- A561LS is the Less Spring, Self Open Option
- 2,500,000 Cycle Tested
Attributes
BRAND_ NAME: ABH
Cycle Testing: Tested to 2,500,000 cycles
Door Width: 48" maximum
Family: A561 / A561LS
Fasteners: 8) 12-24 x 3/4" Philips Flat Head Machine Screw / 8) #12 x 1-1/2" Philips Flat Head Sheet Metal Screw
Finish: Bright Stainless Steel
Finish Code: US32
Finish Options: US32, US32D, Custom Finishes Available
Hinge Size: 6" x 4"
Load Capacity: 600 lbs. maximum door weight
Material: 304 stainless steel, 0.1875" (3/16") thickness
Model: A561LS
Spring Adjustability: Between 3 lbs. and 14 lbs.
Thickness: 0.1875" (3/16")
