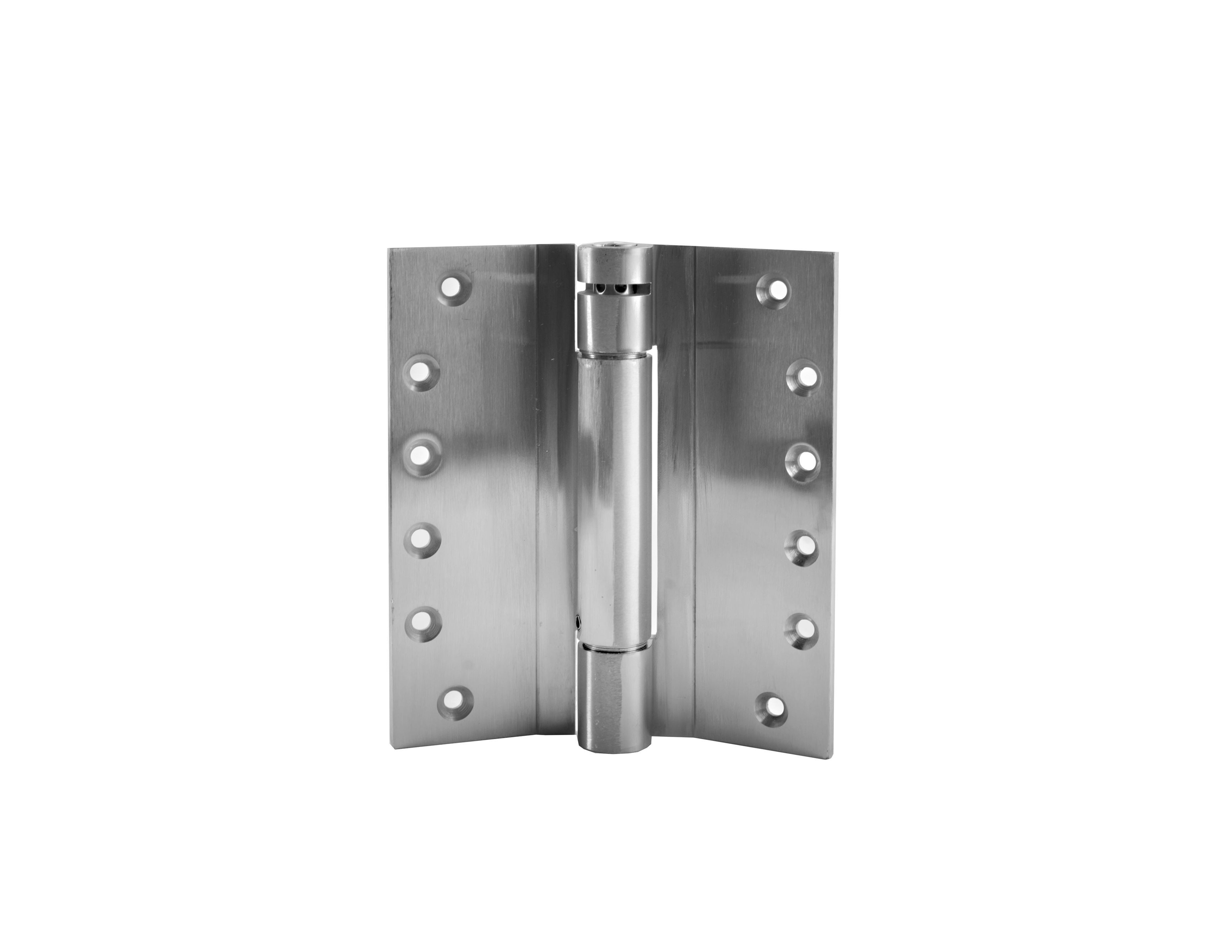

ABH A563 Self-Closing Gate Hinge, 6" x 5" or 6" x 4", Satin Stainless Steel, 600 lbs.The ABH A563 Self-Closing Gate Hinge is engineered for durability and reliability in the most demanding applications. Available in sizes 6" x 5" and 6" x 4", this spring hinge can be specified for either full mortise or full surface mounting, providing flexibility for various gate configurations. Constructed from high-quality 304 stainless steel with a thickness of 0.1875" (3/16"), this hinge is built to withstand a maximum load capacity of 600 lbs, making it ideal for heavy-duty gates.
Designed to enhance functionality, the A563 features an adjustable closing speed, allowing for customized operation to meet specific user needs. With 2,500,000 cycle testing, this hinge guarantees long-lasting performance. It is also ADA compliant, ensuring ease of use for all individuals.
The satin stainless steel finish not only offers a sleek appearance but also provides resistance to corrosion, making it suitable for both indoor and outdoor applications. It is important to note that the hinge is not listed for fire-rated doors. For optimal performance, please consult with the factory regarding hinge quantity requirements.
Choose the ABH A563 Self-Closing Gate Hinge for a reliable solution that combines strength, functionality, and aesthetic appeal.
Stainless steel heavy duty self-closing hinge with multiple mounting options providing automatic door return functionality with adjustable closing speed for heavy gate applications.
A563: 6" x 4", Full Mortise or Full Surface (Specify), Spring Hinges-Self Closing, 600 lbs. Load Capacity, (May Vary by Application -
Key Features
- Self-Closing Spring Hinge
- 2,500,000 Cycle Tested
- ADA Compliant (5 lbs)
- Adjustable Closing Speed
- Dual Mount Options - Full mortise or surface mount
- A563LS is the Less Spring, Self Open Option
Specifications
| Model | A563 |
|---|
| Finish | Satin Stainless Steel |
|---|
| Finish Code | US32D |
|---|
| Family | A563 / A563LS |
|---|
| Material | 304 stainless steel, 0.1875" (3/16") thickness |
|---|
| Finishes | US32, US32D, Custom Finishes Available |
|---|
| Load Capacity | 600 lbs. maximum door weight |
|---|
| Hinge Size | 6" x 5" |
|---|
| Door Width | 48" maximum |
|---|
| Thickness | 0.1875" (3/16") |
|---|
| Spring Adjustability | Between 3 and 14 lbs. |
|---|
| Mounting Configurations | A563 self-closing surface mounted, A563LS less spring full surface flush mount, A563 full mortise self-closing, A563LS less spring full mortise |
|---|
| Fasteners | 8) 12-24 x 3/4" Philips Flat Head Machine Screw / 8) #12 x 1-1/2" Philips Flat Head Sheet Metal Screw |
|---|
Ships as single assembled piece. Not listed for fire-rated doors. Check with factory for hinge quantity requirements.
Features
- Self-Closing Spring Hinge
- ADA Compliant (5 lbs)
- A563LS is the Less Spring, Self Open Option
- Dual Mount Options - Full mortise or surface mount
- Adjustable Closing Speed
- 2,500,000 Cycle Tested
Attributes
BRAND_ NAME: ABH
Door Width: 48" maximum
Family: A563 / A563LS
Fasteners: 8) 12-24 x 3/4" Philips Flat Head Machine Screw / 8) #12 x 1-1/2" Philips Flat Head Sheet Metal Screw
Finish: Satin Stainless Steel
Finish Code: US32D
Finishes: US32, US32D, Custom Finishes Available
Hinge Size: 6" x 5"
Load Capacity: 600 lbs. maximum door weight
Material: 304 stainless steel, 0.1875" (3/16") thickness
Model: A563
Mounting Configurations: A563 self-closing surface mounted, A563LS less spring full surface flush mount, A563 full mortise self-closing, A563LS less spring full mortise
Spring Adjustability: Between 3 and 14 lbs.
Thickness: 0.1875" (3/16")
