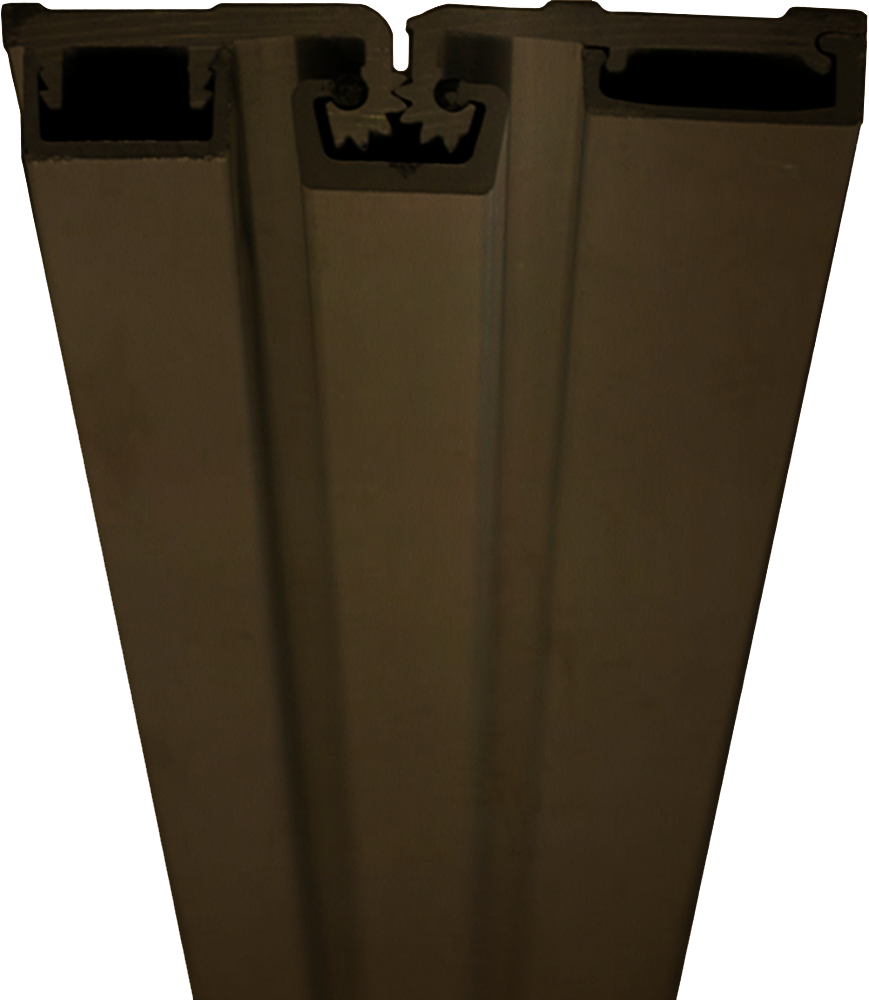

ABH A570HDD095 Full Surface Geared Continuous Hinge, Heavy Duty, 95in, 690/D Dark Bronze

ABH Manufacturing Inc A570HDD095 Full Surface Geared Continuous Hinge is engineered for durability and performance, making it an ideal choice for heavy-duty applications. This hinge boasts a robust construction from extruded 6063-T6 aluminum alloy, complemented by polyacetal thrust bearings for smooth operation. With a generous length of 95 inches, it is designed to support doors up to 450 lbs, ensuring reliability in high-traffic environments. Available in an elegant dark bronze anodized finish, this hinge is not only functional but also aesthetically pleasing, blending seamlessly with various architectural styles. It accommodates 1-3/4" doors and is suitable for flush aluminum, glass rail, hollow metal, or wood doors. The hinge is non-handed, offering versatility in installation, while custom hole locations can be tailored to meet specific project requirements. For added security, the A570HDD095 is UL Listed for use with 3-hour rated doors when installed with a steel stud, making it a great choice for fire-rated applications. Reinforcement is recommended for frames over 200 lbs with a 16 GA channel, ensuring structural integrity. The screw detail includes durable self-drilling thread-forming screws and sex bolts for a reliable installation, providing a comprehensive solution for your continuous hinge needs.

Full Surface Geared Continuous Hinge, Heavy Duty, 95in, 690/D Dark Bronze

Features:

• Material: Extruded 6063-T6 Aluminum Alloy with Polyacetal Thrust Bearings
• Color: 30 Minute Clear Anodized and 2-Step Dark Bronze Anodized
• Custom Hole Locations: Hole Sizes & Locations per Customer Specifications.
• Door Type For 1-3/4" Doors, Standard & Heavy Duty up to 450 lbs. 7/8" MIN. FRAME
• Door Reinforcement: None Required
• Frame Reinforcement: Over 200 lbs. Reinforce with 16 GA. Channel.
• Special Features: For use with Flush Aluminum, Glass Rail Hollow Metal or Wood Doors.
• Hinge King: Templated and Hole Pattern is the same from Hinge to Hinge.
• Handing: Hinge is Non-Handed Unless Cut in the Field.
• Fire Rating: UL Listed for up to 3 Hour Rated Doors with use of a Steel Stud.
• Screw Detail: 12-24 x 11/16" PH. F.H. Undercut Self Drilling Thread Forming TEK Screw & 1/4-20 x 1-9/16L. x3/8 Dia. Sex-Bolt with 1/4-20 × 1" PH. Head Shoulder Screws. For the Door.
