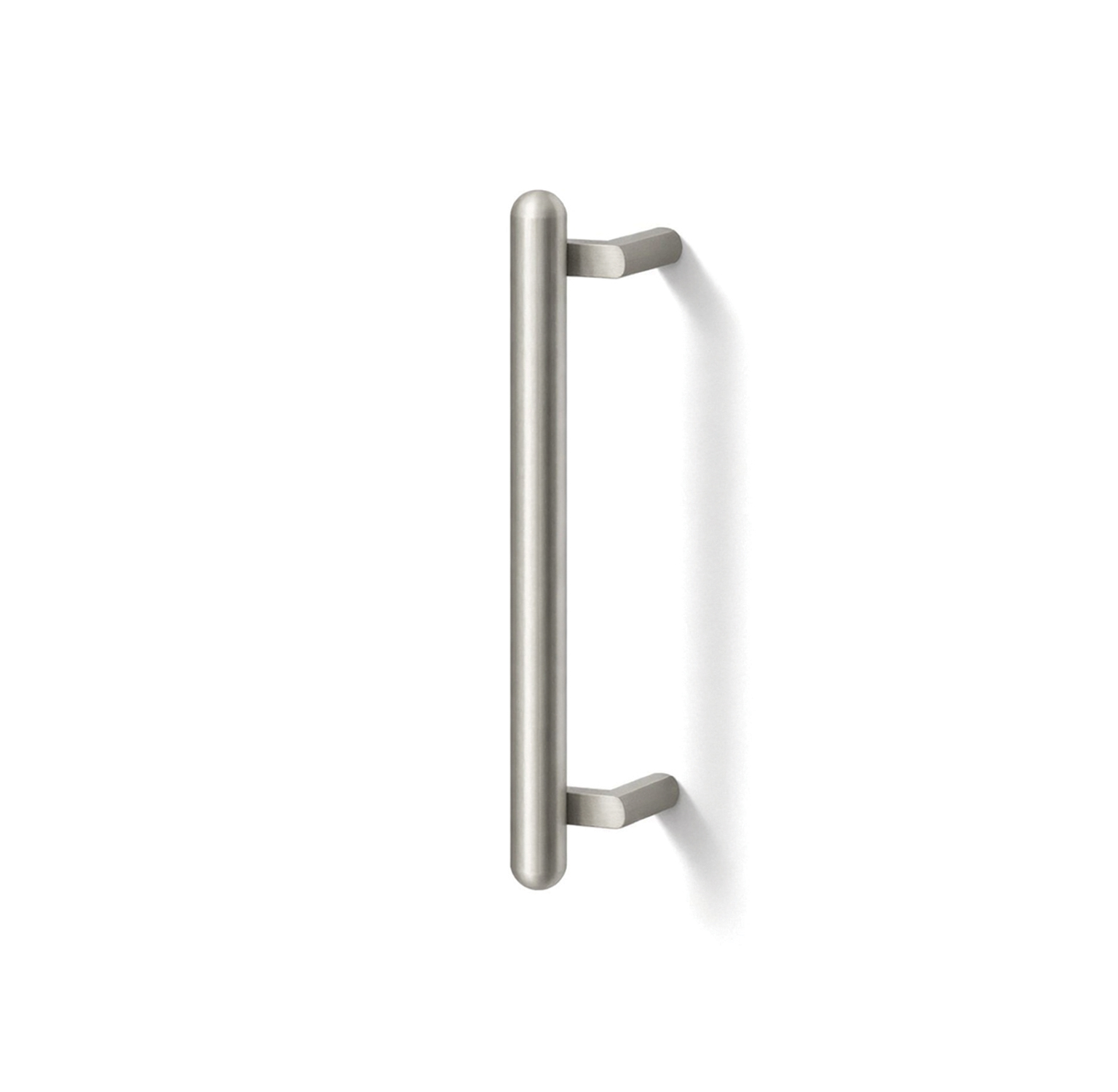

ABH AB1270-5 Offset Small Pull, Stainless Steel, 5/8" Diameter, 6-7/8"-1/2", Satin Stainless SteelThe ABH AB1270-5 Offset Small Pull is a sophisticated addition to any commercial space, designed with architects, contractors, and facility managers in mind. Crafted from high-quality stainless steel, this pull features a sleek satin finish (US32D) that not only enhances its modern aesthetic but also ensures durability and resistance to corrosion. With a 5/8" diameter and round ends, the pull provides a comfortable grip for users, making it an ideal choice for a variety of applications, including glass, wood, and metal doors.
This versatile pull measures 6.875 inches in length and is available with multiple mounting options, including back-to-back and single side mounting, making it adaptable to different door configurations. The AB1270-5 is suitable for doors ranging from ½" glass to 2-1/4" wood or metal, allowing for seamless integration into existing structures.
In addition to its aesthetic appeal, the AB1270-5 complies with industry standards and offers customizable length options from 5" to 30", accommodating various design specifications. Engraving options are also available for personalized touches. Elevate your project with the ABH AB1270-5 Offset Small Pull, where functionality meets modern design.
Offset Small Pull, Stainless Steel, Round Ends, 5/8" Diameter, 6-7/8"- 1/2", Satin Stainless Steel
Offset stainless steel small pull with round grip and round ends, providing modern and smooth design, available in two grip size progressions
AB1270-5: AB1270-5 - 6 ⅞"- ½"
Key Features
Specifications
| Model | AB1270-5 |
|---|
| Finish | Satin Stainless Steel |
|---|
| Finish Code | US32D |
|---|
| Length (in) | 6.875 |
|---|
| Family | AB1270 |
|---|
| Material | Stainless steel |
|---|
| Finishes | US32, US32D, Custom Finishes Available |
|---|
| Diameter | 5/8" |
|---|
| Projection | 1-7/8" |
|---|
| Length Options | 6-7/8", 7-7/8", 9-7/8", 11-7/8", 13-7/8", 19-7/8", 25-7/8", 31-7/8" (Custom available) |
|---|
| Mounting Options | BTB (Back-to-Back), S (Single Side Mounting) |
|---|
| Door Options | 1/2" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal) |
|---|
| Engraving Options | Back-to-back (Push/Pull), Single side only (Push/Pull) |
|---|
| C to C Options | 5" - 30" |
|---|
Features
Attributes
BRAND_ NAME: ABH
C to C Options: 5" - 30"
Diameter: 5/8"
Door Options: ½" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal)
Engraving Options: Back-to-back (Push/Pull), Single side only (Push/Pull)
Family: AB1270
Finish: Satin Stainless Steel
Finish Code: US32D
Finishes: US32, US32D, Custom Finishes Available
Length (in): 6.875
Length Options: 6⅞", 7⅞", 9⅞", 11⅞", 13⅞", 19⅞", 25⅞", 31⅞" (Custom available)
Material: Stainless steel
Model: AB1270-5
Mounting Options: BTB (Back-to-Back), S (Single Side Mounting)
Projection: 1-7/8"
