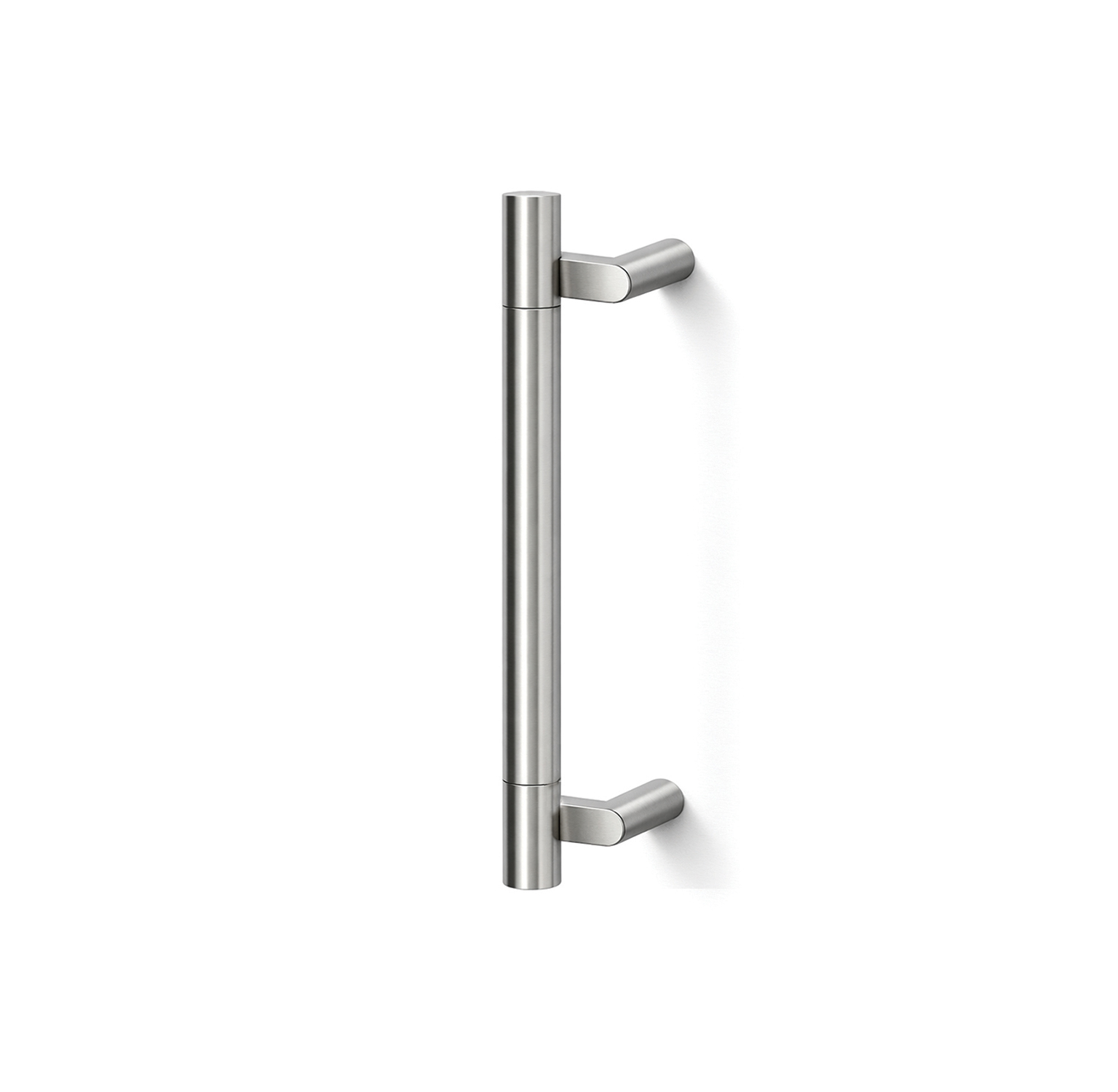

ABH AB1330-8 Offset Small Pull, Stainless Steel, 5/8" Diameter, 9-7/8"-1/2", Bright FinishThe ABH AB1330-8 Offset Small Pull is an exquisite addition to any commercial setting, combining both functionality and modern aesthetics. Crafted from high-quality stainless steel, this small pull features a sleek design with flat ends and a comfortable 5/8" diameter grip, ensuring ease of use while enhancing the overall look of your doors. Measuring 9.875" in length, it is ideal for various applications, including glass, wood, and metal doors, with options for ½", 1-3/4", and 2-1/4" thicknesses.
This small pull is available in a bright stainless steel finish (US32), which not only provides a polished appearance but also ensures durability and resistance to corrosion. The AB1330-8 model is designed for rigorous daily use, making it suitable for high-traffic environments such as office buildings, retail spaces, and educational institutions.
With flexible mounting options, including back-to-back and single side mounting configurations, this pull can be easily installed to meet your specific needs. Additionally, custom lengths and finishes are available, allowing architects and contractors to tailor the pull to their project specifications. Elevate your door hardware with the ABH AB1330-8 Offset Small Pull, merging modern design with robust performance.
Offset Small Pull, Stainless Steel, Flat Ends, 5/8" Diameter, 9-7/8"- 1/2", Bright Stainless Steel
Offset stainless steel small pull with round grip and flat ends, providing modern and smooth design, available in two grip size progressions
AB1330-8: AB1330-8 - 9 ⅞"- ½"
Key Features
Specifications
| Model | AB1330-8 |
|---|
| Finish | Bright Stainless Steel |
|---|
| Finish Code | US32 |
|---|
| Length (in) | 9.875 |
|---|
| Family | AB1330 |
|---|
| Material | Stainless steel |
|---|
| Finishes | US32, Custom Finishes Available |
|---|
| Diameter | 5/8" |
|---|
| Projection | 1-7/8" |
|---|
| Length Options | 6-7/8", 7-7/8", 9-7/8", 11-7/8", 13-7/8", 19-7/8", 25-7/8", 31-7/8" (Custom available) |
|---|
| Mounting Options | BTB (Back-to-Back), S (Single Side Mounting) |
|---|
| Door Options | 1/2" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal) |
|---|
| Engraving Options | Back-to-back (Push/Pull), Single side only (Push/Pull) |
|---|
| C to C Options | 5" - 30" |
|---|
Features
Attributes
BRAND_ NAME: ABH
C to C Options: 5" - 30"
Diameter: 5/8"
Door Options: ½" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal)
Engraving Options: Back-to-back (Push/Pull), Single side only (Push/Pull)
Family: AB1330
Finish: Bright Stainless Steel
Finish Code: US32
Finishes: US32, Custom Finishes Available
Length (in): 9.875
Length Options: 6⅞", 7⅞", 9⅞", 11⅞", 13⅞", 19⅞", 25⅞", 31⅞" (Custom available)
Material: Stainless steel
Model: AB1330-8
Mounting Options: BTB (Back-to-Back), S (Single Side Mounting)
Projection: 1-7/8"
