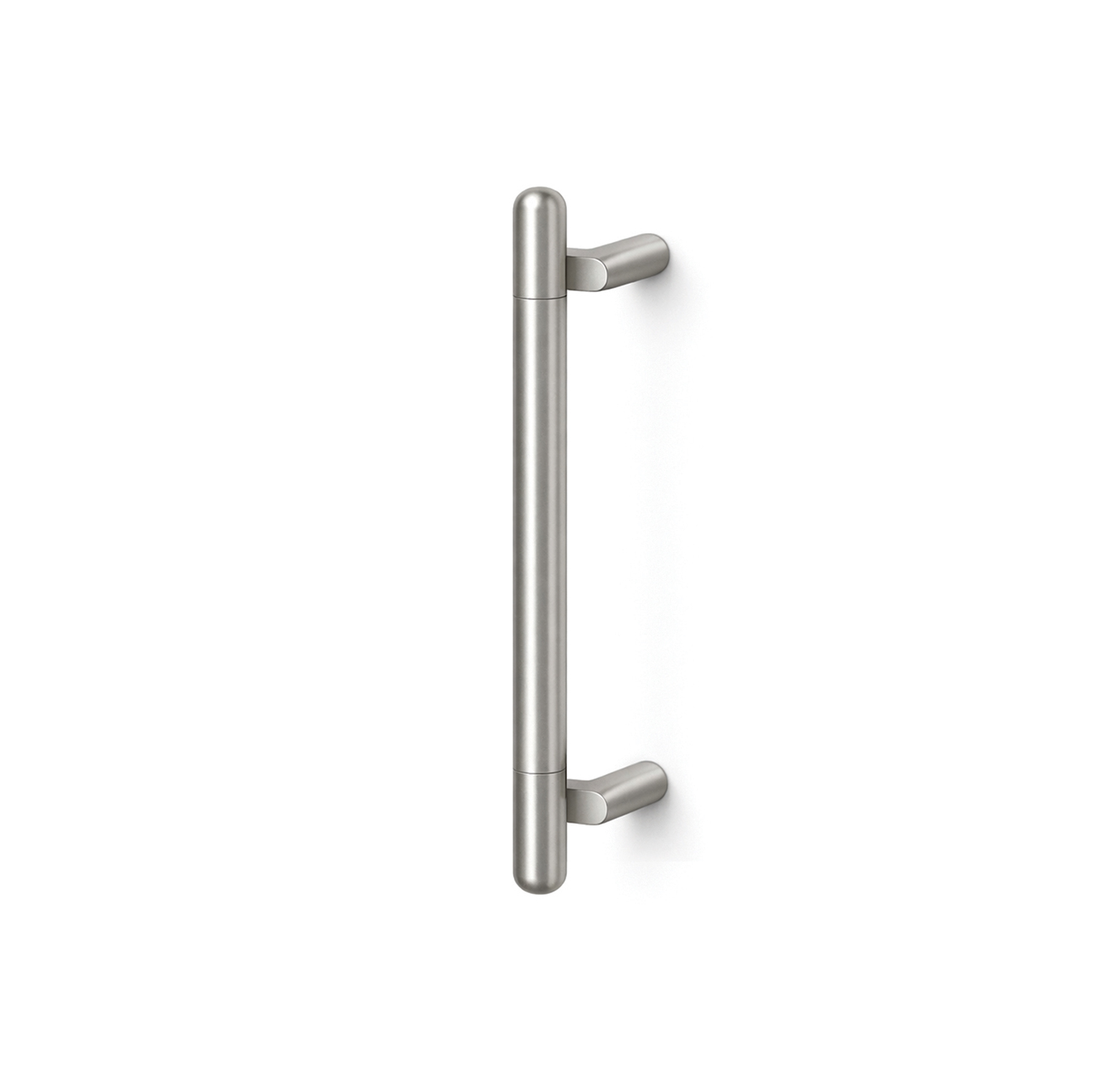

ABH AB1370-8 Offset Small Pull, Stainless Steel, 5/8" Diameter, 9-7/8"-1/2", Bright FinishThe ABH AB1370-8 Offset Small Pull is a sophisticated addition to commercial door hardware, designed for architects, contractors, and facility managers seeking both style and functionality. Crafted from robust stainless steel, this pull features a bright finish (US32) that not only enhances aesthetic appeal but also ensures durability in high-traffic environments.
Measuring 9.875 inches in length with a 5/8-inch diameter, the round grip and rounded ends provide a modern touch while ensuring a comfortable hold. This small pull is ideal for various door types, accommodating thicknesses of ½ inch for glass and up to 2-¼ inches for wood or metal doors. The mounting options include Back-to-Back (BTB) and Single Side Mounting (S), allowing for versatile installation based on specific project needs.
Compliance with industry standards ensures this product meets the high demands of commercial applications. With custom finish options available, the AB1370-8 can seamlessly integrate into any design scheme. Additionally, engraving options allow for personalized customization, making this pull not only functional but also a unique branding opportunity. Elevate your project’s design and accessibility with the ABH AB1370-8 Offset Small Pull.
Offset Small Pull, Stainless Steel, Round Ends, 5/8" Diameter, 9-7/8"- 1/2", Bright Stainless Steel
Offset stainless steel small pull with round grip and round ends, providing modern and smooth design, available in two grip size progressions
AB1370-8: AB1370-8 - 9 ⅞"- ½"
Key Features
Specifications
| Model | AB1370-8 |
|---|
| Finish | Bright Stainless Steel |
|---|
| Finish Code | US32 |
|---|
| Length (in) | 9.875 |
|---|
| Family | AB1370 |
|---|
| Material | Stainless steel |
|---|
| Finishes | US32, Custom Finishes Available |
|---|
| Diameter | 5/8" |
|---|
| Projection | 1-7/8" |
|---|
| Length Options | 6-7/8", 7-7/8", 9-7/8", 11-7/8", 13-7/8", 19-7/8", 25-7/8", 31-7/8" (Custom available) |
|---|
| Mounting Options | BTB (Back-to-Back), S (Single Side Mounting) |
|---|
| Door Options | 1/2" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal) |
|---|
| Engraving Options | Back-to-back (Push/Pull), Single side only (Push/Pull) |
|---|
| C to C Options | 5" - 30" |
|---|
Features
Attributes
BRAND_ NAME: ABH
C to C Options: 5" - 30"
Diameter: 5/8"
Door Options: ½" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal)
Engraving Options: Back-to-back (Push/Pull), Single side only (Push/Pull)
Family: AB1370
Finish: Bright Stainless Steel
Finish Code: US32
Finishes: US32, Custom Finishes Available
Length (in): 9.875
Length Options: 6⅞", 7⅞", 9⅞", 11⅞", 13⅞", 19⅞", 25⅞", 31⅞" (Custom available)
Material: Stainless steel
Model: AB1370-8
Mounting Options: BTB (Back-to-Back), S (Single Side Mounting)
Projection: 1-7/8"
