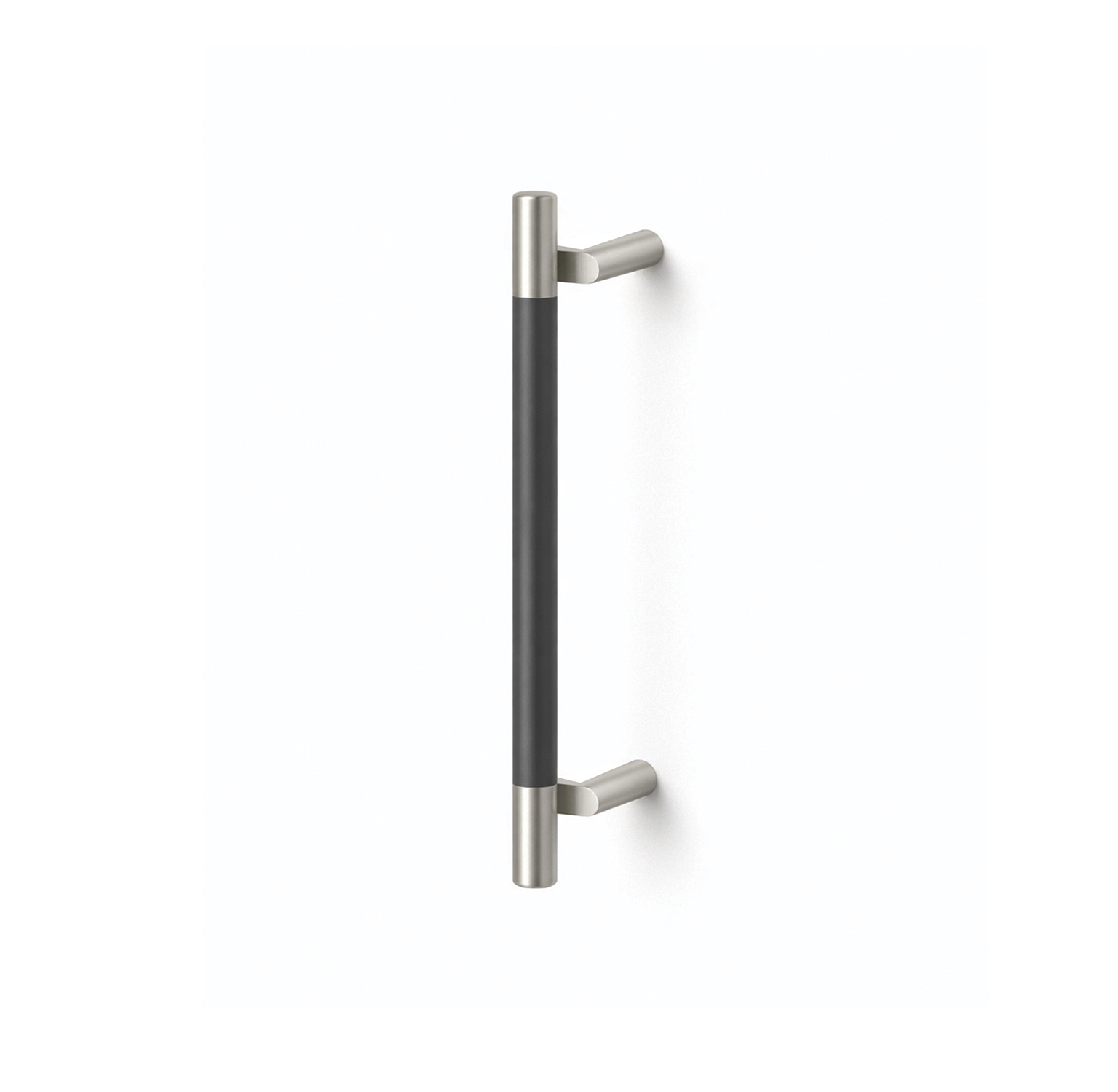

ABH AB1430-5 Offset Small Pull, Stainless Steel, Black Aluminum Grip, 5/8" Dia, 6-7/8"The ABH AB1430-5 Offset Small Pull combines sleek design with robust functionality, making it an ideal choice for modern architectural applications. Crafted from high-quality stainless steel, this pull features a bright finish (US32) that ensures durability and resistance to corrosion, suitable for both indoor and outdoor environments. The black anodized aluminum grip not only adds a striking aesthetic but also provides a comfortable and secure hold for users.
With a diameter of 5/8" and a length of 6.875", the AB1430-5 is designed for a variety of door types, including ½" glass and 1-3/4" or 2-1/4" wood or metal doors. Its flat ends enhance the contemporary appeal while ensuring easy maintenance and cleaning. The pull can be mounted using either a back-to-back (BTB) or single side mounting option, offering versatility in installation.
This small pull is compliant with industry standards, making it suitable for commercial environments that demand functionality and style. Available in custom finishes, the AB1430-5 can be tailored to meet specific project requirements. Elevate your space with the ABH Offset Small Pull, a perfect blend of form and function for architects, contractors, and facility managers alike.
Offset Small Pull, Stainless Steel, Black Aluminum Grip, Flat Ends, 5/8" Diameter, 6-7/8"- 5/8", Bright Stainless Steel
Offset stainless steel small pull with round grip and flat ends, providing modern and smooth design with the black anodized aluminum grip, available in two grip size progressions
AB1430-5: AB1430-5 - 6 ⅞"- ⅝"
Key Features
Specifications
| Model | AB1430-5 |
|---|
| Finish | Bright Stainless Steel |
|---|
| Finish Code | US32 |
|---|
| Length (in) | 6.875 |
|---|
| Family | AB1430 |
|---|
| Material | Stainless steel |
|---|
| Finishes | US32, US32D, Custom Finishes Available |
|---|
| Diameter | 5/8" |
|---|
| Projection | 1-7/8" |
|---|
| Length Options | 6-7/8", 7-7/8" (Custom available) |
|---|
| Mounting Options | BTB (Back-to-Back), S (Single Side Mounting) |
|---|
| Door Options | 1/2" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal) |
|---|
| Engraving Options | Back-to-back (Push/Pull), Single side only (Push/Pull) |
|---|
Features
Attributes
BRAND_ NAME: ABH
Diameter: 5/8"
Door Options: ½" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal)
Engraving Options: Back-to-back (Push/Pull), Single side only (Push/Pull)
Family: AB1430
Finish: Bright Stainless Steel
Finish Code: US32
Finishes: US32, US32D, Custom Finishes Available
Length (in): 6.875
Length Options: 6⅞", 7⅞" (Custom available)
Material: Stainless steel
Model: AB1430-5
Mounting Options: BTB (Back-to-Back), S (Single Side Mounting)
Projection: 1-7/8"
