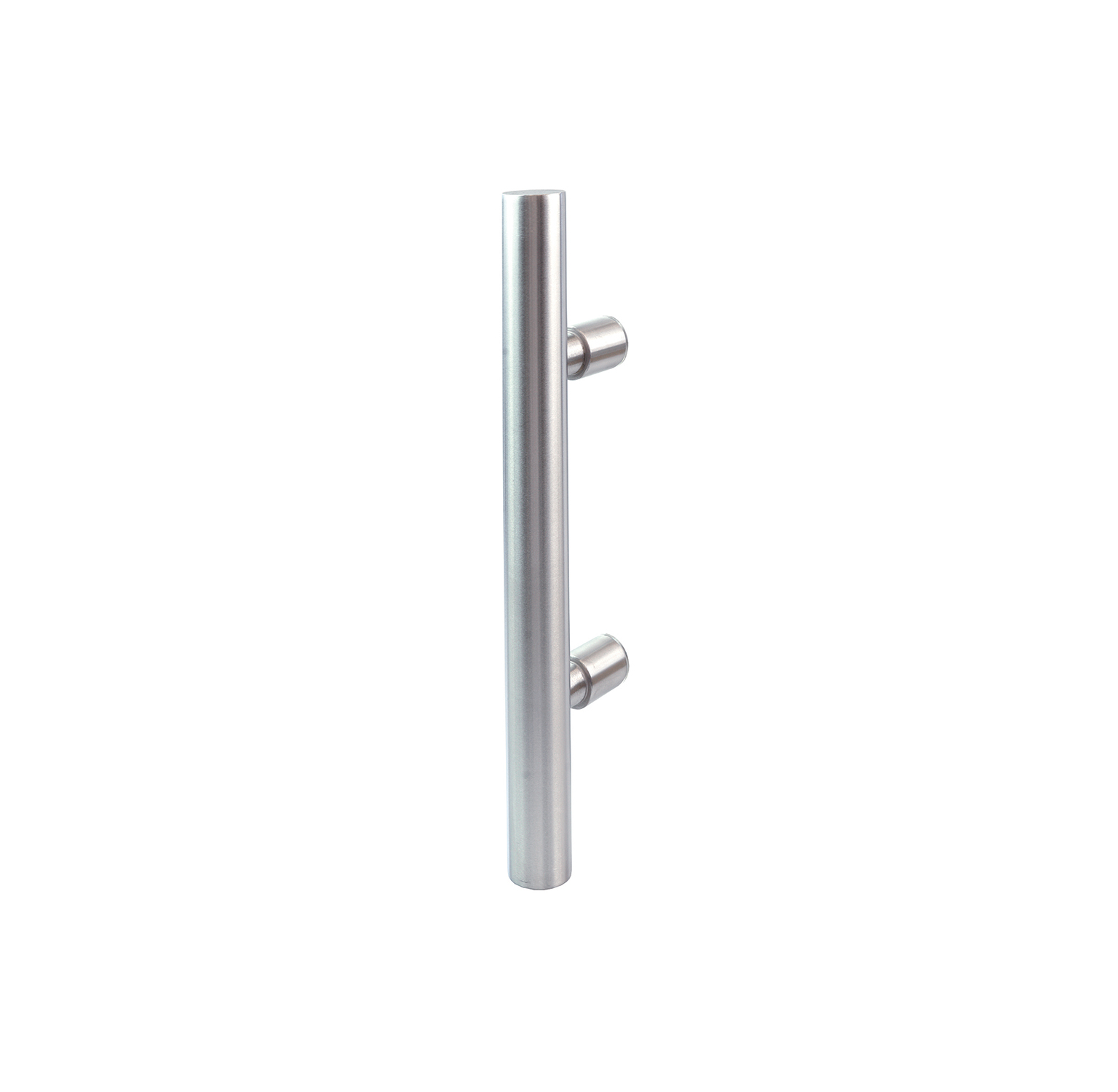

ABH AB2120-72 Straight Pull, Stepped Standoffs, Satin Grip, 72"-1-1/2", Satin Stainless SteelThe ABH AB2120-72 Straight Pull Handle is the ideal solution for architects, contractors, and facility managers seeking both functionality and aesthetic appeal. Crafted from high-quality satin stainless steel, this handle combines durability with a modern design, making it suitable for a variety of commercial applications including glass, wood, and metal doors.
Featuring stepped standoffs and satin grip sections, the AB2120-72 enhances tactile control, ensuring ease of use in high-traffic environments. The flat ends provide a sleek and sophisticated look, while the variable diameter options allow for customization that fits diverse design requirements. This model measures 72 inches in length, with a 1½-inch diameter, and is designed to accommodate door thicknesses of ½", 1¾", and 2¼".
Compliance with industry standards ensures reliability, and the satin finish (US32D) not only complements various architectural styles but also resists wear and tarnishing, maintaining visual appeal over time. Additional mounting options-including back-to-back (BTB) and single-side configurations-offer flexibility in installation. Custom lengths and finishes are also available, allowing for tailored solutions to meet specific project needs.
Choose the ABH AB2120-72 for a blend of durability, design, and performance in your commercial door hardware applications.
Straight Pull, Stepped Standoffs, Satin Grip, Flat Ends, Variable Diameter Options, 72"-1-1/2", Satin Stainless Steel
Straight pulls featuring stepped standoffs with satin grip sections providing enhanced tactile control and architectural detailing.
AB2120-72: AB2120-72 - 72"-1 ½"
Key Features
- Stepped Standoffs
- Satin Grip Sections
- Enhanced Tactile Control
Specifications
| Model | AB2120-72 |
|---|
| Finish | Satin Stainless Steel |
|---|
| Finish Code | US32D |
|---|
| Length (in) | 72 |
|---|
| Family | AB2110 / AB2120 |
|---|
| Material | Stainless steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, Custom Finishes Available |
|---|
| AB2110 | 1-1/4" Diameter, 3" Projection, 1-3/4" Clearance |
|---|
| AB2120 | 1-1/2" Diameter, 3-1/4" Projection, 1-3/4" Clearance |
|---|
| Length Options | 12", 24", 36", 48", 60", 72", 84", 96" (Custom available) |
|---|
| Mid Post | Standard for lengths over 72" |
|---|
| Mounting Options | BTB (Back-to-Back), S (Single Side Mounting) |
|---|
| Door Options | 1/2" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal) |
|---|
| Engraving Options | Back-to-back (Push/Pull), Single side only (Push/Pull) |
|---|
Custom door thickness available. Stepped standoffs with satin grip sections provide enhanced user control and comfort.
Features
- Enhanced Tactile Control
- Satin Grip Sections
- Stepped Standoffs
Attributes
AB2110: 1¼" Diameter, 3" Projection, 1¾" Clearance
AB2120: 1½" Diameter, 3¼" Projection, 1¾" Clearance
BRAND_ NAME: ABH
Door Options: ½" (Glass), 1¾" (Wood or Metal), 2¼" (Wood or Metal)
Engraving Options: Back-to-back (Push/Pull), Single side only (Push/Pull)
Family: AB2110 / AB2120
Finish: Satin Stainless Steel
Finish Code: US32D
Finishes: US3, US4, US9, US10, US10B, US32, US32D, Custom Finishes Available
Length (in): 72
Length Options: 12", 24", 36", 48", 60", 72", 84", 96" (Custom available)
Material: Stainless steel
Mid Post: Standard for lengths over 72"
Model: AB2120-72
Mounting Options: BTB (Back-to-Back), S (Single Side Mounting)
