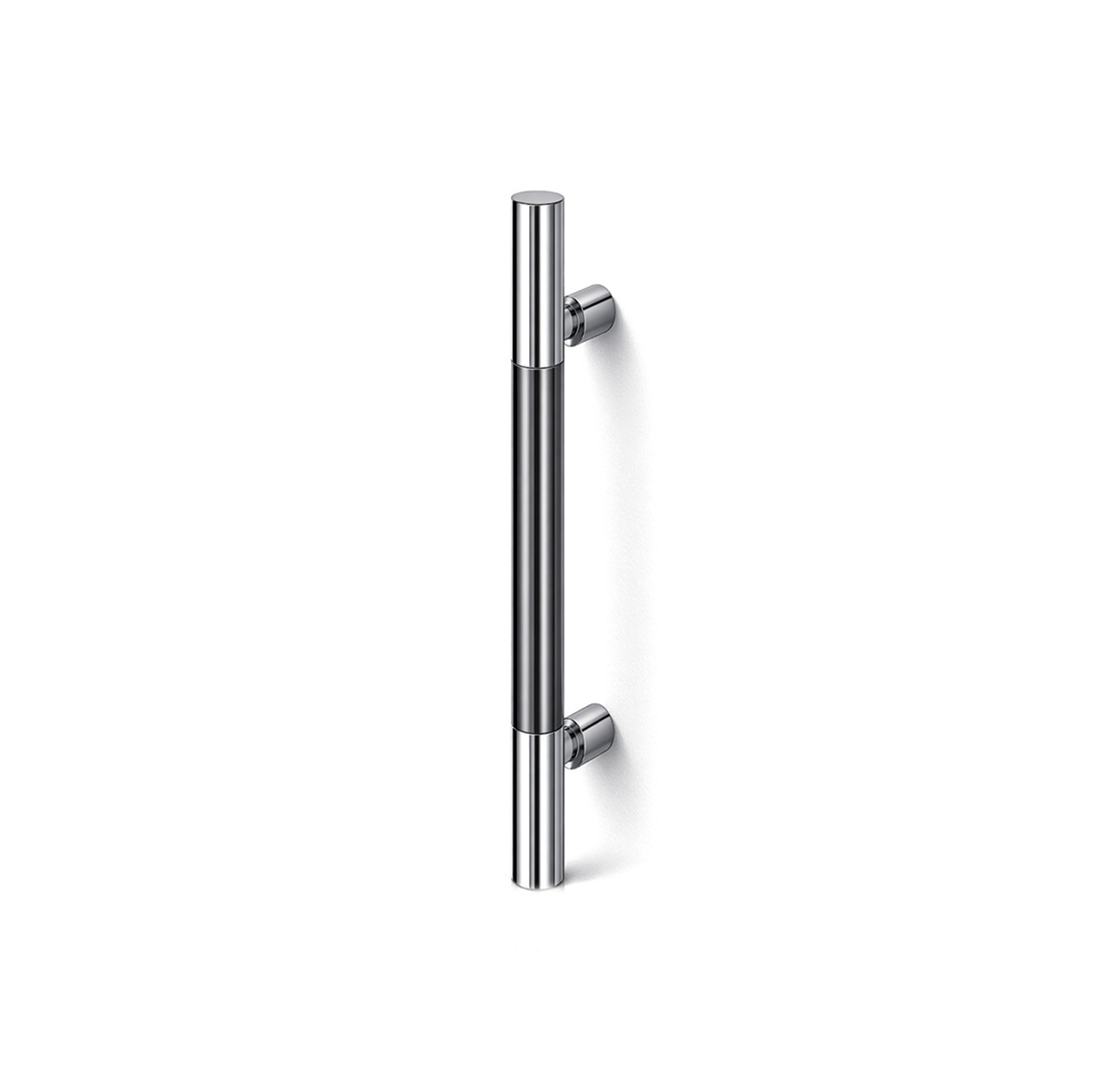

ABH AB2140-60 Straight Pull, Stepped Standoffs, Satin Grip, 60"-1-1/2", Bright Stainless SteelThe ABH AB2140-60 Straight Pull with Stepped Standoffs is an exemplary choice for architects, contractors, and facility managers seeking a combination of functionality and aesthetic appeal. Crafted from high-quality bright stainless steel, this hardware not only offers durability but also enhances the architectural detailing of any space.
With a length of 60 inches and a 1½-inch diameter, this straight pull features stepped standoffs with satin grip sections, providing users with enhanced tactile control and comfort. The versatile design accommodates various door types, including ½-inch glass and 1¾ to 2¼-inch wood or metal doors, making it ideal for both commercial and institutional applications.
The AB2140-60 complies with industry standards and offers customizable options for mounting, including back-to-back and single-side configurations. Available in a range of finishes, including US3, US4, US9, US10, US10B, and US32, this pull integrates seamlessly into any design scheme. Furthermore, custom lengths and finishes can be accommodated to meet specific project requirements.
Upgrade your door hardware solutions with the ABH AB2140-60, where quality meets functionality, ensuring both reliability and style in high-traffic environments.
Straight Pull, Stepped Standoffs, Satin Grip, Flat Ends, Variable Diameter Options, 60"-1-1/2", Bright Stainless Steel
Straight pulls featuring stepped standoffs with satin grip sections providing enhanced tactile control and architectural detailing.
AB2140-60: AB2140-60 - 60"-1 ½"
Key Features
- Stepped Standoffs
- Satin Grip Sections
- Enhanced Tactile Control
- Technical Specifications
Specifications
| Model | AB2140-60 |
|---|
| Finish | Bright Stainless Steel |
|---|
| Finish Code | US32 |
|---|
| Length (in) | 60 |
|---|
| Family | AB2130 / AB2140 |
|---|
| Material | Stainless steel |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, Custom Finishes Available |
|---|
| AB2130 | 1-1/4" Diameter, 3" Projection, 1-3/4" Clearance |
|---|
| AB2140 | 1-1/2" Diameter, 3-1/4" Projection, 1-3/4" Clearance |
|---|
| Length Options | 12", 24", 36", 48", 60", 72", 84", 96" (Custom available) |
|---|
| Mid Post | Standard for lengths over 72" |
|---|
| Mounting Options | BTB (Back-to-Back), S (Single Side Mounting) |
|---|
| Door Options | 1/2" (Glass), 1-3/4" (Wood or Metal), 2-1/4" (Wood or Metal) |
|---|
| Engraving Options | Back-to-back (Push/Pull), Single side only (Push/Pull) |
|---|
| C to C Options | 6" - 90" |
|---|
Custom door thickness available. Stepped standoffs with satin grip sections provide enhanced user control and comfort.
Features
- Enhanced Tactile Control
- Satin Grip Sections
- Stepped Standoffs
- Technical Specifications
Attributes
AB2130: 1¼" Diameter, 3" Projection, 1¾" Clearance
AB2140: 1½" Diameter, 3¼" Projection, 1¾" Clearance
BRAND_ NAME: ABH
C to C Options: 6" - 90"
Door Options: ½" (Glass), 1¾" (Wood or Metal), 2¼" (Wood or Metal)
Engraving Options: Back-to-back (Push/Pull), Single side only (Push/Pull)
Family: AB2130 / AB2140
Finish: Bright Stainless Steel
Finish Code: US32
Finishes: US3, US4, US9, US10, US10B, US32, Custom Finishes Available
Length (in): 60
Length Options: 12", 24", 36", 48", 60", 72", 84", 96" (Custom available)
Material: Stainless steel
Mid Post: Standard for lengths over 72"
Model: AB2140-60
Mounting Options: BTB (Back-to-Back), S (Single Side Mounting)
